Type Zero Tail
Operating Weight 8200 kg
Width 2270 mm
Digging Depth 4150 - 4500 mm
  • Agriculture
  • Demolition
  • Forestry
  • Landscaping
  • Recycling

Redefining performance in a midi excavator of this size, the ViO82 delivers maximum stability and exceptional lifting strength, even in confined urban work environments. The powerful and environmentally friendly engine comes with an electronic control unit, while the new-generation ViPPS2i® hydraulic system ensures smooth and precise operation. A large, comfortable cabin includes many ergonomic touches to minimise fatigue and maximise productivity, and there’s straightforward access to working components for easy maintenance and servicing.

Specifications

Specifications ViO82
Weight Transport weight 8125 kg
Operating Weight 8200 kg
Engine Type 4TNV98C-WBV1
Fuel Diesel
Net Power 39,3 kW / 52,7 HP at 1900 rpm
Gross Power 41,5 kW / 55,6 HP at 1900 rpm
Displacement 3.318 l
Max Torque 229 – 241 N.m
Starter 12 V - 3 kW
Battery 12 V – 115 Ah
Alternator 12 V – 80 A
Hydraulic System Maximum Pressure 258 bars
Working Pump 2 piston pumps with variable flow / 1 gear pump for pilot line
Max Flow 124,6 l/min / 124,6 l/min / 19 l/min
Hydraulic Tank 60 l
Performance Travel speed 2.5 / 5 km/h
Rotation Speed 9,4 rpm
Digging Force (arm) 40,8 kN
Digging Force (bucket) 63,5 kN
Traction Force n/a
Noise level (2000/14/CE & 2005/88/CE) Lwag: 98 dBA ; Lpag: 78 dBA
Fuel Tank 115 l

Dimensions


Dimensions ViO82
A Overall length 6 410 / 6 450 * mm
B Overall height 2 785 mm
C Overall width 2 270 mm
D Length of track on ground 2 290 mm
E Undercarriage length 2 890 mm
F Lane 1 870 mm
G Track width 450 mm
H Overall blade width 2 270 mm
I Overall blade height 435 mm
J Blade distance 1 990 mm
K Max. blade height above the ground 460 mm
L Max. lowering blade depth 480 mm
M Minimum ground clearance 390 mm

Dimensions ViO82
N Max. digging depth - Blade lifted 4 150 / 4 500 * mm
O Max. digging depth - Blade lowered 4 440 / 4 790 * mm
P Max. digging reach on ground 6 820 / 7 160 * mm
Q Max. digging reach 6 960 / 7 290 * mm
R Max vertical wall 3 800 / 4 130 * mm
S Max. dumping height 4 680 / 4 910 * mm
T Max. cutting height 6 790 / 7 020 * mm
U Boom swinging base to left 57°
V Boom swinging base to right 60°
W Arm length 1 650 / 2 000 * mm
X Minimum front swing radius 2 470 / 2 520 * mm
Y Minimum front swing radius with boom swing 2 130 / 2 170 * mm
Z Rear swing radius 1 135 mm

* with long arm

Features


COMPACTNESS

The ViO82 can go where other machines in its class can’t, and is particularly effective along walls in confined urban sites. It’s a true zero tail swing midi excavator, with neither the counterweight nor the front part of the upper frame projecting beyond the track width. Its size, smooth swing and excellent visibility with minimal blind spot mean that the safety of other on-site workers is never compromised. In addition, the X-shaped box-section structure of the undercarriage provides excellent torsional stiffness and the frame is designed to be ultra-robust.


NEW-GENERATION ViPPS2i® HYDRAULIC SYSTEM

The hydraulic system of the ViO82 is based on the aggregated power regulation of two independent variable flow piston pumps and a multiple combination directional control valve. The pumps are controlled individually according to the load and supply only the required quantity of hydraulic fluid for the task in hand. This reduces operator fatigue and minimises loss of hydraulic pressure, even during combined operations of arm and boom, thereby ensuring smooth and simultaneous performance across all operations.


HIGH STABILITY

Yanmar’s patented VICTAS® system provides increased support surface and extra tracking through the use of asymmetric crawlers. This innovative system also reduces track degradation, makes displacements quieter and reduces vibration, thereby reducing operator tiredness and making the machine more durable. With the help of the large counterweight and excellent weight distribution, this model matches or exceeds the stability of others in its weight class while demonstrating its exceptional lifting capacity.

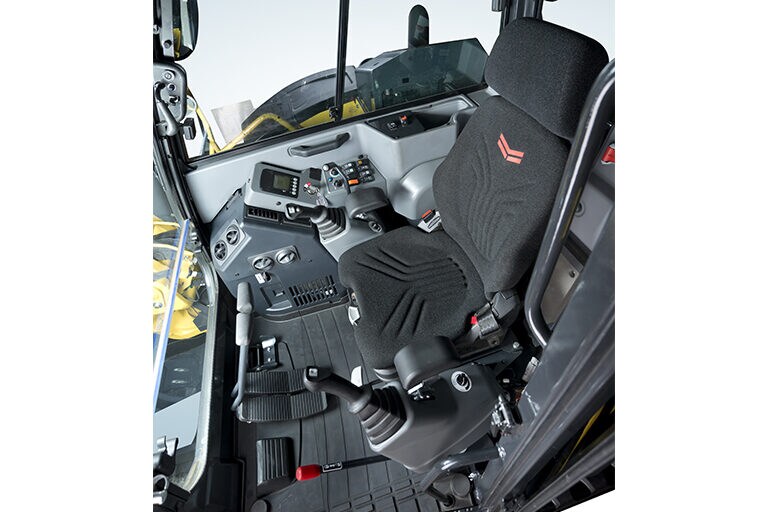

WELCOMING CABIN

The operator is at the forefront of considerations when it comes to design, with the roomy interior boasting an array of clever features. The air-suspended seat with headrest is fitted as standard and offers exceptional comfort for a machine of this class. There are adjustable wrist supports as well. Both the wide travel pedals and hydraulic control levers are fluid and easy to use, with the latter offering exceptional movement precision, a big advantage over long days on challenging work sites.


YANMAR ENGINE WITH DPF

A proven four-cylinder engine delivers net power of 39.3 kW at 1,900 rpm and features direct injection and a common rail system. At the same time, it delivers impressive fuel economy and offers a range of eco-friendly features, ensuring that it meets all EU standards for emissions. These include cooled exhaust gas recirculation (EGR), which greatly reduces nitrogen oxides, plus diesel particulate filter (DPF) for cleaner exhaust emissions. In addition, an exclusive regeneration system helps prevent clogging and cleaning down-time.

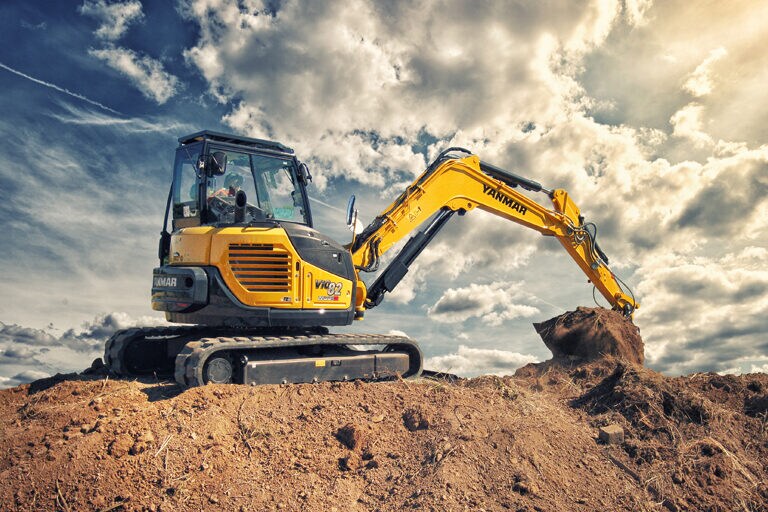

ELECTRONIC ENGINE CONTROLS

To optimise engine load, save on fuel and maximise productivity, an electronic control unit manages the rpm according to the torque. Advanced features that come as standard include an eco-mode feature to effectively control the engine speed and deliver even lower fuel consumption, in addition to reducing operating costs. Eco-mode is particularly effective in low-power and low-speed-of-movement scenarios. Also standard is an auto-deceleration system. This switches the engine to idle if the operator doesn’t touch the operating levers for four seconds.


EASY TO USE

Two auxiliary hydraulic lines come as standard on the ViO82. These offer proportional control and fine adjustment via joystick, adapting the hydraulic flow of oil to the requirements of each attachment and giving the operator perfect control at all times. The machine also has an automatic second speed for long displacements, while a power switch keeps it in first gear for challenging workplace operations such as ascending slopes.


RELIABILITY

Like all Yanmar machines, the ViO82 has an excellent reputation for quality and durability. Five hoods and openings ensure excellent accessibility to components for easy daily checks and fast maintenance and cleaning. The structure of the undercarriage and steel components also aids protection and ensures longer service life. Even the hose routing on the working equipment has been chosen for added durability. Measures such as these reduce downtime of the machine, increase service level and reduce total cost of ownership.

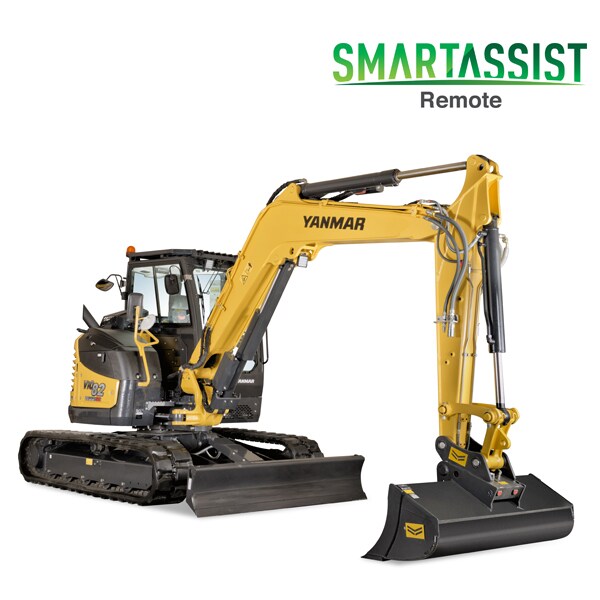

SMARTASSIST REMOTE

Available on the ViO82, SmartAssist Remote is a unique fleet management system developed by Yanmar. Featuring the latest telematic technology, this compact piece of equipment ensures optimal visibility on the location and status of your equipment. As well as aiding security and optimising maintenance scheduling, it helps maximise your work potential. By providing real-time information, it gives you total control and lets you monitor and manage your machines remotely via a PC or smartphone.

Options

EQUIPMENTS

  • Steel crawlers
  • Rubber pads for steel crawlers YCE – warranty 12 months
  • Long arm (+350mm)
  • Additional counterweight (+400 kg)
  • Clamshell bucket line
  • Hydraulic quick hitch line 150 -165 bar
  • Flat face hydraulic quick connectors
  • Standard biodegradable oil
  • 1 rear LED work light + 1 LED flashing rotary
  • 1 LED flashing rotary
  • Beacon light with magnetic base

SAFETY

  • Vinyl seat
  • Central greasing
  • Lifting certificate

COMFORT

  • FOPS 2 protection (front + top guard)
  • Removable battery cut-off switch
  • GPS trackunit ME501 standard
  • Special paint
