Horse Power 20 PS
Weight 755 kg
type Ride-on rice transplanter

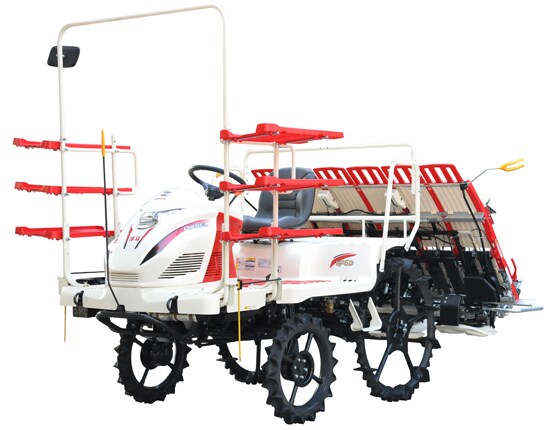

VP6D Transplanter
High efficiency and car like operation made easy

Features

Specifications

Models VP6D
Dimentions Overall length [mm] 3290
Overall width [mm] 2595
Overall Height [mm] 2330
Weight [kg] 755
Engine Type Water-cooled, 3 cylinder, 4cycle Diesel Engine
Model 3TNM72-CUP2
Max. output [kW(PS)] 15.4(20.9)/3200
Displacement [cc] 903
Fuel tank Capacity [Lit] 37
Traveling Section Type of wheel (Front) Puncture - free tires
Type of wheel (Rear) [f mm] Rubber covered two-side lugged tires
Wheel Diameter (Front) [mm] 650
Wheel Diameter (Rear) [mm] 950
Tread (Front) [mm] 1220
Tread (Rear) 1200
Number of gear stages 2 forward, 1 backward (HMT non-gear-stage transmission)
Transplanting speeds [m/sec.] 0 to 1.65 (slip ratio 0%)
Transplanting Section Number of transplanting rows at once 6
Transplanting Type Rotary type
Distance between each row 300
Transplanting pitch adjustment 4 Position
Distance between each plant [mm] 28, 20, 17, 15, 12
Number of plants 40, 55, 65, 75, 90
Transplanting depth 15 to 60 (7steps)
Controlling of Transplanting [mm] Automatic Leveling control (UFO)
Lifting type Hydraulic
No.of Spare seedling nursery 18 (6)
