HA SERIES

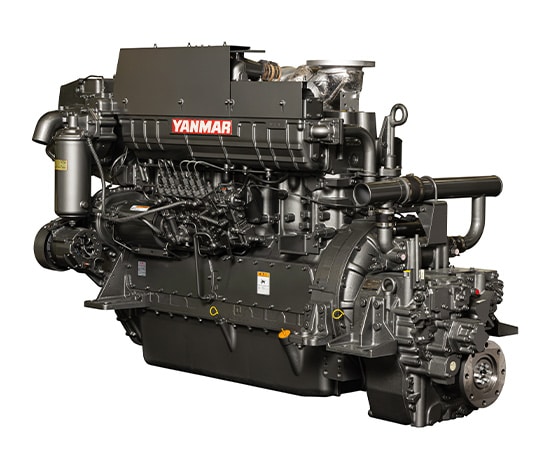

[6HA2M]

PRINCIPAL DATA

No.of Cylinder 4
Cylinder Bore 130mm
Stroke 165mm
Displacement [lit] 13.140
Combution system Direct injection
Aspiration Natural aspirated

Main Data

Specifications

Model 6HA2M-WHT 6HA2M-WDT
Rating H M M
Rated output [kW(mhp)/rpm] 204(278)/1880 257(350)/1950 298(405)/1950
Emission IMO TierⅡ
Starting system Electric starting motor (24V 6.0kW)
Cooling system Heat exchanger
Size of flywheel housing and flywheel SAE #1 and 14 in.
Dry mass (without marine gear) [kg] 1340 1350
Dimensions (L×W×H) [mm] 1585×1016×1260 1585×1036×1260

Marine gear specifications

Engine model 6HA2M-WHT
H-rating・M-rating
6HA2M-WDT
M-rating
Model YX-120 YX-120L YX-120 YX-120L
Type Hydraulic multi-disc clutch Hydraulic multi-disc clutch
Reduction ratio (Ahead) 2.03 2.57 3.04 3.55 4.00 4.59 2.03 2.57 3.04 3.46 4.00 4.59
Direction of rotation (propeller shaft) Clockwise or counterclockwise Clockwise or counterclockwise
Dry weight [kg] 315 411 315 411

Dimensions

Unit: mm

6HA2M-WHT

Model A B C D E F
6HA2M-WHT×YX-120 2005 420 1272 1016 499 517
6HA2M-WHT×YX-120L 2039 454 1384 1016 499 517

6HA2M-WDT

Model A B C D E F
6HA2M-WDT×YX-120 2005 420 1272 1036 519 517
6HA2M-WDT×YX-120L 2039 454 1384 1036 519 517
