Type Sugarcane Planter
weight [kg] 550 - 1000 kg

Applicable Tractor
Y2380SPK / Y2395SPK for EF725T

Features

New cultivation technology solution for higher yield and labor saving!
Multiple task in 1 step, Grooving → Seedling cutting → Planting → Fertilizing → Covering soil → Soil compression!

1. Deep planting helps seedling absorb water easily!
2. Deep planting broadens root areas leading to higher yield!
3. Deep planting is the best technology for multiple ratoon cultivation!


Save time and save labor!

Only supply long stems into the chopping cutter inlet with sitting.


Chopping cutter cuts stems to about 35 cm.


A large area planting work can be done properly, simultaneous fertilization enables early growth and good yield improvement.


Applicable to various soil conditions!

Planting depth can be adjusted to various types of soil by selecting adjustment level.
3levels: 20, 25, 30 cm (for 70 – 90 HP)
5levels: 20 – 33 cm (for 80 – 110 HP)


Latest technology for multiple ratoon cultivation!

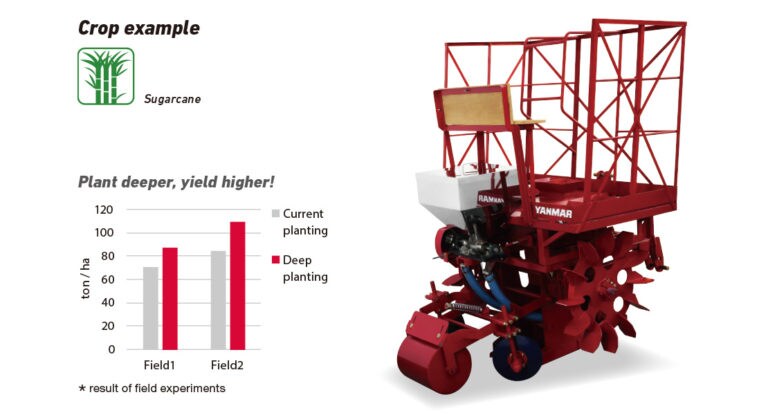

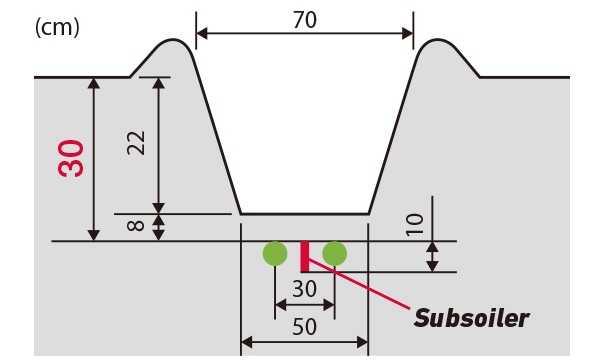

30 cm deep planting broadens root areas leading to higher yield.

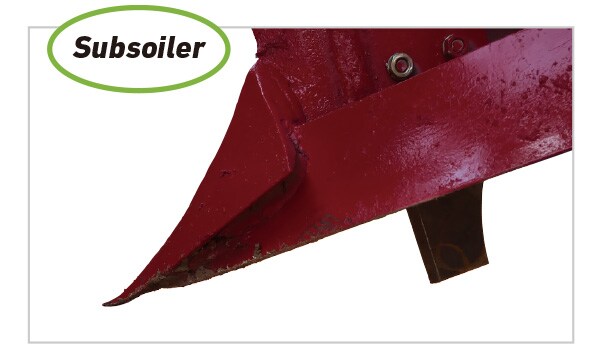

A subsoiler is attached to make drainage for heavy rain condition.



Easy to use, highly durable!

Compaction roller
Roller pressure can be easily adjusted by the spring length.

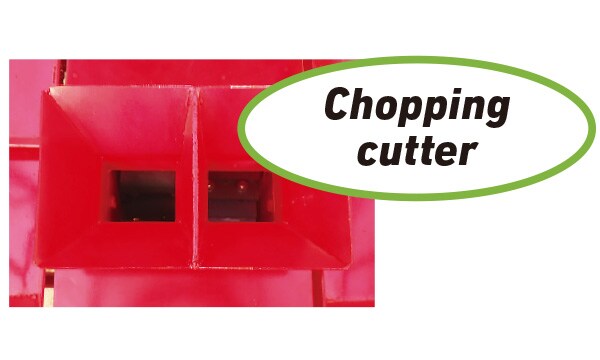

Chopping cutter
The quenched blade is excellent in durability and a clean cut continues long.


Fertilizer hopper

  • The fertilizer hopper is made of rust resistant stainless steel.
  • Since fertilization is applied near to the planted stem, there is no waste of fertilizer and it is excellent in initial growth.

Specifications

Model Y2380SPK Y2395SPK
Quantity of Row double double
Row Distant (mm) 200 - 250 250 - 300
Working Depth (mm) 200, 250, 300 200 - 330 / 5step
Fertilizer Tank Material Stainless Stainless
Capacity (kg) 50 50
Sugarcane Capacity (kg) 550 - 600 800 - 1,000
Work Speed (Reference) (km/h) 3.0 - 3.5 3.0 - 3.5
Category SAE #2 SAE #2
Horse Power (HP) 70 - 90 80 - 110

* The design and specifications are subject to change without prior notice for product improvement.
* Operation efficiency is subject to the field conditions.
