| Horse Power | 56.9 PS |
|---|---|
| Weight | 1840 kg |
New!! Better work performance in dry field farming

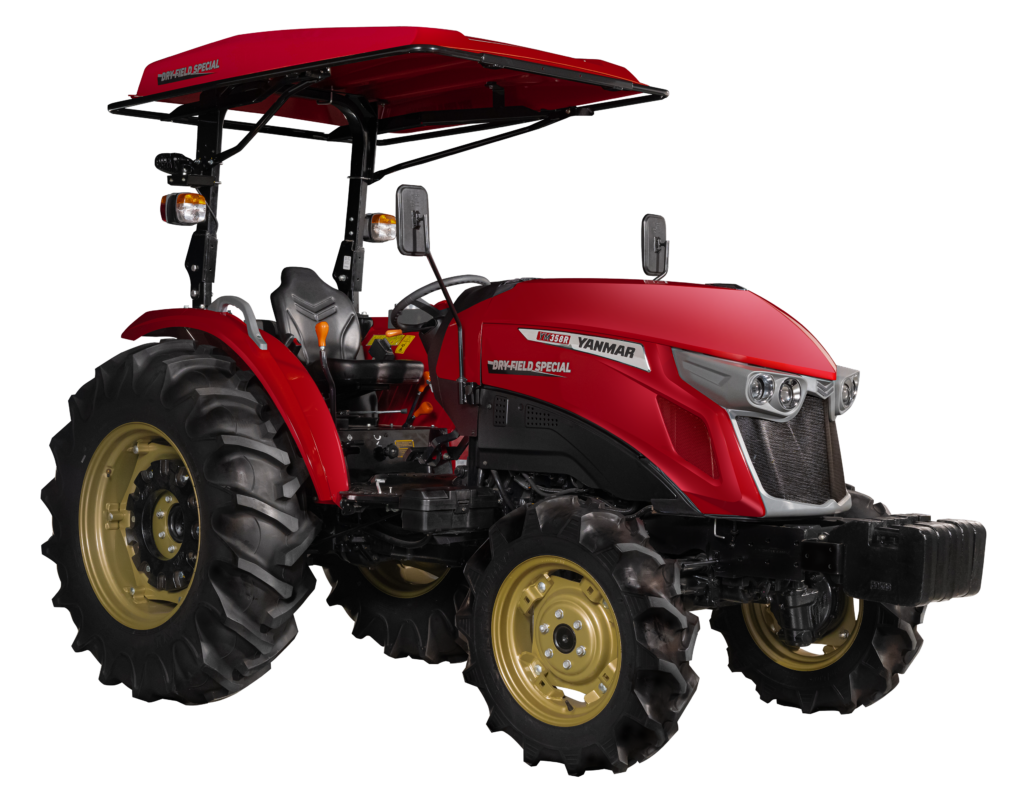

YM358R-L1 Price 857,000 บาท
Feature

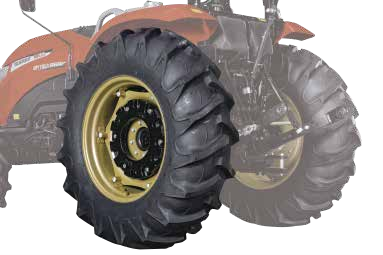

The Big Tires (Low Lug)
Large-diameter and wide low lug tires allow for efficient towing and transporting.

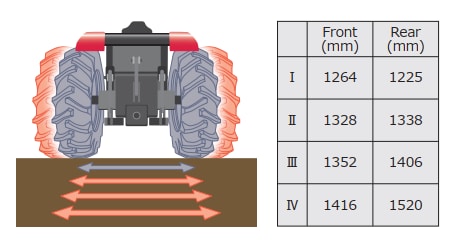

Setting of Tread
Tire tread can be changed on both the front and rear wheels, and changing the tread according to the width of the ridge helps you with crop management and harvesting in the field.

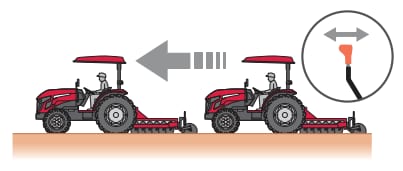

Fully Synchronized Transmission
The YM3 tractor uses a fully synchronized transmission for smooth gear shifting and forward and backward switching as well as excellent durability. This transmission allows you to drive on the street more comfortably since you do not have to stop the tractor completely to change gears.

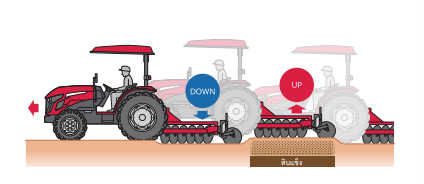

Draft Control
The draft system controls the traction load according to the tillage depth for easy and automatic operation. It can minimize slippage caused by the load and maximize productivity.
Specification
| Model | YM358A-L1 | |
|---|---|---|
| Engine | Maker | Yanmar |
| Model | 4TNV98S | |
| Type | 4 Cylinders , Direct Injection , Vertical , Water-Cooled, Diesel | |
| Number of Cylinders | 4 | |
| Bore and Stroke | 98 x 110 | |
| Total Displacement | 3319 | |
| Gross Power [PS(HP)/kW] | 57.6/56.9 (42.4) | |
| Dimensions | Fuel Tank | 50 |
| Overall Length (mm) | 3390 | |
| Overall Width (mm) | 1720 | |
| Overall Height (mm) | 2410 | |
| Wheel Base (mm) | 1970 | |
| Min.Ground Clearance (mm) | 425 | |
| Tread Front (mm) | 1,264 (1,328/1,352/1,416) | |
| Tread Front (mm) | 1,225 (1,338/1,406/1,520) | |
| Weight | (kg) | 1840 |
| Traveling System | Tire Front (inch) | 8-18 |
| Tire Rear (inch) | 14.9-28 | |
| Clutch | Dry,Single | |
| Brake | Mechanical,Wet disk | |
| Steering | Hydrostatic power | |
| Main Shift | Fully synchronized (4 stage) | |
| Reverser | Synchronized reverser | |
| Number of shift | 8 forword and 8 reverse | |
| Travel speed forward (km/hr) | 2.8-34.4 | |
| Travel speed reverse (km/hr) | 2.8-34.4 | |
| Hydraulic Unit | Hydraulic Control System | Draft and Position Control |
| 3-Point Hitch *only hole size | Category I (II*) | |
| Max. Lift Force at lower link end [kN (kgf)] | 14.2 (1,450) | |
| Max. Lift Force 24 inch behide [kN (kgf)] | 12.2 (1,250) | |
| Power Take Off (PTO) | Type | แบบอิสระ |
| Shft Size | SAE 1-3 / 8 , 6-Splines | |
| Gear 1 [PTO speed /engine] (rmp) | 540/2,096 | |
| Gear 2 [PTO speed /engine] (rmp) | 750/2,092 | |
