| Model Name | AW70GV | AW85G |
|---|---|---|
| Engine Category | Tier3 | Tier3 |
| Horsepower (PS) | 70 | 85 |
| Head-feeding Type / Conventional Type | Conventional Type | Conventional Type |
| Grain tank / Top sacker | Grain tank | Grain tank |
| Crawler / Wheel | Crawler | Crawler |
| Cabin / Floor | Floor | Floor |
| FDS / 2P2M / Side clutch | Side clutch | Side clutch |
| With / Without Leveling control | Without | Without |
Showing one of the high speed agricultural machines.

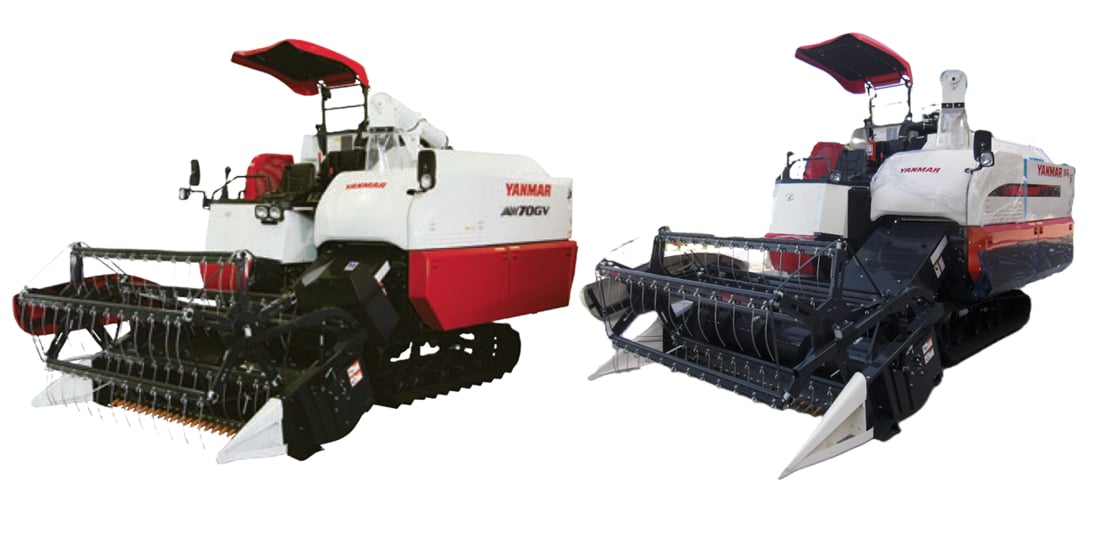

The Yanmar AW70GV / AW85G combine harvester performs harvesting not only at high speed, but also more efficiently, ensuring abundant harvests even with loadged rice plants.

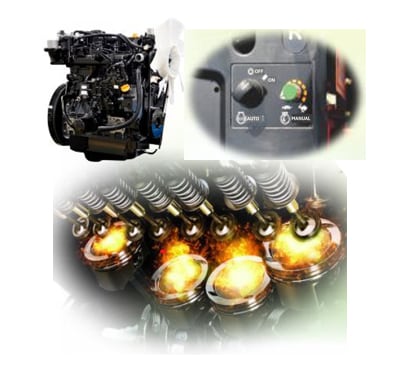

Equipped with a 3318cc Tier 3 4-cylinder engine, it delivers high power output of 70PS or 85PS and excellent combustion efficiency. Even when the load on the traveling or threshing section fluctuates, the engine output is instantly and automatically controlled by computer control. The engine speed is always kept constant, ensuring stable threshing and separating performance. No accelerator operation is required, and the rotation speed can be set simply by operating a switch.

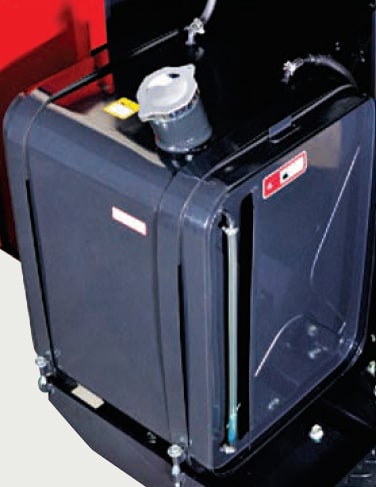

With a large fuel tank capacity (90 liters), as well as efficient fuel consumption, the machine can work longer without having to stop to refill and harvest time can be faster and more efficient.

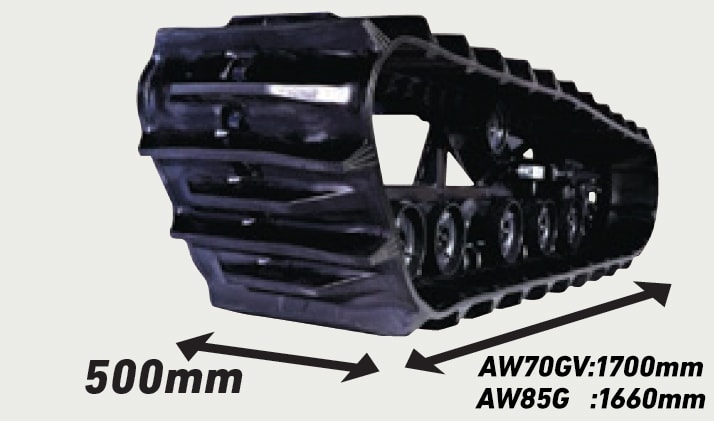

With a width of 500mm, the rubber crawler wheels exert relatively little pressure on the ground, so the combine can easily work in wet/muddy areas.

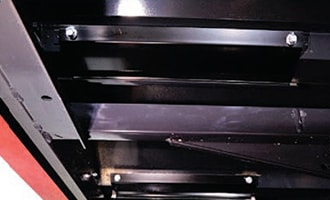

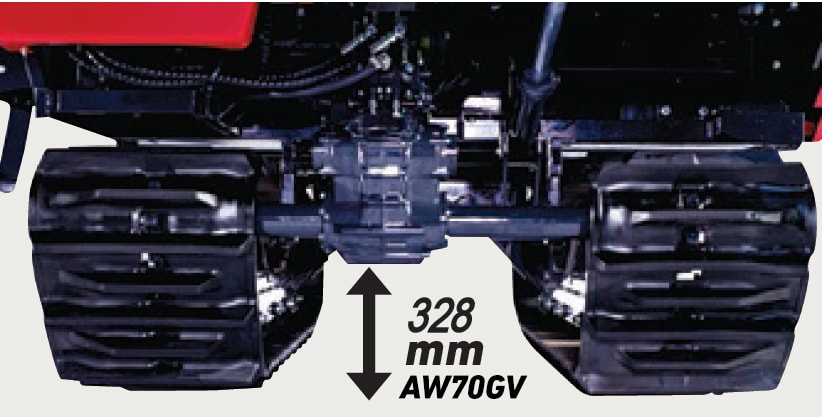

The transmission has a ground clearance of 328mm, which not only protects the transmission from mud but also makes it easier to move between fields and ensures consistent performance on wet or muddy conditions.

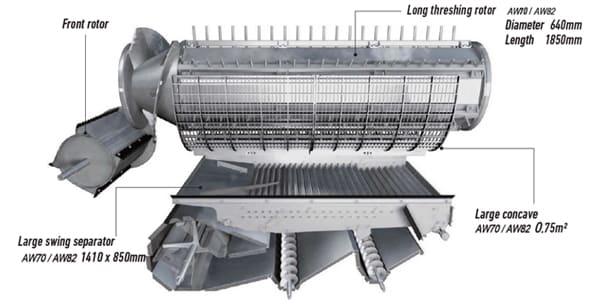

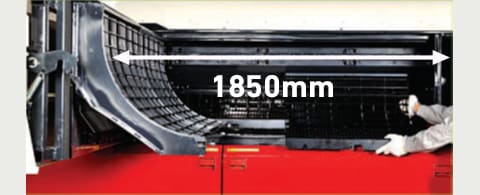

Equipped with large thresher to handle high-speed operation. First, the rice is separated with Yanmar’s original front rotor and next it is more fully threshed with the long threshing rotor. Then, it is sorted efficiently and accurately using the large swing separator with hardly any loss. Yanmar offers this system with complete confidence.

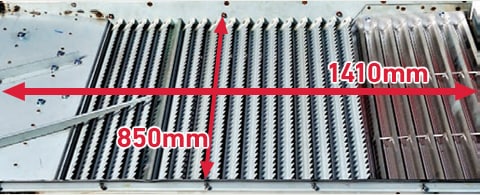

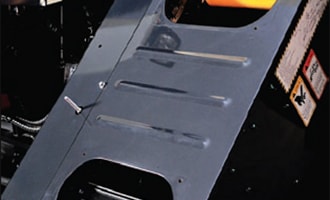

Having a width of 850mm and length of 1410mm, the swing separator enhances better selection, preventing chaff, and dust from mixing with the grain.

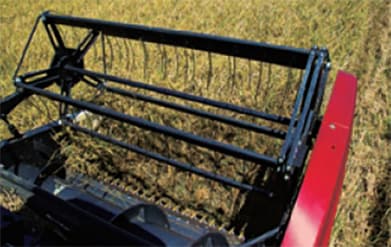

Uses a chain-driven reel enabling easy carrying of loads and powerful picking up of lodged rice plants.

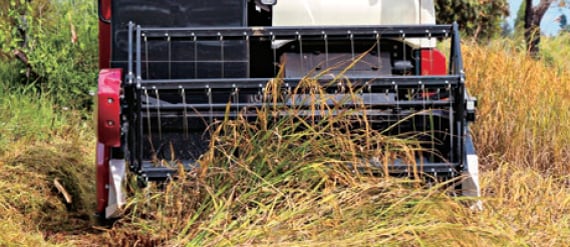

The header’s cutter bar is easily visible from the operator seat, so work can be performed while checking it.
