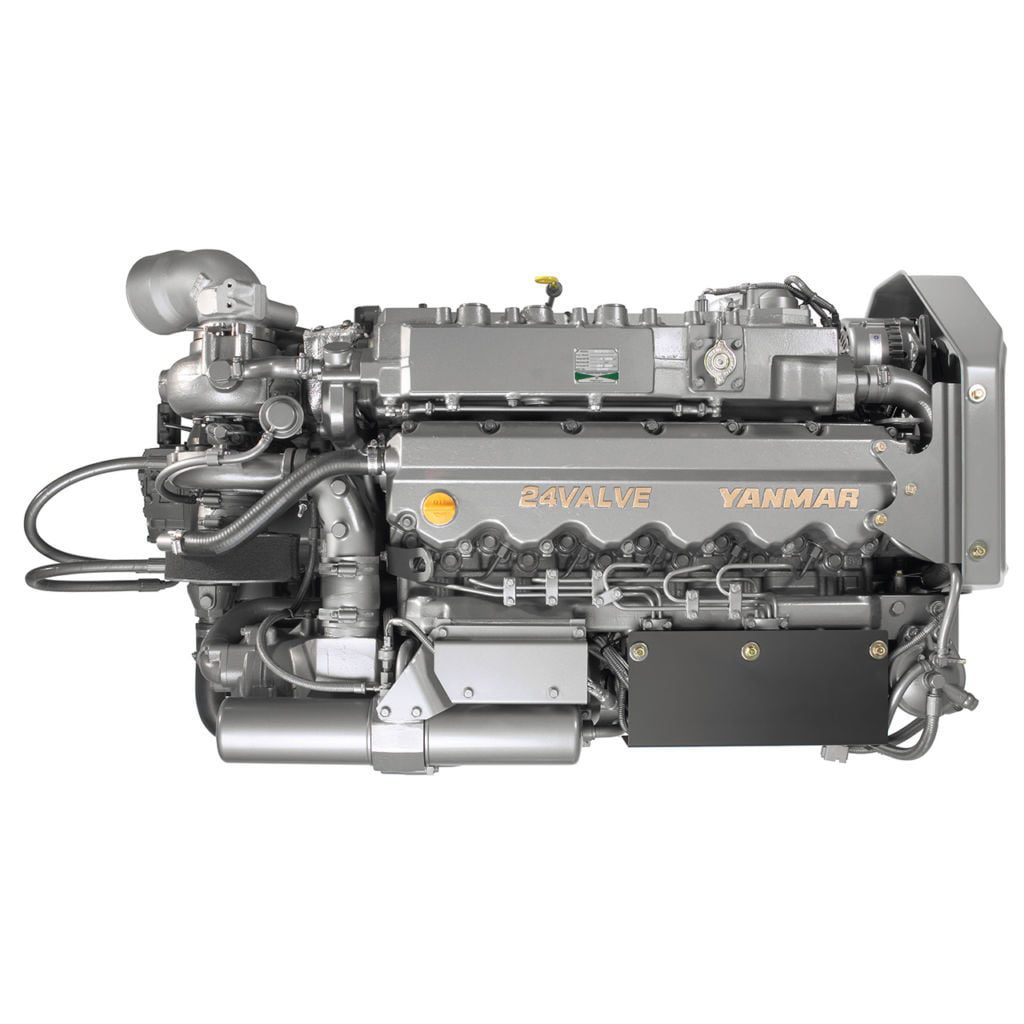

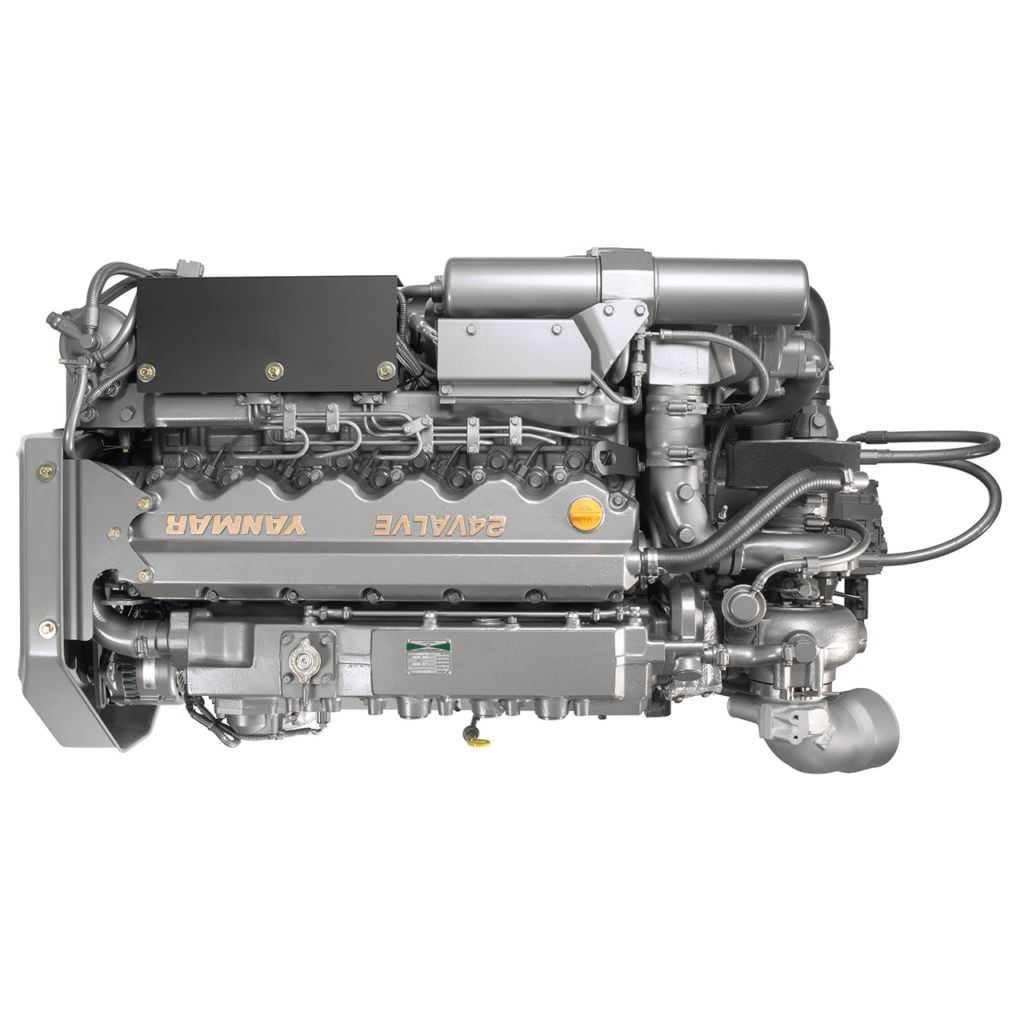

6LY3-STC

Specifications

Rated Output
316 kW / 430 mhp
Rated Speed
3300 rpm
Displacement
5.813 L / 354 cu. in
No. of cylinders
6 cylinders
Cylinder Bore x Stroke
106 mm x 110 mm / 4.17 in x 4.33 in
Combustion system
Direct Injection, Electronic Controlled Injection
Aspiration
Turbocharged & Intercooled
Alternator
12V - 120A (24V - 35A optional)
Dry weight without gear
640 kg / 1411 lbs
Dimensions
1458 mm x 907 mm x 876 mm
Controls
Classic (Hybrid) & Unlimited (Electronic)
Certifications
IMO Tier 2

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KMH61A Gearbox and high-riser elbow
(Dimensions may vary with other gears/elbow)

Drawings

Performance Curves

Packages

Standard Engine Package

  • Alternator 12V – 120A
  • Exhaust mixing elbow [L-type]
  • Air heater

Optional Accessories

  • Fuel/water separator
  • High-riser mixing elbow [instead of L-elbow]
  • Lube oil evacuation pump
  • Remote oil filter opposite side
  • Air vent for coolant tank
  • Flexible mounts
  • Second station kit for flybridge
  • Ignition panel with keyswitch
  • Extension wire harnesses
  • Various control heads
  • Trolling mode kit
