Specifications
Lifting Capacity
Loads shown in table include weight of standard bucket (21kg).
With: ROPS bar and rubber track
Without: Bucket
Track gauge: Maximum
A: Reach from swing center line (m)
B: Load point height (m)
C: Lifting load (kg)
P: Load point
: Rating over front
: Rating over side or 180 degrees
Blade on ground
Unit: kg
| A (m) | Max. | 2.5 | 2.0 | 1.5 | ||||
|---|---|---|---|---|---|---|---|---|
| B (m) |  |
 |
|
|
|
|
|
|
| 2.0 | *270 | 170 | - | - | *250 | 190 | - | - |
| 1.5 | *260 | 130 | - | - | *240 | 170 | - | - |
| 1.0 | *240 | 110 | *270 | 130 | *300 | 180 | - | - |
| 0.5 | *230 | 100 | *270 | 120 | *370 | 170 | *560 | 250 |
| 0 | *210 | 110 | *260 | 120 | *380 | 160 | *580 | 230 |
| -0.5 | *200 | 120 | - | - | *330 | 150 | *490 | 220 |
| -1.0 | *190 | 140 | - | - | *220 | 160 | *360 | 220 |
Note :
The lifting load with the asterisk (*) mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87% of hydraulic lifting capacity or 75% of tipping load, which is smaller.
Blade above ground
Unit: kg
| A (m) | Max. | 2.5 | 2.0 | 1.5 | ||||
|---|---|---|---|---|---|---|---|---|
| B (m) | |
|
|
|
|
|
|
|
| 2.0 | 200 | 170 | - | - | *250 | 190 | - | - |
| 1.5 | 150 | 130 | - | - | *230 | 170 | - | - |
| 1.0 | 130 | 110 | 150 | 130 | 220 | 180 | - | - |
| 0.5 | 130 | 100 | 150 | 120 | 210 | 170 | 320 | 250 |
| 0 | 130 | 110 | 150 | 120 | 200 | 160 | 290 | 230 |
| -0.5 | 150 | 120 | - | - | 200 | 150 | 290 | 220 |
| -1.0 | 140 | 140 | - | - | 160 | 160 | 270 | 220 |
Note :
The lifting load with the asterisk (*) mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87% of hydraulic lifting capacity or 75% of tipping load, which is smaller.

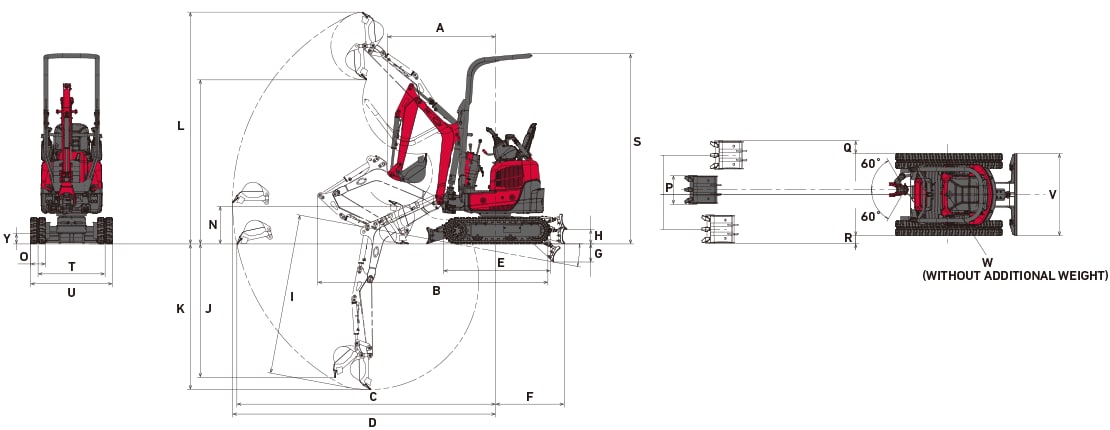

Dimensions
Rubber track specification
Unit: mm
| A | A 〈at boom swing〉 |
B | C | D | E | F | G | H | I | J | K | L | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SV10 | 1310 | 1130 | 2780 | 3120 | 3170 | 1290 | 830 | 220 | 175 | 1940 | 1610 | 1760 | 2800 |
| M | N | O | P | Q | R | S | T | U | V | W | Y | ||
| SV10 | 1980 | 455 | 180 | 350 | 155/280 | 95/220 | 2300 | 810/560 | 990/740 | 990/740 | R540 | 125 |
Specifications
| Model | SV10 | ||||
|---|---|---|---|---|---|
| Type | ROPS Bar | ||||
| With additional weight | Without additional weight | ||||
| WEIGHT | Operating weight | Rubber track | kg | 1155 | 1105 |
| Steel track | kg | - | - | ||
| ENGINE | Type | Vertical type series water-cooled 4 cycle diesel engine | |||
| Model | 3TNV70-WBVB1 | ||||
| Rated output, net | kW / rpm | 9.2 / 2000 | |||
| BUCKET | Capacity, standard | cu.m | 0.018 | ||
| Width, standard | mm | 350 | |||
| PERFORMANCE | Max. digging force | Bucket | kN | 10.3 | |
| Arm | kN | 5.5 | |||
| Max. digging depth <at the blade down> | mm | 1760 <1940> |
|||
| Max. vertical wall digging depth | mm | 1610 | |||
| Max. cutting height | mm | 2800 | |||
| Max. dumping height | mm | 1980 | |||
| Max. digging radius of the ground | mm | 3120 | |||
| Front min. swing radius <at swinging the boom> |
mm | 1310 <1130> |
|||
| Boom swing angle: left / right | degree | 60 / 60 | |||
| SPEED | Travel speed: high / low | Rubber track | km/h | 3.7 / 1.9 | |
| Swing speed | rpm | 9.1 | |||
| GROUND PRESSURE | With standard track | Rubber track | kPa | 29.1 | 27.8 |
| TANK CAPACITY | Fuel tank | L | 11 | ||
| Hydraulic oil tank | L | 13.8 | |||
| HYDRAULIC SYSTEM | Pump displacement | Main pump | L /min | 11.1 | |
| Pilot pump | L /min | 8.1 | |||
| Relief set pressure | MPa | 19 | |||
| Max. AUX output | L /min | 21.6 | |||
