The C30R-3 packs a serious punch for a compact tracked carrier. This three-sided dropdown machine offers a payload of 2,500 kg in a width of just 1,550 mm, which allows you to work in even the most-confined job sites. Mudguards protect material from affecting the hydraulic components and a joystick offers precise control.
|Weight||Transport weight||2575 kg|
|Operating Weight||2650 kg|
|Net Power||32,5 kW (at 2800 rpm)|
|Max Torque||134,5 / 146,2 Nm at 1820 rpm|
|Starter||12 V – 1.7 kW|
|Battery||12 V – 72 Ah|
|Alternator||12 V – 55 A|
|Hydraulic pump||2 piston pumps with variable flow|
|Max pressure||350 bar|
|Performance||Max. traveling speed (low/high)||5.7 / 11 km/h|
|Noise level (2000/14/CE & 2005/88/CE)||Lwag = 98 dBA ; Lpag = 86 dBA|
|Dumping system||Dumping angle||58°|
|Vessel dimensions (L x w x h)||1685 x 1410 x 370 mm|
|Dumping mechanism||3 sides|
|Dumping vessel capacity (struck / heaped)||0.88 / 1.24 m³|
|Dump clearance||455 mm|
|Undercarriage||Track width||320 mm|
|Ground clearance||265 mm|
|Number of top rollers||6|
|Track tensioning system||Hydraulic adjuster|
|Ground pressure (unloaded / loaded)||0.27 / 0.53 kg/cm²|
|Capacities||Hydraulic tank||28 l|
|Hydraulic circuit||38 l|
|Fuel tank||58 l|
The C30R-3 isn’t just compact – it’s versatile. It can spin-turn 360°, so it’s perfect for even the tightest of job sites. But how compact is it? The C30R-3 is just 1.5 metres wide and 3.28 metres long. These features make the machine ultra-efficient, while driving up your productivity. Despite these small dimensions, our carrier offers a payload of 2,500 kg, so you get more done, faster.

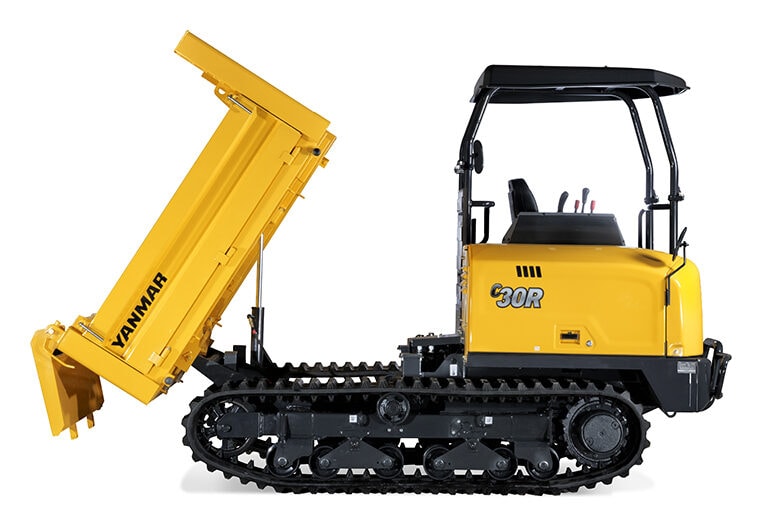

Choose which side you want to dump from: rear or sides. This means you can safely dump into trenches without using much space. There’s a remarkable dumping angle of 58°, so first-time safe dumping speeds up your site work. Ground clearance of 455 mm also ensures fast dumping. A mudguard prevents material from falling from the wagon and damaging hydraulic components or getting into the operator area.
A unique, robust undercarriage ensures a smooth ride while extending its service life and protecting your investment. Track rollers in pairs absorb obstacles and make for an impressive all-terrain carrier. We’ve further improved traction force and stability by increasing the diameter of the sprocket and the length of the tracks. Mass is distributed through 24 rollers, preserving the tracks and giving the machine excellent ground pressure so it can work in the boggiest of conditions.
UNIQUE TRANSMISSION CONCEPT
Stalling can add time to your jobs and create stress. But we’ve built a unique anti-stalling feature on the C30R-3 into the hydrostatic transmission system. Smart automatic hydraulic pressure adjustments allow the machine to turn 360° smoothly without stalling the engine. When it’s empty, it can do that in under 10 seconds (18 when full). That all adds up to better manoeuvrability, more-comfortable driving and increased productivity.

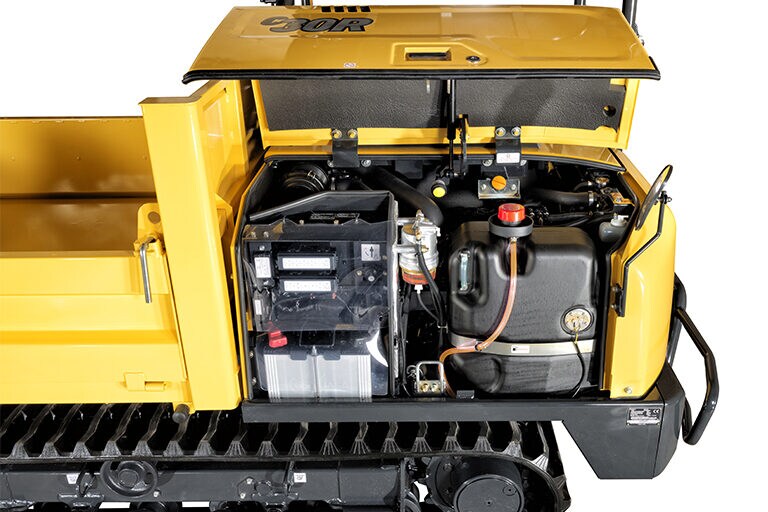

YANMAR ENGINE WITH DPF
The C30R-3’s engine is the result of our drive to continually improve the environment and cut fuel costs. We’ve radically cut nitrogen oxides through exhaust gas recirculation and cleaned up exhaust emissions with a diesel particulate filter. We’ve also reduced fuel consumption with an auto-deceleration system that switches the engine back to idle if you don’t touch the operating levers for four seconds. And an eco-mode controls the engine speed to allow very low fuel consumption.
EASE OF USE
This is a user-centred design that uses a proportional control system to move the machine only as far as the joystick lever is pushed. Let go and it stops. Control your speed by moving the left joystick and control operation with the right joystick. Switch between low-speed and high-speed easily with the automatic dual-speed switch, select forward, reverse, right and left travel. Use the lock switch to prevent accidental operation and make fine speed adjustments with the second accelerator.
REVERSIBLE SEAT CONSOLE
If you can always see where you’re going, your safety improves dramatically. That’s why we fitted an operator’s seat and travel levers that allow you to turn 180°, so you’re always facing forwards. This also increases your visibility and reduces the risk of costly on-site damage.
SmartAssist Remote remotely monitors your machinery over the internet. It quickly detects problems and notifies us of maintenance timings. So we can offer you quality support and service and help you maximise your work potential. With real-time information, you get total control and the ability to monitor and manage your machines remotely over a PC or smartphone.
- Beacon light with magnetic base
- Special paint
