Type Conventional Tail
Operating Weight 1700 - 1790 kg
Width 980 - 1320 mm
Digging Depth 2470 - 2620 mm
  • Agriculture
  • Civil Engineering
  • Construction
  • Landscaping

Versatile, powerful and adaptable, the SV17VT is designed to excel. Combining performance and capability with efficiency and low fuel consumption, operators benefit from outstanding productivity.

Thanks to ergonomic, ground-up design, the cab is comfortable and intuitive, while a state-of-the-art engine and innovative hydraulic system sees the impressive excavator deliver the outputs of a much larger model.

Specifications

Specifications SV17VT
Weight Transport weight 1570 kg (canopy) / 1660 kg (cabin)
Operating Weight 1700 kg (canopy) / 1790 kg (cabin)
Engine Type 3TNV70-PBVA
Fuel Diesel
Net Power 11,3 kW (at 2400 rpm)
Gross Power 11,5 kW (at 2400 rpm)
Displacement 0,854 l
Max Torque 48,8 – 53,2 N.m (1800 +/- 100 rpm)
Starter 12 V / 1,4 kW
Battery 12 V / 45 Ah
Alternator 12 V / 40A
Hydraulic System Maximum Pressure 210 bars
Working Pump 1 double variable displacement piston pump / 1 gear pump / 1 gear pump
Max Flow 2 x 19,2 + 14,4 + 8,6 l/min
Hydraulic Tank 19,5 l
Performance Travel speed 2,4 / 4,8 km/h
Rotation Speed 9,1 rpm
Digging Force (arm) 9,9 kN / 8,9 kN (Short arm / Long arm)
Digging Force (bucket) 16 kN
Traction Force 12,8 kN / 8,1 kN
Noise level (2000/14/CE & 2005/88/CE) 91 dB(A) / 81 dB(A) (LwA)
Fuel Tank 27 l

Dimensions


Dimensions SV17VT
A Overall length 3 475 / 3 445 * mm
B Overall height 2 320 / 2 330 * mm
C Overall width 980 / 1 320 * mm
D Length of track on ground 1 185 mm
E Undercarriage length 1 560 mm
F Lane 750 / 1 090 * mm
G Track width 230 mm
H Overall blade width 980 / 1 320 * mm
I Overall blade height 235 mm
J Blade distance 1 120 / 1 405 * mm
K Max. blade height above the ground 260 / 370 * mm
L Max. lowering blade depth 300 / 410 * mm
M Minimum ground clearance 160 mm

Dimensions SV17VT
N Max. digging depth - Blade lifted 2 470 / 2 620 * mm
O Max. digging depth - Blade lowered 2 600 / 2 750 * mm
P Max. digging reach on ground 3 850 / 4 000 * mm
Q Max. digging reach 3 910 / 4 055 * mm
R Max vertical wall 1 530 / 1 650 * mm
S Max. dumping height 2 560 / 2 675 * mm
T Max. cutting height 3 495 / 3 615 * mm
U Boom swinging base to left 75°
V Boom swinging base to right 60°
W Arm length 1 100 / 1 250 * mm
X Minimum front swing radius 1 545 / 1 575 * mm
Y Minimum front swing radius with boom swing 880 / 885 * mm
Z Rear swing radius 1 050 mm

* With long arm.

Features


EASY TRANSPORTATION

Despite its compact dimensions, the SV17VT delivers high levels of productivity and performance. Perfect for trenching and landscaping work in tight urban areas or at residential properties, operators benefit from a short turning radius at the front and rear, combined with a wide boom swing amplitude to the left.
Efficient and lightweight, the innovative model boasts a transport weight of just 1,570kg/1,660kg (canopy/cabin), meaning it can be easily towed between work sites, along with buckets or a light work tool, on a standard 2.5 tons GVW trailer. Four tie-down points on the track frames (standard) and four on the turning frame (optional) make transport preparation simple.


ROBUST & RELIABLE

Durable, dependable and rental tough, the SV17VT has been designed to excel in even the toughest environments. Thanks to blade cylinder protection as standard, routing hydraulic hoses inside the boom and the upper position of the boom cylinder itself, operators benefit from maximum protection and minimum downtime. To further improve protection, bucket and arm cylinder guards can be specified as optional extras. Collectively, these features ensure a low total cost of ownership.

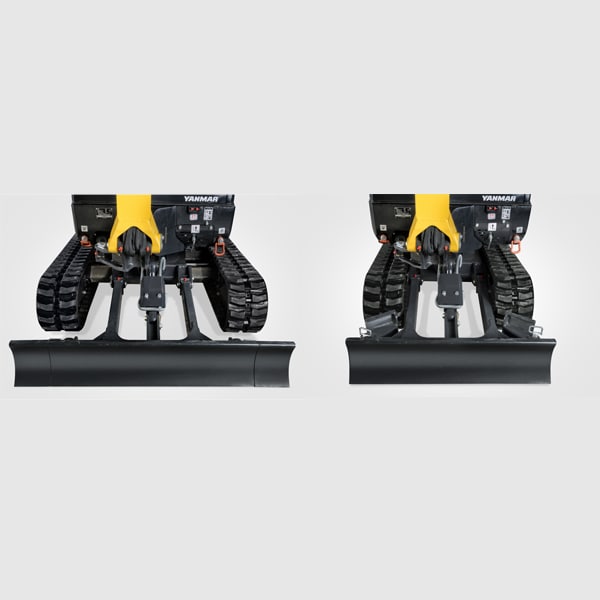

IMPRESSIVE WORKING RANGE

Adaptable to suit a variety of applications, the SV17VT is available with the option of either long or short digging arms and levelling blades. Unique design means that the wide boom swing amplitude distribution further extends the working range of the excavator, ensuring ultimate efficiency and performance for the operator.


UNMATCHED STABILITY

Delivering outstanding stability, even on challenging terrain, the SV17VT features a shaped steel extendable undercarriage with reduced clearance between sliding parts, preventing soil build-up. Adaptable to the task in hand, this makes the excavator perfect for a wide range of applications. Optimum stability, optimized weight distribution, ultimate reliability.


POWERFUL AND PRODUCTIVE

With digging forces of 9.9/16kN (short arm/bucket), traction force of 12.8kN/8kN (first/second speed) and two travel speeds (2.4 or 4.8km/h) controlled via the blade operation lever, the SV17VT delivers the power and performance of a much larger model.
Thanks to the implementation of a ViPPS hydraulics system, with double variable displacement, piston pump and gear pump, operators benefit from a maximum hydraulic flow and pressure of respectively 52.8 l/min and 210 bars – outstanding capability at your fingertips.


ERGONOMIC DESIGN

Thanks to its ergonomic layout and unique design, the SV17VT provides a comfortable and practical working environment for the operator. The easy-access cabin features excellent visibility, fully-adjustable seat and a state-of-the-art LCD control interface as standard.
A track frame layout featuring three bottom rollers ensures a comfortable and stable ride, while clever arrangement of the control pedals, levers and switch boards further improves
productivity.


SAFETY CONSCIOUS

As with every Yanmar excavator, safety has been prioritized throughout design and build. Alongside ensuring 360° visibility from the operator seat, the innovative excavator features powerful LED work light and an orange seatbelt as standard. Flashing green/orange beacons, travel alarms, additional work lights and seatbelt sensor can be specified as optional extras, alongside a front polycarbonate protective shield for the canopy model. Fully-customizable to suit the task in hand, the SV17VT harnesses the latest technologies to keep the operator safe on site.


SIMPLE MAINTENANCE

To minimize the time taken to complete daily checks, the SV17VT has been designed with service accessibility firmly in mind. From a wide engine compartment hood (providing easy access to the powertrain), to easily dis-assembled side and cabin floor panels (ensuring easy access to hydraulic components, fuel/hydraulic tanks
and the radiator), clever arrangement improves simplicity and reduces intervention time.
The battery and fuse box are located in a lockable compartment under the operator’s seat to maximize security, while ground-level access removes the need for specialist equipment.


SMARTASSIST-REMOTE

SmartAssist Remote is Yanmar’s next-generation fleet management system. Operating the latest in telematics technology, equipment location and status is reported in real time. Available as a factory-fitted option for the SV17VT the innovative technology provides total control, allowing fleet managers to keep track of their assets remotely, via a PC or smartphone.

Options

EQUIPMENTS

  • Short arm (1100 mm)
  • Blade with long lifting arms (891 mm)
  • 3rd hydraulic circuit on short digging arm – proportional control on right joystick
  • 3rd hydraulic circuit on short digging arm – proportional control on right joystick
    & adj. potentiometer
  • 3rd hydraulic circuit on long digging arm – proportional control on right joystick
    & adj. potentiometer
  • 3rd & 4th hydraulic circuits on short digging arm – proportional control on joysticks & adj. potentiometers
  • 3rd & 4th hydraulic circuits on long digging arm – proportional control on joysticks & adj. potentiometers
  • Hydraulic clamshell bucket line on short digging arm
  • Hydraulic clamshell bucket line on long digging arm
  • Flat face quick connectors for breaker
  • Flat face quick connectors on 3rd hydraulic line
  • Flat face quick connectors on 3rd & 4th or 3rd & clamshell bucket hydraulic lines
  • Flat face quick connectors on 3rd, 4th & clamshell bucket hydraulic lines
  • Flat face quick connectors on 4th hydraulic line only (breaker hoses on 3rd hydraulic line)
  • Hydraulic quick hitch circuit on short digging arm / 150 – 160 bars (+/-3)
  • Hydraulic quick hitch circuit on long digging arm / 150 – 160 bars (+/-3)
  • Standard biodegradable oil
  • Panolin biodegradable oil
  • Cylinder guards (bucket & arm)
  • Left & right mirrors (cabin)
  • Front raincap (cabin)
  • 2 front LED work lights (cabin)
  • 2 front LED work lights (canopy)
  • 1 rear LED work light + 1 plugable LED flashing beacon (cabin)
  • 1 rear LED work light + 1 plugable LED flashing beacon (canopy)
  • 1 plugable LED flashing beacon (cabin)
  • 1 plugable LED flashing beacon (canopy)
  • Beacon light with magnetic base

COMFORT

  • Mech. suspension standard seat, adj., medium backrest & vinyl coat W logo
  • Mech. suspension premium seat, adj., high backrest & textile coat W logo
  • Mech. suspension premium seat, adj., high backrest & vinyl coat W logo
  • Radio (Cabin)
  • Large travel pedals
  • Greasing pump support bracket (Cabin)

SAFETY

  • 3 safety valves with welded ring on the bucket link
  • Lifting certificate (only for France)
  • Front polycarbonate operator protection shield (canopy)
  • Battery cut-off switch accessible from outside with removable steel handle
  • Battery cut-off switch accessible from cabin space with removable red plastic handle
  • Seatbelt sensor, visual & sound alarm
  • Seatbelt sensor, visual & sound alarm with green LED beacon
  • Smart Assist Remote GPS tracker & monitoring system (including 5 years subscription)
  • Anti-theft with keypad (Garos)
  • Trackunit : GPS tracker (subscription fees not included)
  • Trackunit : GPS tracker + anti-theft with keypad (subscription fees not included)
  • Trackunit : GPS tracker + anti-theft with Dallas key (subscription fees not included)
  • Trackunit : GPS tracker (subscription fees not included) + anti-theft with keypad (Garos)
  • 4 additional tie down points on turning frame
  • Travel alarm (beep tone)
  • Travel alarm (white noise tone)
  • Special paint
