A Stage V compliant common rail engine and fully synchronised mechanical transmission are the beating heart of the Yanmar YM-series tractors.

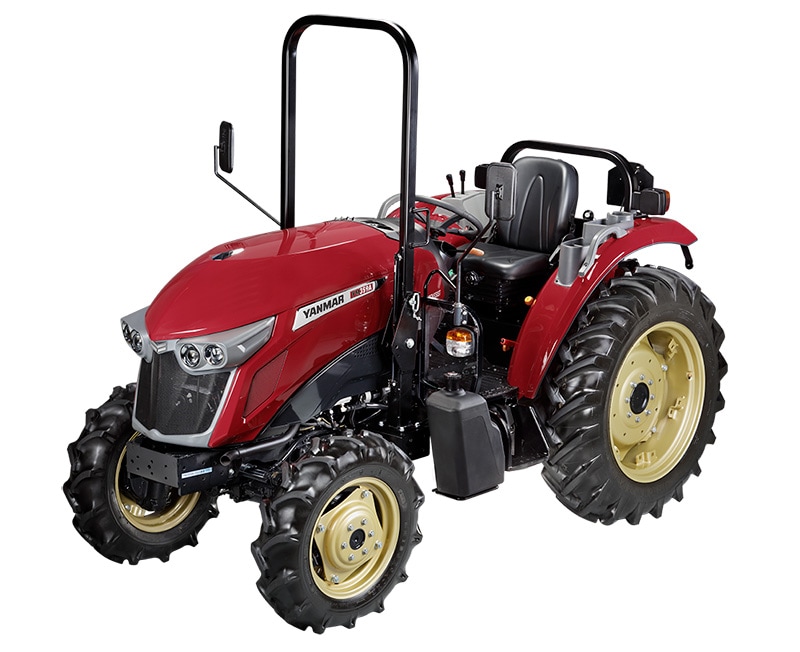

A powerful and proven Yanmar direct injection common rail engine with 47 or 60 HP is the beating hart of the Yanmar YM-series compact tractor.
A fully synchronised 12 x 12 mechanical transmission provides smooth shifting throughout the speed range to give low-speed torque and high-speed travel where they are required.
Maintenance on a Yanmar YM tractor has been simplified as much as possible. The bonnet opens fully as one piece for simple, unhindered inspection and all key components are easy to access.
| Model | YM347 | YM359 | |
|---|---|---|---|
| Cabin | No | No | |
| Engine | Manufacturer | YANMAR | YANMAR |
| Model | 4TNV88C | 4TNV98C | |
| Emission Level | EU Stage V Lebel | EU Stage V Lebel | |
| Gross Power | 46.0HP | 58.9HP (43.9kW) | |
| Number of Cylinders | 4 | 4 | |
| Displacement (cc) | 2190 | 3319 | |
| Rated Speed (1/min) | 2800 | 2500 | |
| Fuel tank (L) | 50 | 50 | |
| Overall length (mm) | 3685 | 3715 | |
| Overall Width (mm) | 1620 | 1620 | |
| Overall Height (mm) | 2380 | 2365 | |
| Ground Clearance (mm) | 400 | 400 | |
| Wheel Base (mm) | 1900 | 1970 | |
| Weight (kg) | 2010 | 2110 | |
| Transmission | Synchronized main shift with synchronized reverser |
Synchronized main shift with synchronized reverser |
|
| Number of Gears | 12F+12R (Includes Creep) | 12F+12R (Includes Creep) | |
| Drive Type | 4WD | 4WD | |
| Rear PTO Speed/Engine Rated Speed | 540/750 | 540/750 | |
| Mid PTO Speed/Engine Rated Speed | - | - | |
| 3-Point Hitch | Limited Category Ⅰ (Ⅱ) | Limited Category Ⅰ (Ⅱ) | |
| 3-Point Hitch Lift Capacity at lower link end (kgf) | 1450 | 1450 | |
| Front Tires | 280/70R16 | Agri 280/70R16 Orchard 200/70R16 Landscaper 260/70R16 |
|
| Rear Tires | 380/70R24 | Agri 380/70R24 Orchard 360/70R20 Landscaper 360/70R24 |
|
