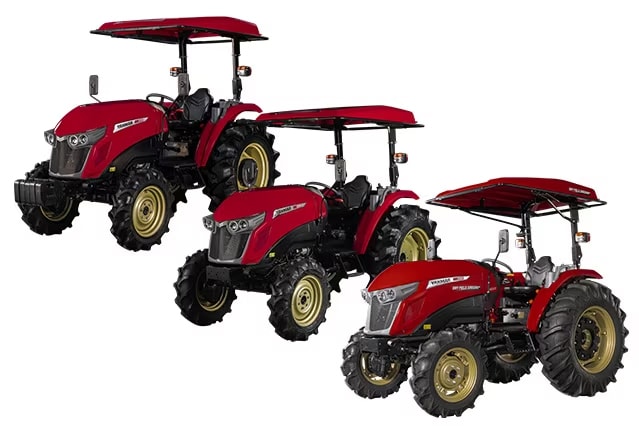

| YM351R | YM358R | YM358R-L1 | |
|---|---|---|---|
| Horse Power | 51.4PS | 57.6PS | 57.6PS |
Developer of the world's first small diesel engine, YANMAR's extensive fuel injection and combustion technology comes together in this powerful and reliable package. Whether plowing or puddling, the YM tractor offers excellent fuel efficiency and outstanding durability.

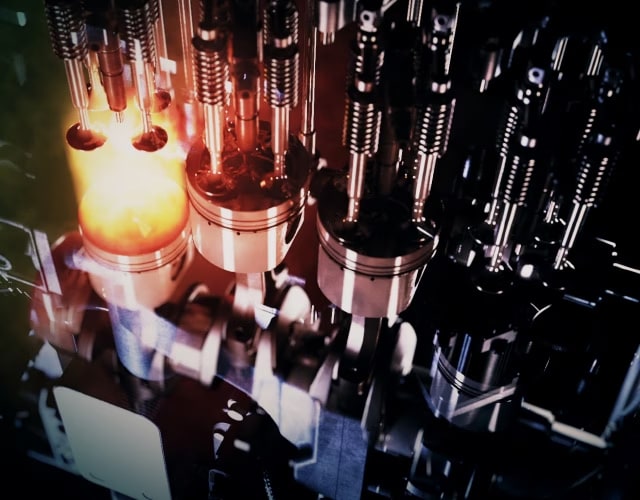

Experience the superior power and reliability of the YM358R's 3.3 liter long stroke engine.
Maximum torque has been increased, and the engine works harder than ever at low engine speeds.

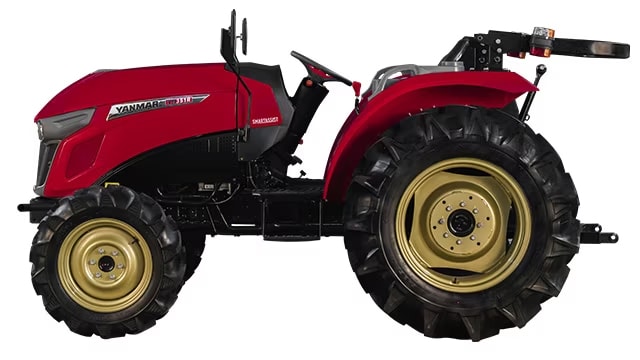

The YM3 is a versatile tractor that has no equal in the demanding conditions of Southeast Asian agriculture.
*Only YM358R

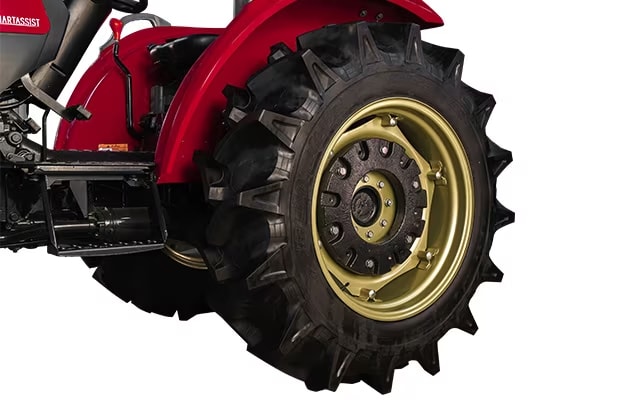

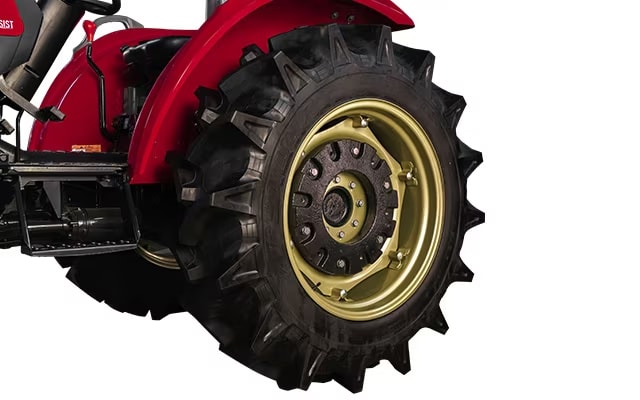

Large-diameter and wide high lug tires allow for efficient towing and transporting.

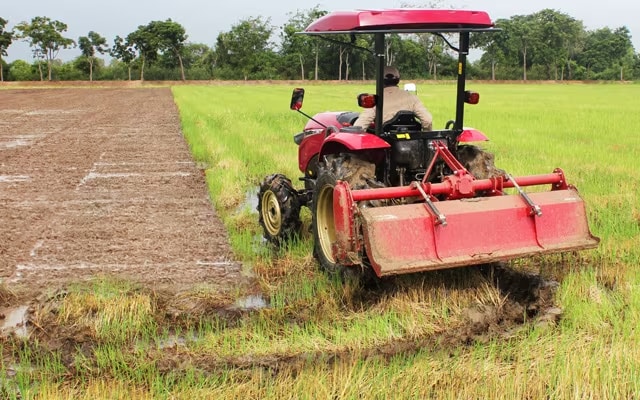

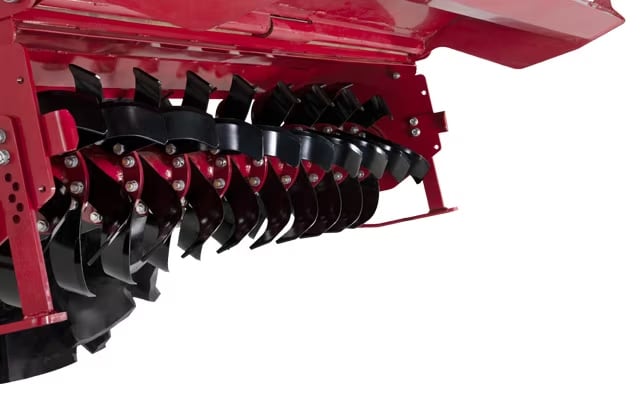

The innovative design means that even tilling at high speed causes little loss of power as most soil does not travel into the rotary, while the long stroke of the rear cover rakes the soil for a more beautiful finish.

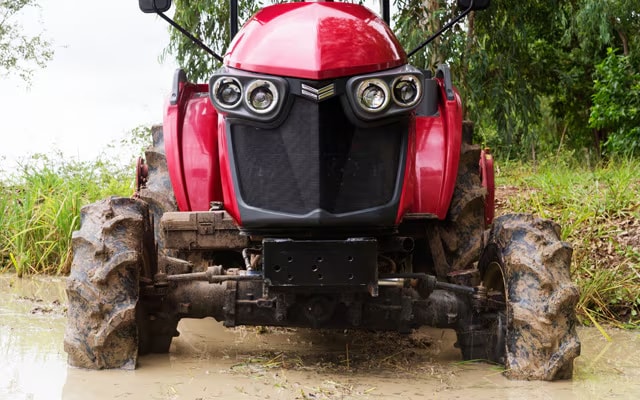

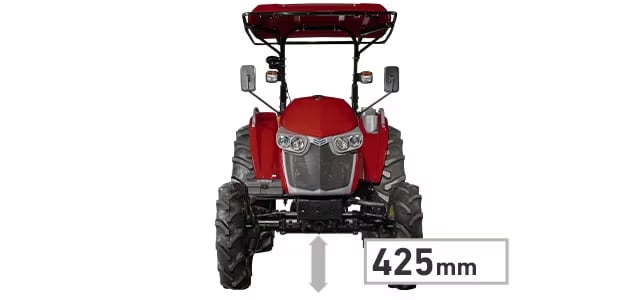

Great clearance is the key to powering on in muddy conditions or passing over crops without damaging them.

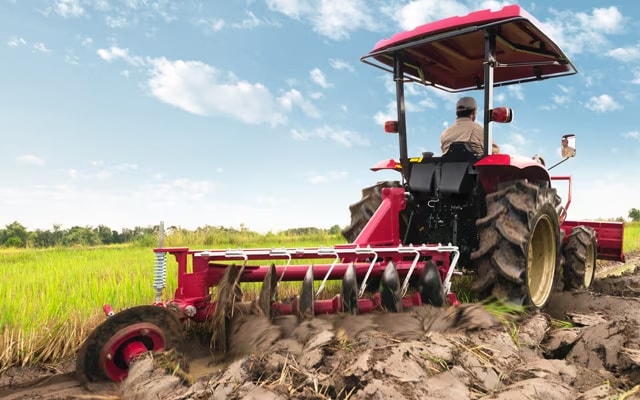

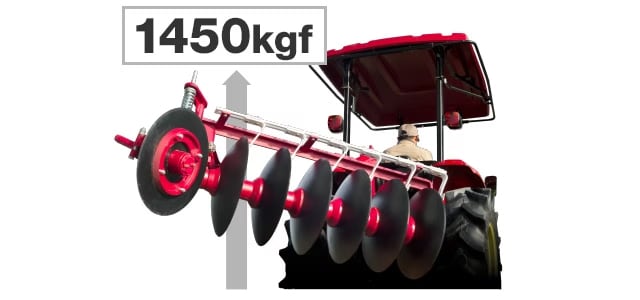

Even large and heavy implements like plows or planters can be raised with ease to perform wide range of work.
*at lower link end.
Turn the wheels all the way over to their maximum 55 degrees for tight turns at the end of the row and those tough corners.
*Only YM358R-L1
The draft system controls the traction load according to the tillage depth for easy and atomatic operation.
It can minimize slippage caused by the load and maximize productivity.
*Only YM358R-L1

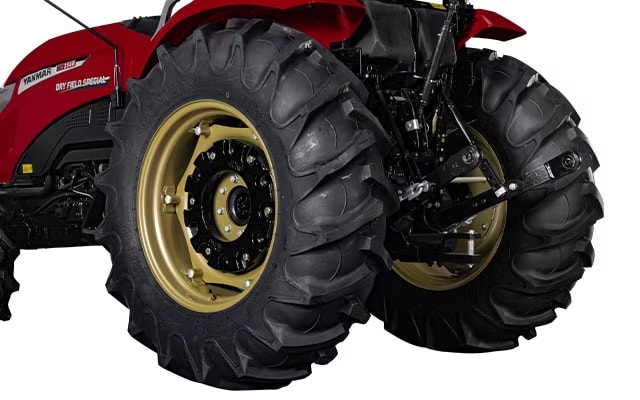

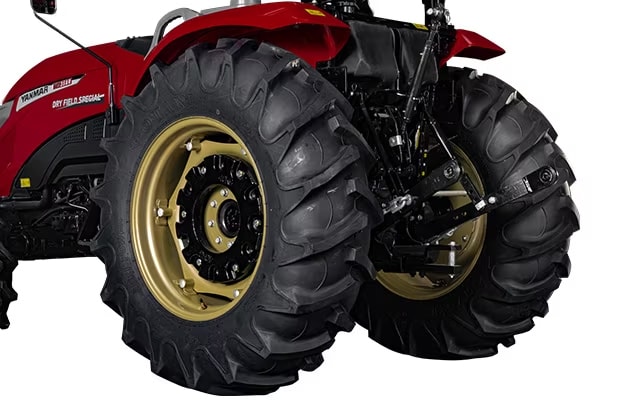

Large-diameter and wide low lug tires allow for efficient towing and transporting.
*Only YM358R-L1

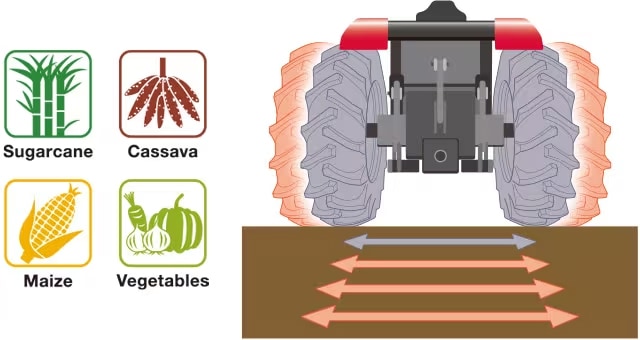

YM358R-L1 can be set to 4 patterns for both front and rear wheels
Tire tread can be changed and changing the tread according to the work and the width of the ridge helps in crop management and harvesting in the field.
*Only YM358R-L1

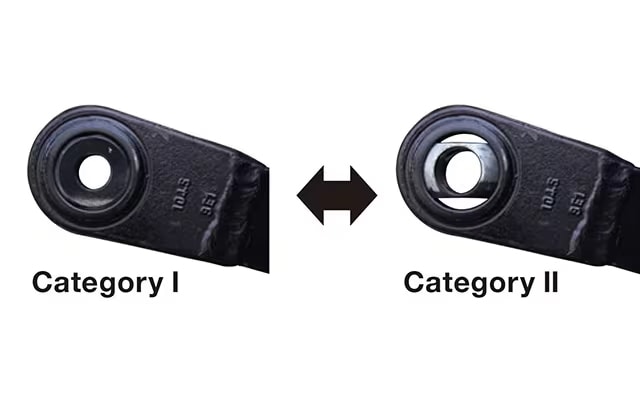

Category Ⅰ (Ⅱ) 3-point hitch can be attached to a variety of implements, allowing you to easily switch between the two categories.

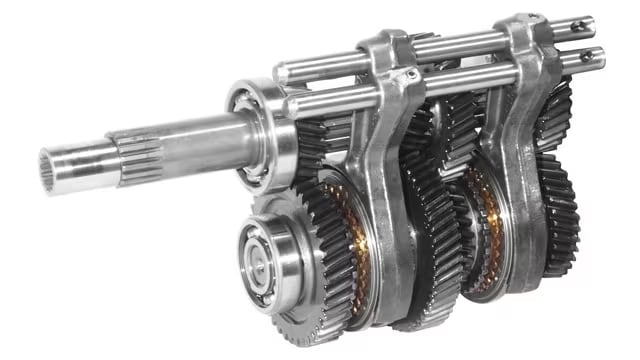

A full syncromesh transmission allows you to smoothly change direction and speed without gear noise, even when the tractor is still moving, just by shifting the reverser lever and main shift lever.

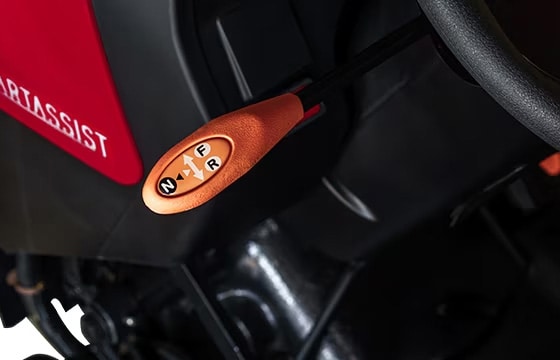

Change direction, simply by shifting the lever conveniently located by the steering wheel, to back out of tight corners.
Select the best speed for the job by combining the smooth changing synchronized main shift with the 2 speed range shift.

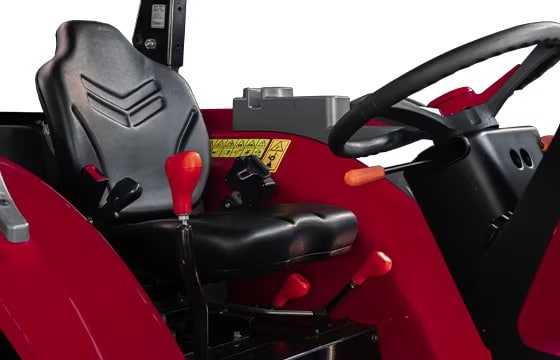

Shift forwards or back with a convenient lever and enjoy stepless adjustment of seating suspension for comfort that lets you work all day.

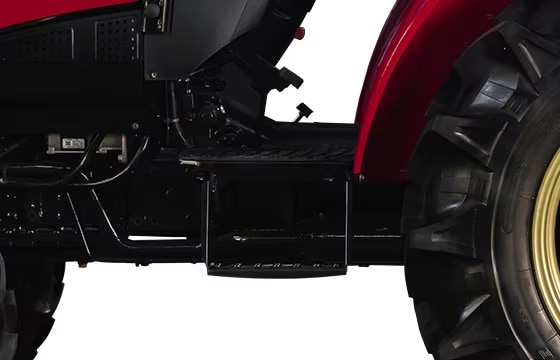

The flat deck allows you to get in and out of your seat smoothly and comfortably.
Stop the PTO at the touch of a button to prevent damage to the PTO drive shaft when raising implements. There is no need to stop the tractor.
The Foldable ROPS make it easier to work and store in places where height is restricted.
The mounting angles of the ROPS and canopy have been revised to improve the light-shielding range.

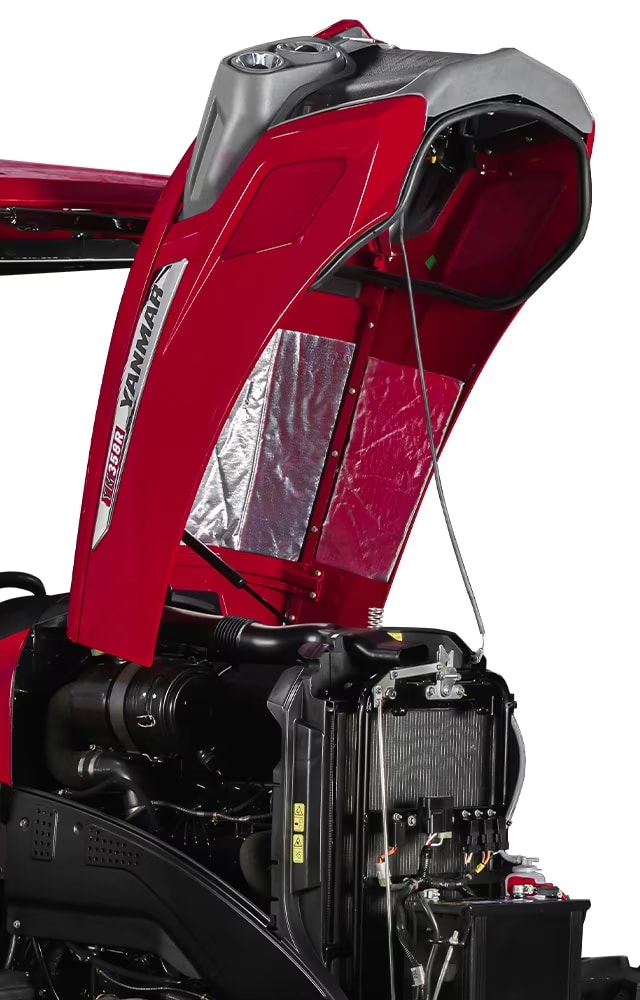

The gas-damper equipped hood opens to a full 80 degrees for easy access.

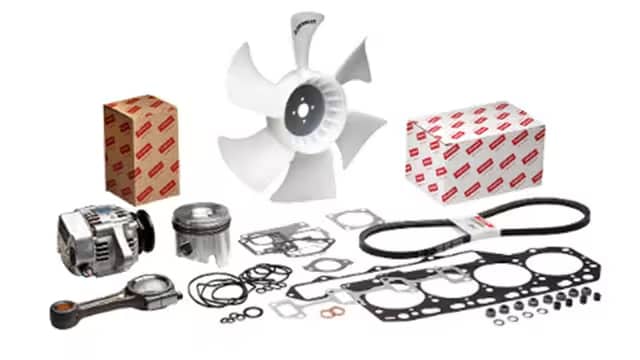

Yanmar's genuine spare parts support you for long-machine life and maximize the work performance for long time.
Long life of up to 600 hours saves you time and money on transmission oil changes. (sold separately)

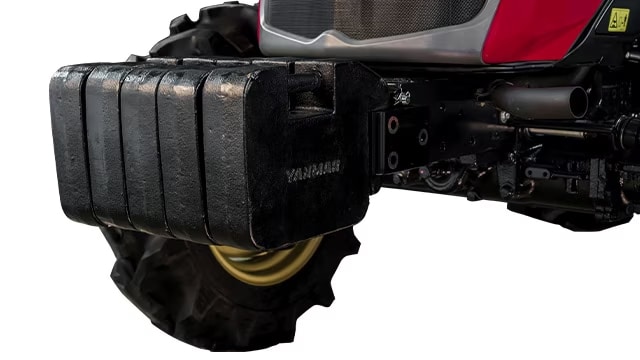

Mount up to five 30kg weights for added stability.
Mount any combination of one 20kg, and two 25kg weights for a maximum of 70kg, on the rear wheels for added traction.
Rear wheel weights Base & Additional set (1A8253-34990)
Weights can be attached to rear wheels on one side up to 70kg (total 140kg) to increase traction.
| Model | YM351R | YM358R | YM358R-L1 | ||
|---|---|---|---|---|---|
| Engine | Maker | YANMAR | |||
| Model | 4TNV88 | 4TNV98S | |||
| Type | 4 Cylinders, Direct Injection, Vertical, Water-Cooled, Diesel | ||||
| Number of Cylinders | 4 | ||||
| Bore and Stroke [mm] | 88 x 90 | 98 x 110 | |||
| Total Displacement [L] | 2.190 | 3.319 | |||
| Gross Power [PS /HP (kW)] | 51.4/50.7 (37.8) | 57.6/56.9 (42.4) | |||
| Fuel Tank [L] | 50 | ||||
| Dimensions | Overall Length [mm] | 3330 | 3380 | 3390 | |
| Overall Width [mm] | 1580 | 1670 | 1720 | ||
| Overall Height [mm] (with canopy) | 2350 (2450) | 2390 (2480) | 2410 (2500) | ||
| Wheel Base [mm] | 1900 | 1970 | |||
| Min. Ground Clearance [mm] | 425 | ||||
| Tread | Front [mm] | 1264 (Std)/1416 | 1264 (Std)/1328/1352/1416 | ||
| Rear [mm] | 1238 (Std)/1320 | 1225/1338 (Std)/1406/1520 | 1225/1338 (Std)/1406/1520 | ||
| Weight [kg] | 1690 | 1850 | 1840 | ||
| Traveling System | Tire | Front [inch] | 8-18 | ||
| Rear [inch] | 13.6-26 | 13.6-28H | 14.9-28L | ||
| Clutch | Dry, Single | ||||
| Brake | Mechanical, wet disk | ||||
| Steering | Hydrostatic power | ||||
| Main shift | Fully synchronized (4stage) | ||||
| Reverser | Synchronized Reverser | ||||
| Number of shift | 8 forward and 8 reverse | ||||
| Travel speed | Forward [km/hr] | 2.4-28.0 | 2.7-30.8 | 2.8-31.7 | |
| Reverse [km/hr] | 2.4-28.0 | 2.7-30.8 | 2.8-31.7 | ||
| Hydraulic Unit | Hydraulic Control System | Position Control | Position & Draft Control | ||
| 3-Point Hitch *only hole size | Category Ⅰ | Category Ⅰ (Ⅱ*) | |||
| Max. Lift Force | at lower link end |
14.2 (1450) | |||
| 24 inch behind |
12.2 (1250) | ||||
| Power Take off |
Type | independent | |||
| Shaft Size | SAE 1-3/8, 6-Splines | ||||
| Gear 1 [PTO speed/engine rpm] | 540/2430 | 540/2096 | |||
| Gear 2 [PTO speed/engine rpm] | 750/2450 | 750/2092 | |||
