YT Series
YT347/347C/359/359C

The exclusive i-HMT design efficiently converts horsepower from a 4-cylinder diesel engine into the energy you need to run a wide range of attachments for mowing, plowing, digging, lifting and hauling.

  • High power transfer ratio
  • Repeatable operating speed
  • Low fuel consumption due to increased transmission efficiency
  • Step-less main shift
  • Best speed possible for implement
  • Clutch-less shifting
  • Vehicle stop without clutch
  • Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT3 Series includes an autothrottle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.

    No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of The YANMAR YT3 Series. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT3 Series and its innovative technology, you get both.

    Add a cab with heating and air conditioning, and the YANMAR YT347C/349C tractor will keep you working, whatever the weather. An innovative curved-glass windshield greatly improves visibility. Air filtration keeps the dust out.

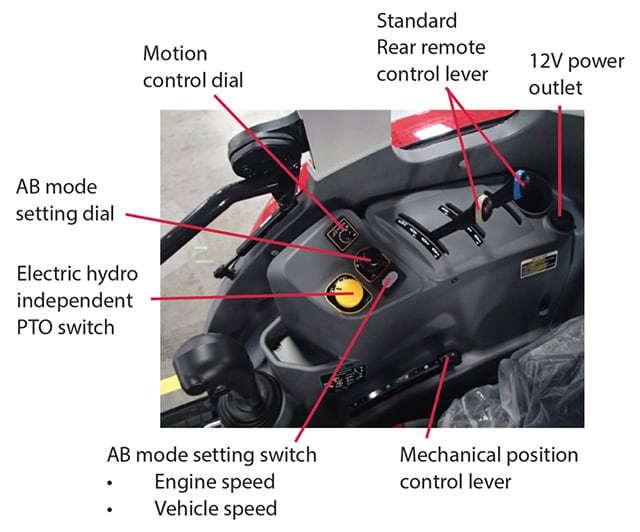

  • Ergonomic operator station
  • Large LCD display integrates with controls
  • Anti-stall
  • Electronic cruise control
  • Rear remote
  • 12V outlet
  • Advanced electronic controls
  • Auto-throttle
  • A/B Mode
  • Throttle boost button
  • i-HMT Transmission
  • High power transfer ratio
  • Repeatable operating speed
  • Low fuel consumption due to increased transmission efficiency
  • Step-less main shift
  • Best speed possible for implement
  • Clutch-less shifting
  • Vehicle stop without clutch
  • Model YT347 YT347C YT359 YT359C
    Cabin No Yes No Yes
    Engine Manufacturer YANMAR YANMAR YANMAR YANMAR
    Model 4TNV88C 4TNV88C 4TNV98C 4TNV98C
    Emission Level Tier 4/EU Stage V Level Tier 4/EU Stage V Level Tier 4/EU Stage V Level Tier 4/EU Stage V Level
    Gross Power 46 HP (34.3 kW) 46 HP (34.3 kW) 58.9 HP (43.9 kW) 58.9 HP (43.9 kW)
    Number of Cylinders 4 4 4 4
    Displacement (cc) 2189 2189 2189 2189
    Rated Speed (1/min) 2800 2800 2800 2800
    Fuel tank (L) 48 48 48 48
    Overall length (mm) 3,325 3,325 3,355 3,355
    Overall Width (mm) 1,793 1,793 1,793 1,793
    Overall Height (mm) 2,431 2,274 2,431 2,274
    Ground Clearance (mm) 326 326 326 326
    Wheel Base (mm) 1,927 1,927 1,967 1,967
    Weight (kg) 1,760 1,943 1,832 2,015
    Transmission I-HMT (Integrated Hydro Mechanical Transmission) I-HMT (Integrated Hydro Mechanical Transmission) I-HMT (Integrated Hydro Mechanical Transmission) I-HMT (Integrated Hydro Mechanical Transmission)
    Number of Gears Stepless Stepless Stepless Stepless
    Drive Type 2WD/4WD selectable engagement 2WD/4WD selectable engagement 2WD/4WD selectable engagement 2WD/4WD selectable engagement
    Rear PTO Speed/Engine Rated Speed 540 for NA, 540/750 for Europe 540 for NA, 540/750 for Europe 540 for NA, 540/750 for Europe 540 for NA, 540/750 for Europe
    Mid PTO Speed/Engine Rated Speed - - - -
    3-Point Hitch Category Ⅰ(Ⅱ) for NA,
    Category Ⅰ for Europe
    Category Ⅰ(Ⅱ) for NA,
    Category Ⅰ for Europe
    Category Ⅰ(Ⅱ) for NA,
    Category Ⅰ for Europe
    Category Ⅰ(Ⅱ) for NA,
    Category Ⅰ for Europe
    3-Point Hitch Lift Capacity at lower link end (kgf) 1,500 1,500 1,500 1,500
    Front Tires (with R4) 10.00 - 16.5 10.00 - 16.5 10.00 - 16.5 10.00 - 16.5
    Rear Tires (with R4) 17.5L - 24 17.5L - 24 17.5L - 24 17.5L - 24
  • Note: All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
