SDe7
Specifications
- Rated output
- 7 kW / 9.5 mhp
- Rated Speed
- 2700 rpm
- Max Speed
- 2900 rpm
- Max Speed (Reverse Boost)
- 3300 rpm
- Rating
- S2-60
- Gear Ratio
- 2.13
- Dry Weight
- 68.7 kg
- Dimensions (mm)
- 758 x 636 x 424
- Nominal Voltage
- 48 VDC
- Battery Technology
- Lithium-ion LiFePO4
NOTE:
7 kW @2700 rpm*
Note: Battery and propeller are not included in standard delivery
S2-60 = Minimum 60 minutes at full rated output,
at sea water temperature 30 degrees C,
ambient air temperature 50 degrees C
More Information

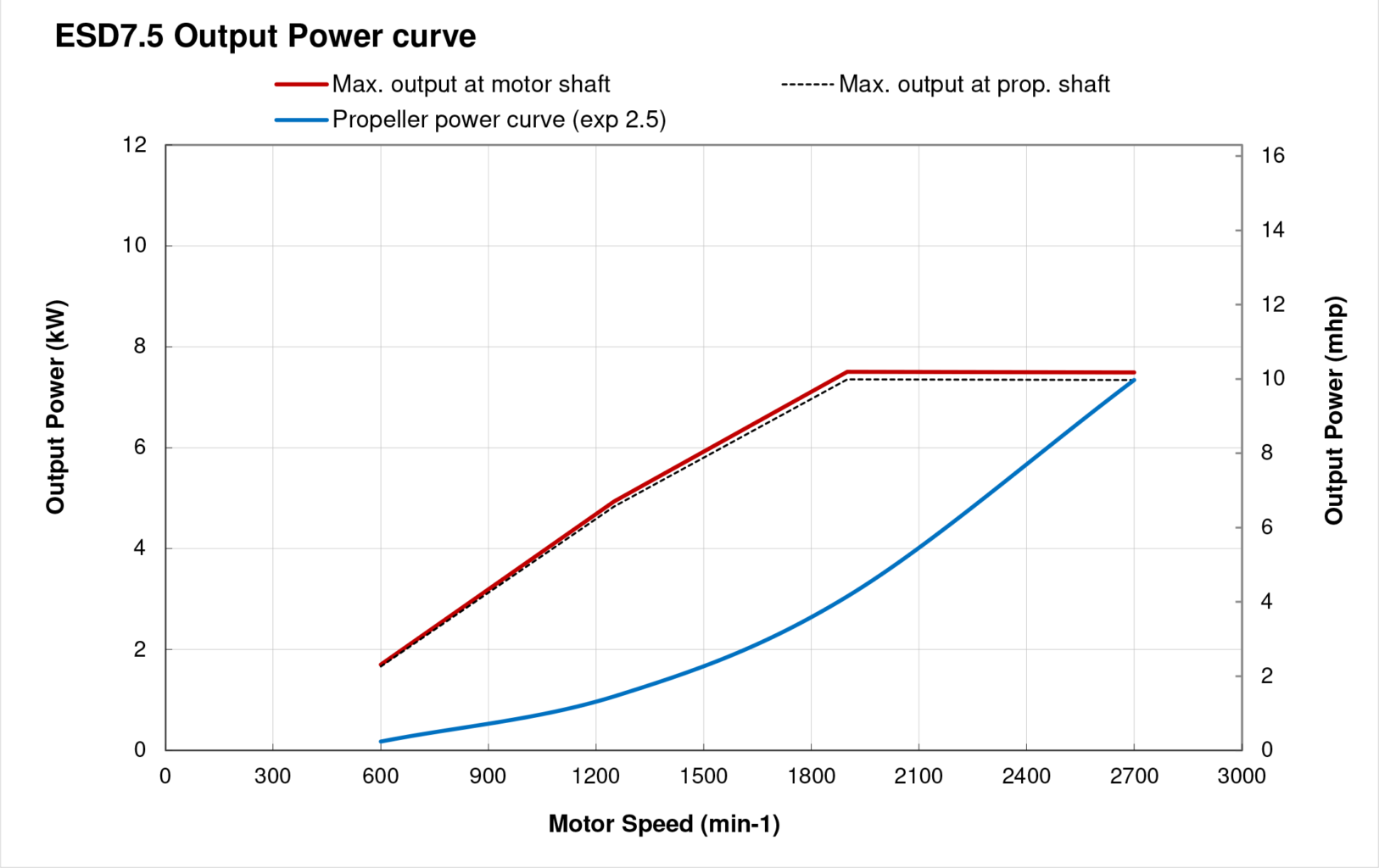

Performance Curves

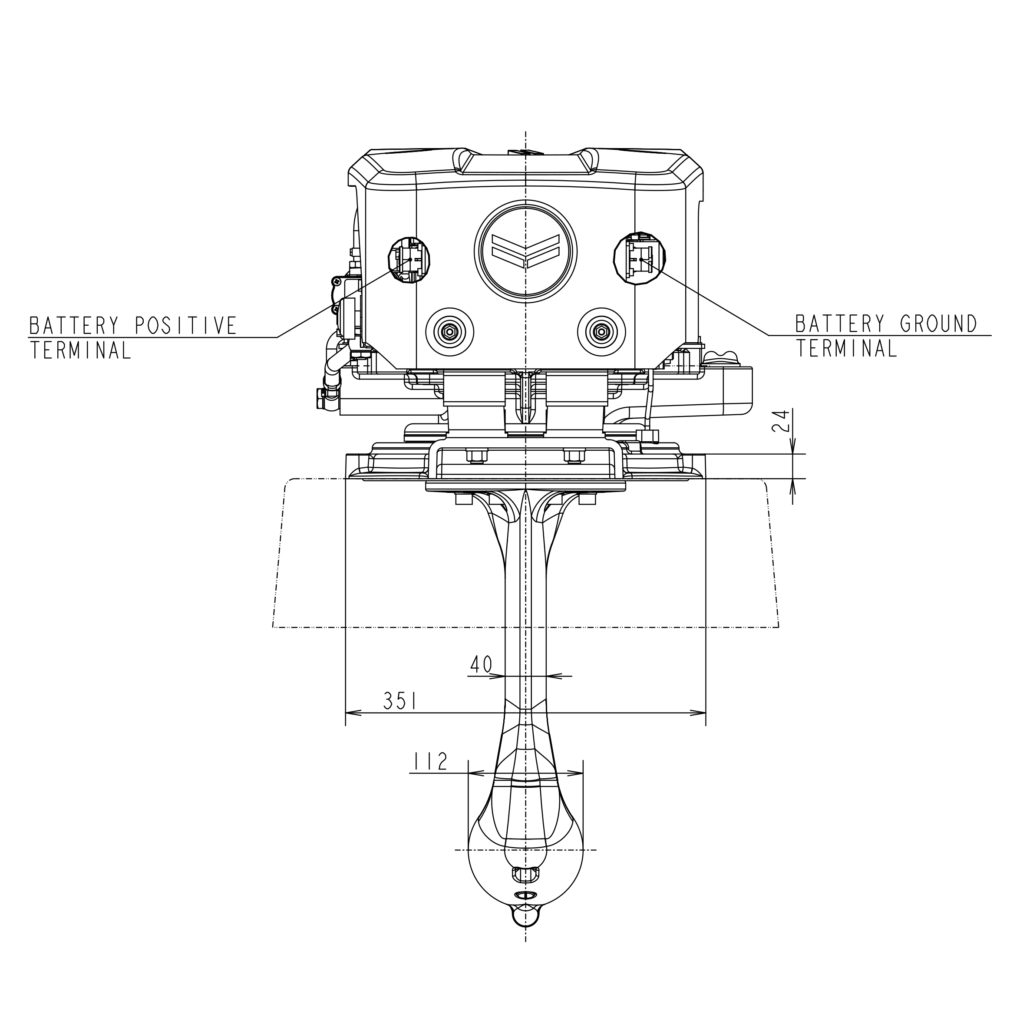

Technical Drawings
Packages
Standard Engine Package
• Battery cable connectors
• Display
• Control head (side mount or top mount)
• Switch panel
• Backup panel
• Harnesses [3m, 5m, 10m, 20m]
• Terminator
Optional Accessories
• E-stop switch
• CAN cables
• Lanyard switch
• Battery
IMO Tier III package
Downloads
Technical Drawings
