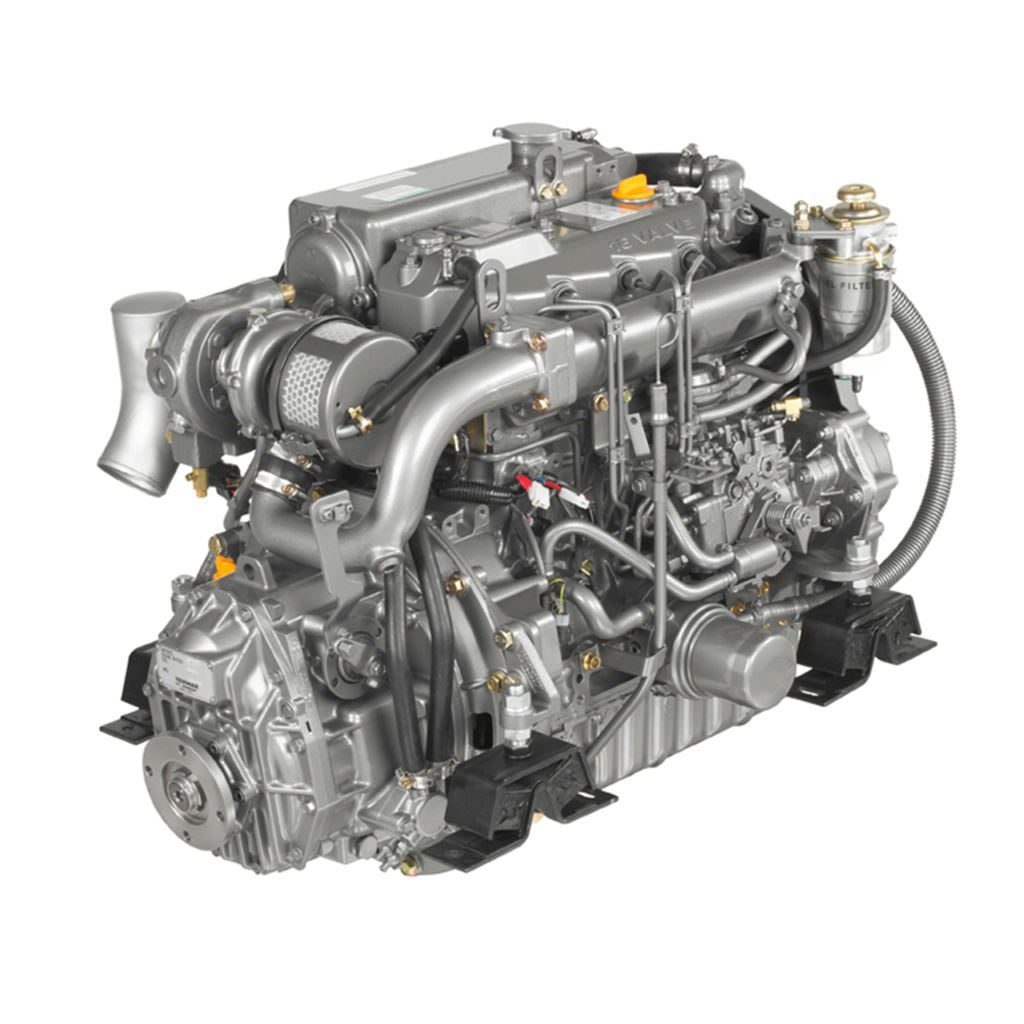

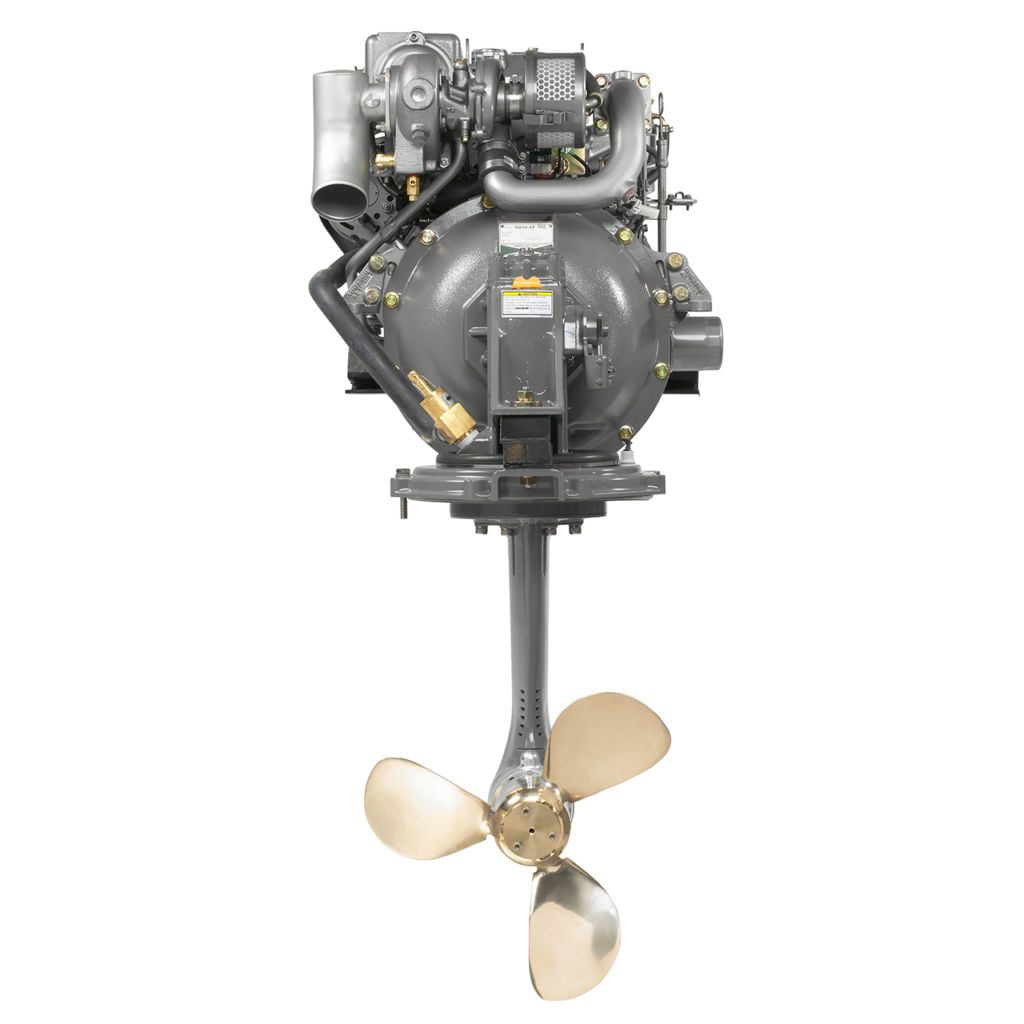

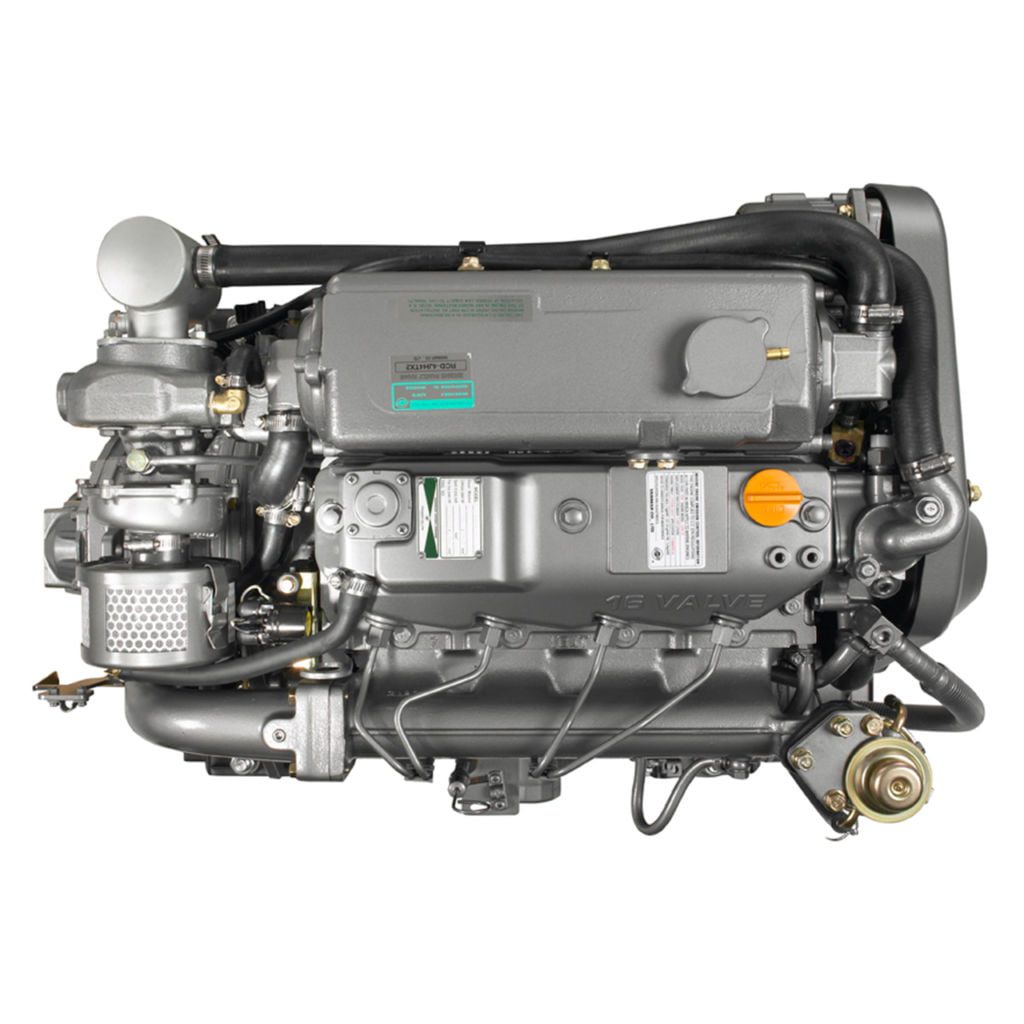

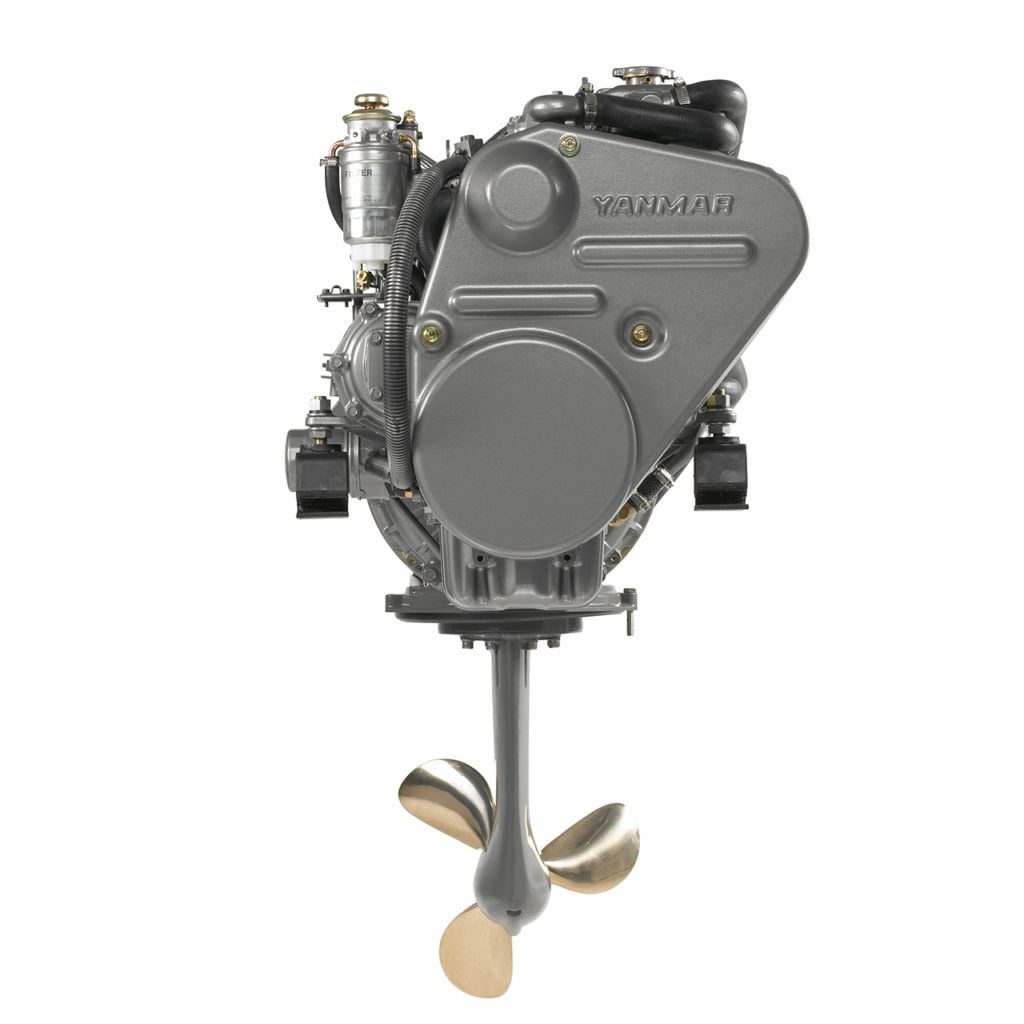

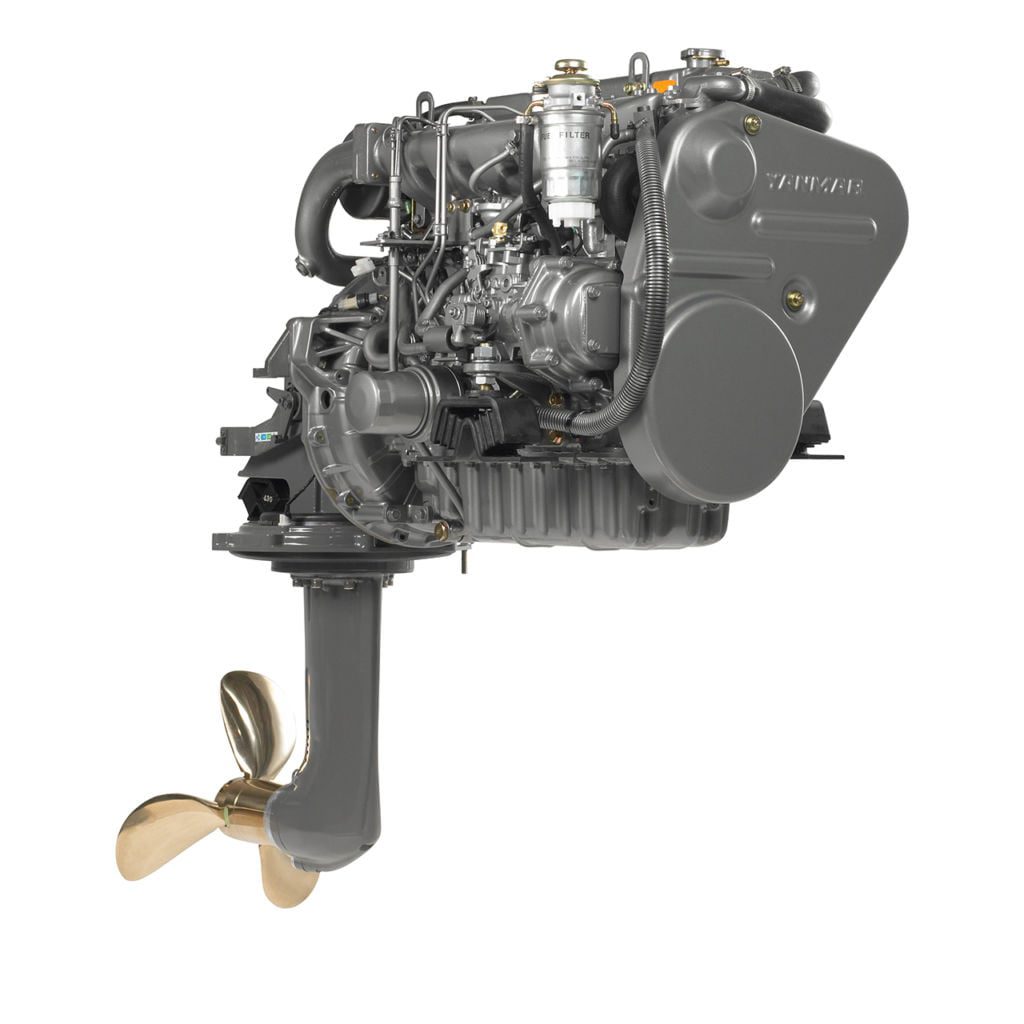

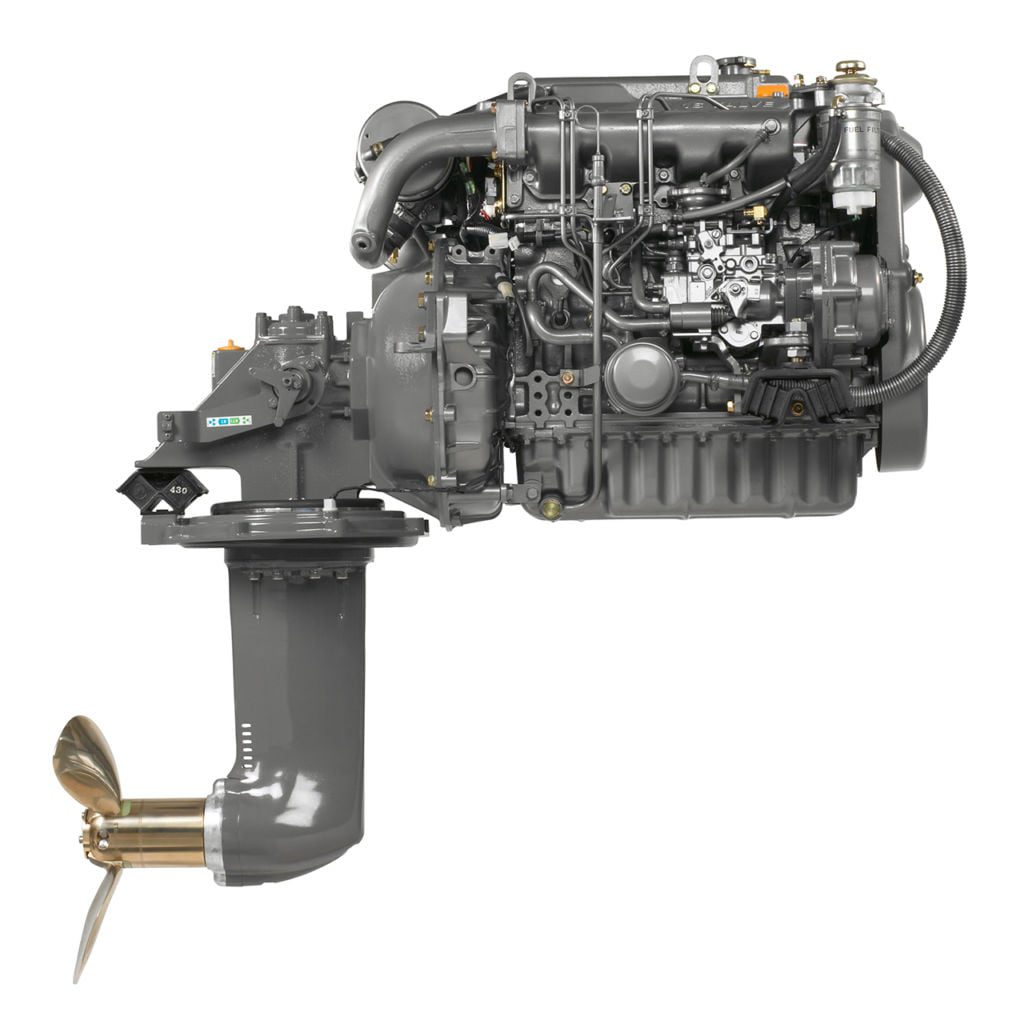

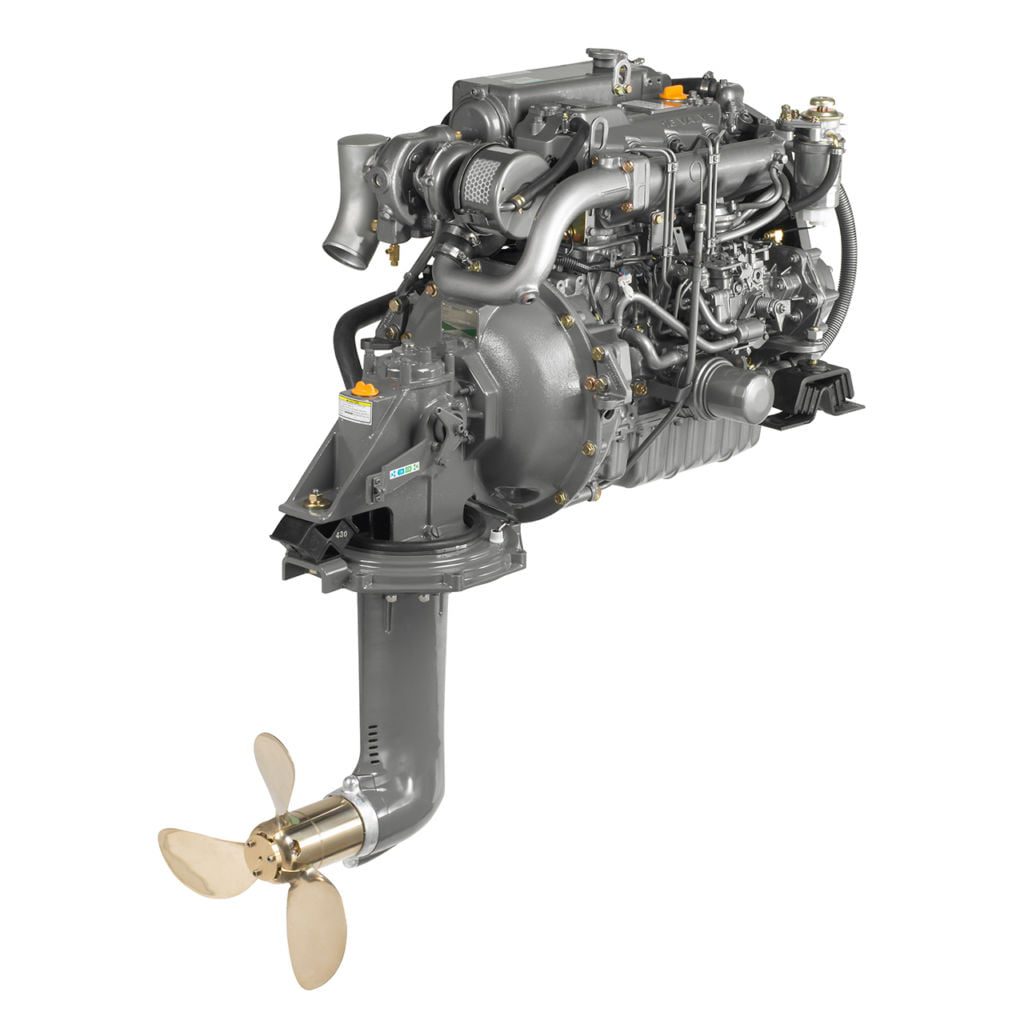

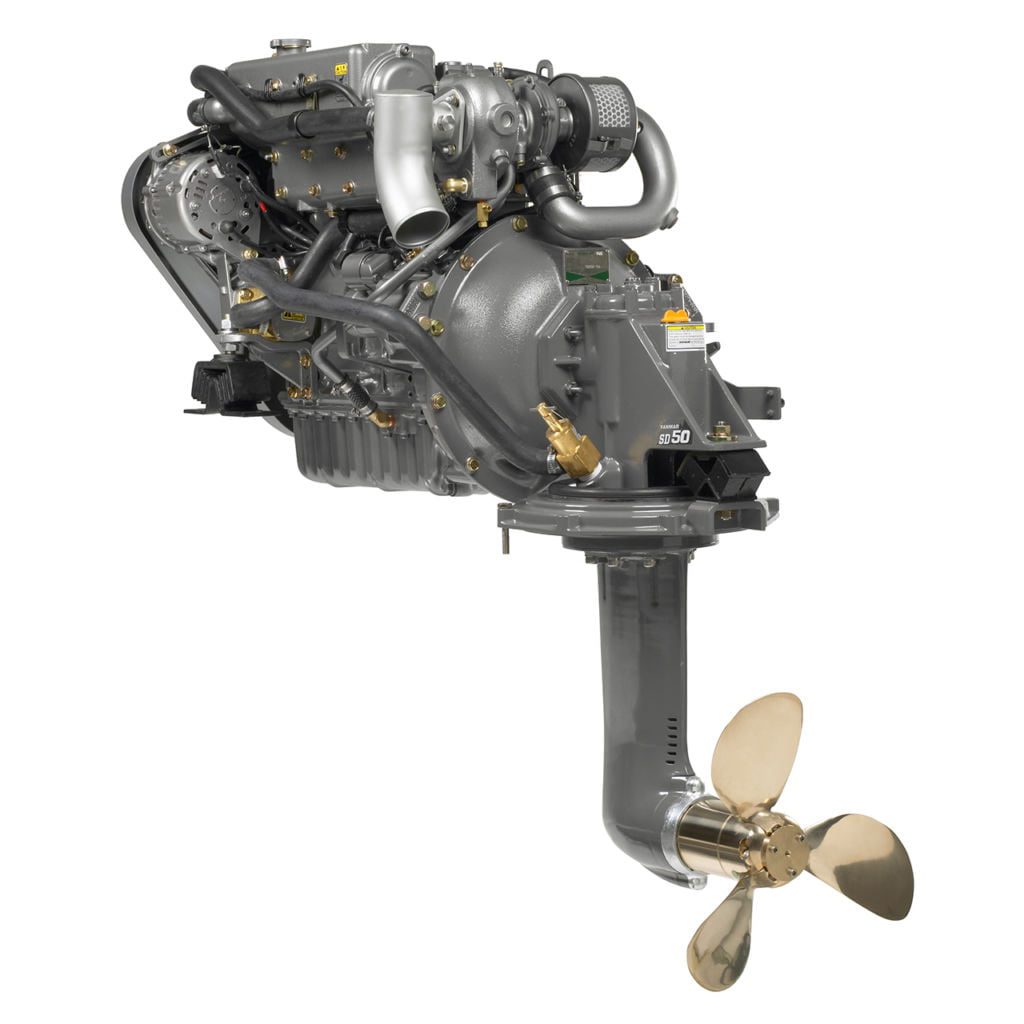

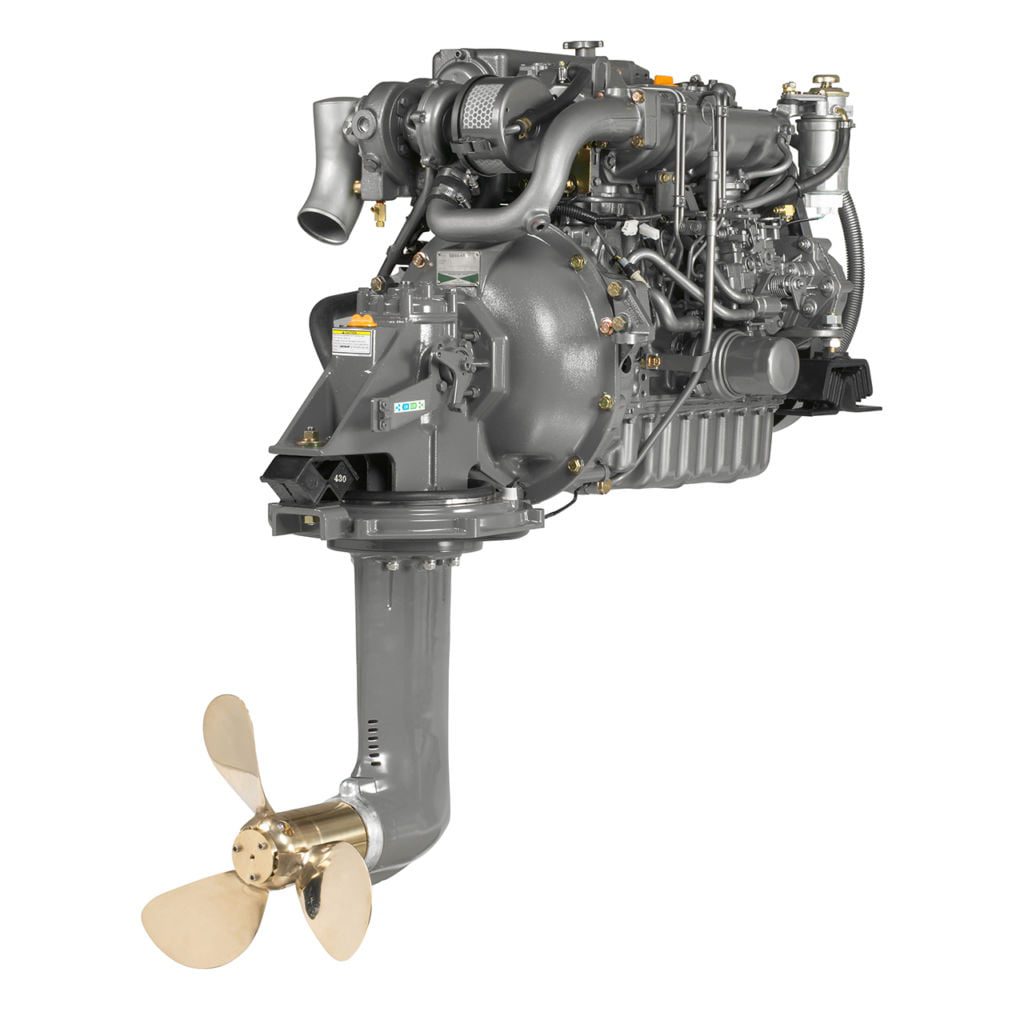

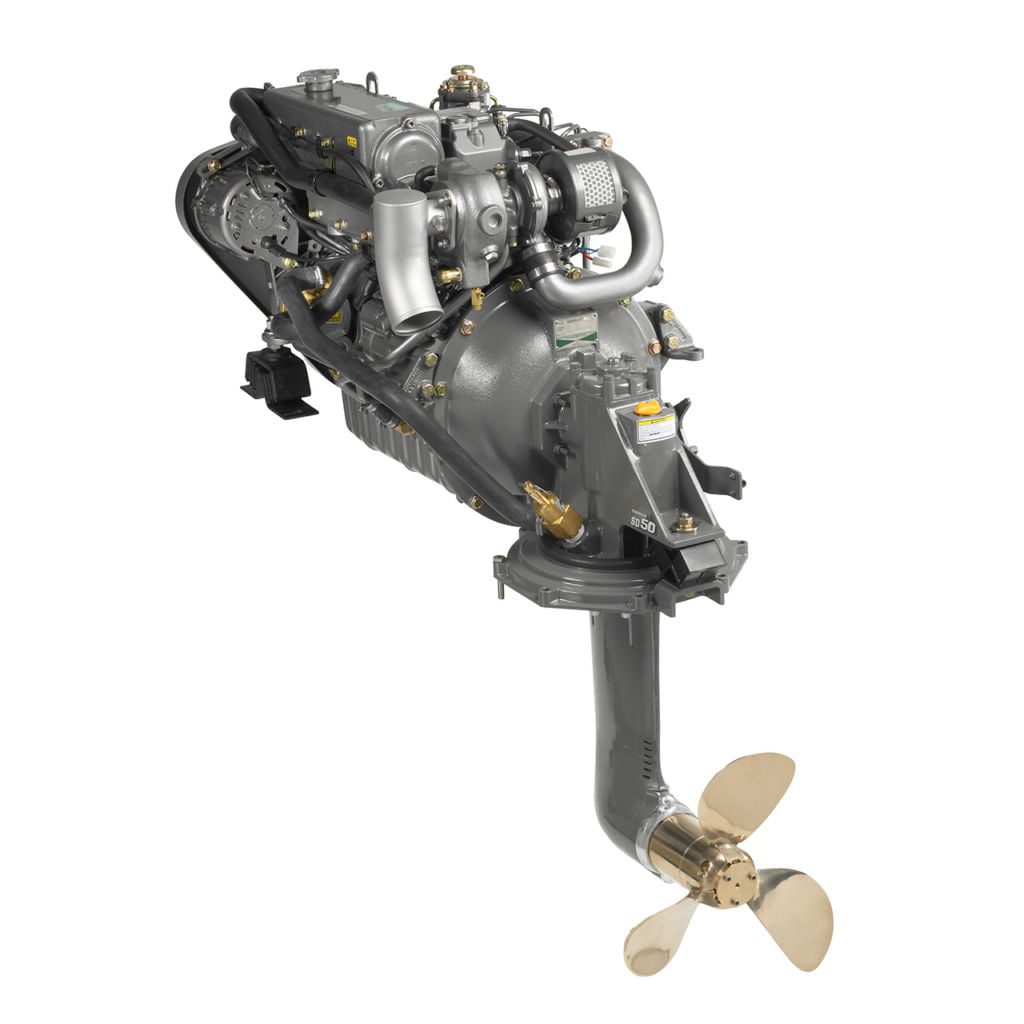

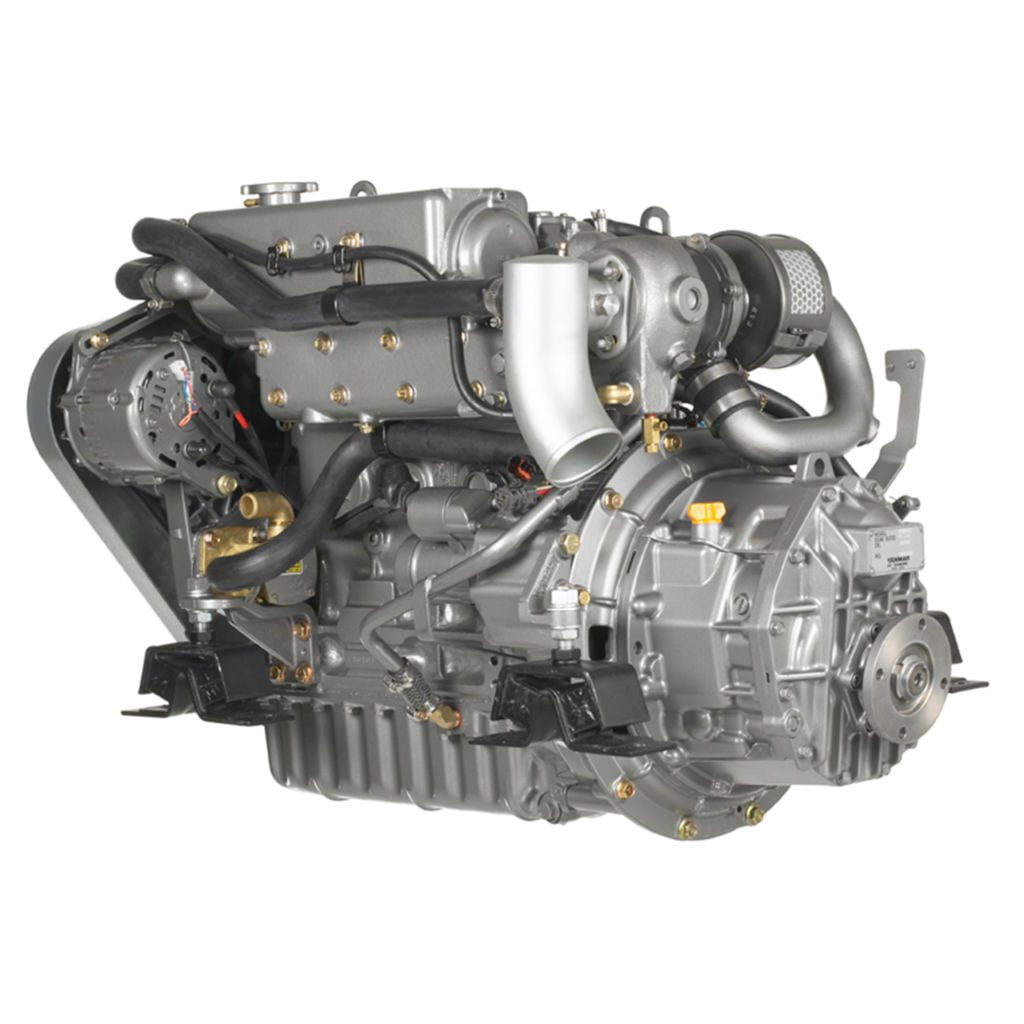

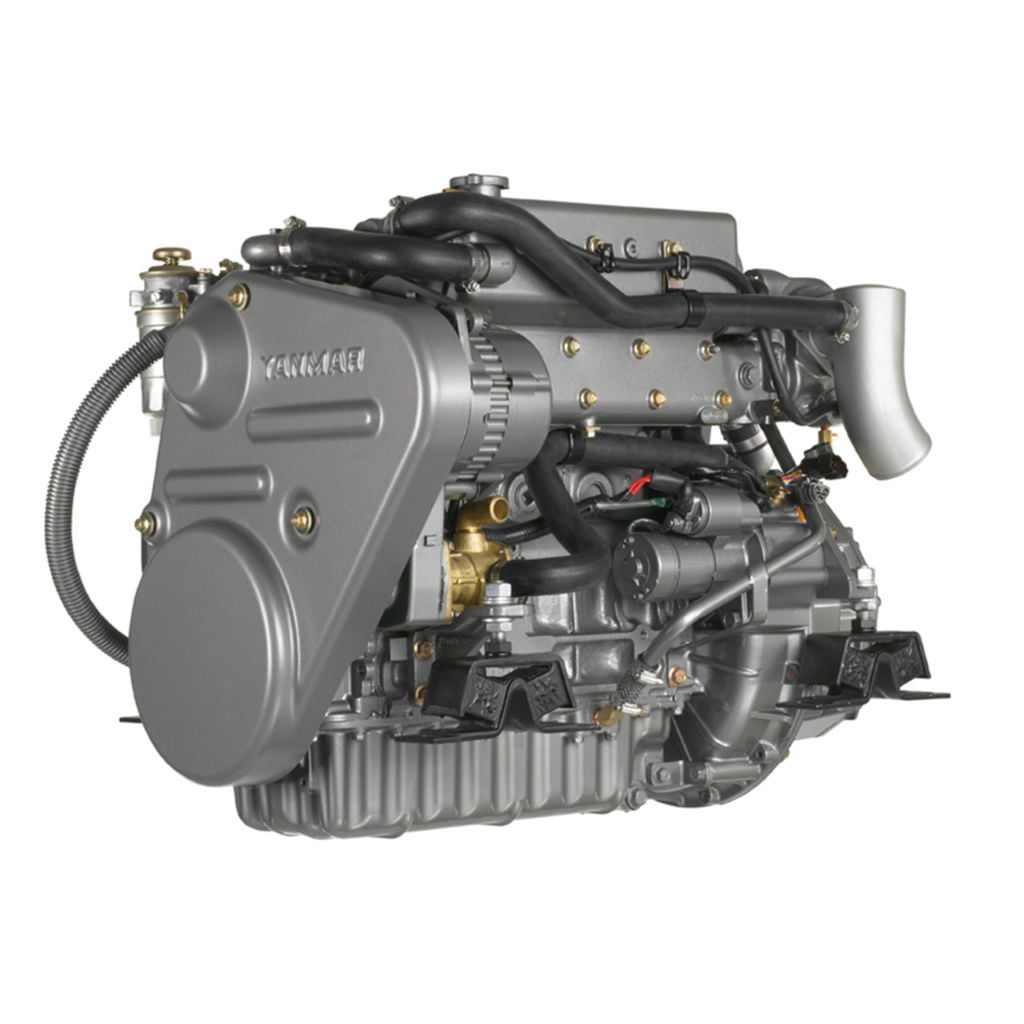

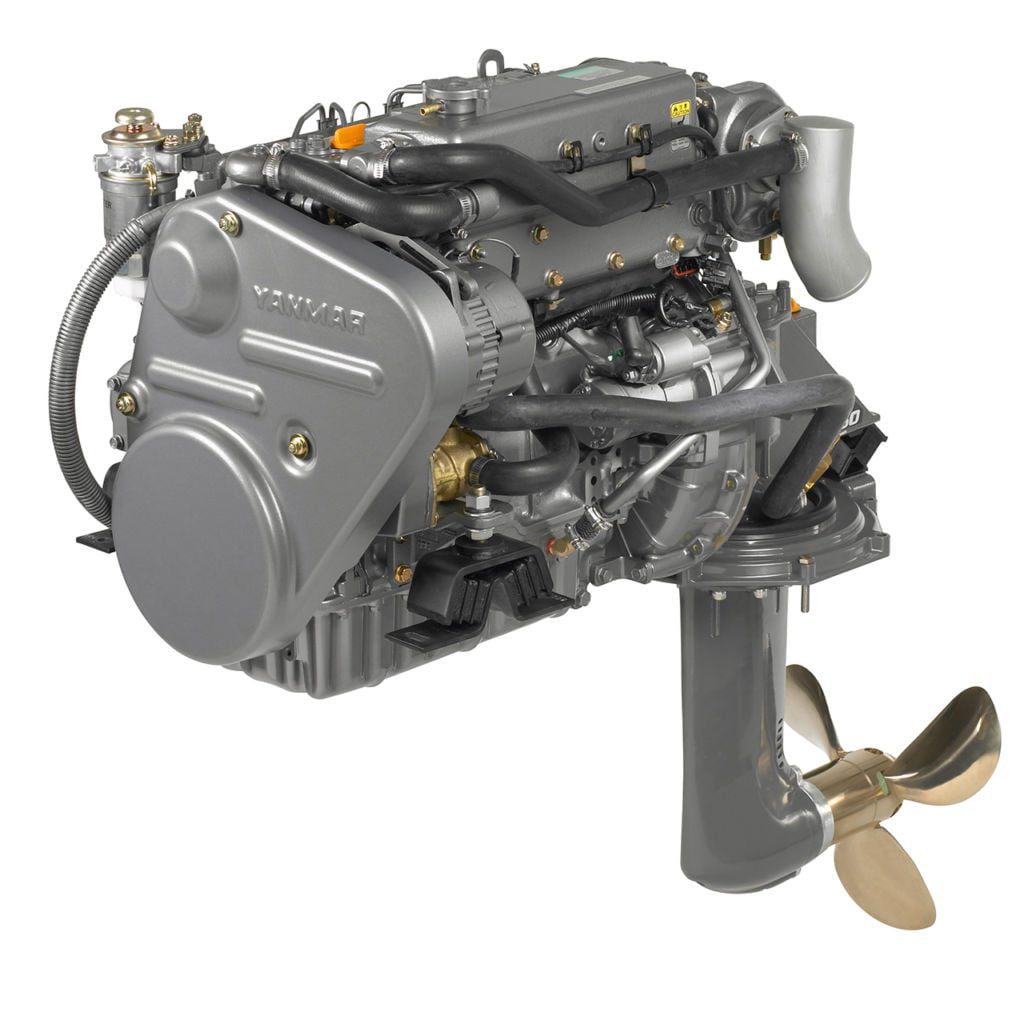

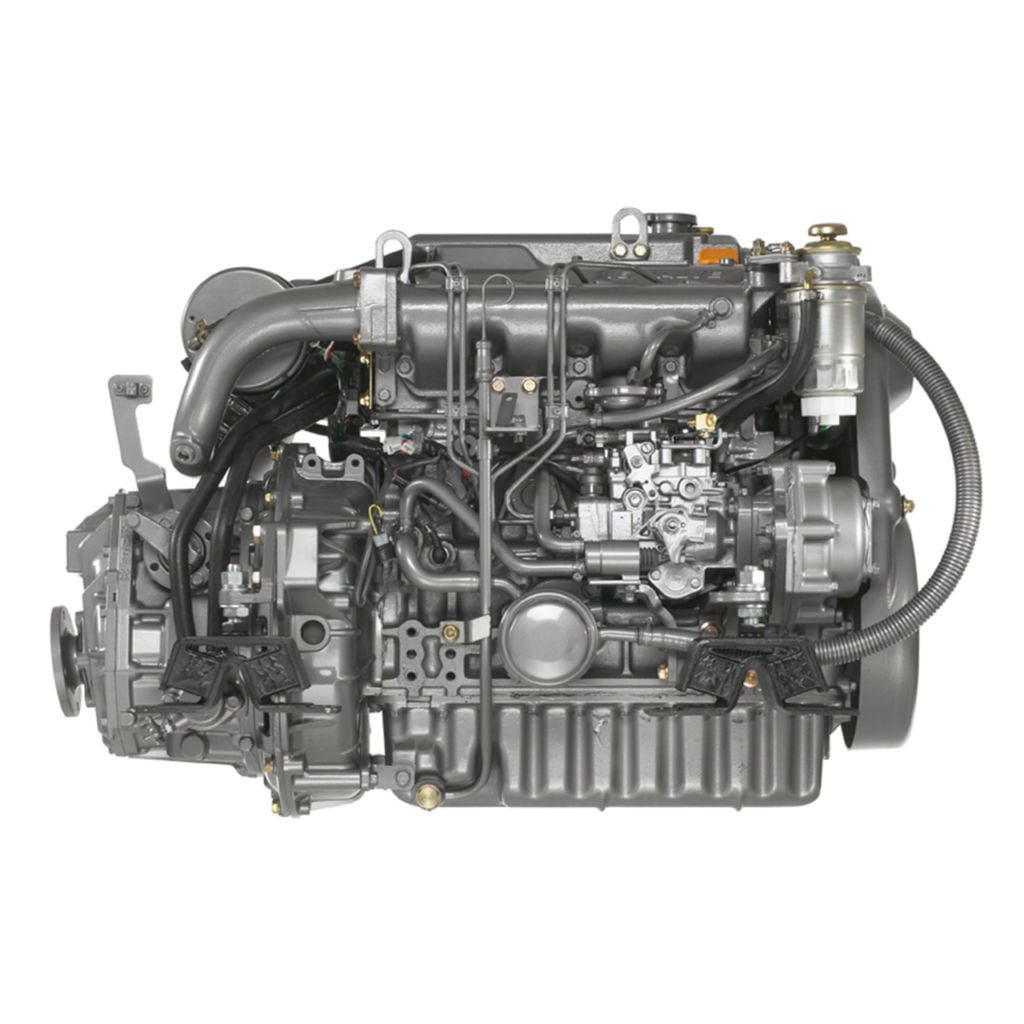

4JH4-TE
Specifications
- Rated output
- 55.2 kw / 75 mhp
- Rated Speed
- 3200 rpm
- Displacement
- 1.995 L / 121.7 cu. in
- No. of cylinders
- 4 cylinders
- Cylinder Bore x Stroke
- 84 mm x 90 mm / 3.31 in x 3.54 in
- Combustion system
- Direct Injection, Bosch Distributor Type VE Pump
- Aspiration
- Turbocharged
- Alternator
- 12V - 125A
- Dry weight without gear
- 207 kg / 456 lbs
- Dimensions
- 903 mm x 661 mm x 659 mm
- Controls
- Mechanical
- Certifications
- RCD 1 EPA Tier 2 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
4JH4-TE
Performance Curves

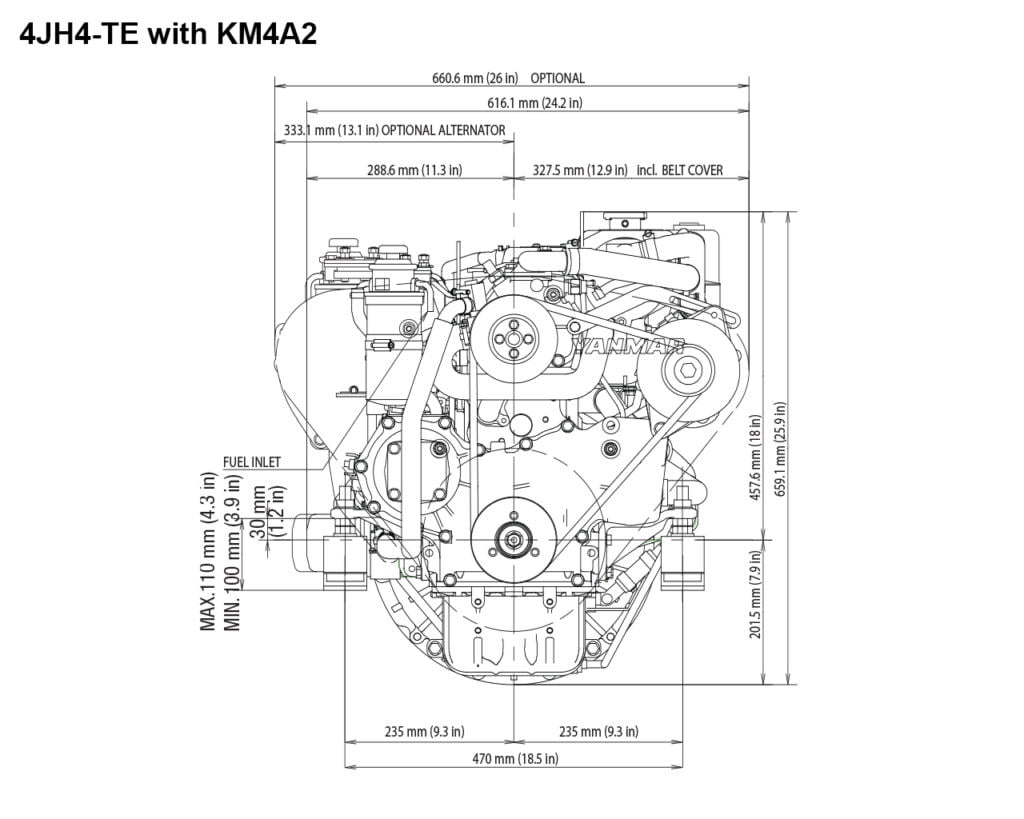

Technical Drawings
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 125A
- B20 panel
- Flexible mounts
- Expansion tank for fresh water cooling system
- Electric stop solenoid
- Belt safety cover
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 130A or 24V – 75A including smart regulator
- C30 panel
- Extension wire harness [4m, 6m, 10m]
- Dual harness [for 2nd station]
- TFX Sidemount control head
- SOLAS including Certificate [factory fit only]
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- Air heater [glow]
- Trolling valve [only for KMH4A]
- On-board spare parts kit
Operation Manual
JH series; 3JH5E, 3JH5AE, 4JH5E, 4JH4-TE, 4JH4-HTE - PDF
