Weight 2865 kg
Payload 2500 kg
Width 1390 mm
  • Agriculture
  • Civil Engineering
  • Construction
  • Landscaping

Dumping along trenches can be tricky. But not with the C30R-3TV tracked dumper. The wagon comes mounted on a frame that turns 90° left and 90° right, so you can always see what you’re doing. That’s great for both safety and productivity. Naturally, it’s also a very compact carrier with a width of 1.5 metres, so you can operate on even the smallest job sites. And an ability to spin-turn 360° offers greater machine efficiency and better productivity for you.

Specifications

Specifications C30R-3TV
Weight Transport weight 2790 kg
Operating Weight 2865 kg
Payload 2500 kg
Engine Type 4TNV88C-KFW
Fuel Diesel
Net Power 32,5 kW (at 2800 rpm)
Displacement 2,189 l
Max Torque 134.5 – 146.2 N.m (at 1820 rpm)
Cooling Water cooling
Starter 12 V – 1.7 kW
Battery 12 V – 72 Ah
Alternator 12 V – 55 A
Transmission Type HST
Hydraulic pump 2 piston pumps with variable flow
Max pressure 350 bar
Performance Max. traveling speed (low/high) 5.7 / 11 km/h
Gradability 30°
Noise level (2000/14/CE & 2005/88/CE) Lwag = 98 dBA ; Lpag = 86 dBA
Dumping system Dumping angle 85°
Vessel dimensions (L x w x h) 2010 x 1390 x 505 mm
Dumping mechanism 180 ° dumping
Dumping vessel capacity (struck / heaped) 1,13 / 1,50 m³
Dump clearance 730 mm
Undercarriage Track width 320 mm
Ground clearance 280 mm
Number of top rollers 6
Track tensioning system Hydraulic adjuster
Ground pressure (unloaded / loaded) 0,30 / 0,57 kgf/cm²
Capacities Hydraulic tank 28 l
Hydraulic circuit 38 l
Fuel tank 58 l

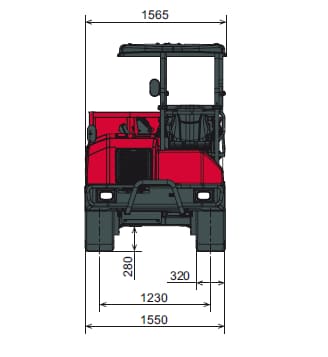

Dimensions

C30R-3TV

Features


COMPACTNESS

At Yanmar, we’re always ahead of the game when it comes to being compact and the C30R-3TV is no different. With a total width of just 1.5 metres, it can turn in even the worst winter conditions. The ability to spin-turn through 360° offers greater efficiency and productivity. And, at just 3.64 metres long, the C30R-3TV is easily transported to your next job. Despite these compact dimensions, the machine packs an impressive payload of 1.50 m3 heaped.


DUMPING

If you work with trenches, it’s safest to dump sideways. That’s why the C30R-3TV is a swing wagon with a frame that can turn 180° (90° left, 90° right). You can dump along the trench while driving, working close-up to what you’re doing, so you can work productively and safely. You’ll also benefit from a mudguard that stops material falling out of the wagon and damaging hydraulic components or getting into the operator area.


UNIQUE UNDERCARRIAGE

At Yanmar, we’re all about compactness and all-terrain capability. That’s why we developed a unique undercarriage that rides even the roughest surfaces while protecting its service life. Track rollers absorb obstacles, while we’ve improved traction force and stability even more by increasing the diameter of the sprocket and the length of the tracks. We distribute mass through 24 rollers to preserve the tracks and provide excellent ground pressure that helps the C30R-3TV work, even in deep mud.


UNIQUE TRANSMISSION CONCEPT

If you can turn 360°, you’ll always face the direction of travel, which can only be good news for safety and for avoiding on-site damage. That’s why we built in automatic hydraulic pressure adjustments that allow for a smooth 360° turn in less than ten seconds (when empty). It won’t stall either, thanks to a new variable-speed hydrostatic transmission system (HST) with an anti-stall feature. The result is better manoeuvrability, improved comfort and increased productivity.


YANMAR ENGINE WITH DPF

We’re continually looking for new ways to improve the environment and cut fuel costs. So we look closely at how we build our engines. We radically cut nitrogen oxides through exhaust gas recirculation and clean up exhaust emissions with a diesel particulate filter. The auto-deceleration system switches the engine to idle if the levers aren’t touched for four seconds. And an eco-mode controls the engine speed to allow very low fuel consumption. So you save money and drive up productivity.


EASE OF USE

We build better machines by putting people first. So we developed a proportional control system that moves the machine only as far as you push the joystick lever. Let go and it stops. The left joystick controls speed and the right joystick controls operation. Switch easily between low-speed and high-speed with the automatic dual-speed switch. Use the lock switch to prevent accidental operation. Make fine speed adjustments with the accelerator.


SAFETY: REVERSIBLE SEAT CONSOLE

The operator’s seat on the C30R-3TV has a special feature: operator levers that can turn 180°, so you’re always facing the direction of travel. You can always see what you’re doing, so you maximise safety and minimise costly on-site damage.


PARKING BRAKE SWITCH

Raise the lock levers and you automatically activate the parking brake. This stops inadvertent operation or dumping and keeps you safe. To release the brake, simply press the parking switch.


SMARTASSIST REMOTE

Monitor and manage your machines remotely through your computer or smartphone. SmartAssist Remote is our own in-house fleet-management system that uses telematic technology to give optimal visibility on equipment location and status. It’s a compact piece of equipment that will help you maximise your work potential, while notifying us immediately about faults or maintenance timings. So we offer unrivalled service and support.



Options

  • Beacon light with magnetic base
  • Special paint
