| Type | Conventional Tail |
|---|---|
| Operating Weight | 1180 kg |
| Width | 740 - 990 mm |
| Digging Depth | 1800 - 1995 mm |

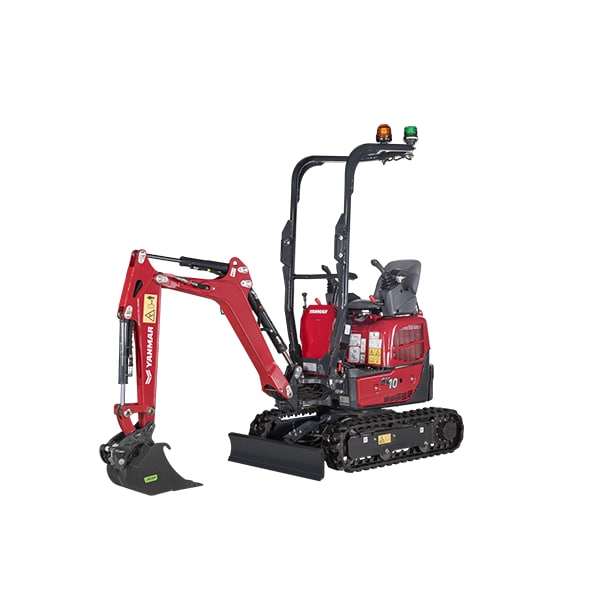

The SV10 compact mini excavator delivers powerful performance in tight spaces.
Easy to transport, quick to deploy, and built for maximum uptime, it helps professionals increase efficiency while reducing operating costs.
Specifications
| Specifications | SV10 | |
|---|---|---|
| Weight | Transport weight | 1 055 kg (rubber tracks) |
| Operating Weight | 1 180 kg (rubber tracks) | |
| Engine | Type | Stage V 3TNV70-WBVB1 |
| Fuel | Diesel | |
| Net Power | 9.2 kW (at 2 000 rpm) | |
| Gross Power | 9.3 kW (at 2 000 rpm) | |
| Displacement | 0.854 l | |
| Max Torque | 51.8 N.m / 1 500 rpm | |
| Starter | 12 V - 1.1 Kw | |
| Battery | 12 V - 36 Ah | |
| Alternator | 12 V - 8.5 A | |
| Hydraulic System | Maximum Pressure | 190 bar |
| Working Pump | 1 double piston pump with variable flow / 1 gear pump | |
| Max Flow | 2 x 11.14 l/min / 6.79 l/min | |
| Hydraulic Tank | 7.5 l | |
| Performance | Travel speed | 1.8 - 3.6 km/h |
| Rotation Speed | 9.1 rpm | |
| Digging Force (arm) | 5.2 kN | |
| Digging Force (bucket) | 7.6 kN | |
| Traction Force | 9.39 kN | |
| Noise level (2000/14/CE & 2005/88/CE) | LwA: 92 dBA / Lpag: 76 dBA | |
| Fuel Tank | 10.84 l | |
Dimensions

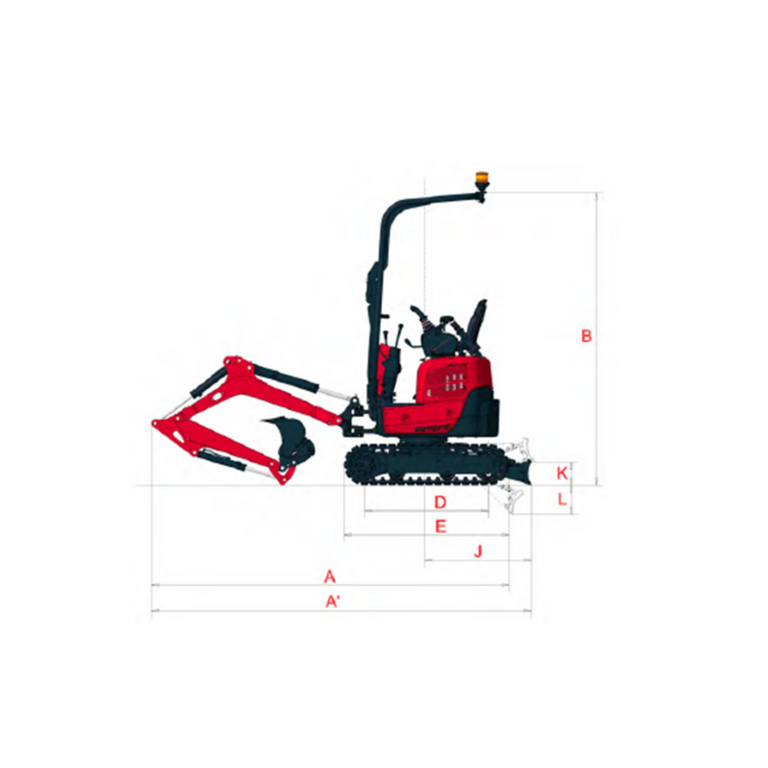

| Dimensions | SV10 | |
|---|---|---|
| A | Overall length | 2 810 mm |
| B | Overall height | 2 300 mm |

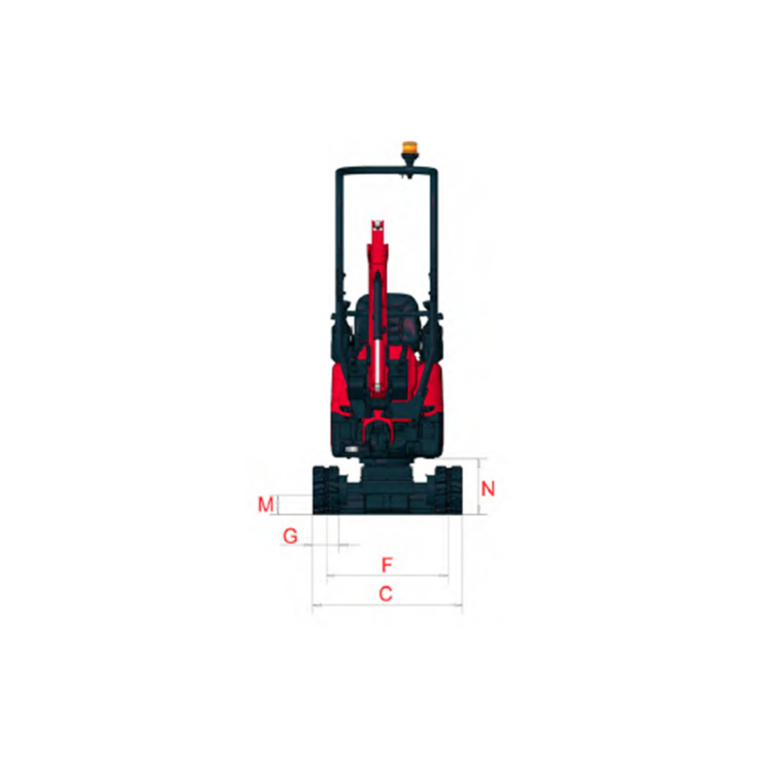

| C | Overall width | 740 / 990 mm ** |
| D | Length of track on ground | 970 mm |
| E | Undercarriage length | 1 290 mm |
| F | Lane | 560 / 810 mm ** |
| G | Track width | 180 mm |

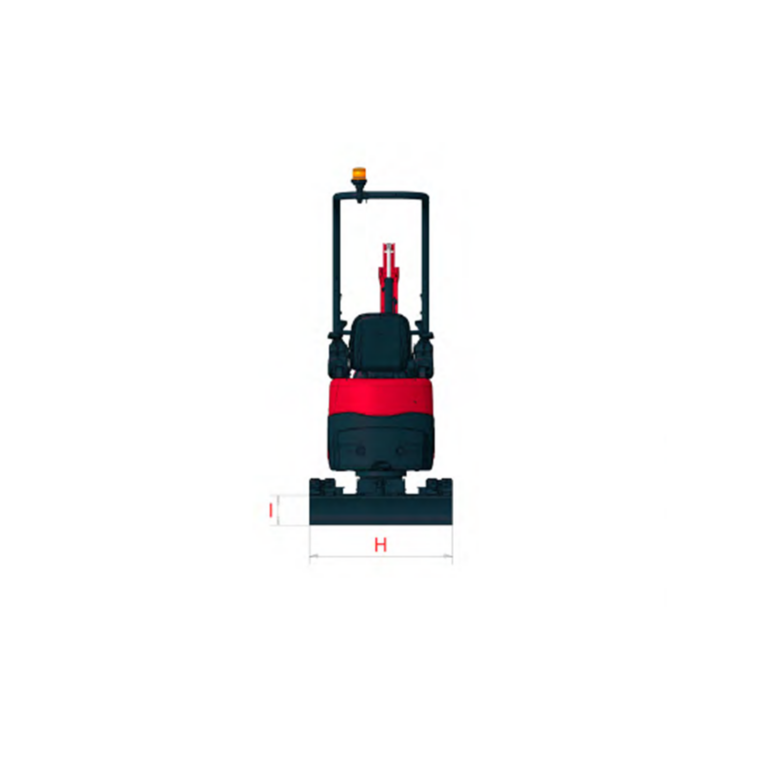

| H | Overall blade width | 740 / 990 mm ** |
| I | Overall blade height | 205 mm |
| J | Blade distance | 840 mm |
| K | Max. blade height above the ground | 185 mm |
| L | Max. lowering blade depth | 230 mm |
| M | Minimum ground clearance | 125 mm |

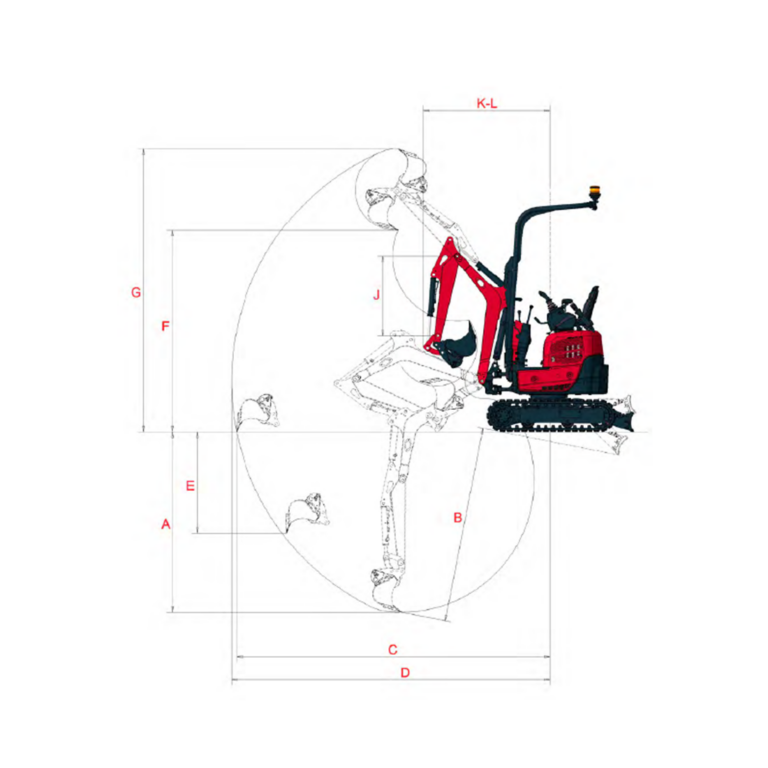

| Dimensions | SV10 | |
|---|---|---|
| A | Max. digging depth - Blade lifted | 1 800 mm |
| B | Max. digging depth - Blade lowered | 1 955 mm |
| C | Max. digging reach on ground | 3 130 mm |
| D | Max. digging reach | 3 180 mm |
| E | Max vertical wall | 1 010 mm |
| F | Max. dumping height | 2 010 mm |
| G | Max. cutting height | 2 830 mm |

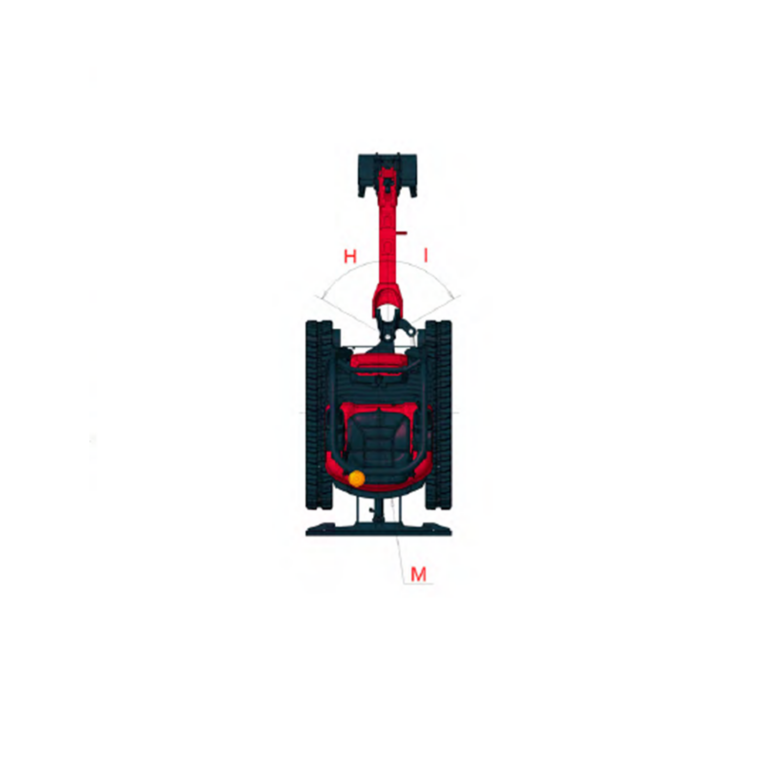

| H | Boom swinging base to left | 60° |
| I | Boom swinging base to right | 60° |
| J | Arm length | 905 mm |
| K | Minimum front swing radius | 1 265 mm |
| L | Minimum front swing radius with boom swing | 935 mm |
| M | Rear turning radius | 590 mm |
**ROPS bar folded / ROPS bar unfolded
Features

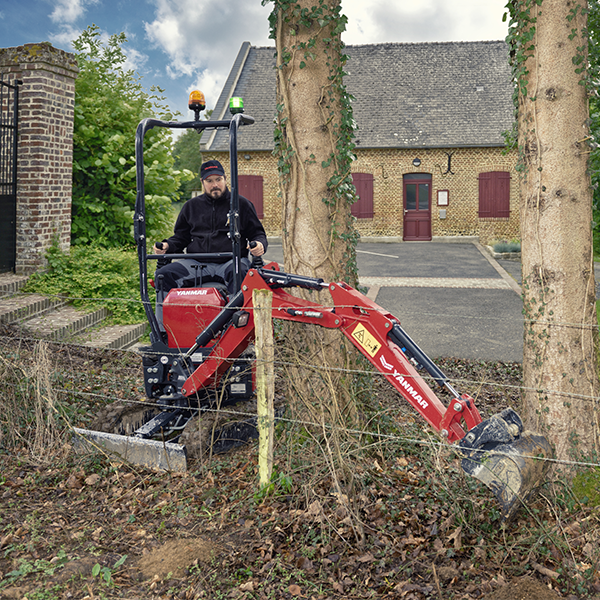

AT THE HEART OF COMPACT PROJECTS

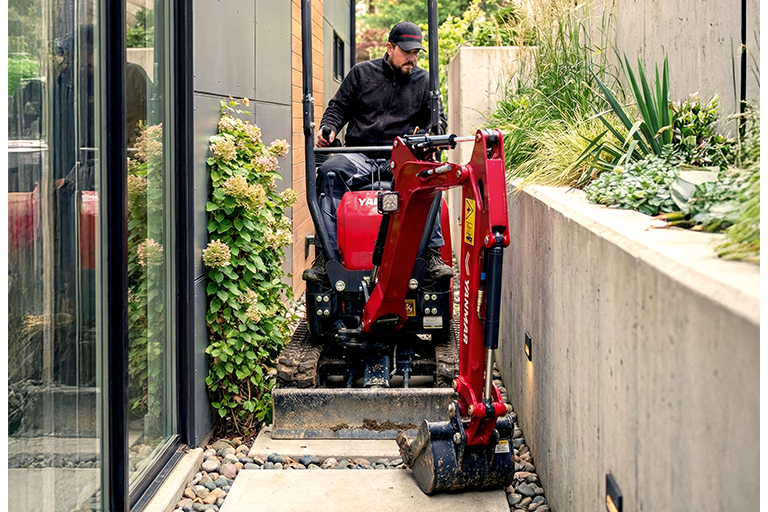

Ideal for tight-space projects
This mini-excavator is optimal for projects taking place in confined building interiors, urban works which require high maneuvrability, deconstruction sites, or even graveyards.
+ Machine width : 740 mm
+ Passes through EU doors
+ Rear-swing radius : 540 mm
+ Enables optimal maneuvrability
+ Lightweight offers minimal disruption
Easily transportable
+ Lightweight: 1 055 kg transport weight (1 180 kg operating weight) with rubber tracks
+ Mini dimensions: overall length of 2 810 mm and height of 2 300 mm
+ Trailer towable by standard vehicles

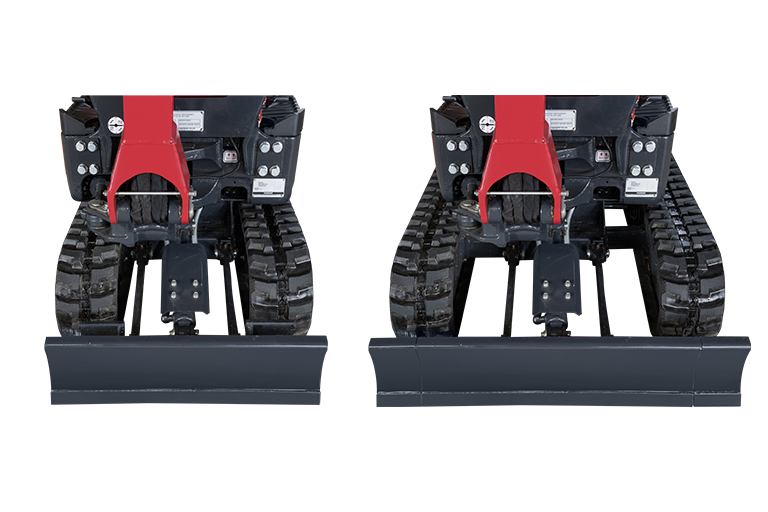

EXTENDABLE UNDERCARRIAGE
740 mm –> 990 mm
WITH THE POWER THAT GETS IT DONE
Reach Every Corner
The boom-top mounted cylinder enables impressive digging depths of up to 1 800 mm (blade up) or 1 955 mm (blade down), giving operators extended reach in confined spaces. This allows efficient trenching and foundation work in urban sites, interiors, and sensitive areas with minimal repositioning.
Power That Works
Equipped with a 3-cylinder engine, this model delivers the highest power in the 1-ton class. The strong, smooth performance supports demanding urban works and rental applications, while remaining easy to operate for all users.
DESIGNED AROUND THE OPERATOR

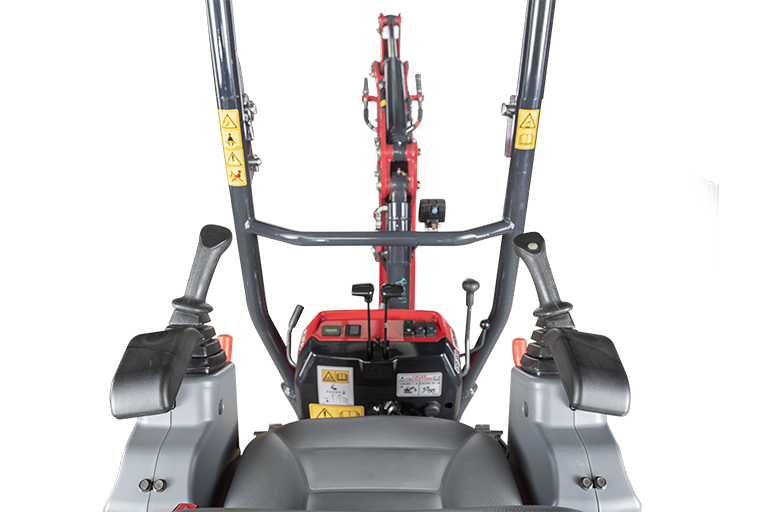

The SV10 is extremely easy and intuitive to operate thanks to a simplified control layout. With only a limited number of joysticks and buttons, operators can quickly understand the machine’s functions and focus on the job rather than the controls. This clear, logical interface ensures smooth operation from the very first use, even for less experienced operators.
ERGONOMICS IN ACTION

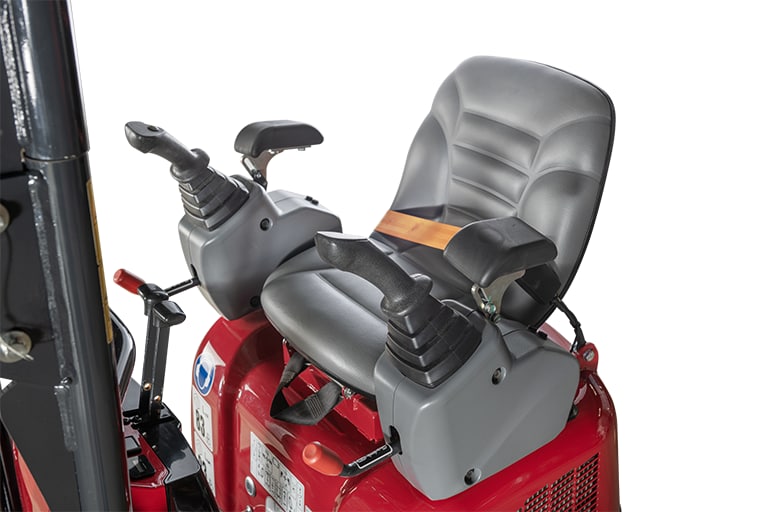

Ergonomics are central to the SV10’s design. The spacing between the joystick consoles can be adjusted to adapt the operator space and improve comfort. This flexible layout allows operators of all sizes to work comfortably, even during long operating periods.

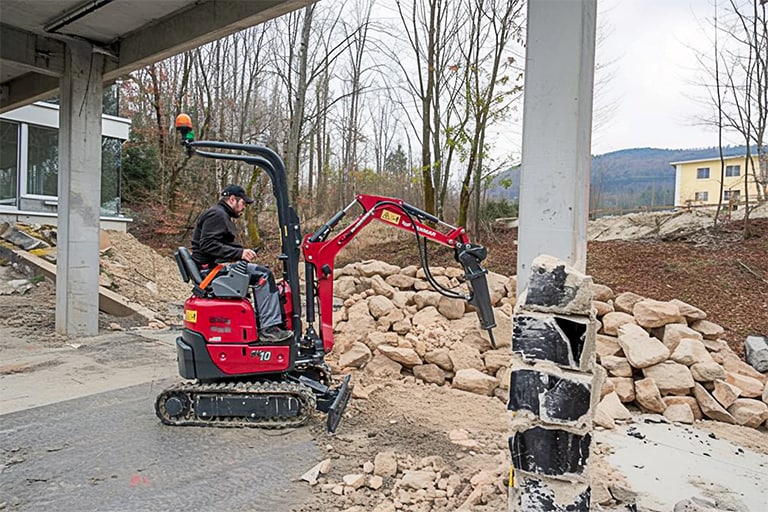

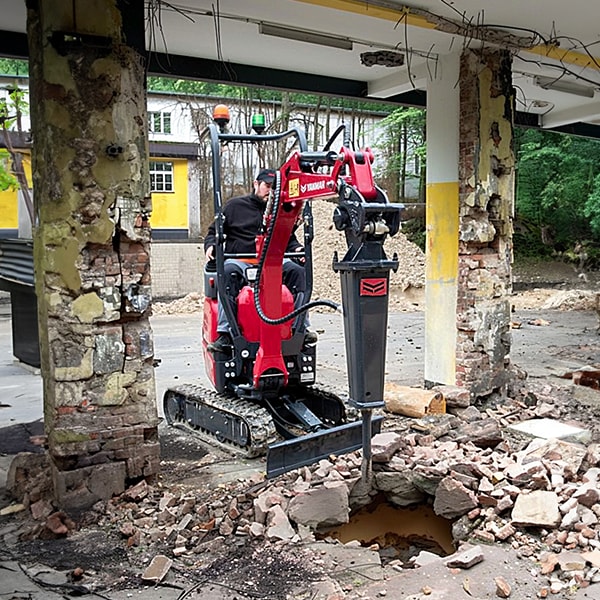

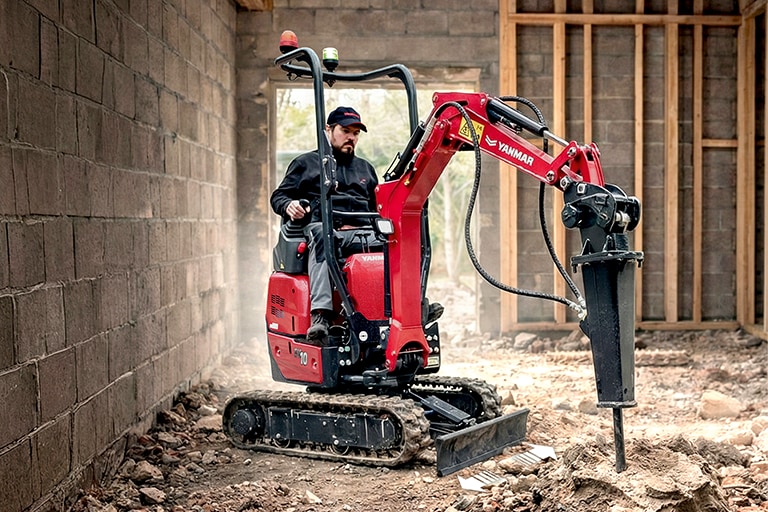

DO MORE WITH ONE MACHINE
The SV10 delivers impressive versatility for a wide range of tasks. The boom-top mounted cylinder enables digging depths of up to 1,800 mm (blade up) or 1,955 mm (blade down), allowing for efficient excavation in confined spaces. The machine also supports numerous attachments, including augers, grapples, breakers, and clamps, making it adaptable to multiple applications. This flexibility allows operators to handle diverse jobs with a single, compact machine, maximizing productivity on every project.
