ViO27-7｜Mini Excavators｜Products｜Compact Equipment

Type	Zero Tail
Operating Weight	2745 - 2845 kg
Width	1500 - 1550 mm
Digging Depth	2590 - 2835 mm

Compact power meets zero-tail precision.
The ViO27-7 operates safely close to buildings, sidewalks and traffic—perfect for urban foundations, landscaping, and confined worksites. Combining narrow undercarriage, excellent visibility, and VIPPs hydraulic smoothness, this ultra-compact powerhouse delivers fast, simultaneous movements even while traveling—without compromising on power.

Specifications

Specifications		ViO27-7
Weight	Transport weight	2 565 kg (rubber tracks) / 2 665 kg (steel tracks)
Weight	Operating Weight	2 745 kg (rubber tracks) / 2 845 kg (steel tracks)
Engine	Type	Stage V 3TNV80F-ZXKBVA
	Fuel	Diesel
	Net Power	17.7 kW at 2400 rpm
	Gross Power	18.4 kW at 2400 rpm
	Displacement	1.267 l
	Max Torque	74.5 Nm ( 1900 rpm)
	Starter	12 V - 1.4 kW
	Battery	12 V - 55 Ah
	Alternator	12 V - 55 A
Hydraulic System	Maximum Pressure	210 bar
	Working Pump	1 gear pump
	Max Flow	2 x 32,4 l/min
	Hydraulic Tank	32 l
Performance	Travel speed	2.5 / 4.4 km/h
	Rotation Speed	9.7 rpm
	Digging Force (arm)	16.5 kN / 13.6 kN with long arm
	Digging Force (bucket)	21.4 kN
	Traction Force	23.5 kN / 12.1 kN
	Noise level (2000/14/CE & 2005/88/CE)	NA
	Fuel Tank	39 l

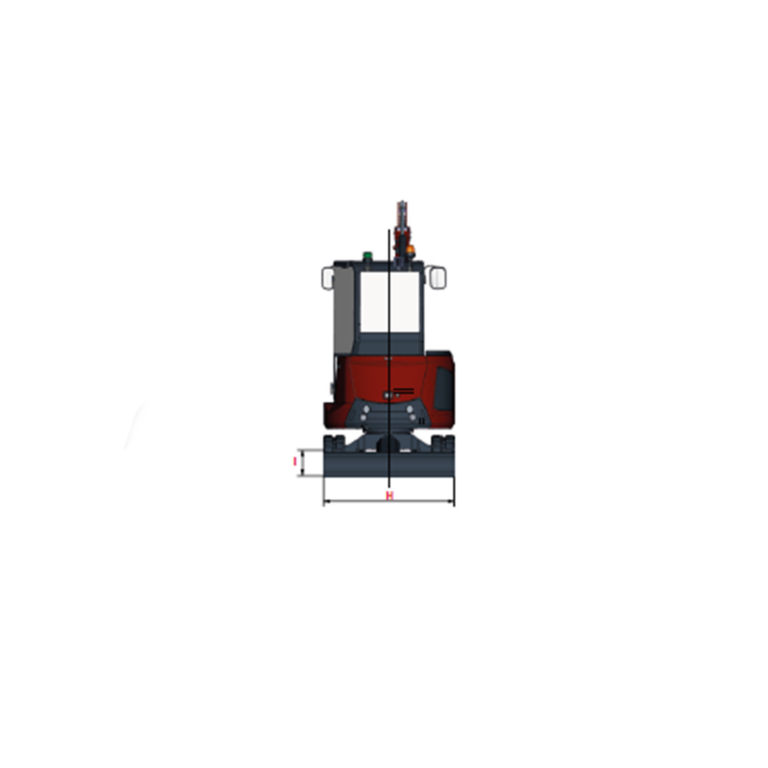

Dimensions

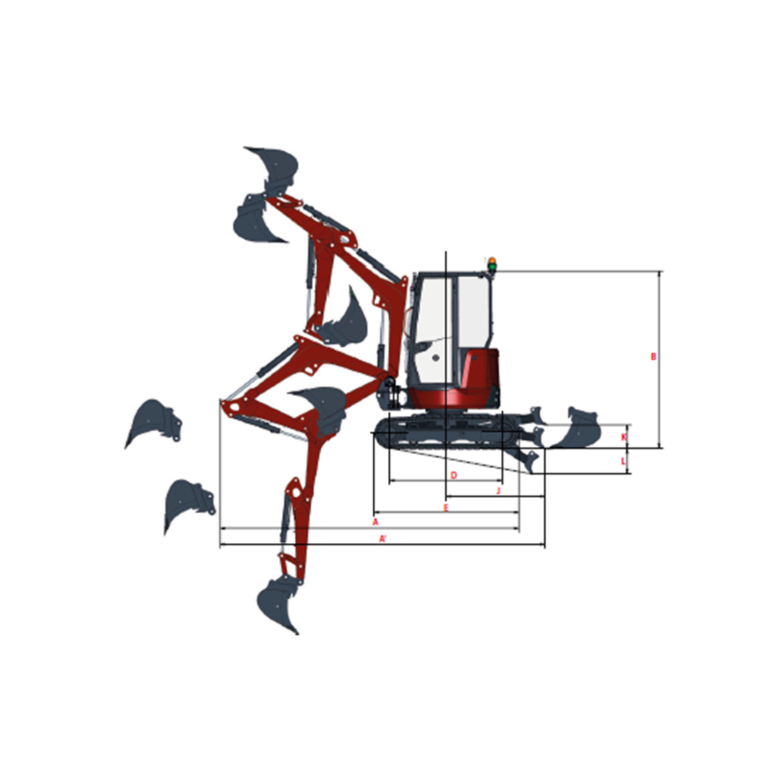

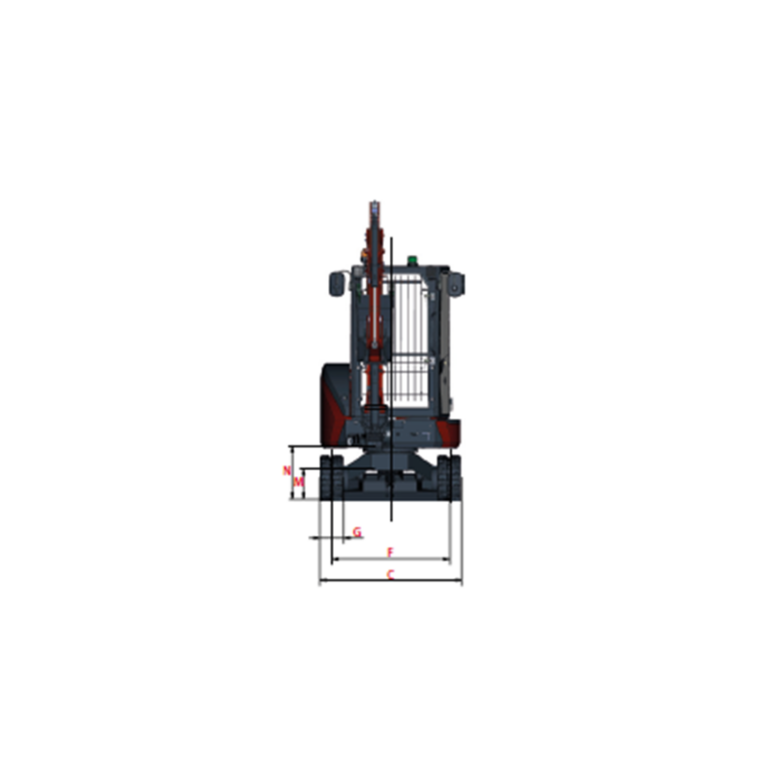

Dimensions		ViO27-7
A	Overall length	4 165 / 4 180 mm*
B	Overall height	4 525 / 4 540 mm*
C	Overall width	1 500 / 1 550 mm**
D	Length of track on ground	1 570 mm
E	Undercarriage length	2 020 mm
F	Lane	1 250 mm
G	Track width	250 / 300 mm**
H	Overall blade width	1500 mm
I	Overall blade height	300 mm
J	Blade distance	1 380 mm
K	Max. blade height above the ground	330 mm
L	Max. lowering blade depth	355 mm
M	Minimum ground clearance	325 mm

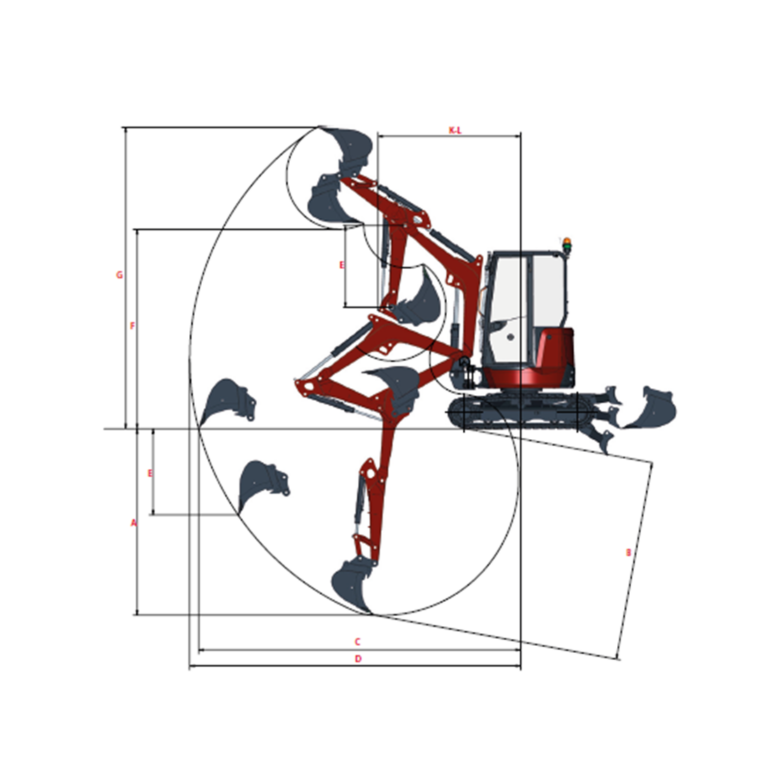

Dimensions		ViO27-7
A	Max. digging depth - Blade lifted	2 590 / 2 835* mm
B	Max. digging depth - Blade lowered	2 775 / 3 025* mm
C	Max. digging reach on ground	4 470 / 4 720* mm
D	Max. digging reach	4 595 / 4 835* mm
E	Max vertical wall	1 195 / 1 400* mm
F	Max. dumping height	2 770 / 2 930* mm
G	Max. cutting height	4 190 / 4 345* mm

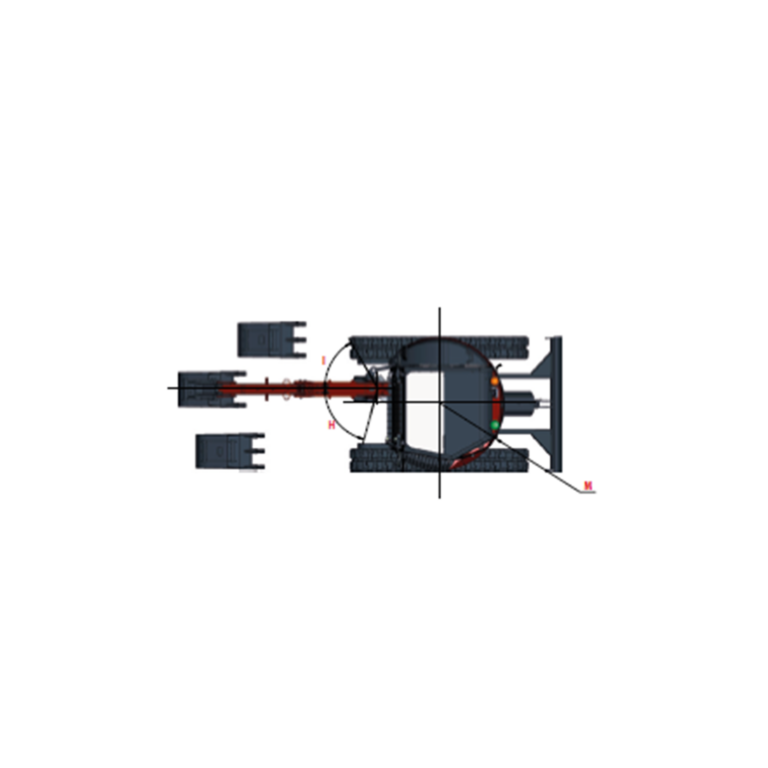

H	Boom swinging base to left	75°
I	Boom swinging base to right	60°
J	Arm length	1 150 / 1 400* mm
K	Minimum front swing radius	1 985 / 2 025* mm
L	Minimum front swing radius with boom swing	1 105 / 1 115 * mm
M	Rear turning radius	750 mm

Short arm/ long arm*

Extended tracks**

Features

SMALL FRAME, FULL POWER

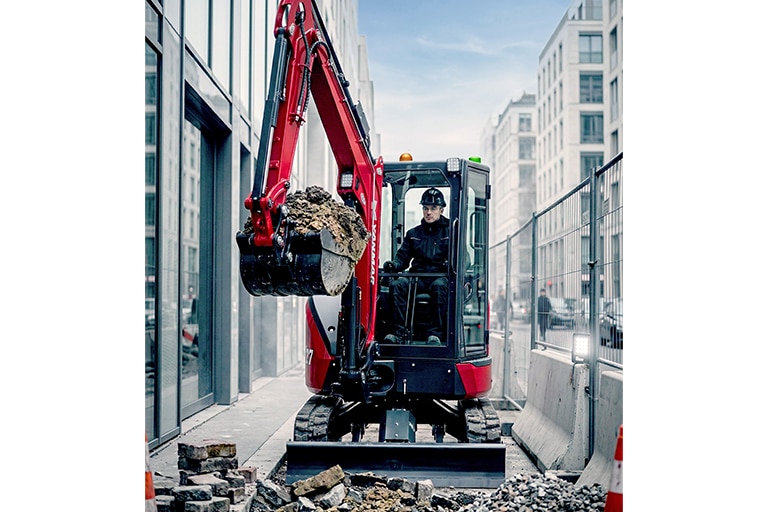

Purpose-built for demanding urban applications, the ViO27-7 combines compact dimensions with confident performance on congested jobsites.
With an overall width of just 1,500 mm including cab and rubber tracks and a transport weight of 2,565 kg, it easily accesses restricted areas while maintaining stability and control. The wide boom swing range (75° left / 60° right) further enhances manoeuvrability, allowing operators to work safely around pedestrians and obstacles in busy environments.
The machine is well suited to urban construction, tight landscaping environments and small building or renovation projects where space is limited and awareness of surroundings is essential.

Zero-tail swing
Its true zero tail swing configuration enables operators to work safely alongside buildings, sidewalks and traffic, drastically limiting the risk of contact or damage.

TRANSPORT-READY MOBILITY

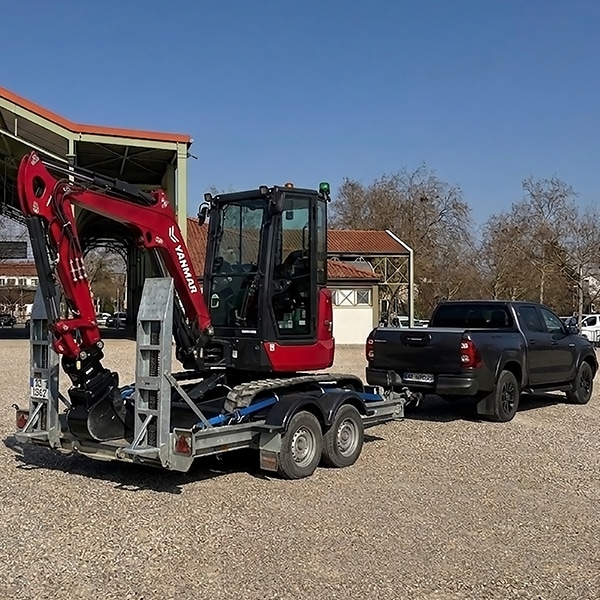

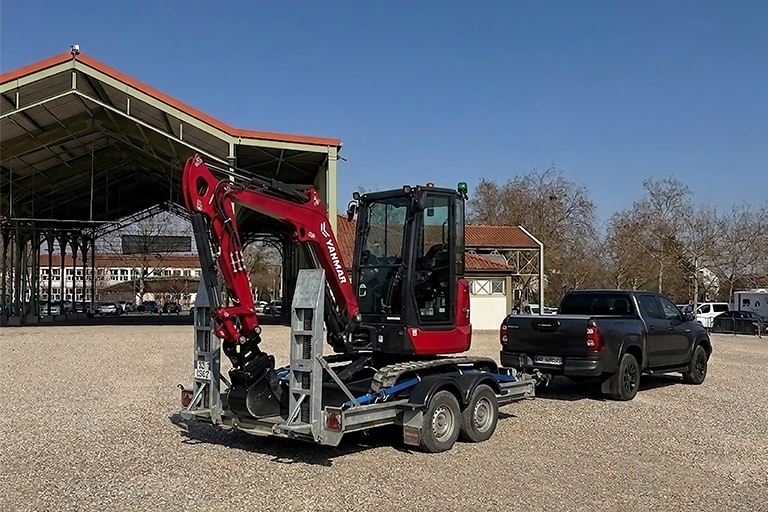

The ViO27 is perfect for professionals who move between jobsites daily and rental companies seeking maximum fleet flexibility. With the machine, quick coupler and two-bucket standard attachment package staying within the 3.5-tonne transport regulation, operators can use standard trailers and private vehicles without requiring commercial licenses. Four integrated tie-down points on the lower frame ensure fast, secure loading and unloading. This
transport efficiency translates directly into lower operating costs per job, reduced downtime between sites, and simplified logistics— making the ViO27 an ideal choice for contractors and rental fleets maximizing utilization across multiple projects.

OPERATOR-FOCUSED DESIGN

COMFORT AND VISIBILITY FOR ALL-DAY PRODUCTIVITY

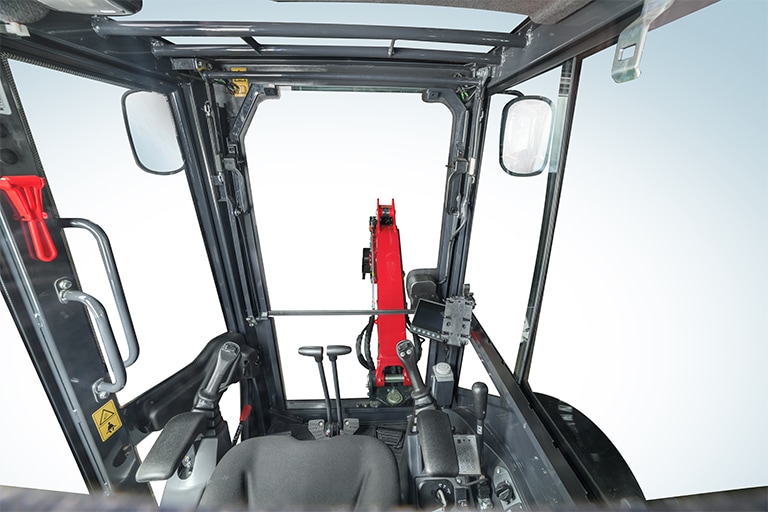

The spacious cabin features a wide 425mm entrance for easy access, large windows providing excellent visibility of the work area, and a 4.3” LCD display. Ergonomic controls and generous interior space reduce operator fatigue during long shifts, allowing sustained focus and precision throughout the day. Clear sightlines and intuitive layout keep operators confident and in control, even in demanding urban environments.

SIMPLIFIED MAINTENANCE, MAXIMUM UPTIME

MAINTENANCE MADE EFFORTLESS

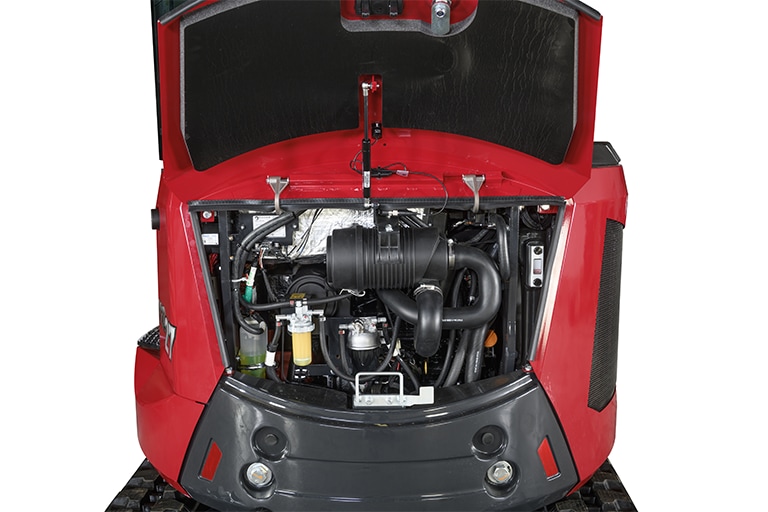

Wide-opening covers give immediate ground-level access to all critical components — engine, filters, battery, radiator, hydraulic fluid — no tools, no gymnastics. Daily checks take minutes, not hours, keeping downtime where it belongs: at zero. Less time under the hood means more time on the job.

OPTIMIZED SERVICE SCHEDULE, MAXIMUM MACHINE AVAILABILITY
With a first service between 50 and 80 hours, followed by extended maintenance intervals, servicing is predictable and easy to plan. Engine oil and main filters are replaced every 500 hours, fuel filters every 250 hours, and coolant only every 2,000 hours — reducing workshop visits and operating costs. Clearly structured service points and long replacement intervals mean less downtime, lower total cost of ownership, and more productive hours on site.
