Operating Weight 9100 - 9500 kg
Width 2460 mm
Digging Depth 3890 - 4300 mm
  • Agriculture
  • Civil Engineering
  • Construction
  • Landscaping

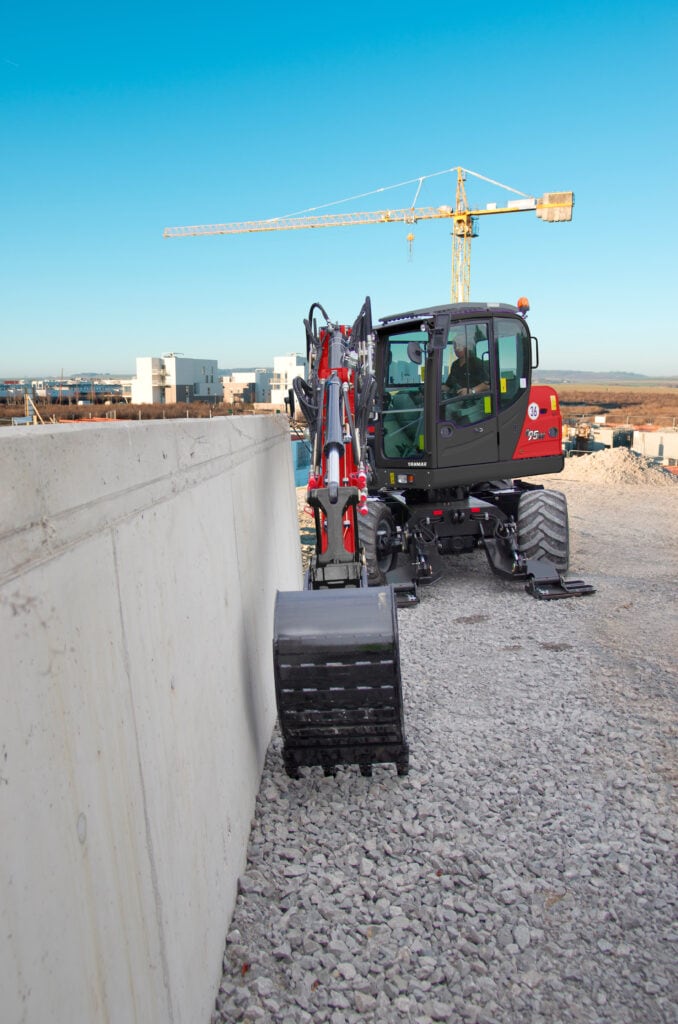

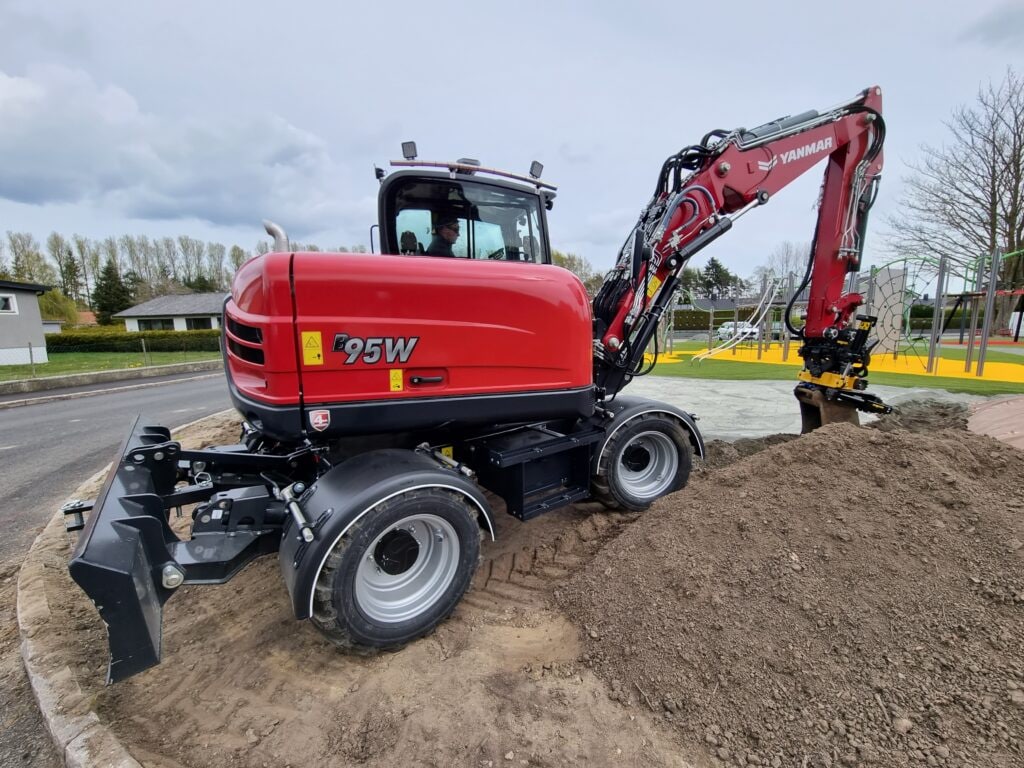

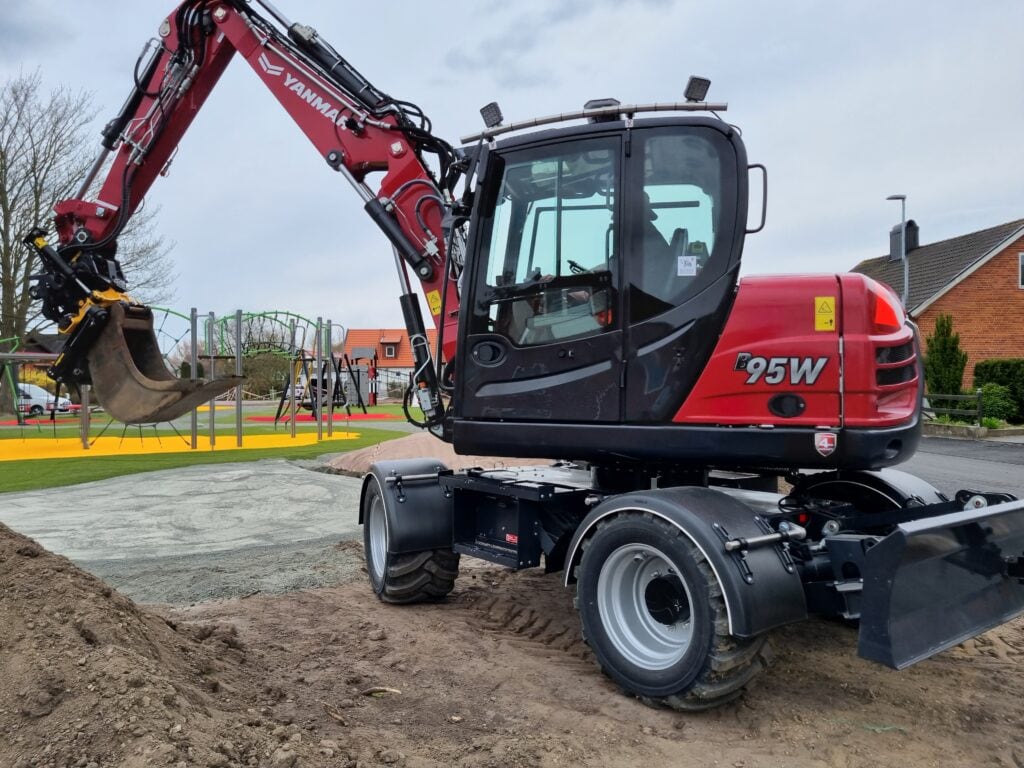

Our B95W wheeled excavator is an efficient, productive performer that can take on work that fazes far-heavier machinery. It comes with a huge lifting capacity and a precision hydraulic system that allows you to position heavy loads with ease on construction sites. It’s ergonomic to use and comes with a range of boom options and three steering modes. And, with a road speed of 36 km/h as an option, it’ll whisk you smartly to your next job.

Specifications

Model B95W (TPA Boom) B95W (Circular Boom) B95W (Monobloc Boom)
Weight Transport dimensions 6300 x 2450 x 2930 mm 6300 x 2450 x 2930 mm 6300 x 2450 x 2930 mm
Operating Weight 9300 kg 9500 kg 9100 kg
Operating data Digging force (arm) 53,2 kN 53,2 kN 53,2 kN
Digging force (bucket) 42,6 kN 42,6 kN 42,6 kN
Rotation speed 0-10 rpm 0-10 rpm 0-10 rpm
Engine Type Deutz, TCD3.6 L4 Deutz, TCD3.6 L4 Deutz, TCD3.6 L4
Fuel Diesel Diesel Diesel
Net Power 74,4 kW (101 HP) at 2000 rpm 74,4 kW (101 HP) at 2000 rpm 74,4 kW (101 HP) at 2000 rpm
Displacement 3600 cm³ 3600 cm³ 3600 cm³
Max Torque 410 Nm at 1600 rpm 410 Nm at 1600 rpm 410 Nm at 1600 rpm
Starter 12V / 4,0 kW 12V / 4,0 kW 12V / 4,0 kW
Battery 12V / 135 Ah 12V / 135 Ah 12V / 135 Ah
Alternator 14V / 95 Ah 14V / 95 Ah 14V / 95 Ah
Hydraulic System Duty pump Axial-piston variable displacement pump with load sensing Axial-piston variable displacement pump with load sensing Axial-piston variable displacement pump with load sensing
Max flow rate 142 l/min 142 l/min 142 l/min
Operating pressure for driving hydraulics 420 bars 420 bars 420 bars
Hydraulic oil tank 60 l 60 l 60 l
Undercarriage Axles front Oscillating planetary drive axle Oscillating planetary drive axle Oscillating planetary drive axle
Axles rear Rigid planetary drive axle Rigid planetary drive axle Rigid planetary drive axle
Tires (standard) 8.25-20, 12 PR twin tires 8.25-20, 12 PR twin tires 8.25-20, 12 PR twin tires
Travel speed 0 - 36 km/h 0 - 36 km/h 0 - 36 km/h
Sound level Sound level (LWA) 100 dB (A) / (LpA) 72 dB (A) (LWA) 100 dB (A) / (LpA) 72 dB (A) (LWA) 100 dB (A) / (LpA) 72 dB (A)

Dimensions

TPA Boom
Circular Boom
Monobloc Boom
Dimensions B95W (TPA Boom) B95W (Circular boom) B95W (Monobloc boom)
A Overall length 5 700 mm 6 070 mm 7 000 mm
B Overall height 2 900 mm 2 900 mm 2 900 mm
C Overall width 2 460 mm 2 460 mm 2 460 mm
D Wheel base 2 240 mm 2 240 mm 2 240 mm
E Undercarriage length 3 180 mm 3 180 mm 3 180 mm
F Lane 1 960 mm 1 960 mm 1 960 mm
G Tire width 496 mm 496 mm 496 mm
H Overall blade width 2 460 mm 2 460 mm 2 460 mm
I Overall blade height 500 mm 500 mm 500 mm
J Blade distance 2 030 mm 2 030 mm 2 030 mm
K Max. blade height above the ground 485 mm 485 mm 485 mm
L Max. lowering blade depth 230 mm 230 mm 230 mm
M Minimum ground clearance 320 mm 320 mm 320 mm
TPA Boom
Circular Boom
Monobloc Boom
Dimensions B95W (TPA Boom) B95W (Circular Boom) B95W (Monobloc boom)
A Max. digging depth - Blade lifted 4 100 / * 4 300 mm 4 030 mm 3 890 mm
B Max. digging depth - Blade lowered 4 160 / * 4 360 mm 4 160 mm 4 080 mm
C Max. digging reach on ground 7 370 / * 7 550 mm 7 990 mm 7 820 mm
D Max. digging reach 7 570 / * 7 740 mm 8 100 mm 7 960 mm
E Max vertical wall 3 300 / * 3 470 mm 3 140 mm 2 980 mm
F Max. dumping height 5 410 / * 5 580 mm 5 400 mm 4 060 mm
G Max. cutting height 7 500 / * 7 660 mm 7 700 mm 6 070 mm
H Boom swinging base to left 53° 53° 53°
I Boom swinging base to right 67° 67° 67°
J Arm length 2 000 / * 2 200 mm 1 650 mm 2 000 mm
K Front swing radius 3 670 mm 1 740 mm 3 790 mm
L Rear swing radius 1 550 mm 1 550 mm 1 550 mm

* TPA Boom with dipperstick 2 350 mm

Features


HIGH PERFORMANCE

The B95W can tackle work normally reserved for much-heavier machines. It’s a nine-ton wheeled excavator that offers enormous lifting capacities and a precise hydraulic system that can transport and position heavy loads with precision. It’s an excellent machine for moving materials and has great applications in road construction and horticulture, where the grab bucket is especially useful for loading trucks.


SPEED AND MOBILITY

Wheeled excavators can be great on site, but getting to the next job can get overlooked. Not at Yanmar. We give you a top speed of 36 km/h as an option, a variable drive system, low fuel consumption and a comfortable cab. So moving to the next site is fast and effortless. No need to worry about logistics. There’s also safety in the hydrostatic travel drive, which works as an additional braking system, and an additional accelerator pedal for delicate machine movements.


CLASS-LEADING STABILITY

Stability with the boom at full extension can be tough to get right. But thanks to the B95W’s unique axle design with 14° pendulum angle, minimum tail swing, laterally installed engine and low centre of gravity, you’ll enjoy class-leading stability, especially for craning work.


BOOM OPTIONS

While we can’t offer you a totally bespoke solution, the B95W does come with a range of boom options that suit precise operator applications:



  • Two-piece articulated boom (2,000 mm dipperstick) – for digging work and precise movement of heavy loads.
  • Two-piece articulated boom (2,200 mm dipperstick) – even greater reach and excellent working range.
  • Circular boom (1,650 mm dipperstick) – for tight urban jobsites.
  • Offset monobloc boom (2,000 mm dipperstick) – extra articulation between chassis and excavator arm for trenching over, around and next to obstacles.

THREE STEERING MODES

As an optional extra, there’s a steering mode for you whether you’re on the road to the next job, working on restricted urban job sites or needing to move sideways.

  • Front-wheel steering (for roading)
  • All-wheel steering (small turning circle for tight job sites)
  • Crab steering (for parallel movement).

ERGONOMIC DESIGN

Being relaxed and comfortable reduces stress and contributes to productivity. At Yanmar, we always put the operator first when we design our machines. On the B95W, that means providing a spacious and comfortable cab with a fully adjustable seat console that moves independently. You’ll also enjoy using the central data display, with its seven-inch anti-reflective tiled screen that mimics a smartphone and also serves as a monitor for the B95W’s reversing camera.


IMPROVED POWERLINE

Engine emissions are a key concern these days. Environmentally, the B95W engine leads its class. It’s an EU Stage IV/EPA Tier 4 Final engine. Exhaust gas after-treatment reduces emissions by up to 90%, including nitrogen oxides (NOx), hydrocarbons (HC) and fine dust. This is down to an improved combustion and injection system and a diesel oxidation catalyst (DOC). With four independent hydraulic circuits, the B95W can also take attachment tools such as a sorting grab, asphalt cutter or cutting unit.


UNIQUE SMART CONTROL SYSTEM

As an operator, you’re always looking for ways to make marginal gains over your competition. The B95W can help. It comes equipped with Yanmar’s Smart Control operating system as standard. With this, you can match excavator power with precise job-site application. It’s a flexible system that boosts productivity, optimises cycle times and guarantees outstanding performance.


TAILORED TO YOU

What’s your sector? Landscaper? Civil contractor? Utility professional? Or local government worker? We can tailor the B95W with features configured to meet your own specialist needs. There’s a range of options on offer – you can build your perfect bespoke B95W by choosing your own colour scheme, boom, blade/tyres, buckets and hydraulic attachments. This is anything but ‘one size fits all’.


MANAGEABLE MAINTENANCE

Nobody wants downtime, but servicing can put your machines out of action for days. Not so with the B95W. Maintenance is manageable. We’ve integrated the central electrics into the main service compartment. We’ve made relays and fuses accessible from the ground. We’ve ensured we can open the service door without tools. All hydraulic components can be found under the cab, so no tilting is needed. And our SmartAssist-Direct diagnosis tool alerts our engineer to maintenance and fault diagnostics.




SMARTASSIST REMOTE

SmartAssist Remote is Yanmar’s next-generation fleet-management system. It remotely monitors your machinery over the internet, rapidly detecting issues and notifying us of maintenance timings. So you get the quality support and service you need to maximise productivity. You get real-time information and the ability to monitor and manage machines remotely over a PC or smartphone.

Options

EQUIPMENTS

  • Diesel engine with diesel particle filter (DPF)
  • Travel drive
  • Front dozer blade, 2460 mm
  • Rear outrigger plates, rubber-coated, oscillating
  • Rear support blade
  • Float position front dozer blade
  • Steering change-over
  • Cover for support cylinder
  • 2 pieces boom, Long arm (2200mm)
  • Circular boom, arm 1650 mm, guard for skylight window FOPS
  • Monobloc boom, arm 2000 mm, offset boom 850 mm
  • Additional counterweight (+ 365 kg)
  • Proportionnal 4th circuit
  • Hydraulic installation for quick-attach system
  • Auto idle
  • Biodegradable hydraulic oil
  • Provision of hydraulick oil
  • Lighting package
  • LED Lighting package
  • Lighting package LED
  • Boom-mounted working light
  • Rotating beacon, attachable, yellow
  • LED Rotating beacon, attachable, yellow
  • Reinforced generator version 150A

COMFORT

  • Sliding window on right-hand side
  • A/B control pattern switch
  • Front dozer blade changeover via rocker switch
  • Bucket control changeover in case of forklift operation
  • Comfort package
  • Air-conditioning
  • Engine-independent diesel heater with fresh air circulation and timer
  • MSG 95 Premium seat
  • Headrest suitable for comfort and premium version
  • Electrical refueling pump
  • Outside rear-view mirror, heatable
  • Coolbox
  • Document case at driver’s seat
  • Additional tool box
  • Central greasing

SAFETY

  • Lifting certificat
  • Safety valves for 2 piece boom, bucket cylinder
  • Safety package
  • Guard for skylight window
  • Fire extinguisher, ABC powder, 2 kg, mounted in the cab
  • Anti-theft device
  • Electronic anti-theft device, keypad operation
  • Travel alarm for reverse travel
  • Grab transport lock / piped
  • License plate holder with illumination
  • Compliance kit
  • “TÜV” approval (Germany)
  • Security mark Safety stripes
  • Automatic engine Shutdown
  • Special tires
  • Special paint
