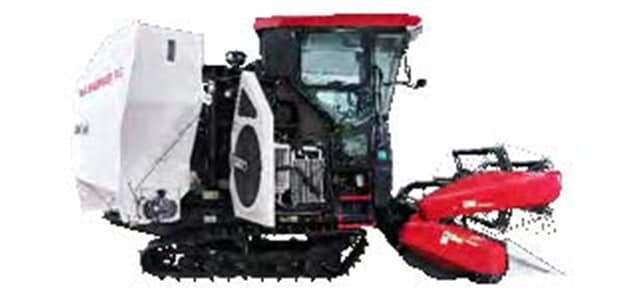

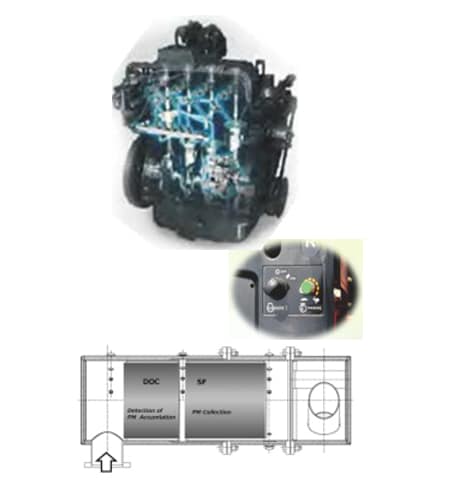

This system complies with China Stage IV emission standards and operates in ECO Environmental Economy Mode, delivering efficient and dependable performance.

Equipped with turbocharging for enhanced air intake.

Compact engine design with reduced weight.

Strong self-power capability for demanding operations.

High-pressure accumulator enables precise multi-stage injection.

Ensures complete fuel combustion for maximum efficiency.

Optimized for fuel savings and reduced emissions.

Under normal conditions, DPF regeneration occurs automatically during operation.

No downtime required for regeneration cycles.

No urea required during the exhaust gas treatment process.

Simplifies maintenance and reduces operating costs.

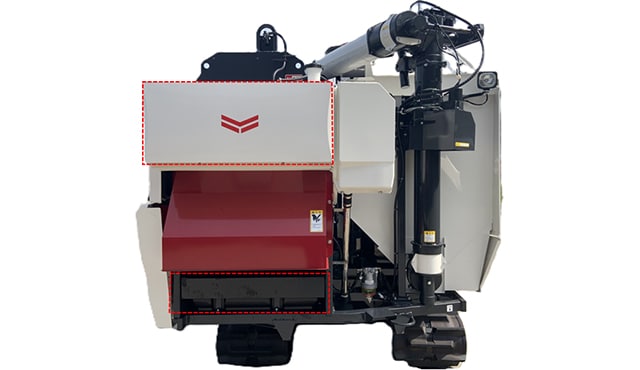

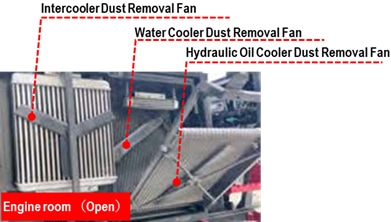

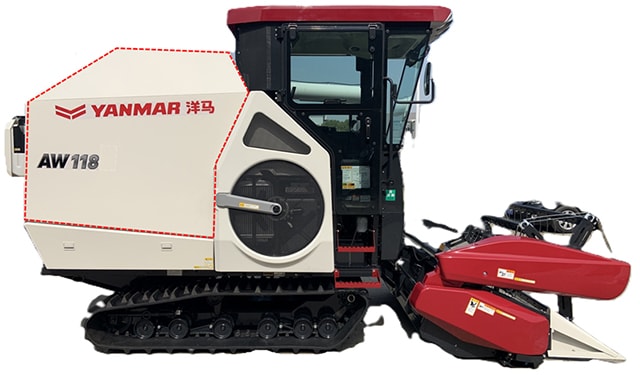

The rotary screen dust removal device ensures smooth airflow through the filter screen in the engine compartment. This system helps the engine maintain optimal cooling performance and stable operation even under harsh working conditions.

Facilitates continuous cleaning of the filter surface.

Removes accumulated dust to maintain airflow efficiency.

Ensures the intercooler remains free of dust for efficient heat exchange.

Maintains the water cooling system’s performance by preventing dust buildup.

Keeps the hydraulic oil cooling system clean for reliable operation.

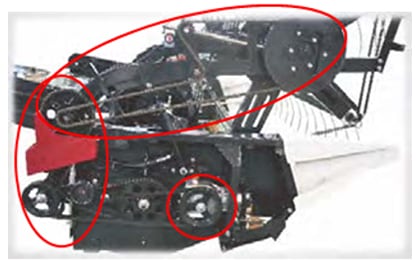

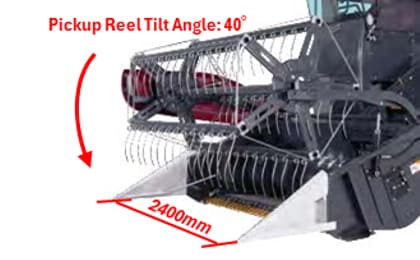

The pickup reel and cutter bar are designed for stable operation at high speed and under heavy load, ensuring efficient crop handling and cutting performance.

Chain-Driven Transmission
Provides reliable power transfer for consistent reel movement.

Spring Fingers
Quickly and stably pick up fallen crops, minimizing crop loss.

Gearbox-Driven Reciprocating Motion
Ensures smooth cutting with minimal vibration.

Stable Operation: Reduces wear and tear on components, enhancing durability.

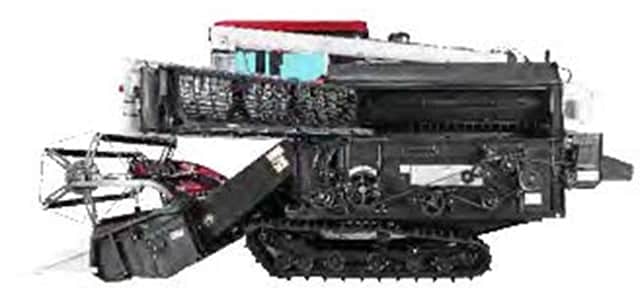

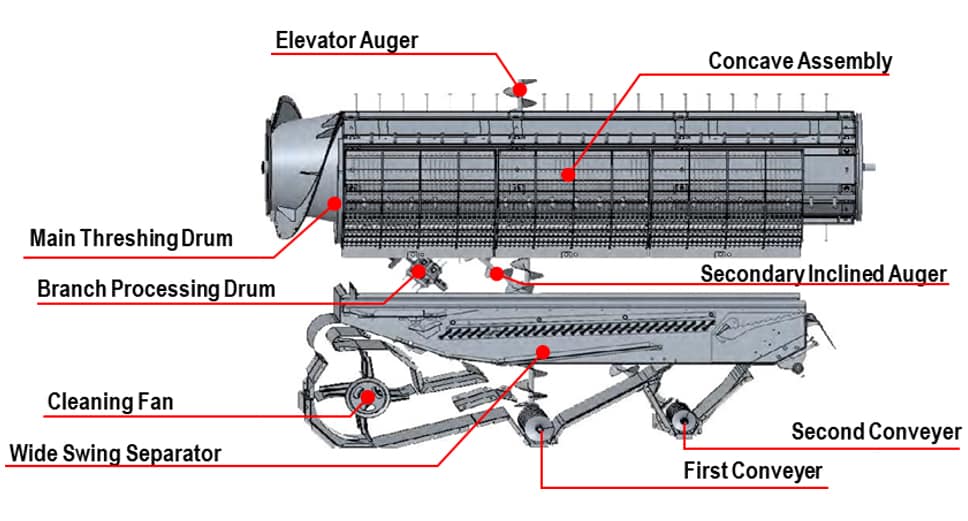

The system is designed for efficient threshing and precise cleaning, ensuring optimal grain separation and minimal loss during harvesting.

Main drum + straw processing drum + single fan + wide vibrating sieve

Extended main drum (Φ640 × 2300) enhances rubbing and impact inside the drum for strong threshing performance. The straw processing drum simplifies straw separation.

Wide vibrating sieve combined with cleaning fan (Φ395) ensures layered separation of mixed materials, staged sorting, and secondary return for re-cleaning.

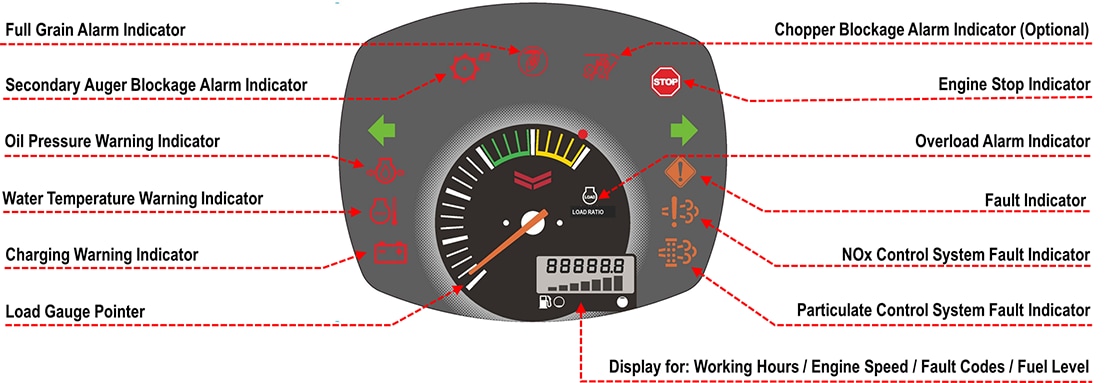

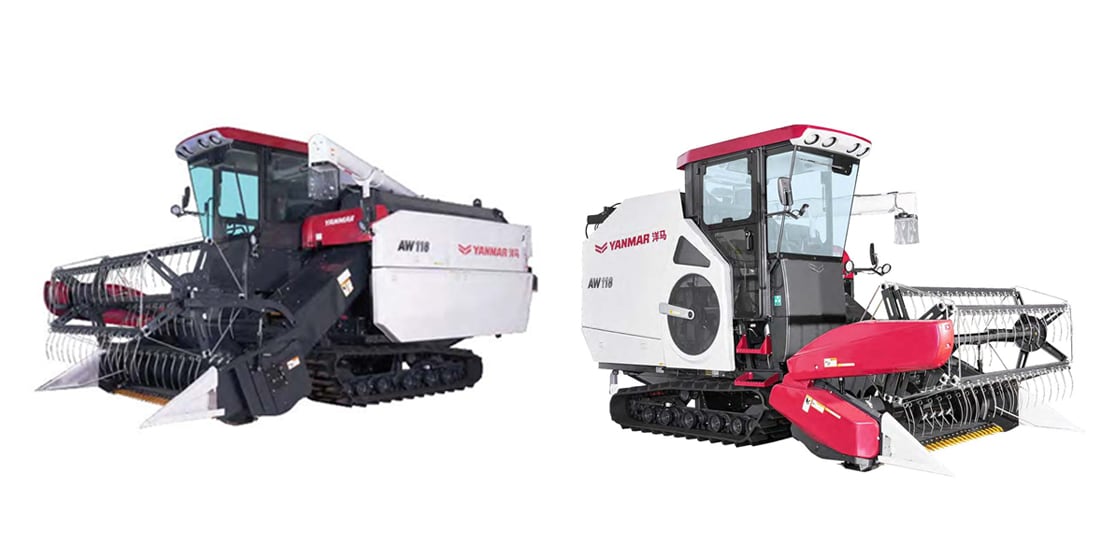

The AW118 is designed for operator comfort and safety during long working hours. It features a spacious cab layout, excellent visibility, dust protection, and temperature-controlled environment (cooling and heating). The control levers are simple and intuitive, reducing fatigue and improving ease of operation.

Wide layout for improved visibility and comfort.

Enhanced viewing angles for safer operation.

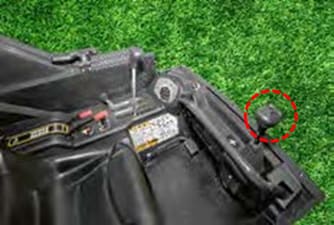

Intuitive design for easy operation.

Supports multiple directional controls
(left, right, forward,backward).

Integrated cooling and heating system for a comfortable working environment.

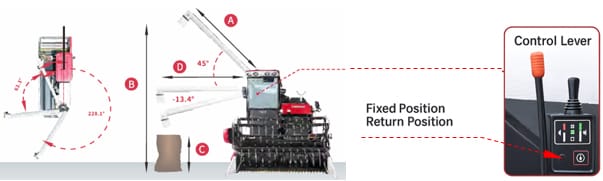

High/low angle adjustment for compatibility with trucks and manual loading.

Fixed Position and Return Function for stable operation.

Model	A (mm)	B (mm)	C (mm)	D (mm)
AW118	3583	4492	1120	2800

Adjustable grain discharge pipe for high and low positions, suitable for unloading into high-position vehicles and manual bagging.

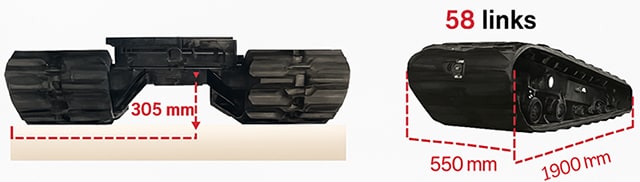

Equipped with wide tracks: high-lug tracks, low ground pressure, anti-slip, and strong driving force.

Low ground pressure (19.1 kPa), strong traction

Minimum ground clearance: 305 mm

Anti-slip design ensures reliable operation in wet fields

Track specifications: 58 links, width 550 mm, length 1900 mm
