| Model Name | AW70GV | AW82GV |
|---|---|---|
| Engine Category | Tier2 | Tier2 |
| Horsepower (PS) | 70 | 82 |
| Head-feeding Type / Conventional Type | Conventional Type | Conventional Type |
| Grain tank / Top sacker | Grain tank | Grain tank |
| Crawler / Wheel | Crawler | Crawler |
| Cabin / Floor | Floor | Floor |
| FDS / 2P2M / Side clutch | Side clutch | Side clutch |
| With / Without Leveling control | Without | Without |

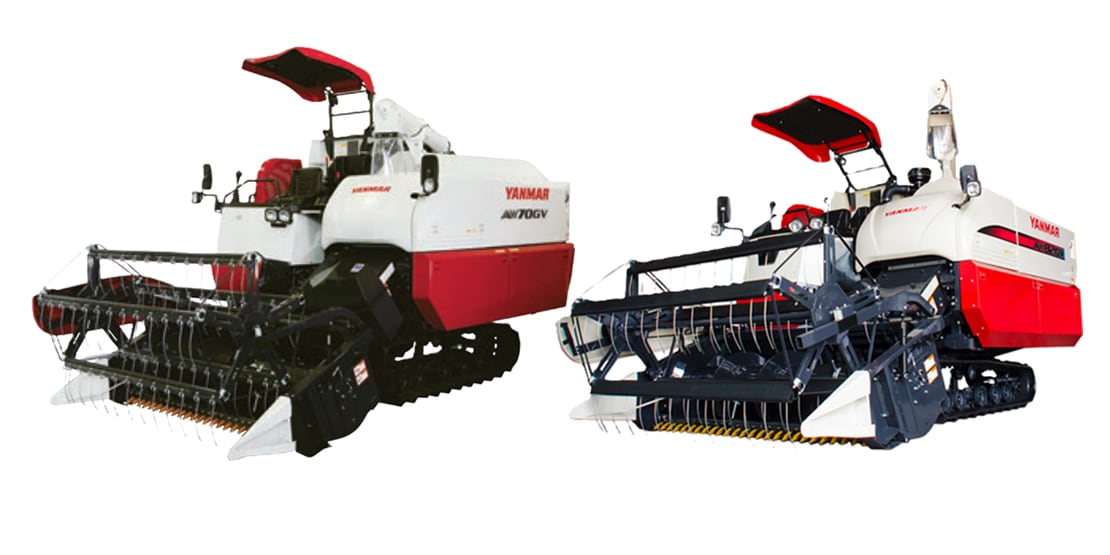

Showing one of the high speed agricultural machines.

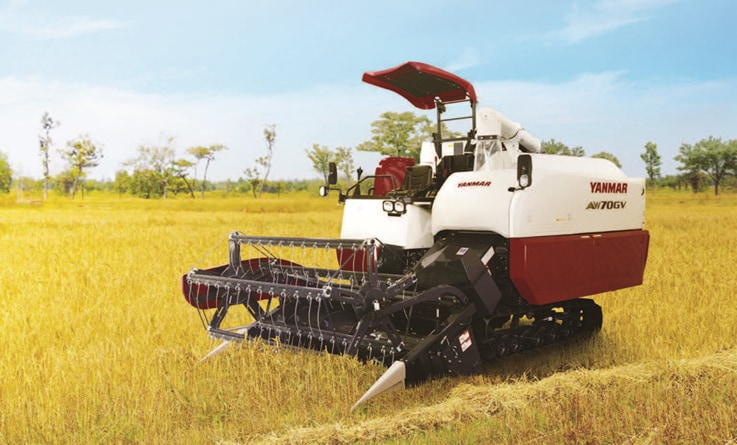

The Yanmar AW70GV / AW82GV combine harvester performs harvesting not only at high speed, but also more efficiently, ensuring abundant harvests even with loadged rice plants.

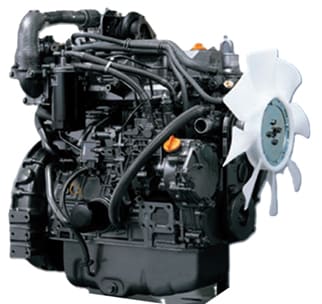

Equipped with a 4-cylinder engine with a cylinder volume of 3318cc providing great power (maximum 70PS or 82PS) and excellent combustion efficiency with a direct fogging system and consuming less fuel, as well as having good engine durability and strong engine performance. Making engine performance better and very profitable for farmers.

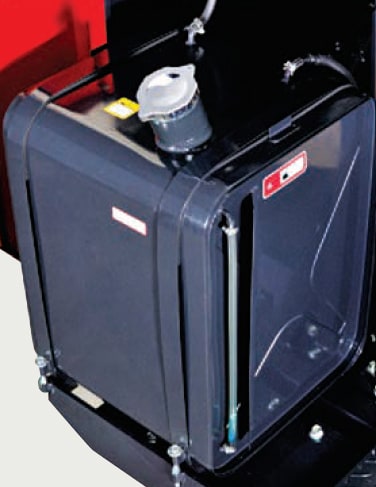

With a large fuel tank capacity (90 liters), as well as efficient fuel consumption, the machine can work longer without having to stop to refill and harvest time can be faster and more efficient.

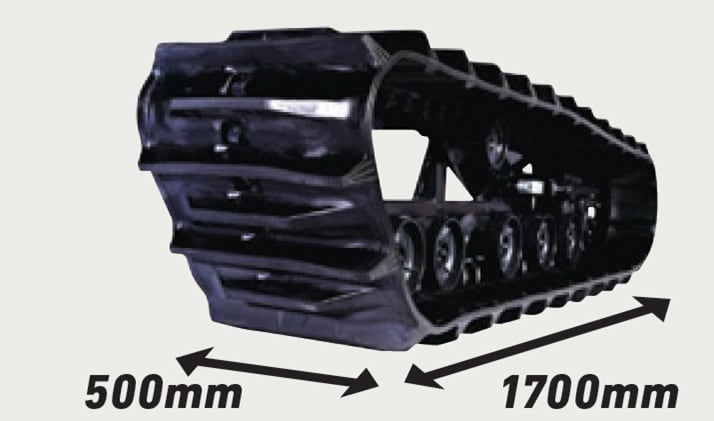

With a width of 500mm, the rubber crawler wheels exert relatively little pressure on the ground, so the combine can easily work in wet/muddy areas.

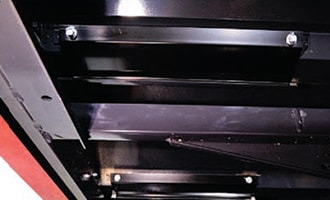

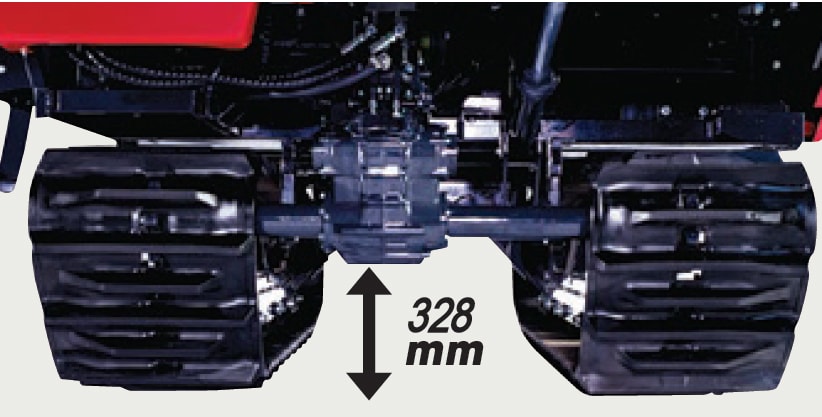

The transmission has a ground clearance of 328mm, which not only protects the transmission from mud but also makes it easier to move between fields and ensures consistent performance on wet or muddy conditions.

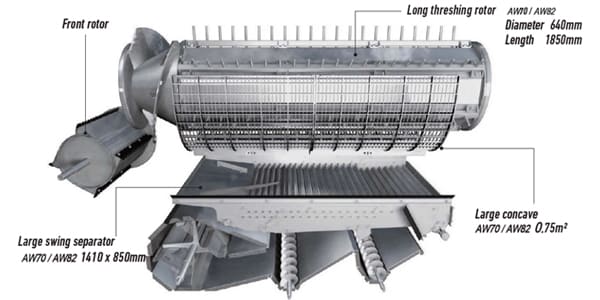

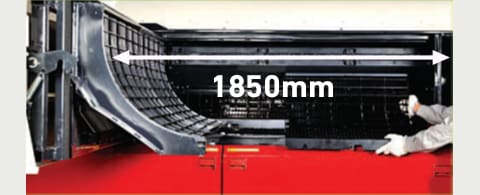

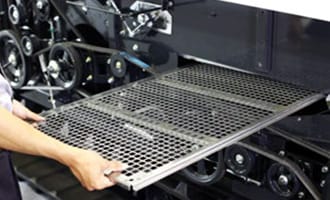

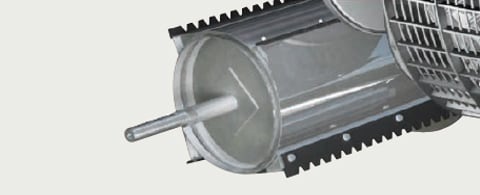

Equipped with large thresher to handle high-speed operation. First, the rice is separated with Yanmar’s original front rotor and next it is more fully threshed with the long threshing rotor. Then, it is sorted efficiently and accurately using the large swing separator with hardly any loss. Yanmar offers this system with complete confidence.

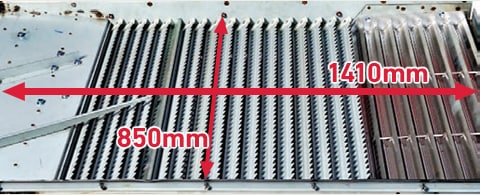

Having a width of 850mm and length of 1410mm, the swing separator enhances better selection, preventing chaff, and dust from mixing with the grain.

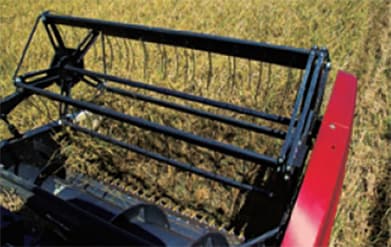

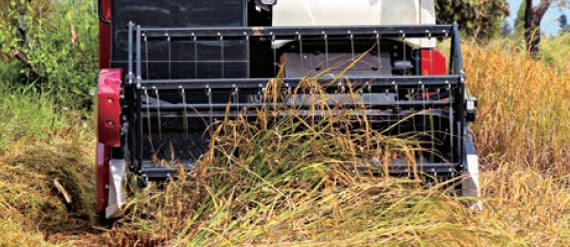

Uses a chain-driven reel enabling easy carrying of loads and powerful picking up of lodged rice plants.

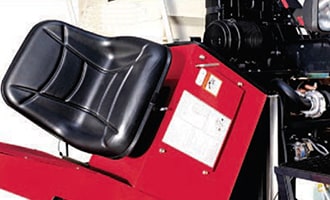

The header’s cutter bar is easily visible from the operator seat, so work can be performed while checking it.
A GPS antenna and communication terminal have been installed in agriculture equipment. This is a service which provides information that contributes to a customer’s efforts to improve work and management, based on data transmitted about operational status and conditions.
We visualize information such as machine operation time and engine load factor. It can be used as a guide for improving the equipment’s operational efficiency and reducing running costs.
It monitors current status and detects the occurrence of errors at an early stage. This contributes to prompt and accurate troubleshooting to reduce downtime by checking the status and using phone contacts, etc., depending on the details of the error.
By setting in advance the operating ranges and operating times of vehicles equipped with Smart Assist Remote, notification by telephone or email can be made when operating conditions outside the settings are detected.
