CT
Top Specifications Option

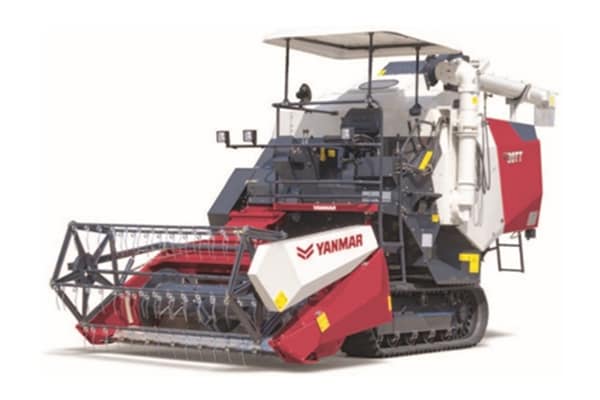

CT30TT/40TT

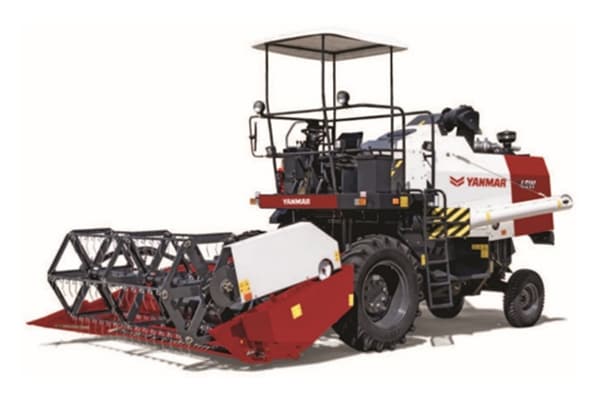

CT40W
Model Name CT30TT CT40TT CT40 W
Engine Category Tier3 Tier3 Tier3
Horsepower (PS) 76 76 76
Head-feeding Type / Conventional Type Conventional Type Conventional Type Conventional Type
Grain tank / Top sacker Grain tank Grain tank Grain tank
Crawler / Wheel Crawler Crawler Wheel
Cabin / Floor Floor Floor Floor
FDS / 2P2M / Side clutch 2P2M 2P2M Rea Steering
With / Without Leveling control Without Without Without

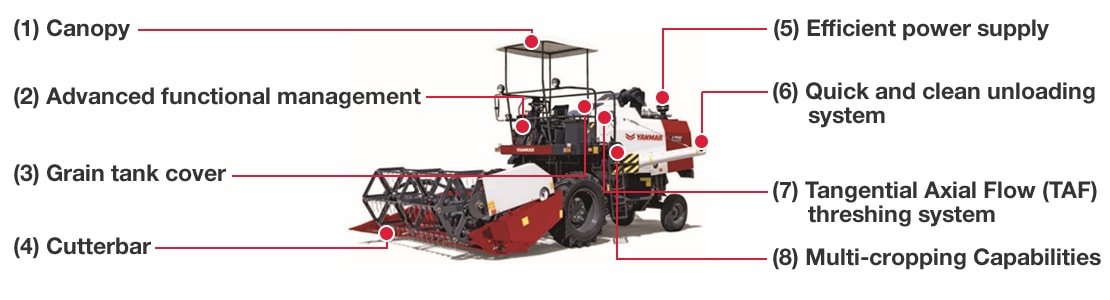

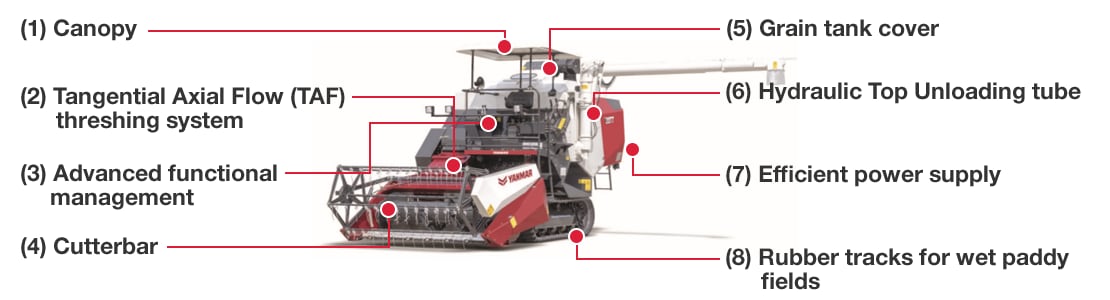

CT30TT/40TT CT40W

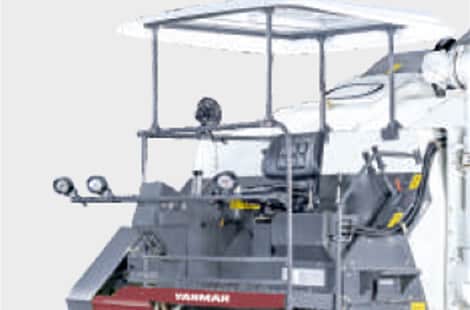

  • High-quality, large-size roof ensures maximum comfort for the operator.
  • Long life thanks to high-quality fiber material.
    •

    TAF threshing system enables threshing losses and ensures delivery of clean, unbroken grain even in wet and green conditions.

  • The base bar of the cover and rotor are made of stainless steel.
  • The spike tooth and rotor bars have been engineered through a special process.
  • This advanced design, which lets the straw discharge at the end of the rotor, is fabricated using stainless steel.
    •
  • Instrumental panel with fuel gauge is easy to use and therefore causes less fatigue for operator.
    •
  • 2.1 m width with double-knife cutting for efficient operation under any paddy conditions.
  • Strengthened durability with a stronger structure and gradual material wear-through, results in much higher life and easy replaceability.
    •
  • Higher volume guarantees longer operational time.
  • Weather independent due to grain tank cover.
  • Grain tank is protected during off-season.
  • Closed during operations as well.
  • Easy maintenance and visibility thanks to openable window at the top.
    •
  • Hydraulic Top Unloading tube for ease of operation from operator platform, no grain wastage, suitable for direct unloading into trolley and bags.
  • Unloading rate of 10 l/s ensures enhanced operation efficiency.
    •
  • TATA engine with high backup torque due to more power at low rpm.
  • Engine with low maintenance costs, longer life, efficient fuel-consumption and excellent service support.
    •
  • Heavy duty under carriage, gearbox and hydraulic motors with rubber tracks for more reliability, excellent driving control and easy manoeuvrability over wet field conditions.
    •

    In the new CROP TIGER TERRA TRAC, we have taken ease of serviceability to new levels. The side and back covers open fully so you have a very good access to the engine area and all the key components. The covers are supported by gas struts and are provided with very durable hinges.

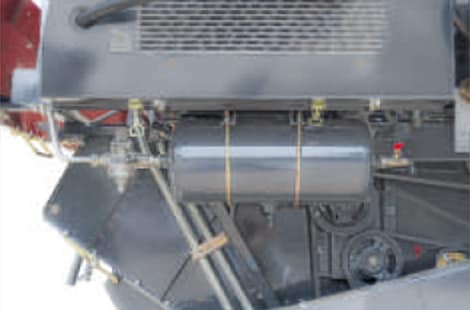

    The new, compact air compressor is integrated in the engine. A 10-litre air tank at 8 bar ensures that you always have the air and pressure you need for your work.

    All major threshing components have been strengthened. The beater bars of the concave are made of stainless steel. The spike tooth and rice pins have been edge-hardened using a special process. The deflector pedal, which is at the straw discharge end of the rotor, is fabricated using stainless steel.

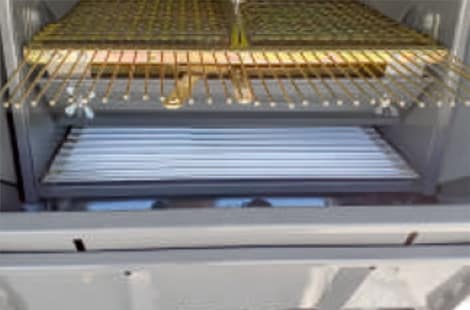

    The well thought-out sieve section boasts a cleaning area of 1.24 m². Two independently working sieves are fitted with "frog-mouth" lip openings providing gentle treatment of each and every grain. A blower with variable speed settings is provided to blow away the chaff.
    The bolted galvanised iron step bed and preparation floor ensure higher wear resistance and facilitate easy maintenance.

    Cutterbar is strengthened structurally with a stainless steel rounded guide plate & cutter bar trough which has a bolted design. So there are two clear benefits - much higher life and easy replaceability.

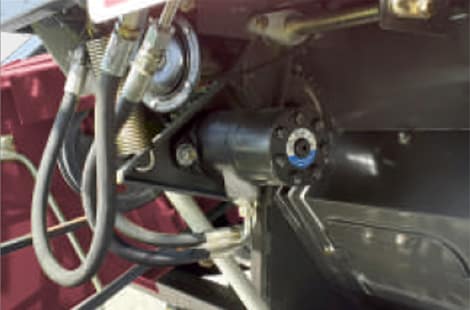

    In case there is any choking of the feeder housing area during harvest, the operator can unclog the machine using this function. By simply pushing a button, the Hydraulic Feeder Reversal system is activated and the blockage is removed. This saves the operator a lot of time and effort and he does not have to get down from the machine.
    Greater convenience, lesser downtime and higher productivity!

    All the lights on the machine are now high illumination LEDs. When necessary, this will allow operators to work extra hours in the late evenings.

    Monitor the operation of your machines on your mobile or computer, making fleet management more efficient.
  • High-quality, large-size roof ensures maximum comfort for the operator.
  • Long life thanks to high-quality fiber material.
    •
  • Instrument cluster equipped with multifunctional display and ergonomically placed control functions
    •
  • Higher volume guarantees longer operational time.
  • Weather independent due to grain tank cover.
  • Grain tank is protected during off-season.
  • Closed during operations as well.
  • Easy maintenance and visibility thanks to openable window at the top.
    •

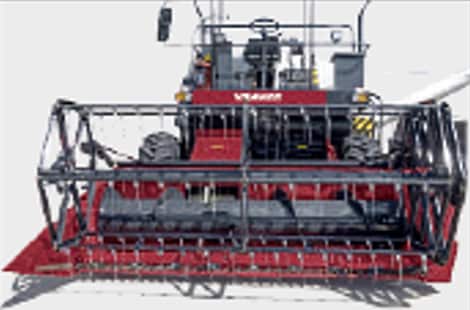

  • Optimal size 2.6 m bolted grain cutterbar for medium and large fields.
  • No trailer required for movement on roads.

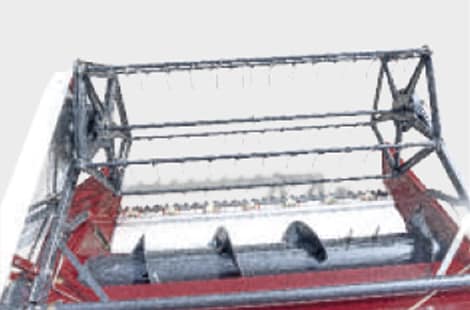

  • Equipped with slip clutch mechanism in reel and auger.
    •
  • More advanced BSIV engine - smoother operation, more power supply.
    •

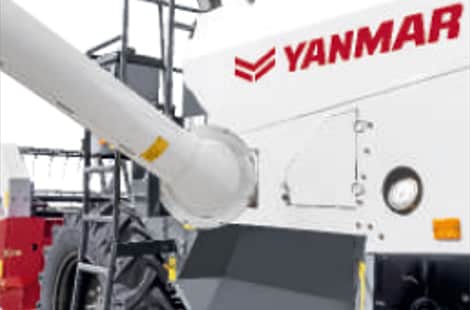

  • Universal joint unloading tube for ease of operation, no grain wastage, suitable for direct unloading intotrolley/bags.
  • Unloading rate of 10 l/s ensures enhanced operation efficiency.
    •
  • TAF threshing system eliminates threshing losses and ensures delivery of clean, unbroken grain even in wet and green conditions.
    •
  • Capable to harvest wheat & pulses in addition to rice by changing threshing kits.
    •
  • Easy and convenient accessibility.
  • Easy to adjust during operation in different field conditions.
    •
  • Easy and convenient accessibility.
  • More precision in setting sieves during different field conditions.
    •

    More convenience to driver and comfort for helper which will enhance overall harvesting efficiency.

    no need to dismantle during road transport and no need of separate trailer

    which ensures no uncut plant gets crushed by the cutter bar or tyre

    (Optional for Crop Tiger 40 Wheel C 260)

    Monitor the operation of your machines on your mobile or computer, making fleet management more efficient.
