Direct Spot Seeder (ST10V)

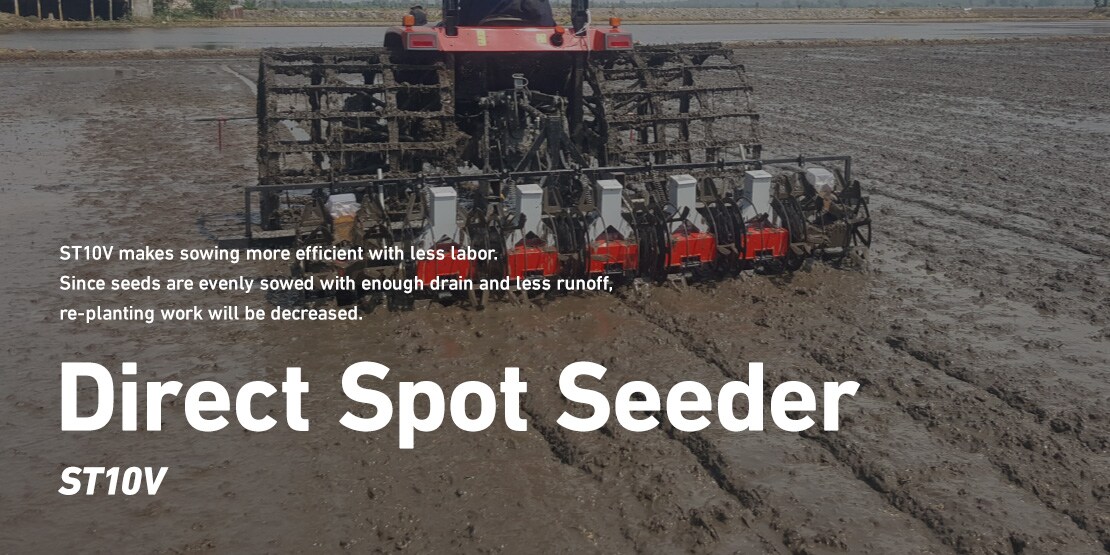

ST10V makes sowing more efficient with less labor. Since seeds are evenly sowed with enough drain and less runoff, re-planting work will be decreased. Direct Spot Seeder ST10V

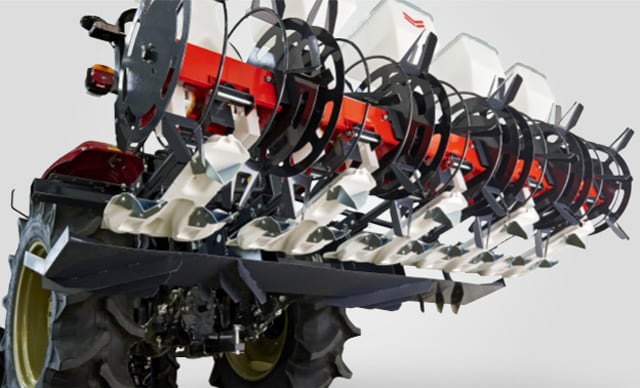

  • Floats not only support the seeding units but dig grooves at the same time as sowing 5 Grooving and making walls.
    •
    float

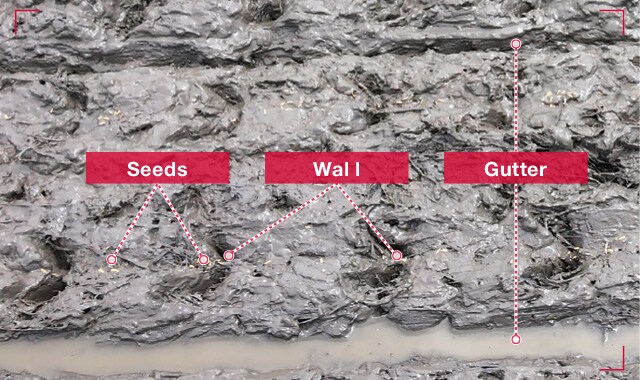

  • Lugs of wheels create walls on the grooves of the soil. it prevents seeds from runoff.
    •
    Seeds, Wall, and Gutter

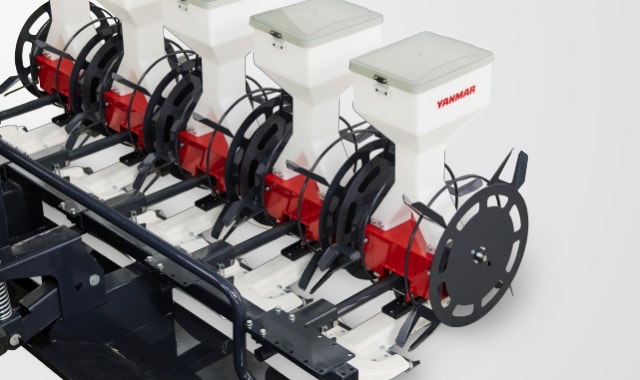

    Drive wheels do not require a PTO. Each unit can sow synchronized with vehicle speed.

    drive wheel

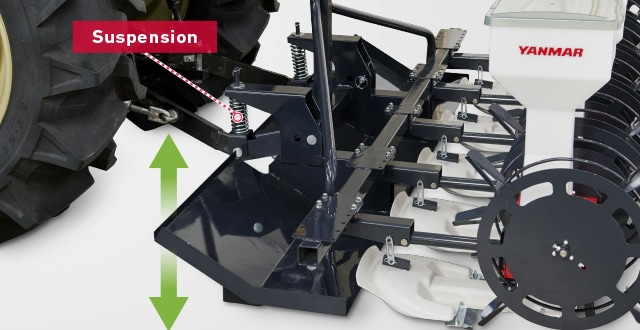

  • Since the suspension follows the unevenness on the ground, mud pushing can be reduced.
    •
    suspension

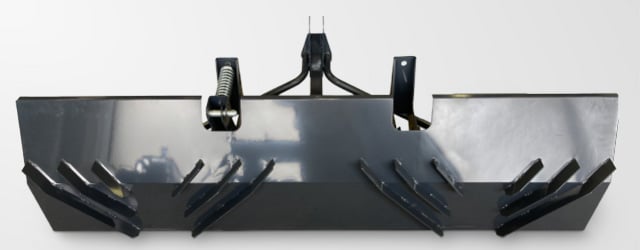

  • Equipped with a leveler with mud gathering plate that evens out the surface of sowed area by returning the soil to the tire tracks of the tractor. It can be sown with high accuracy even in uneven fields. It can be sown with high accuracy even in uneven fields.
    •
    leveler

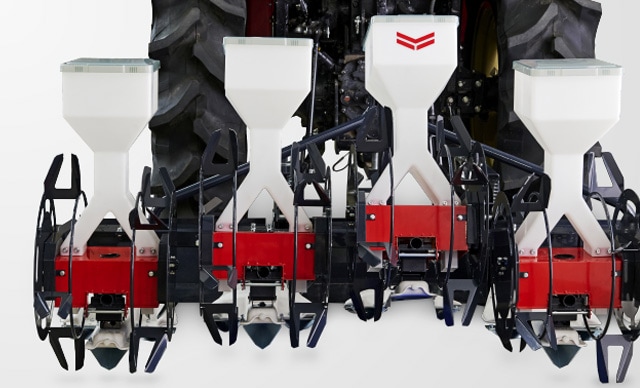

  • Seeding units can be swing independently.They can trace the uneven surface of paddy fields.
    •
    seeding unit

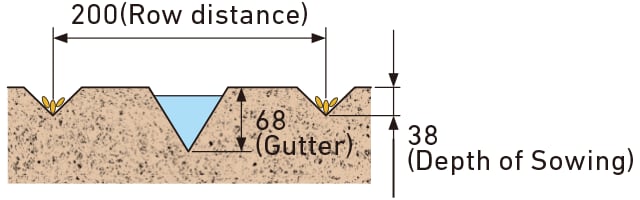

    Row distance 200, Gutter 68, and Depth of Sowing 38
    Model Name ST10V
    Width x Length x Height (mm) 2150 x 1340 x 820
    Weight (kg) 152
    Seeding device Roll groove type
    Number of Rows 10,14 (option)
    Hopper capacity (L) 12 x 5 hopper
    Sowing Efficiency (ha/day) 7
    Row distance Fix in a unit (mm) 200
    Adjust between units (mm) 200,250,300,400
    Hill pitch (change a Pinion) 130,200
  • *The design and specifications are subject to change without prior notice for product improvement.
  • *Operation efficiency is subject to the field conditions.
    •
  • <Note>
    All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
    •
