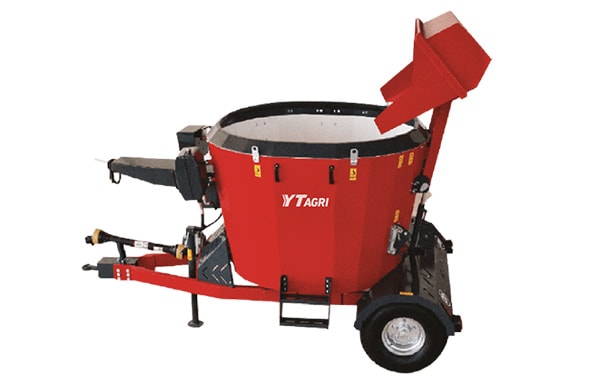

Vertical Mixer Feeder
Vertical Mixer Feeder YTAGRI

Sub-brand for products selected by Yanmar from around the world
- Trusted quality, YANMAR standard.

It is also known as feed mixing machine. It is a very useful agricultural machine that alleviates the workload of farmers and producers dealing with livestock and dairy farming. It has been designed to distribute various animal feeds into a homogeneous mixture with its solid, strong and durable structures and easy use. It can be produced in different capacities for all small, medium and large enterprises.

The feed mixer is used to break up packed straw, alfalfa and hay bales. It provides homogeneous mixing of corn Forage Harvester, beet crushed, pulp, bran and various feed materials.

  • There is an increase in total milk yield.
  • It reduces feed cost.
  • Provides improvement in milk fat ratio.
  • Digestive and metabolic disorders seen in animals are reduced.
  • Labor cost is reduced.
  • Waste of feed is reduced.
  • There are two types of feed mixers, horizontal and vertical.

    There is a side conveyor extension option where high and long feeder ratios can be discharged. In these machines, where a digital weighing system is usually integrated, information about the weight and type of feed is provided to the user. The machine contains a magnet that can remove unwanted materials such as wire mixed into the bait. In addition to these, hydraulic control levers that facilitate the control of the device, unloading cover and belt operation control provide a user-friendly experience at every stage of the process. Star and ax knives on the helix increase the mincing performance and also help mixing to a great extent.

    Provide long-lasting use with wear-resistant steel materials. The volume of the machines can be increased in direct proportion to the number of animals with the riser piece that provides volume increase. It offers solutions for various needs with its chopper blades, digital scale, mixing helix, opposite blade placement, side conveyor extension option and magnets and feed sorting feature.

    First, dry and roughage can be thrown into the machine, then dry alfalfa and similar forages are chopped. Since dry grass is primarily crumbled when thrown into the machine and loses its roughage feature, attention is paid to the order, and friable forages are added last.

    Feeds that are difficult to chop and more humid must be put into the machine as a priority in order for them to be shredded better. With the addition of dry factory feeds to the machine, granular feeds and pulp are also added to the mixture. In order for concentrated feeds to be easy to digest, care must be taken during the mixing and chopping time. Feed additives can be added to the machine after concentrated feeds or feed additives can be poured onto the feed during service. At the last stage, wet feeds such as Forage Harvester are thrown into the machine, and the process is completed without reducing it too much and without losing its roughage feature.

    The mixing time of the feeds varies depending on the machine type and feed type.

    Feed mixer models differ as horizontal auger and vertical auger. Depending on the portability, there are models that are fixed, self-propelled and can be attached to the tractor via the drawbar. The most appropriate selection should be made according to the scale of the enterprise, the number of animals available and the types of feed to be used.

    Feed mixers, which ease the workload of farmers and producers dealing with livestock and dairy farming, and reduce feed cost and feed waste, are in the middle price segment. The prices of the machine you choose will vary according to the scale of the business and the number of animals raised. You can contact us by filling out the contact form to get information about feed mixer prices.

    If you are interested in our feed mixer product or want to get more detailed information about the product, you can contact us on our YTAgri contact page.

    TECHNICAL SPECIFICATION T-DYKM 1,5 T-DYKM 2
    Volume 1.5 2
    Drive System Gearbox
    Auger system Vertical
    Number of Augers (Pcs.) Single
    Auger Speed (Rpm) 40
    Overall Height 1800 2170
    Overall Width 1700
    Overall Length 1400
    Hydraulic Pressure System From tractor
    Weighing System
    Discharge System Hydraulic discharge cover
    The Thickness of the Side Sheet Metal of Frame 4
    The Thickness of the Bottom Sheet Metal of Frame 8
    The Thickness of the Sheet Metal of Auger 8
    Number of Rigid Knives (Pcs.) 2
    Number of Coulter Knives on the Auger (Pcs.) 7
    Wheels 150 mm (4 Pcs)
    Unladen Weight 520 540
    P.T.O. Shaft Rotations (Rpm) 540
    Minimum power requirement for PTO (HP) 5 5-10
    MODEL T-DYKM 2 T-DYKM 3 T-DYKM 4 T-DYKM 6 T-DYKM 8
    Volume 2 3 4 6 8
    Drive System Gearbox
    Auger system Vertical
    Number of Augers (Pcs.) Single
    Auger Speed (Rpm) 40
    Overall Height (Dipper down) 1860 2150 2375 2500 2885
    Overall Height (Dipper up) 2670 3220 3400 3700 4100
    Overall Width 1850 2650
    Overall Width (Double band opened) 2250 2250
    Overall Length (Dipper down) 3900 4400 5500 5600
    Overall Length(Dipper up) 3340 3900 3300 3500
    Dipper width 1200 1300
    Hydraulic Pressure System Optional Standard
    Weighing System Optional
    Discharge System Hydraulic Band conveyor optional Band conveyor
    Double Sided Discharge Standart
    Dipper System Standart
    The Thickness of the Side Sheet Metal of Frame 5 6
    The Thickness of the Bottom Sheet Metal of Frame 8 16
    The Thickness of the Sheet Metal of Auger 8 10
    Number of Rigid Knives (Pcs.) 2
    Number of Coulter Knives on the Auger (Pcs.) 7 8
    Wheels 10/75-15.3 10/75-15.3 12.5/80-15.3
    Unladen Weight 1050 1920 1970 2660 2800
    P.T.O. Shaft Rotations (Rpm) 540
    Minimum power requirement for PTO (HP) 20 25 30 40 50
  • <Note>
    All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
