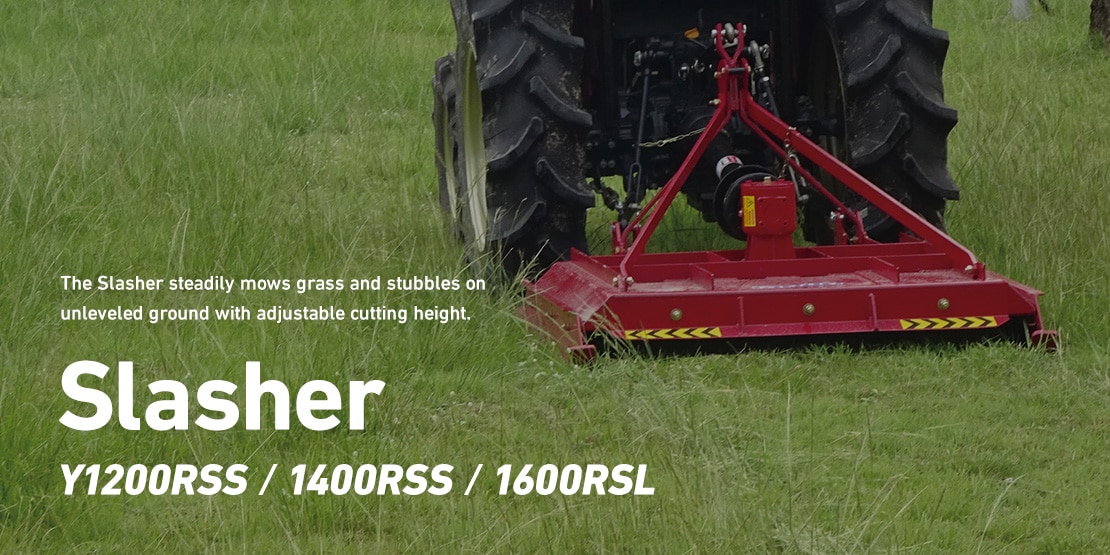

Slasher (Y1200RSS / 1400RSS / 1600RSL)
The Slasher steadily mows grass and stubbles on unleveled ground with adjustable cutting height. Slasher Y1200RSS, 1400RSS, 1600RSL

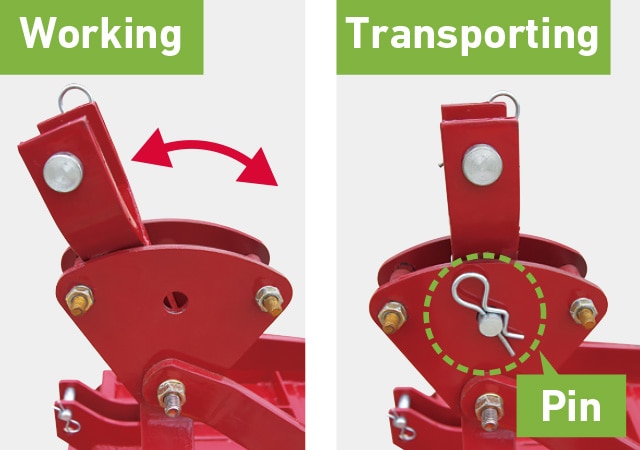

Removing the pin lets the top link move loosely for the shock absorbing, so the slasher can smoothly mow.

Pin removed during working, pin attached during transporting

Pivot structure linking the blade with the slasher protects the slasher blades from the impact of bumps.
Equipped with a torque limiter on the drive joint.
The torque limiter can prevent the damage to the tractor from the overload on the blade.

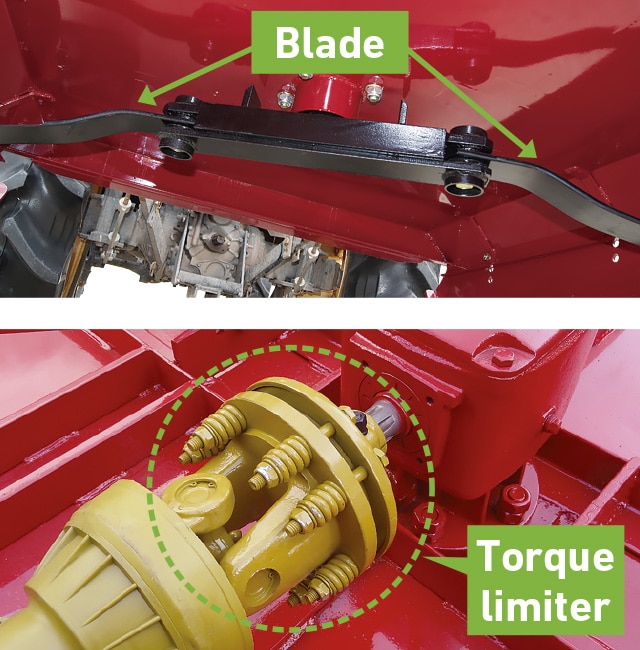

Image pointing out the blade and torque limiter placement
Model Name Y1200RSS Y1400RSS Y1600RSL
Quantity of blades 2
Width x Length x Height (mm) 1334 x 1435 x 981 1540 x 1635 x 1072 1800 x 1900 x 1230
Blade Diameter (mm) 1200 1400 1600
Cutting Height (mm) 25, 55, 85 30, 67.5, 105 40, 75, 110
Weight (kg) 190 325 445
Category Ⅰ Ⅱ
Required Tractor Power(PS) 35 - 40 40 - 60 70 - 85
  • *The design and specifications are subject to change without prior notice for product improvement.
  • *Operation efficiency is subject to the field conditions.
    •
  • <Note>
    All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
    •
