Rotary Tiller (Y2300RHE, C)

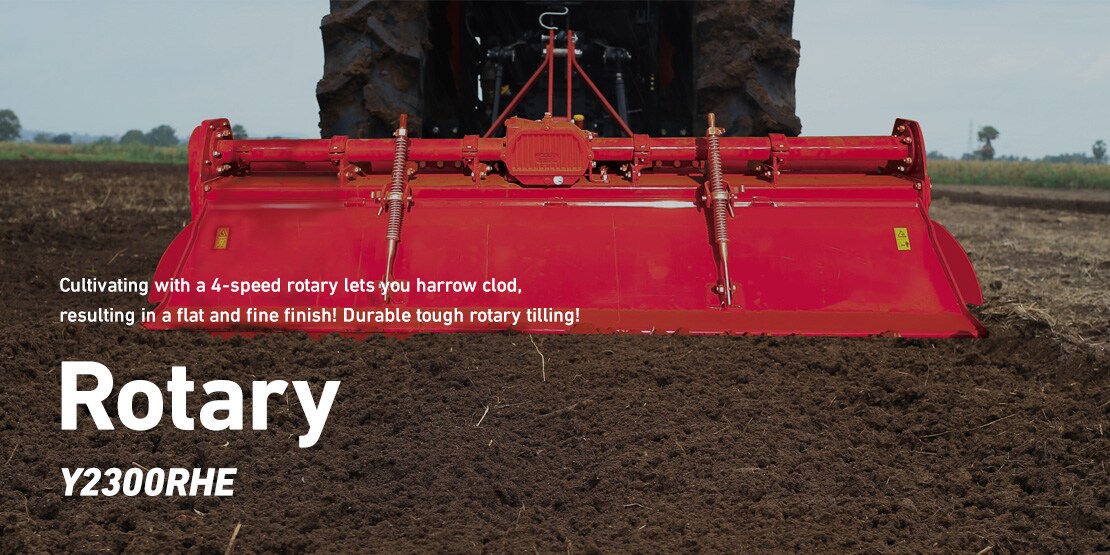

Cultivating with a 4-speed rotary lets you harrow clod, Rotary Y2300RHE

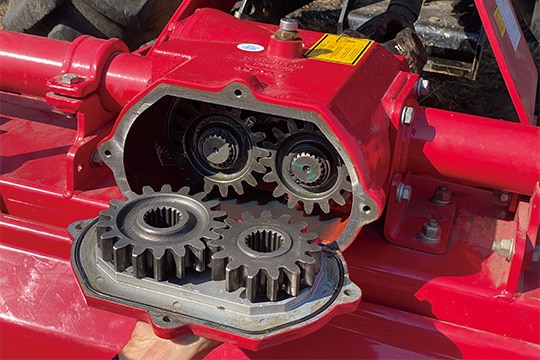

Uses a multi-speed gearbox. Standard 4-speed shifting is possible by rearranging the gears. Adjustable according to the soil conditions.
Tractor PTO speed Rotary speed (rpm)
540rpm
Gear rearrangement 18・15 257
15・18 178
17・16 227
16・17 201

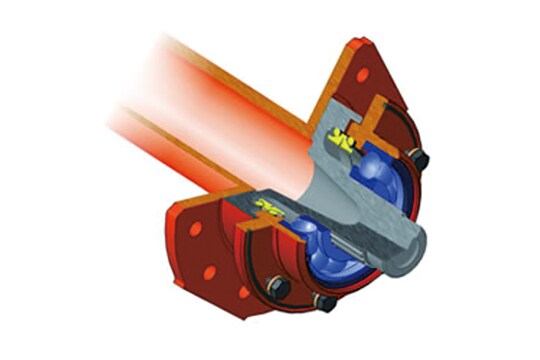

Rotor bearings on both ends of the rotary tillage shaft are protected from mud, water, and dust with amphibious mechanical seal.

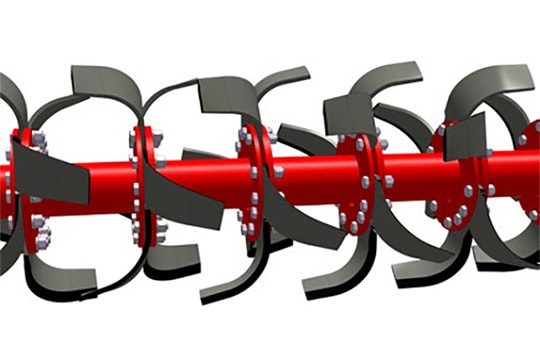

There are two types of rotary tillage blades, C-shaped and L-shaped. You can choose the blade according to the soil conditions and the desired finish.

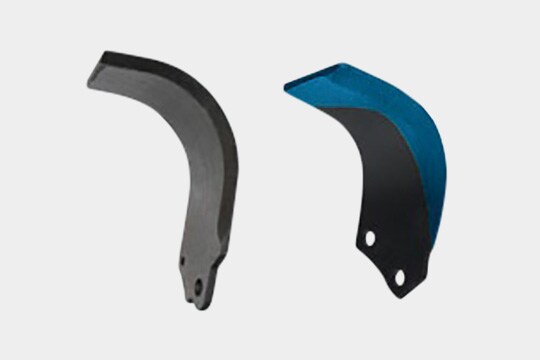

Universal use C-shaped blade

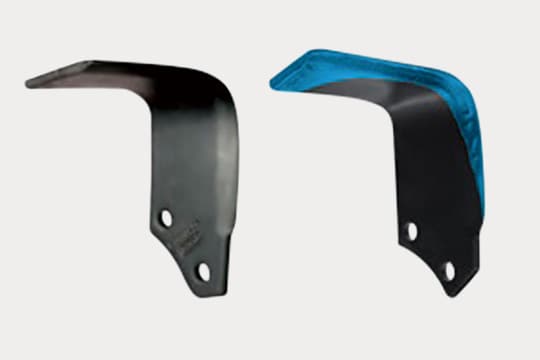

L-shaped blade

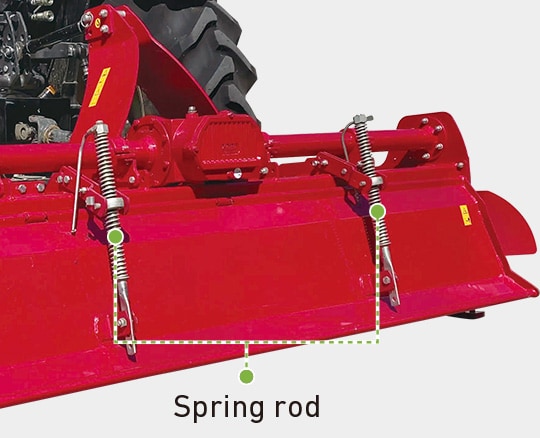

Even in fields with a lot of impurities, the wide rear cover provides a smooth and even finish with good soil tightness. The smoothing force of the rear cover can be easily adjusted with the spring rod.
Model Name Y2300RHE,L Y2300RHE,C
Width x Length x Height (mm) 2500 x 825 x 1084
Weight (kg) 523
Working Width (mm) 2300
Drive System Side Drive (Gear)
Blade Type L C
Quantity of blades 54
Category Ⅰ, Ⅱ
Applicable Tractor EF725T
  • *The design and specifications are subject to change without prior notice for product improvement.
  • *Operation efficiency is subject to the field conditions.
    •
  • <Note>
    All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
    •
