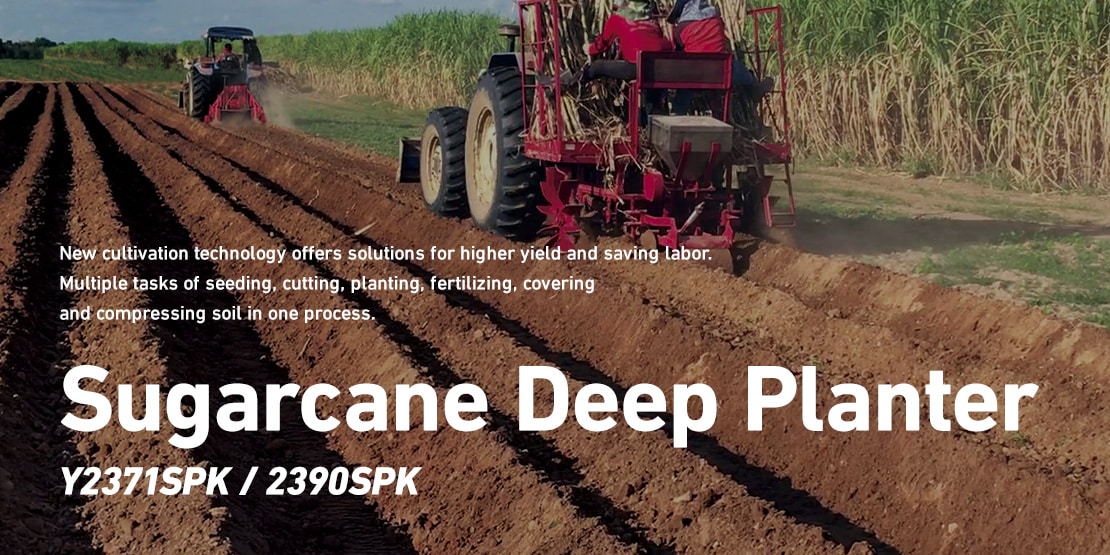

Sugarcane Deep Planter (Y2371SPK / 2390SPK)
New cultivation technology offers solutions for higher yield and saving labor. Multiple tasks of seeding, cutting, planting, fertilizing, covering and compressing soil in one process. Sugarcane Deep Planter Y2371SPK / 2390SPK

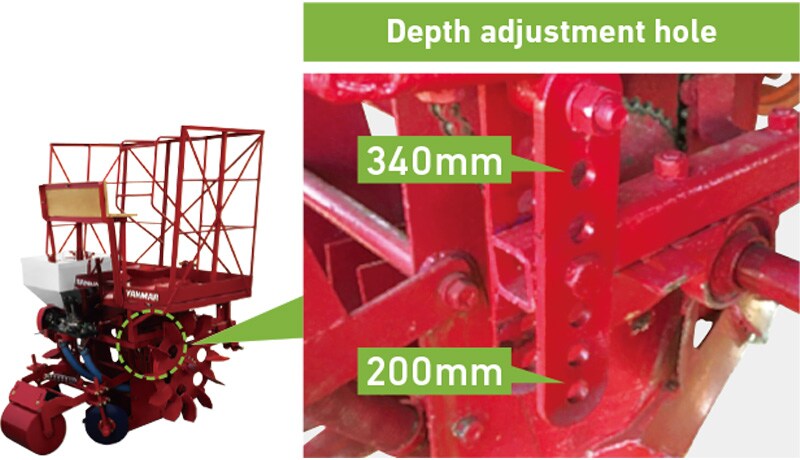

Planting depth can be adjusted to various types of soil by selecting adjustment level.
3levels : 200, 250, 300 mm
(for 70 - 90 PS)
6levels : 225 - 340 mm
(for 80 - 110 PS)

Depth adjustment hole
  • 300 mm deep planting broadens space for roots that leads to higher yield.

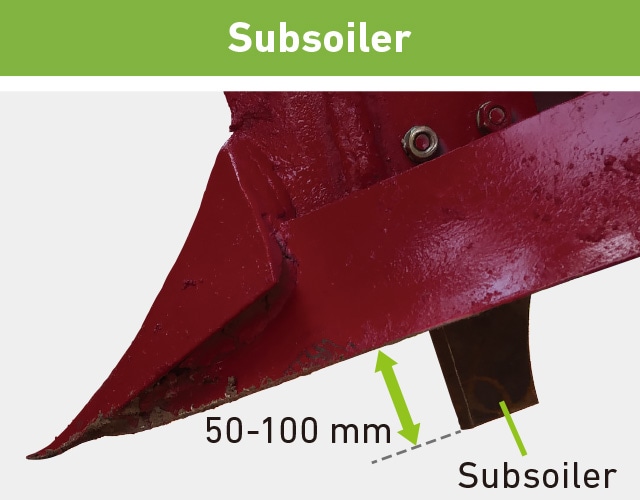

  • The subsoiler is attached to make drainage for conditions in heavy rain.
    •
    Subsoiler
    Model Name Y2371SPK Y2390SPK
    Width x Length x Height (mm) 1915 x 1610 x 2508 1915 x 1610 x 2508
    Quantity of rows 2 2
    Row Distant (mm) 200 - 250 250 - 300
    Planting Depth (mm) 250/300/350 225/245/270
    290/315/340
    Fertilizer Tank Material Stainless Stainless
    Capacity 50 50
    Load of sugarcane (kg) 500 900
    Working Speed (km/h) 3.0 - 3.5 3.0 - 3.5
    Weight (kg) 770 840
    Category Ⅱ Ⅱ
    Applicable Tractor EF725T Solis75/90/110
  • *The design and specifications are subject to change without prior notice for product improvement.
  • *Operation efficiency is subject to the field conditions.
    •
  • <Note>
    All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
    •
