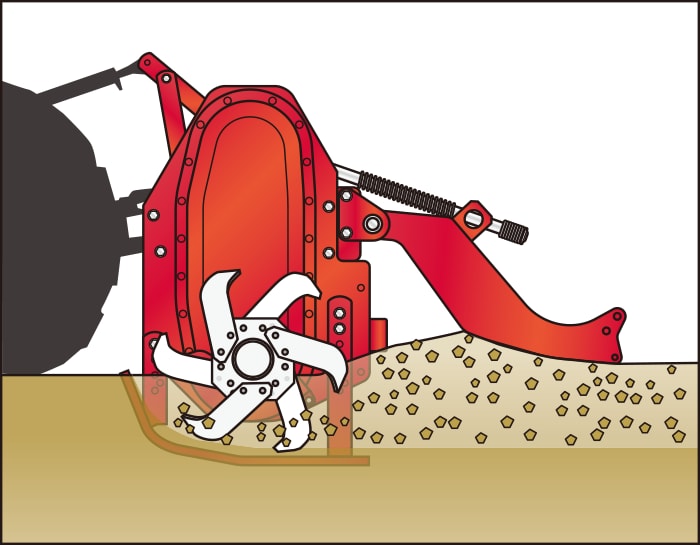

The 6-blades type enables good tillage work that crushes soil clods into small pieces.

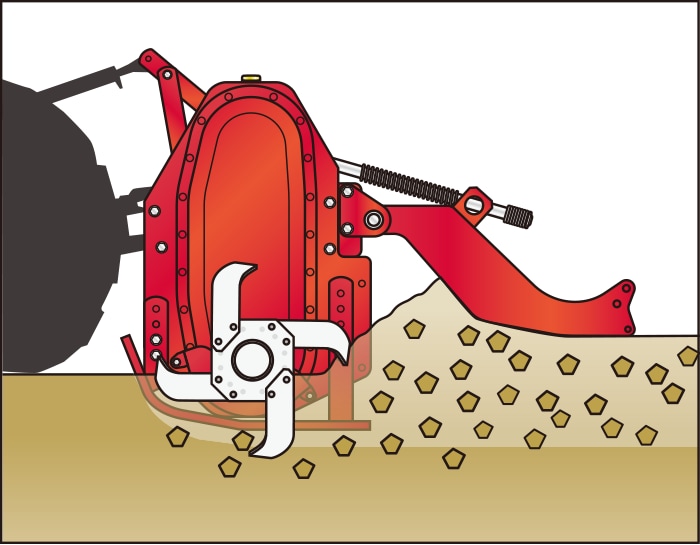

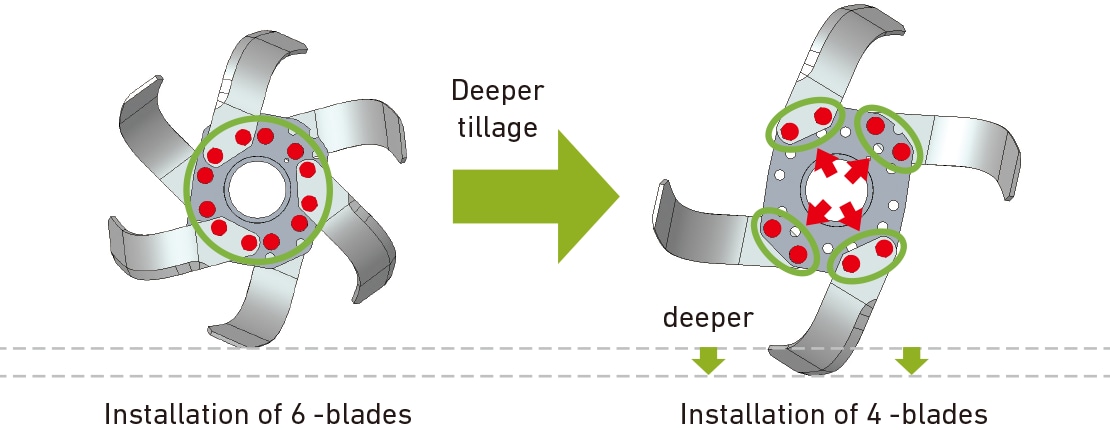

The 4-blades type enables tillage work with less engine horsepower. And, it is deeper than the 6-blades type!
| Model Name | Y1600RH,W | Y1700RH,W | Y1800RH,W | Y1900RH,W | Y2000RH,W |
|---|---|---|---|---|---|
| Width x Length x Height (mm) | 1771 x 952 x 1026 | 1871 x 952 x 1026 | 1971 x 952 x 1026 | 2071 x 952 x 1026 | 2171 x 952 x 1026 |
| Weight (kg) | 305 | 315 | 325 | 335 | 345 |
| Working Width (mm) | 1570 | 1670 | 1770 | 1870 | 1970 |
| Drive System | Side drive (Chain) | ||||
| Blade Type | Type C | ||||
| Quantity of blades | 48 / 32 | 48 / 32 | 54 / 36 | 54 / 36 | 60 / 40 |
| Category | Ⅰ | ||||
| Horse Power | 35 - 51 | 45 - 57 | 57 | ||
All technical data, measurement and weight are approximate, and the manufacturer has the right to make alteration without prior notice.
