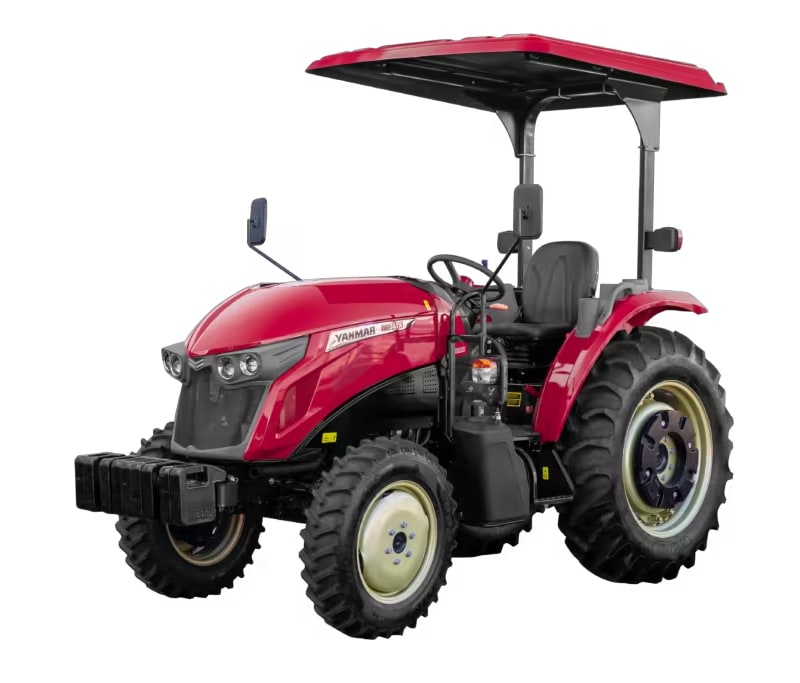

The Yanmar YM347 tractor is designed with smooth lines, bringing style and modernity to farmers.
Its features have been developed to meet the needs of farmers, with an emphasis on reducing soil compaction, low fuel consumption and work efficiency.
| Model | YM347 | |
|---|---|---|
| Cabin | No | |
| Engine | Manufacturer | YANMAR |
| Model | 4TNV88 - BKITL | |
| Emission Level | EU Stage Ⅲ Level | |
| Gross Power | 46.7HP (35kW) | |
| Number of Cylinders | 4 | |
| Displacement (cc) | 2190 | |
| Rated Speed (1/min) | 2800 | |
| Fuel tank (L) | 50 | |
| Overall length (mm) | 3330 | |
| Overall Width (mm) | 1420 | |
| Overall Height (mm) | 2425 | |
| Ground Clearance (mm) | 334 | |
| Wheel Base (mm) | 1900 | |
| Weight (kg) | 1760 | |
| Transmission | Synchronized main shift with synchronized reverser |
|
| Number of Gears | 12F+12R | |
| Drive Type | 4WD | |
| Rear PTO Speed/Engine Rated Speed | 540/750 | |
| Mid PTO Speed/Engine Rated Speed | - | |
| 3-Point Hitch | Category Ⅰ (Ⅱ) | |
| 3-Point Hitch Lift Capacity at lower link end (kgf) | 1450 | |
| Front Tires | 8-18 (Optional 250/80×18) | |
| Rear Tires | 12.4-28 (Optional 14.9×24) | |
