The YM342 is equipped with a 41 horspower engine.
The YM347 is equipped with a 46-horsepower engine.
The YM359 is equipped with a 59-horsepower engine.
Maximum travel speed is 17.7mph.
Synchronized shuttle shift allows you to quickly change between forward and reverse allowing effortless loader work. Suitable for grading, material handling, and moving bales of hay. Gear Drive transmission combines with Yanmar diesel engine to give you high torque and more usable PTO Power.
The YM3 series tractors are designed with comfort, efficiency, and versatility. Designed with an adjustable suspension seat and a flat isolation mounted floorboard design for the maximum comfort during operation.

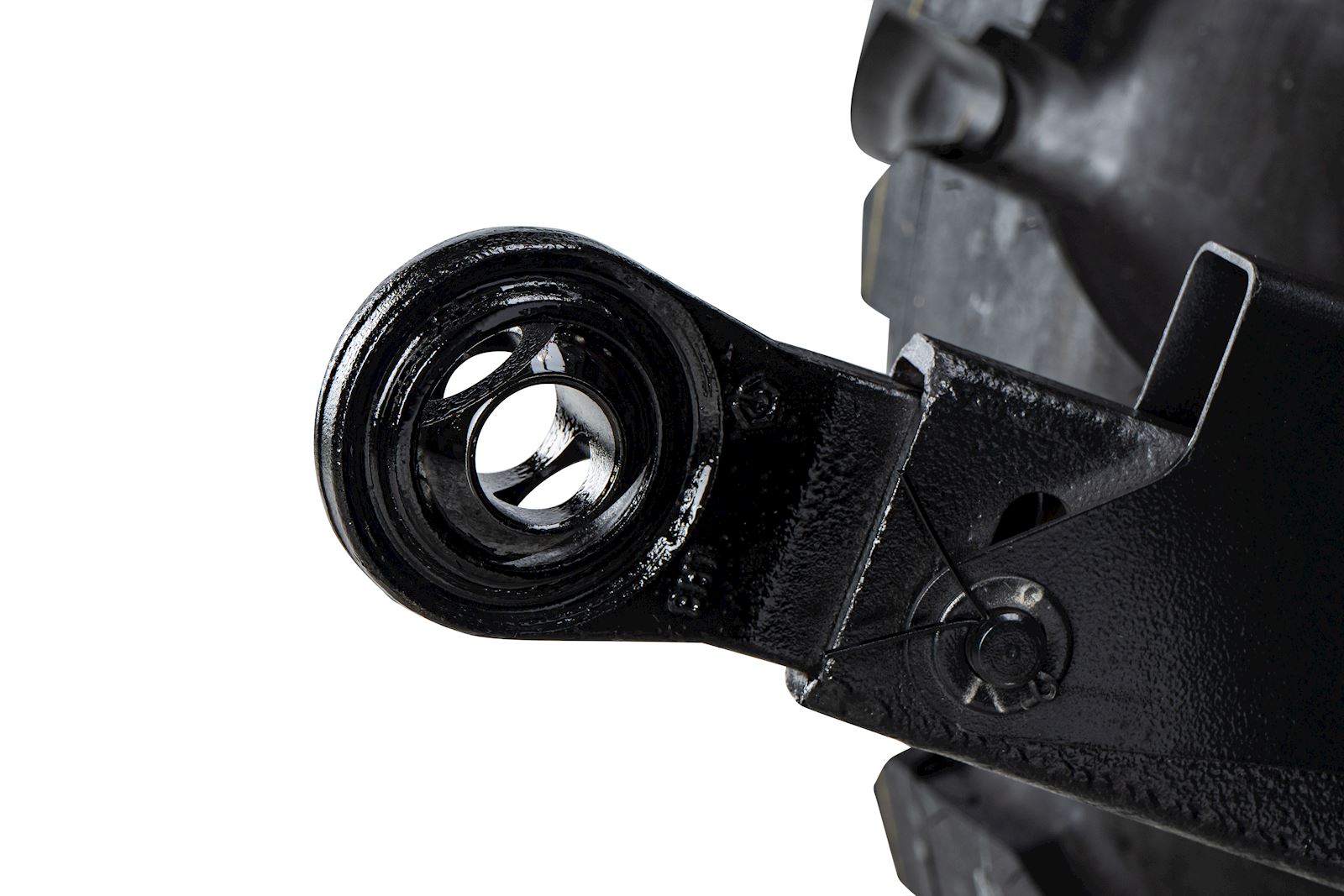

Compatible with both category 1 and category 2 attachments. A telescopic hitch arm provides ease and convenience with small adjustments for quick attachment mounting. Heavy duty, pin style sway bars keep your attachment securely in place.
The lower fuel tank positioning allows for quick and easy fueling. A larger fuel capacity increases productivity in the field and keeps you working longer between stops.
| Model | YM342 | YM347 | YM359 |
|---|---|---|---|
| Gross Power: EPA Regulation HP (kW) | 41.4 HP | 46 HP | 58.9(43.9)/2500 |
| Overall length (with 3PH and R4 Tires) | 133.6 (2190) | 133.6 (2190) | 133.9 (3400) |
| Overall Width (with R4 Tires) | 70.9 (1801) | 70.9 (1801) | 70.9 (1801) |
| Overall Height |
98.0 (2490) | 98.0 (2490) | 98.0 (2490) |
| Transmission | Synchronized Shuttle Shift | Synchronized Shuttle Shift | Synchronized reverser/main shift, 2 range |
| Drive Type | |||
| Rear PTO Speed/Engine RPM | 540/540E | 540/540E | 540 / 2430 540E / 1764 |
| Wheel Base | 74.8" | 74.8" | 77.5" |
| Front Tires (with R4) | 10.0" - 16.5" | 10.0" - 16.5" | 10.0" - 16.5" |
| Rear Tires (with R4) | 17.5" L - 24" | 17.5" L - 24" | 16.9" - 24" |
| 3-Point Hitch | Category Ⅰ(Ⅱ) | Category Ⅰ(Ⅱ) | Category Ⅰ(Ⅱ) |
| 3-Point Hitch Lift Capacity at lower link end (kgf) | 1,500 | 1,500 | 1,500 |
| 3-Point Hitch Lift Capacity 24" Behind (kgf) | 1,250 | 1,250 | 1,250 |
