Like the engine, the gear is customized for Japanese fishing applications, such as improved durability and the adoption of a trolling system with a propeller speed feedback function.

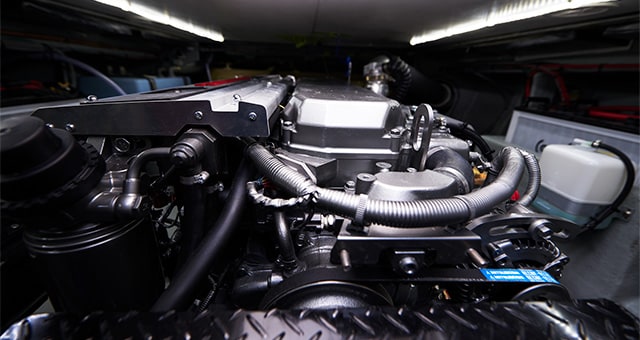

Electronically controlled common rail engine
EX34.HT’s electronically controlled common rail engine is lightweight and compact, with high output and low fuel consumption. In addition, we have focused on a high-quality exterior design to minimize exhaust and engine noise. Also, long cruising is now possible thanks to a large 650L fuel tank.
Marine gear KMH61A-2S

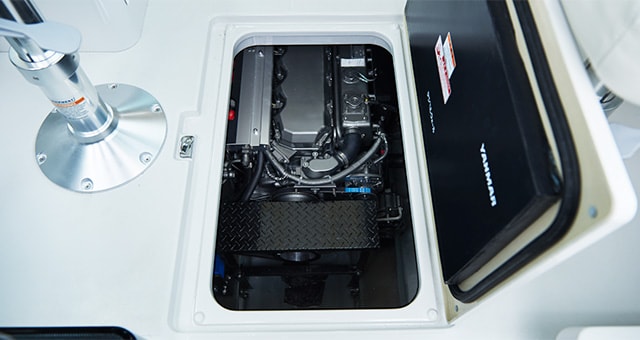

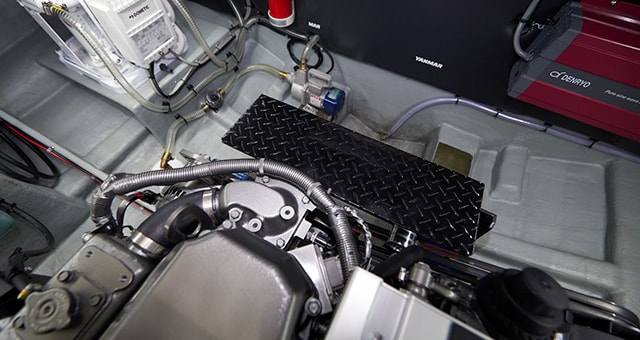

Engine room

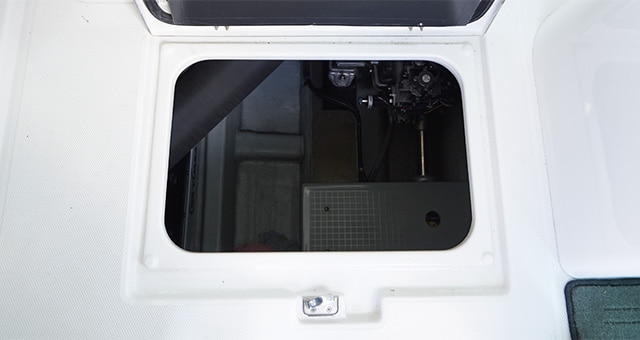

Two hatches have been installed at the center and rear of the cabin to ease of access and necessary maintenance.
Soundproof double structure
The multilayered floor is further enhanced by covering the hollow parts with sound absorbing material to reduce engine noise. In addition, the standard equipment of the exhaust silencer and the engine vibration isolation ensure further reduction in vibration and noise.
TECHNOLOGY
Vacuum infusion molding method
The vacuum infusion increases the glass content of the part resulting in a higher strength and rigidity when it comes into contact with waves. It also ensures a highly comfortable ride as it helps to reduce the vibrations inside the cabin by cushioning the waves' impact.
A lightweight structure
A light and highly rigid core material is used for the cushion base plate of the cabin and berth. This weight reduction improves driving response and fuel efficiency.
STYLE
1. V-shaped hull
This design contributes to outstanding start-up and smooth ride.
2. Fin keel
It results in an improved wave resistance and wind flow suppression.
3. Flare
It expands deck space and suppresses spraying.
4. Stem design
With a waterline length of about 35 feet, it ensures needle retention and a high-speed.
5. Double chine
It contributes to the reduction of running resistance and improves the lateral stability at halt.
6. Transom shape
It releases the water resistance when on waves and improves steering on reversing.
Electric trim tab
It enables an optimal adjustment of the cruising posture.
Bow deck
A spacious deck-integrated bowsprit design ensures that there is a plenty of space for an enjoyable fishing experience. A highly-placed bow pulpit makes sure that you easily get that perfect casting every time. Also, the side deck can be used as a fishing space.
Aft deck
A and flat deck space with a maximum width of 2800 mm and a depth of 2800 mm is designed for an ease of movement and fishing. In consideration of varying fittings, EX34.HT is equipped with an open bulwark with the height of 640 mm.
Bowsprit
Bow pulpit
Anchor storage
Cleat
Handrail (Large-size)
Side deck
Handrail (Small-size)
Fuel port with a key
Open bulwark
Propeller inspection window
Transom gate
Mooring hole
Livewell
Cabin
The spacious cabin is specifically designed to create a comfortable and enjoyable atmosphere for you and your guests to enjoy the precious time you spend together. Multiple storage spaces and lockers ensure that everything is always in order. In addition, an inverter air conditioner is standard feature. You can also opt for an optional update to have a land electric device to enjoy a comfortable marina stay.

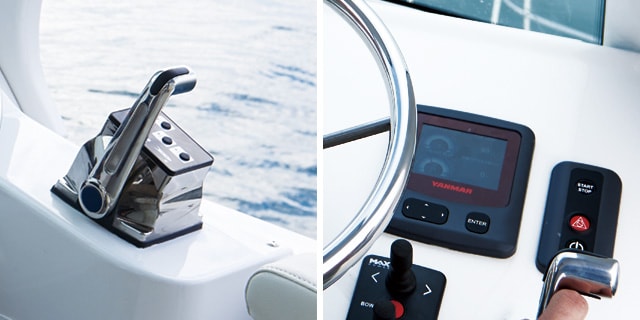

Helm station
The counter space can accommodate up to two 10-inch class navigation instruments such as a GPS. In addition, for your comfort, the driver's seat comes with armrests and dampers, and can be adjusted to the optimum position.
Berth
The berth has a good amount of natural lighting and is spacious enough for two adults to lie down comfortably. Also, there are storage spaces on the sides and under the cushion for your convenience.
Restroom
EX34A has a a bright and spacious private restroom with a head clearance of 1.7 m. It is equipped with an electric marine toilet and sink, and ensures an uninterrupted and pleasant sailing for everyone.
Cabin
Navigator seat
Port-side passenger seat / table
Locker
Electric air conditioner
Starboard passenger seat / table
Passenger seat storage
Starboard seating
Side pad
Side panel
Roof rail
Room light
Handrail
Rear door
Driver’s seat
Wiper / Window washer
Breaker panel
Side window
The small window can be opened for a natural breeze and convenient communication with those outside.
Berth cushion
Floor board
Storage
Sea view window
Skylight hatch
Long shelf
Accessory case
Room light
Molded interior material design
Left: Rest room / Right: Rest room door
Sink
Marine toilet
Sea view window
Room light
Specifications
| Model | EX34.HT |
|---|---|
| Full Length | 10.63m |
| Full Width | 3.30m |
| Full Depth | 1.90m |
| Gross Tons | Over 5G/T |
| Maximum Number of People | 12 people |
Engine Specifications
| Engine Model | 6LY440J |
|---|---|
| Maximum Output *FW Output value | 324kW/3300min-1 (440PS/3300rpm) |
| Rated Output *FW Output value | 295kW / 3198min-1 (400PS / 3198rpm) |
| Installation Method | Anti-vibration |
| Reduction Gear (Reduction ratio) | KMH61A-2S (2.43) |
| Fuel Tank | 650L |
| Steering Machine | Hydrostatic |
| Remote Controller | One Handle (Electric) |
| Battery | 145F51 12V (for Engine) EB160×2 24V (for Service) |
| PTO | 720mm |
| Propeller | 3-620×885 |
| Stern Model | Bracket Type |
| Mass | 4890kg |
Hull dimensions
General Equipment List
● : Standard setting △ : Options □ : Factory options
| Bow | |||||||
|---|---|---|---|---|---|---|---|
| ● | Bowsprit | ● | Bow pulpit | ● | Anchor storage (with a lock) | ● | Navigation light (side light) |
| ● | Bow cleats | △ | Bow roller *1 | □ | Bow thruster (electric) | □ | Hull blackout |
| Cabin exterior | |||||||
| ● | Wiper (with intermittence unit) | ● | Window washer | ● | Handrail (large-size) | ● | Handrail (small-size) |
| ● | Fuel port with key | ● | Sliding rear door | △ | Mast | △ | Skylight Hatch |
| △ | Stern deck light (LED) | △ | Delay light | △ | Mast (Radar Arch) *2 | □ | Radar Arch |
| □ | Deck washer | □ | Shore power equipment *3 | ||||
| Aft Deck | |||||||
| ● | Large livewell (with lock) | ● | Storage (with a lock) ×2 | ● | Propeller / Steering inspection compartment (with lock) | ● | Propeller inspection window |
| ● | Open bulwark | ● | Drain scupper | ● | Drainage ditch cover | ● | Stern cleat |
| ● | Mooring hole | ● | Transom gate | ● | Trim tab (electric) | ● | Exhaust muffler cover |
| △ | Boarding ladder *5 | □ | Bulwark bait shelf | □ | Aft Deck Sink | □ | Transom step |
| □ | Stern thruster (electric) *6 | □ | Double cleat *7 | ||||
| Cabin | |||||||
| ● | Air conditioner (AC type)★ | ● | Counter | ● | Deluxe steering wheel | ● | Hydraulic Steering System |
| ● | Analog meter | ● | Switch panel | ● | DC-AC inverter (3kW) *8 | ● | DC main switch (relay type) |
| ● | Main switch (relay type) | ● | Breaker panel | ● | Inundation alarm | ● | Driver’s seat (with armrests) *9 |
| ● | Navigator seat (with an armrest) *9 | ● | Passenger Seat (left-side) (single) *10 | ● | Passenger Seat (right-side) (single) | ● | Passenger Seat (right-side) (bench) *10 |
| ● | Side window (port / starboard) *11 | ● | Table ×2 | ● | Cup holder ×5 | ● | Locker (with hatch) |
| ● | Side panel (port / starboard) | ● | Side pad (port / starboard) | ● | Room light (LED) ×4 | ● | Roof rail |
| ● | Handrail (Small-size) | ● | Engine room hatch (with lock) ×2 *12 | ● | Engine room hatch (with lock) | △ | Carpet |
| □ | Indirect lighting | □ | Table (on the locker) | □ | Engine driven air conditioner | ||
| Berth | |||||||
| ● | Berth cushion | ● | Bed Board | ● | Berth pad | ● | Room light (LED) |
| ● | Skylight hatch | ● | Long shelf | ● | Small-size storage (with a hatch) | ● | Sea view window |
| △ | Carpet *13 | △ | Curtains | □ | Table | ||
| Toilet | |||||||
| ● | Door (with a frame) | ● | Marine toilet (electric) | ● | Fan (electric) | ● | Toilet paper holder |
| ● | Handgrip | ● | Sink | ● | Fresh water tank (61L) *14 | ● | Sea view window |
| ● | Curtain | ● | Room light (LED) | ● | Maintenance hatch (sink / toilet valve) | ||
| Engine room | |||||||
| ● | Exhaust Silencer | ● | Bilge pump | ● | Seawater strainer | ● | Stern tube (King seal) |
| ● | Ventilator | ● | Main battery (12V) | ● | Sub-battery (24V) | ● | Strip light (LED) ×2 |

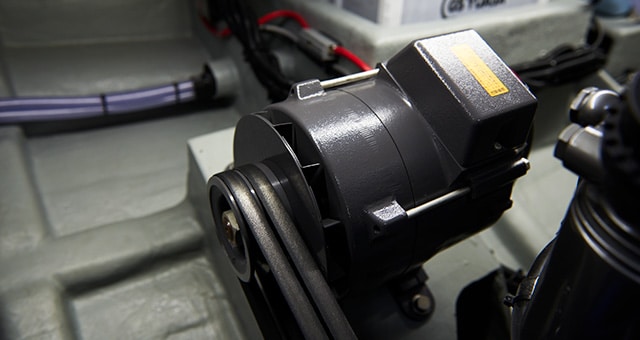

| ● | Alternator (2.5kW) | ● | Automatically-diffusing fire extinguisher | □ | Additional battery (24V) | □ | Air conditioner drain pump *15 |
- ※1Center cleats are not included.
- ※2Can be selected when installing the radar gate.
- ※3AC100V outlet can be used. Charger capacity can be selected from 5A or 25A.
- ※4Replaced with the passenger seat.
- ※5Can be selected when installing the transom step.
- ※6Can be selected when installing the bow thruster.
- ※7Replaced with stern cleats.
- ※8Not available when the front-drive air conditioner is selected.
- ※9With a rotating / sliding damper.
- ※10With cushion and backrest.
- ※11With a small sliding window.
- ※12At two locations in the center and rear end of the cabin.
- ※13Configurable for with or without a table.
- ※14With air vent.
- ※15Cannot be selected when the main engine front drive type air conditioner is selected.
