VC10

Specifications

Type
Control System

YANMAR’s VC10 is a vessel control system that controls all YANMAR electronically managed engines.

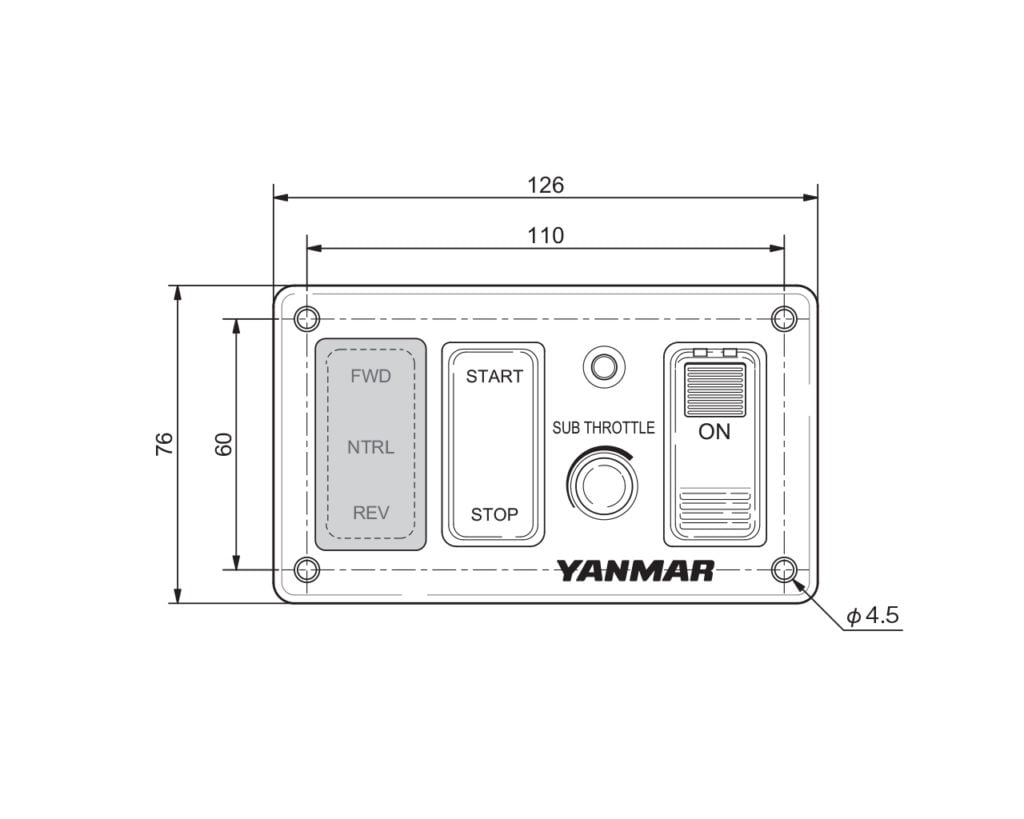

The VC10 is a J1939 based CAN bus system that has a dedicated network to each engine and comes standard with an emergency back-up panel, ensuring the highest reliability.  With NMEA connections built in, the VC10 can connect easily to multiple other vessel accessories or systems.

More Information

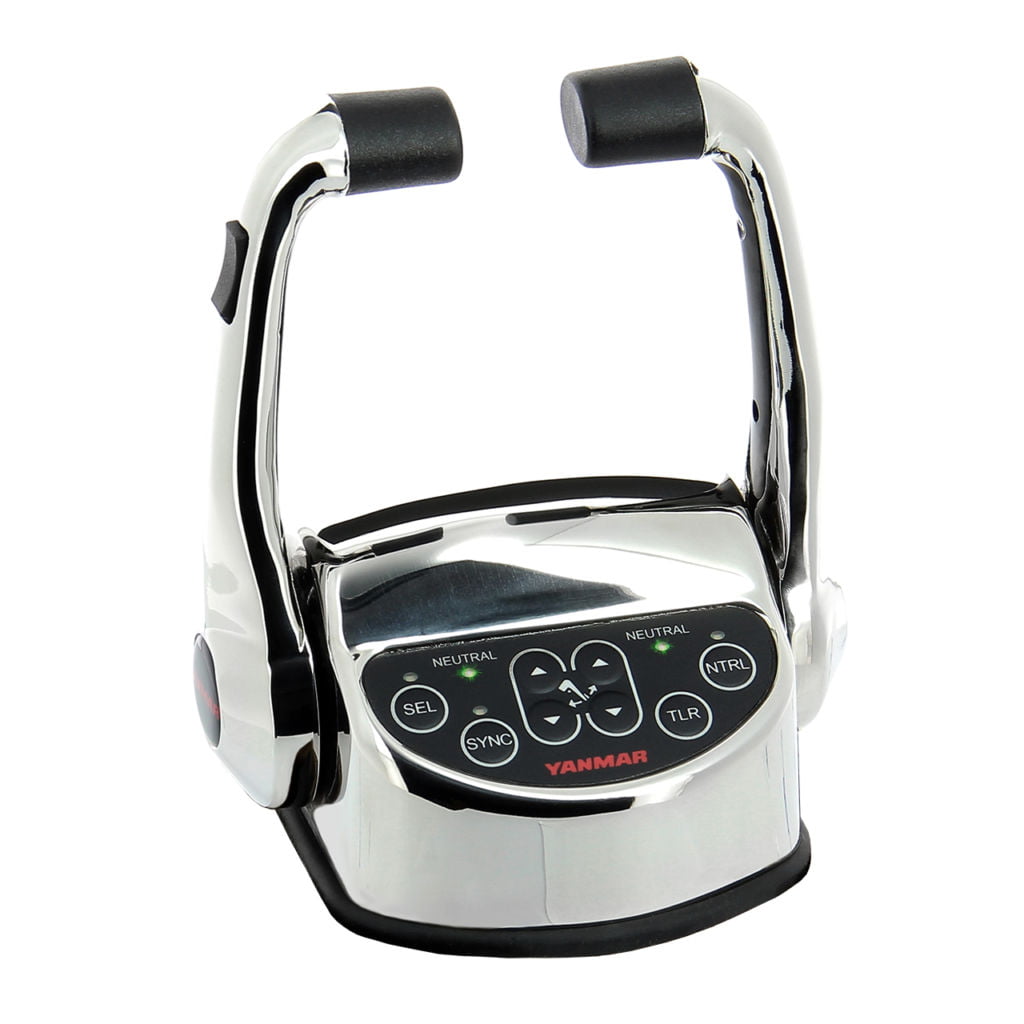

The system is easy to install and comes inclusive of controls, full-color digital display/s, with NMEA2000 or J1939 gauge output, and all cabling and wiring.  The system was completely developed by YANMAR to meet the company’s high standards of quality and dependability.

The VC10 controls all YANMAR engine and transmission function and shows engine alarms and diagnostic codes in the display. It is the foundation for YANMAR’s joystick controls systems, the JC10 & JC20, and is compatible with other YANMAR panels as well as any manufacturer’s multi-function display.

Drawings Download Drawings
