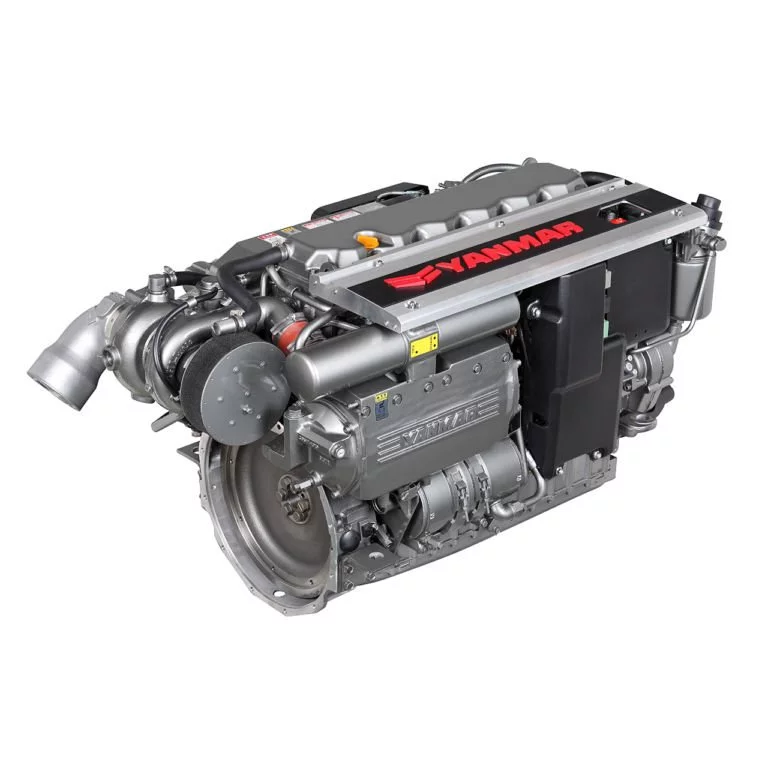

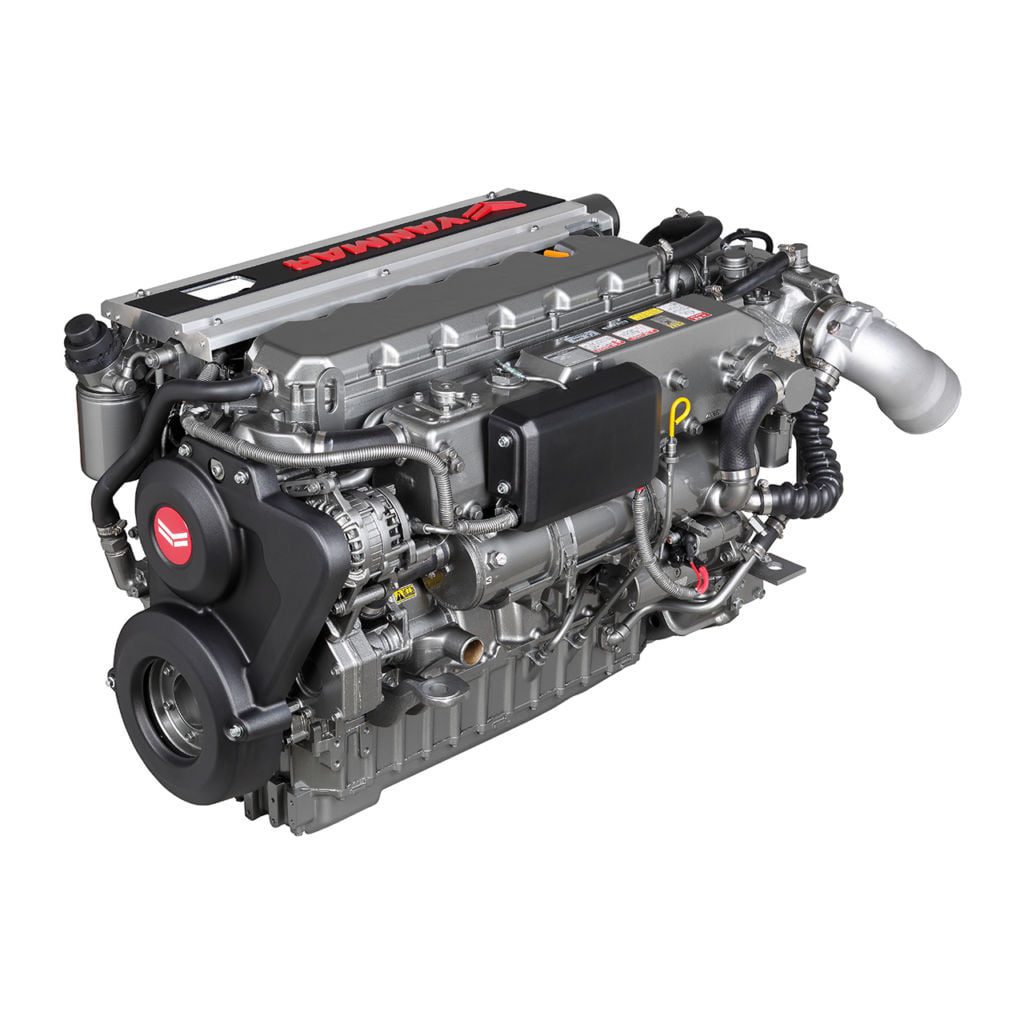

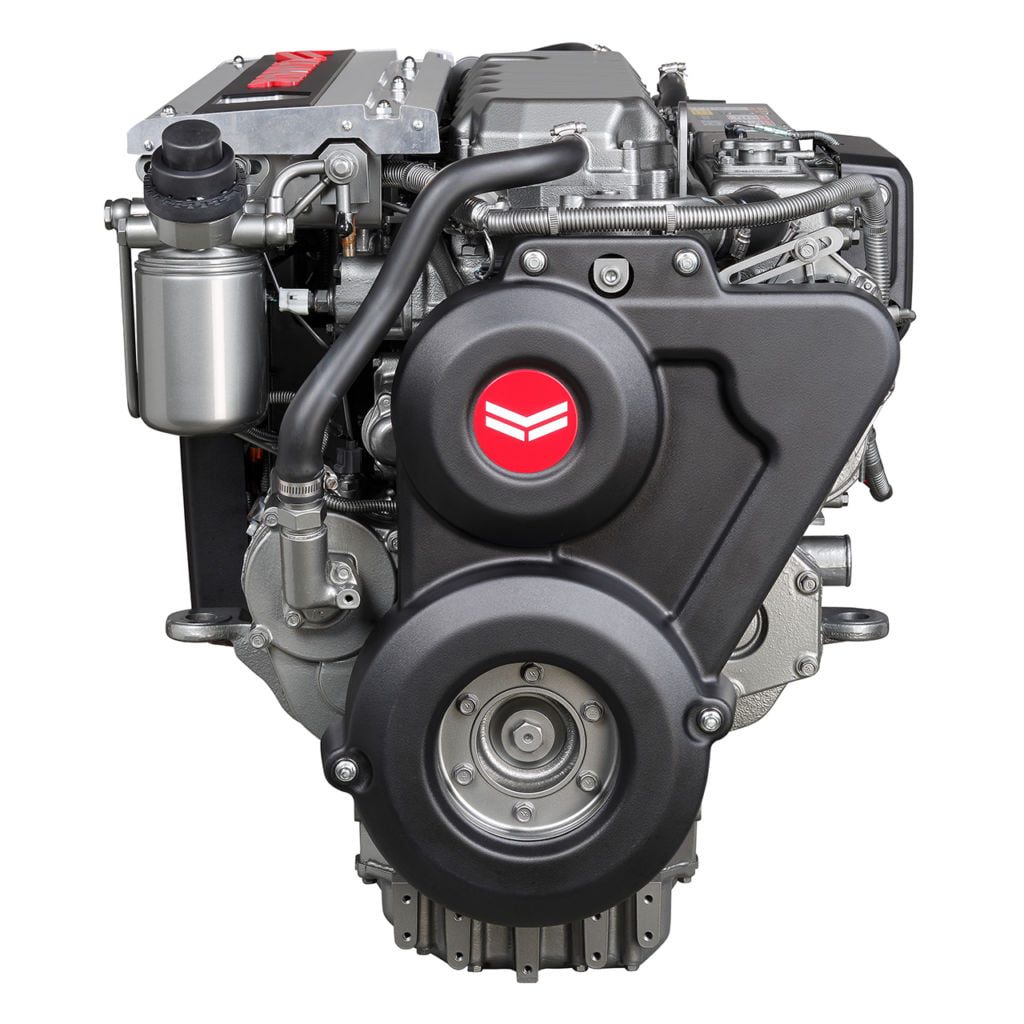

6LY440

Specifications

Rated output
324 kw / 440 mhp
Rated Speed
3300 rpm
Displacement
5.813 L / 354 cu. in
No. of cylinders
6 cylinders
Cylinder Bore x Stroke
106 mm x 110 mm / 4.17 in x 4.33 in
Combustion system
Direct Injection, Denso Common Rail System
Aspiration
Turbocharged & Intercooled
Alternator
12V - 125A
Dry weight without gear
585 kg / 1290 lbs
Dimensions
1440 mm x 748.5 mm x 773.8 mm
Controls
Electronic
Certifications
RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length measured with with KMH61A-2 gearbox & high-riser elbow
(Dimensions may vary with other gears/elbow)

Performance Curves

6LY440 power performance curve
6LY440 power performance curve
6LY440 torque performance curve
6LY440 torque performance curve
6LY440 fuel performance curve
6LY440 fuel performance curve

Technical Drawings

6LY with KMH61A2
6LY with KMH61A2
6LY with KMH61A2
6LY with KMH61A2

Packages

Standard Engine Package

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 120A
  • VC20 Vessel Control System
  • Fresh water expansion tank

Optional Accessories

  • High-riser mixing elbow [instead of L-elbow]
  • Flexible mounts Barry
  • Flexible mounts Bridgestone
  • Secondary alternator 12V – 120A or 24V – 45A
  • Extension harness [3m, 5m, 10m]
  • Second station
  • JC20 Inboard Joystick
  • NMEA2000 Engine monitoring system
  • SOLAS including Certificate [factory fit only]
  • Hot water kit
  • Water separator
  • Lube oil drain pump
  • Bilge pump [12V]

IMO Tier III package

  • 24V Selective Catalytic Reduction (SCR) System.

THIS ENGINE IS NOT CERTIFIED FOR OPERATION IN ANY U.S. NAVIGABLE WATERS, EEZ, OR THE NORTH AMERICAN EMISSION CONTROL AREA. THIS ENGINE CANNOT BE INSTALLED ON U.S. FLAGGED VESSELS.
