VC20

Vessel Control System

Specifications

Type
Control System

The VC20 is YANMAR’s 2nd generation vessel control system that controls all YANMAR electronically managed engines. Featuring simplified electrical management, a high-quality appearance, and significant functional improvements, the next generation YANMAR VC20 Vessel Control System integrates with YANMAR’s complete line up of common rail engine series, transmissions, controls, and displays.

The VC20 is a J1939 based CAN bus system that has a dedicated network to each engine and comes standard with an emergency back-up panel, ensuring the highest reliability. With NMEA connections built in, the VC20 can connect easily to multiple other vessel accessories or systems.

The system was completely developed by YANMAR to meet the company’s high standards of quality and dependability. The VC20 controls all YANMAR engine and transmission function and shows engine alarms and diagnostic codes in the display.

More Information

VC20 has a new and simplified electrical architecture. The system is easy to install and comes inclusive of controls, full-color digital display/s, with NMEA2000 or J1939 gauge output, and all cabling and wiring. This result is using fewer components and harnesses, making it easier and faster to install for boatbuilders and dealers.

In addition to functional improvements over the existing VC10 Vessel Control System, the new VC20 Vessel Control System will also introduce newly designed control heads and switch panels. YANMAR in-house designer, Ken Okuyama, has upgraded the design of the YANMAR Vessel Control equipment significantly, giving a higher quality appearance and feel.

Technical Drawings

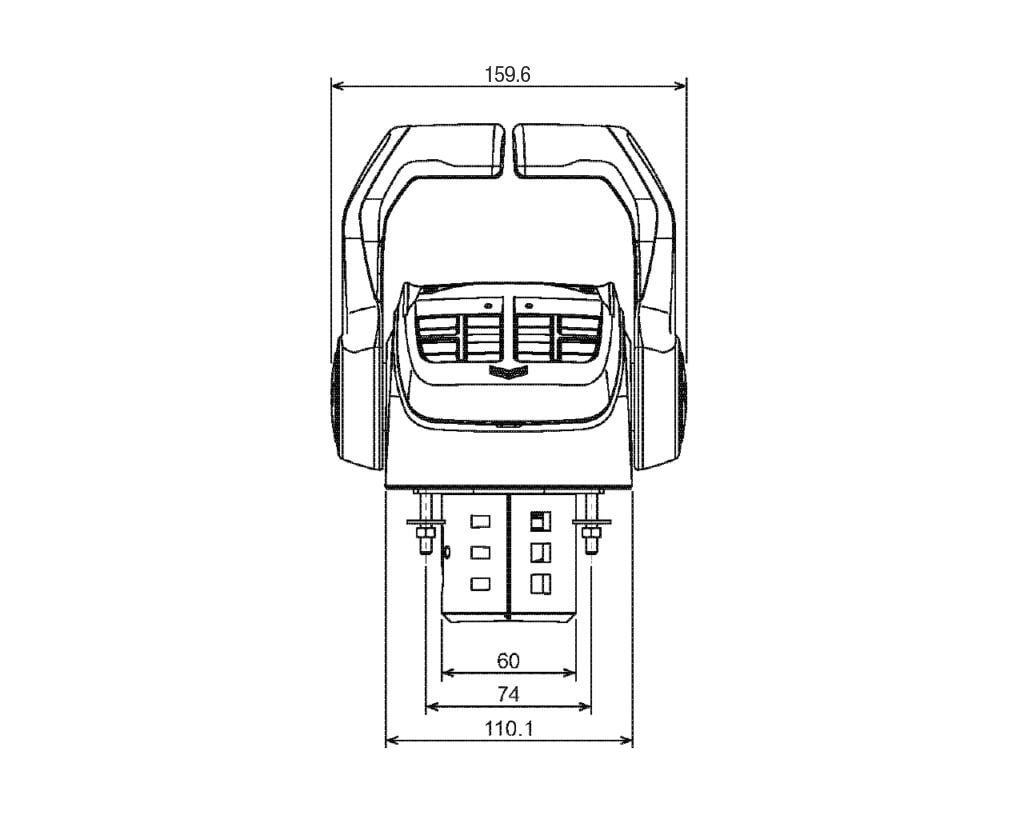

VC20 handle drawing
VC20 handle

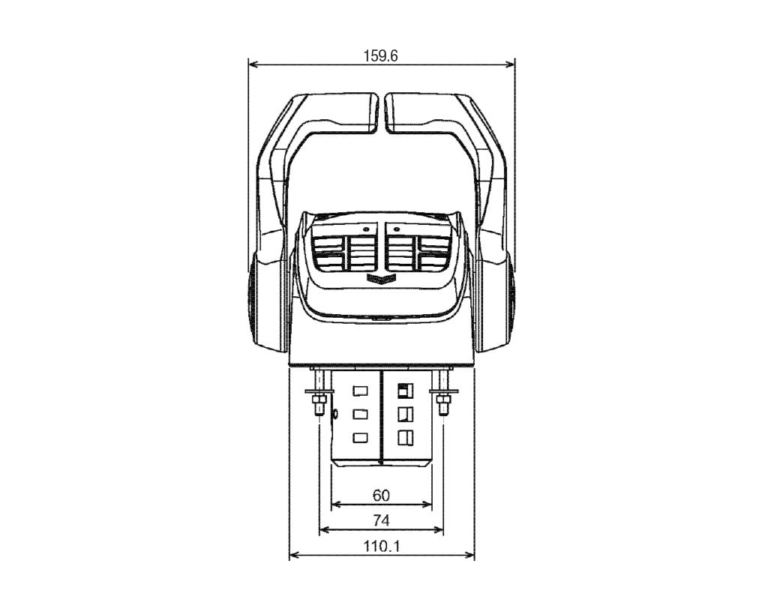

VC20 handle drawing
VC20 handle
VC20 panel drawing
VC20 panel
VC20 startstop panel drawing
VC20 startstop panel
VC20 startstop panel drawing
VC20 startstop panel

Specification Datasheet

VC20 Datasheet & Leaflet (A4) - PDF
VC20 Datasheet & Leaflet (Letter) - PDF

Technical Drawings

164000-107x0 CAN converter - STP
164000-30010 Backup panel - STP
164000-38000 DC-DC converter - STP
164000-41010 CH Inboard single - STP
164000-41030 CH Inboard twin - STP
164000-41040 CH Sterndrive single - STP
164000-41050 CH Sterndrive twin - STP
164000-41080 CH Inboard single RH - STP
164000-41110 CH Sidemount - STP
164000-44000 Shift actuator - STP
164100-31500 Emergency switch - STP
164200-10000 Helm ECU - STP
164200-10020 Control head ECU - STP
164200-10410 Raymarine autopilot gateway - STP
164200-10510 Eshift controller - STP
164200-108x0 Drive ECU - STP
164200-37200 Switch panel dual template
164200-37210 Switch panel single templat
164000-41110 CH Sidemount template
164200-41120 CH Inboard twin - STP
164200-41130 CH Sterndrive single - STP
164200-41140 CH Sterndrive twin - STP
164200-43200 Steering unit helm STP
164200-43300 Steering assy tilt STP
164200-5100x VC20 Display template
164200-5100x VC20 Display STP
164000-30010 Backup panel template
164200-411x0 CH template
164200-41110 CH Inboard single STP
164200-37200 Switch panel dual STP
164200-37210 Switch panel single STP
164000-410x0 CH template
164200-43300 Steering assy tilt template
164200-5100x VC20 Display template
164200-30000 Backup panel STP
164200-30000 Backup panel template
