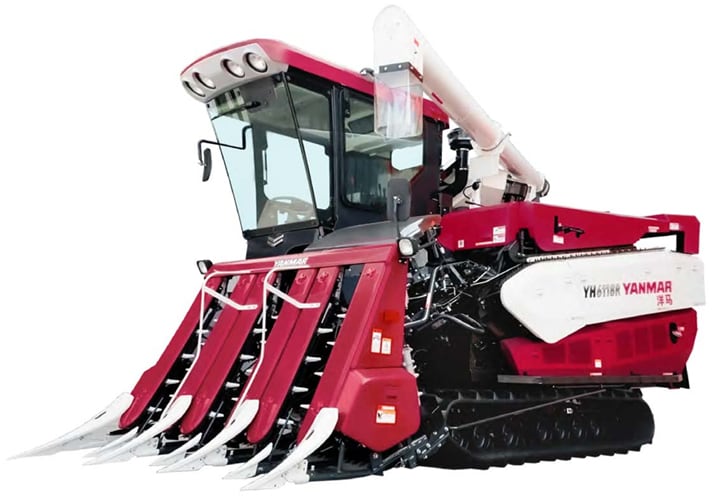

YH6118R
Top Specifications
Model Name YH6118R
Engine Category Tier4
Horsepower (PS) 118.8
Head-feeding Type / Conventional Type Head-feeding Type
Grain tank / Top sacker Grain tank
Crawler / Wheel Crawler
Cabin / Floor Cabin
FDS / 2P2M / Side clutch FDS
With / Without Leveling control With

Experience next-level harvesting performance with advanced technology designed for smooth operation and peace of mind.

Automatic Synchronization of travel speed, cutting platform, and feeding chain speed for optimal performance.

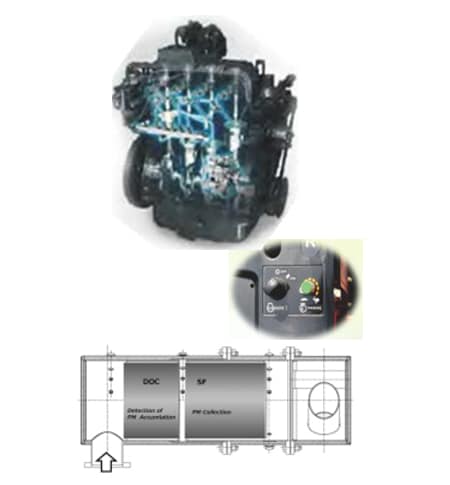

This system complies with China Stage IV emission standards and operates in ECO Environmental Economy Mode, delivering efficient and dependable performance.

  • Equipped with turbocharging for enhanced air intake.
  • Compact engine design with reduced weight.
  • Strong self-power capability for demanding operations.
    •
  • High-pressure accumulator enables precise multi-stage injection.
  • Ensures complete fuel combustion for maximum efficiency.
  • Optimized for fuel savings and reduced emissions.
    •
  • Under normal conditions, DPF regeneration occurs automatically during operation.
  • No downtime required for regeneration cycles.
    •
  • No urea required during the exhaust gas treatment process.
  • Simplifies maintenance and reduces operating costs.
    •

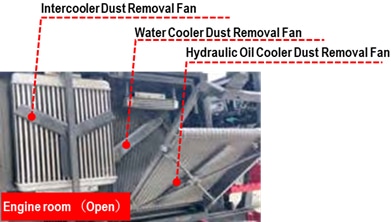

    The rotary screen dust removal device ensures smooth airflow through the filter screen in the engine compartment. This system helps the engine maintain optimal cooling performance and stable operation even under harsh working conditions.

    Facilitates continuous cleaning of the filter surface.

    Removes accumulated dust to maintain airflow efficiency.

    Ensures the intercooler remains free of dust for efficient heat exchange.

    Maintains the water cooling system’s performance by preventing dust buildup.

    Keeps the hydraulic oil cooling system clean for reliable operation.

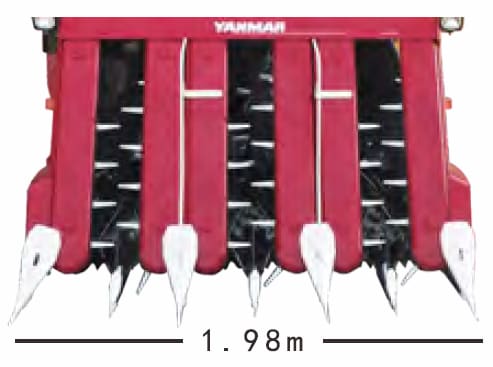

    Our advanced cutting system ensures stable crop pickup and smooth power transmission, even in challenging conditions. The three-speed pickup mechanism, combined with overload protection, delivers fast and reliable handling of fallen crops. Choose from Low, Standard, or High-speed settings on the cutting platform to match your field requirements. Plus, the drive system features a torque limiter for superior overload protection, safeguarding performance and durability.
  • Three-speed pickup with overload protection ensures quick and stable handling of fallen crops.
  • Three-speed cutting platform options: Low, Standard, High speed.
  • Cutting drive equipped with torque limiter for overload protection.
    •

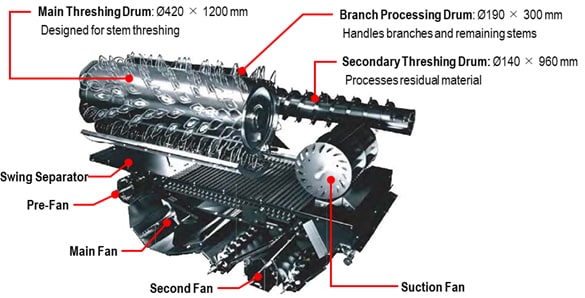

  • Multi-stage threshing achieved through main threshing drum, secondary threshing drum, and branch processing drum for efficient separation.
    •
  • Combination of pre, main, second, and suction fans creates multiple airflow channels. These work in conjunction with the vibration sieve to ensure effective grain cleaning and secondary return for thorough impurity removal.
    •

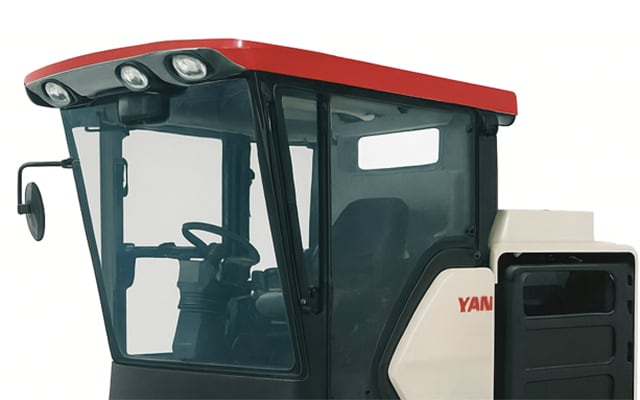

    The YH6118R is designed for operator comfort and safety during long working hours. It features a spacious cab layout, excellent visibility, dust protection, and temperature-controlled environment (cooling and heating). The control levers are simple and intuitive, reducing fatigue and improving ease of operation.
  • Spacious design with dust protection
  • Low noise for a quiet working environment

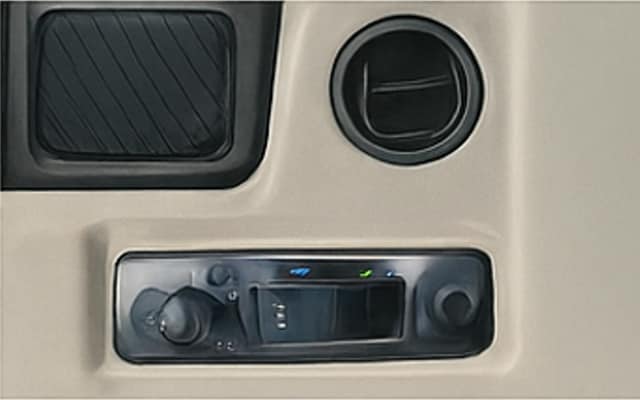

  • Temperature control for cooling and heating
  • Excellent visibility for enhanced safety
    •

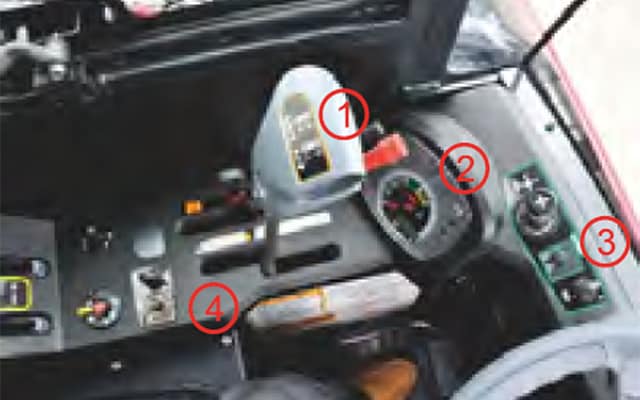

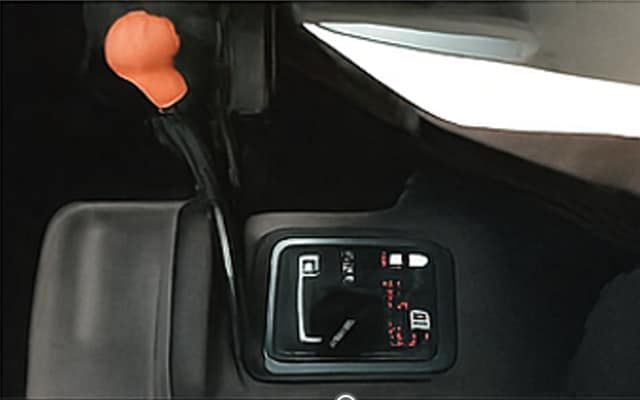

  • ①Main Operation Lever
  • ②Monitoring Instruments
  • ③Header Lift Control
  • ④Engine Control
    •

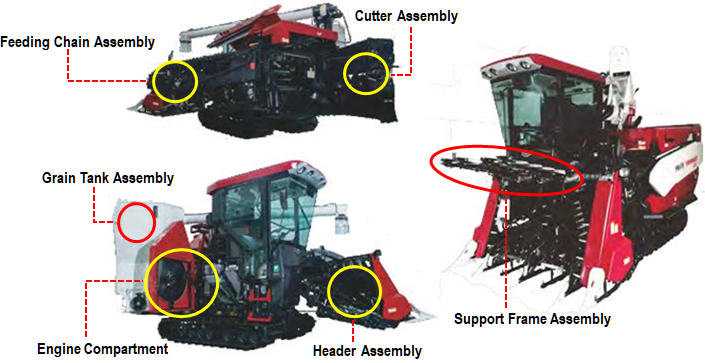

    The grain tank, threshing unit, feeding chain unit, engine compartment, and cutter assembly are designed as modular units.
    This design allows for easy disassembly, cleaning, and maintenance.
  • The “FDS” transmission enables smooth differential steering without braking, reducing steering load.
  • Standard Mode: Suitable for relatively firm fields, allowing easy small-radius turns and improving work efficiency.
  • Wet Field Mode: Suitable for wet and muddy fields, enabling large-radius turns to prevent the risk of sinking.
    •

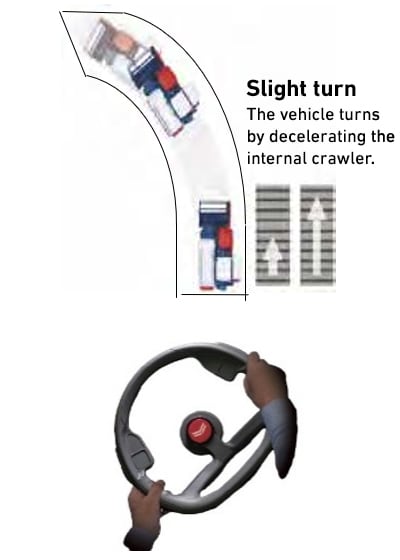

    Slight turn / The vehicle turns by decelerating the internal crawler.

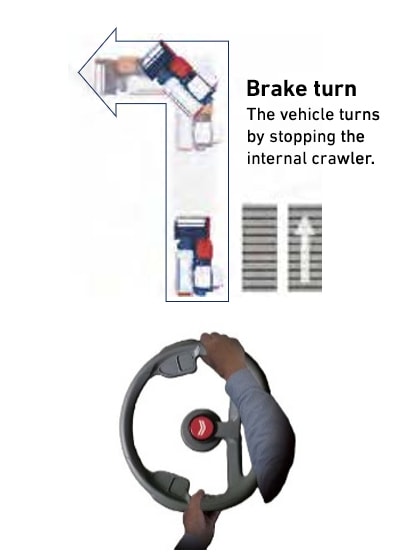

    Brake turn / The vehicle turns by stopping the internal crawler.

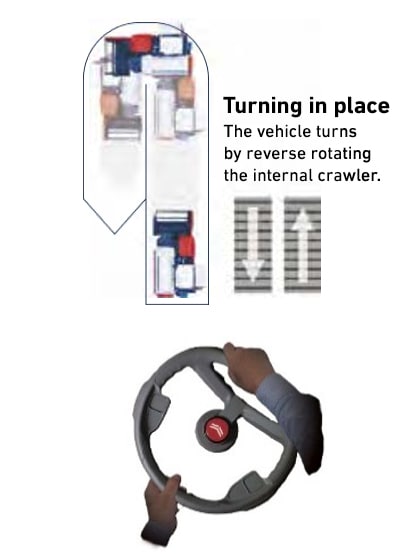

    Turning in place / The vehicle turns by reverse rotating the internal crawler.

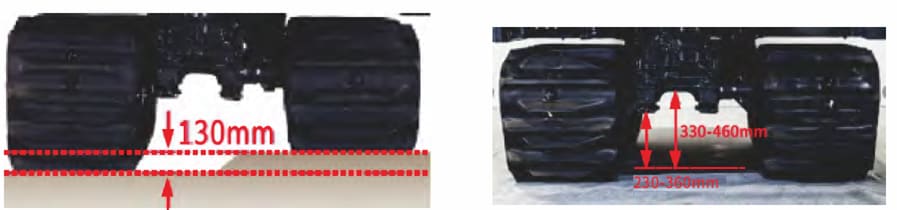

    When the mud feet are too deep and the ground clearance is high, the machine’s passability is improved.
    During early field operations, the ground clearance is small, ensuring vehicle stability at high speeds.

    The machine’s horizontal control system enables precise horizontal operation.

  • Water level alignment ensures stable pickup of fallen crops.
  • Overcomes uneven mud depth, maintaining consistent crop cutting height and stable grain penetration depth.
  • When the machine is level, vibration sieves operate horizontally, improving grain selection quality.
    •

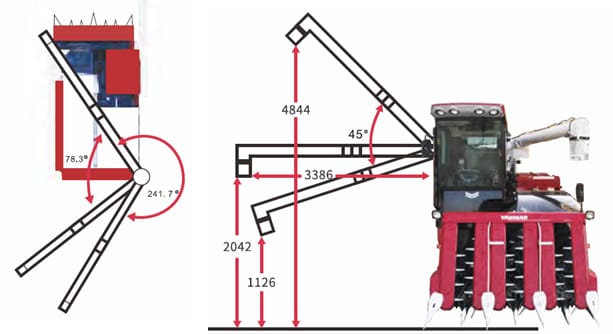

  • The unloading pipe can be positioned with one touch (at the highest vertical position of the grain tank) or manually selected for quick grain unloading.
  • The unloading pipe can return to any position with one touch.
    •
