YH
Top Specifications Option

OPTION / ATTACHMENT OF YANMAR YH700MA / YH700M COMBINE HARVESTER MODEL

Model YH700MA,Q20BCX-JP YH700MA,Q26BCX-JP YH700MA,Q20BX-JP YH700MA,Q26BX-JP YH700MA,QRNCX-JP YH700M,AQ20BXS-KR
Type Soybean
specification		 Wheat
specification		 Soybean
specification		 Wheat
specification
Option /
Attachment		 Bean /
Wheat /
Backwheeat		 Bean & Buckwheat
Common Kit		 K700MA JP ● ●
K700MA KR ●
Wheat & Buckwheat
Common Kit		 KW700MA JP ● ● ●
Basic Bean Kit B700MA BAS-JP ● ●
B700MA BAS-KR ●
Soybean Kit B700MA JP ● ●
B700MA KR ●
Adzuki Bean Kit RB700MA JP ● ● ● ● ●
RB700MA KR ●
Red Kidney Bean Kit KB700MA JP ● ● ● ● ●
Wheat Kit W700MA JP ● ● ●
Buckwheat Kit BW700MA JP ● ● ● ● ●
BW700MA KR ●
Corn Corn kit
2.0m Header		 C700MA JP ● ● ●
C700MA KR ●
Corn kit
2.6m Header		 C700MAW JP ● ● ●
Corn kit B
Bar & Conveyor Kit		 C700MA B-JP ● ●
Others Spreader CSS700MA JP ● ● ● ● ●
CSS700MA KR ●
Dust Fan BF700MA JP ● ● ● ● ●
Wheat Intake Kit WR700 JP ● ● ● ● ●
Pipe Concave Kit B700MA PIPE-JP ● ● ●
Large-Diameter Conveyor Kit BW700 CNV-JP ● ● ● ● ●
Lifter Kit
(2 pieces per set)		 B700 LFT-JP ● ● ● ● ●
B700 LFT-KR ●
Bean Slat
2.0m Header		 B700 SLAT-JP ● ● ●
B700 SLAT-KR ●
Bean Slat
2.6m Header		 B700W SLAT-JP ● ● ●
Direct Discharge Kit
(A Kit)		 B700MA-L A ● ● ● ● ●
Direct Discharge Kit
(B Kit)		 B700MA-L B ● ● ● ● ●
Row-Crop Header
4-Row Unit		 CRC4A 700M ● ● ● ● ●
Row-Crop Header Platform CRC700MA PF ● ● ● ● ●
Corn Header CH3R 700MAT-JP ● ● ● ● ●
Corn High-Cutting Kit C700MA HG-JP ● ● ● ● ●

CROP-SPECIFIC ATTACHIMENT LIST

Product Name Model Spec. Applicable Crops Remarks
Soy
-bean		 Azuki
Bean		 Red
Kidney
Bean		 Wheat Back
-wheat		 Grain
Corn
Bean & Buckwheat Common Kit K700MA JP
KR		 ● ● ● ● Parts required for harvesting beans and buckwheat with the wheat specification.
Wheat & Buckwheat Common Kit KW700MA JP ● ● Parts required for harvesting wheat and buckwheat with the soybean specification.
Basic Bean Kit B700MA BAS-JP,
BAS-KR		 ● ● ● Parts required for harvesting beans with the wheat specification.
Soybean Kit B700MA JP
KR		 ● ● Parts required for harvesting soybeans with the wheat specification.
Adzuki Bean Kit RB700MA JP
KR		 ● Parts required for harvesting adzuki beans.
Red Kidney Bean Kit KB700MA JP ● Parts required for harvesting red kidney beans.
Wheat Kit W700MA JP ● Parts required for harvesting wheat with the soybean specification.
Buckwheat Kit BW700MA JP
KR		 ● Parts required for harvesting buckwheat.
Corn Kit (Cutting Width: 2060 mm) C700MA JP
KR		 ● Parts required for harvesting grain corn. *Not required when ordering a corn header
Corn Kit (Cutting Width: 2590 mm) C700MAW JP ● Parts required for harvesting grain corn. *Not required when ordering a corn header
Corn Kit B (Bar & Conveyor Kit) C700MA B-JP ● Parts required for harvesting grain corn with the wheat specification.

Additional Convenient Dedicated Parts

Product Name Model Spec. Applicable Crops Remarks
Soy
-bean		 Azuki
Bean		 Red
Kidney
Bean		 Wheat Back
-wheat		 Grain
Corn
Spreader CSS700MA JP
KR		 ● ● ● ● ● ● Spreads straw and dust evenly across the field.
Dust Fan BF700MA JP ● ● ● ● ● ● The system operates in sync with the threshing clutch to draw dust out of the feeder house,
improving visibility and ensuring a cleaner, more comfortable working environment.
Wheat Intake Kit WR700 JP ● Enhances crop intake when harvesting high-volume wheat.
Pipe Concave Kit B700MA PIPE-JP ● Pipe concave designed for buckwheat.
Large-Diameter Conveyor Kit BW700 CNV-JP ● Second horizontal and vertical large-diameter conveyors designed for high-moisture buckwheat.
Lifter Kit (2 pieces per set) B700 LFT-JP
LFT-KR		 ● ● ● Specialized component that improves crop intake when harvesting soybeans with low pod position or lodged plants.
Bean Slat (Cutting Width: 2060 mm) B700 SLAT-JP
SLAT-KR		 ● ● ● Improved bean intake and gentle handling of grains enable harvest without header loss.
Bean Slat (Cutting Width: 2590 mm) B700W SLAT-JP ● ● ● Improved bean intake and gentle handling of grains enable harvest without header loss.
Direct Discharge Kit (A Kit) B700MA-L A ● ● ● Bucket conveyor ensures even gentler discharge of harvested crops.
Direct Discharge Kit (B Kit) B700MA-L B ● ● ● Both A and B kits are required when operating the direct discharge kit.
Row-Crop Header 4-Row Unit CRC4A 700M ● ● ● Even short-stalked beans that cannot be gathered with a reel header can be harvested with no head loss.
*When using a low‑crop header, both the platform and the unit are required.
Row-Crop Header Platform CRC700MA PF ● ● ●
Corn Header CH3R 700MAT-JP ● Enables loss-free harvesting of lodged grain corn caused by strong winds or rain, which cannot be cut by reel headers.
*Includes five machine-side components required for installation, supplied with the header.
Corn High-Cutting Kit C700MA HG-JP ● Guard component for remaining stalks during high-cut operations.

YH700MA Attachment Summary

◯: Required△: Option

Crop Name Product Name Model Spec. Reel Header Row-Crop Header Corn Header
Wheat Soybean Wheat Soybean Wheat Soybean
Soybean Row-Crop Header Platform CRC700MA PF - - ◯ ◯ -
4-Row Unit CRC4A 700M - - ◯ ◯
Bean & Buckwheat Common Kit K700MA JP ◯ - ◯ -
Basic Bean Kit B700MA BAS-JP ◯ - ◯ -
Soybean Kit B700MA JP ◯ - ◯ -
Bean Slat (For 2.0 m reel header) B700 SLAT-JP △
(Select)		 △
(Select)		 - -
Bean Slat (For 2.6 m reel header) B700W SLAT-JP
Direct Discharge Kit (A Kit) B700MA-L A △
(AB Required)		 △
(AB Required)		 △
(AB Required)		 △
(AB Required)
Direct Discharge Kit (B Kit) B700MA-L B
Lifter (Quantity: 2 pieces per set) B700 LFT-JP △ △ - -
Spreader CSS700MA JP △ △ △ △
Adzuki Bean Row Crop・Pickup Header Platform CRC700MA PF - - ◯ ◯ -
Row-Crop Header 4-Row Unit CRC4A 700M - - ◯ ◯
Bean & Buckwheat Common Kit K700MA JP ◯ - ◯ -
Basic Bean Kit B700MA BAS-JP ◯ - ◯ -
Adzuki Bean Kit RB700MA JP ◯ ◯ ◯ ◯
Bean Slat (For 2.0 m reel header) B700 SLAT-JP △
(Select)		 △
(Select)		 - -
Bean Slat (For 2.6 m reel header) B700W SLAT-JP
Direct Discharge Kit (A Kit) B700MA-L A △
(AB Required)		 △
(AB Required)		 △
(AB Required)		 △
(AB Required)
Direct Discharge Kit (B Kit) B700MA-L B
Lifter (Quantity: 2 pieces per set) B700 LFT-JP △ △ - -
Spreader CSS700MA JP △ △ △ △
Red Kidney Bean Row Crop・Pickup Header Platform CRC700MA PF - - ◯ ◯ -
Row-Crop Header 4-Row Unit CRC4A 700M - - ◯ ◯
Bean & Buckwheat Common Kit K700MA JP ◯ - ◯ -
Basic Bean Kit B700MA BAS-JP ◯ - ◯ -
Red Kidney Bean Kit KB700MA JP ◯ ◯ ◯ ◯
Bean Slat (For 2.0 m reel header) B700 SLAT-JP △
(Select)		 △
(Select)		 - -
Bean Slat (For 2.6 m reel header) B700W SLAT-JP
Direct Discharge Kit (A Kit) B700MA-L A △
(AB Required)		 △
(AB Required)		 △
(AB Required)		 △
(AB Required)
Direct Discharge Kit (B Kit) B700MA-L B
Lifter (Quantity: 2 pieces per set) B700 LFT-JP △ △ - -
Spreader CSS700MA JP △ △ △ △
Wheat Wheat & Buckwheat Common Kit KW700MA JP - ◯ - -
Wheat Kit W700MA JP - ◯
Wheat Intake Kit WR700 JP △ △
Spreader CSS700MA JP △ △
Buckwheat Bean & Buckwheat Common Kit K700MA JP ◯ - - -
Wheat & Buckwheat Common Kit KW700MA JP - ◯
Buckwheat Kit BW700MA JP ◯ ◯
Pipe Concave Kit B700MA PIPE-JP △ △
Large-Diameter Conveyor Kit BW700 CNV-JP △ △
Spreader CSS700MA JP △ △
Grain Corn Corn Kit (For 2.0 m reel header) C700MA JP ◯
(Select)		 ◯
(Select)		 - -
Corn Kit (For 2.6 m reel header) C700MAW JP
Corn Kit B (Bar & Conveyor Kit) C700MA B-JP ◯ -
Corn Header *3-Row Unit CH3R 700MAT-JP - - ◯ ◯
Corn High-Cutting Kit C700MA HG-JP △ △ △ △
Spreader CSS700MA JP △ △ △ △

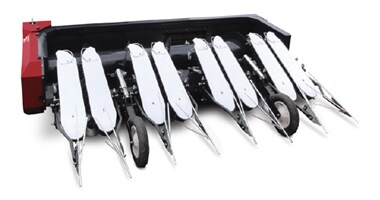

Unit: CRC4A, 700M
Platform: CRC700MA, PF

This header is designed to achieve stable crop intake even in short crops that are difficult to gather using a standard combine reel header.
It enables reliable harvesting while effectively preventing soil contamination.

Note: Certain installations may require minor modifications.

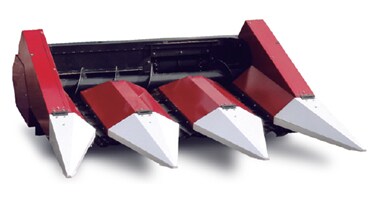

Model: CH3R, 700MAT-JP

This unit enables high‑throughput harvesting without the need for complex operator input.
Its rolling cutter mechanism ensures precise separation of ears from stalks, providing clean and efficient material handling.
