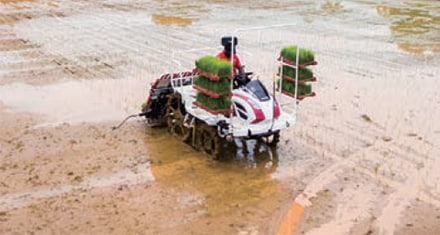

Rice transplanter helps greatly reduce labor costs, time and effort associated with manual planting and direct seeding. Rice transplanter brings the rice cultivation revolution and ensures more stable yield.
Numerous problems arise during manual planting.
Problems can be solved with the introduction of a rice transplanter.

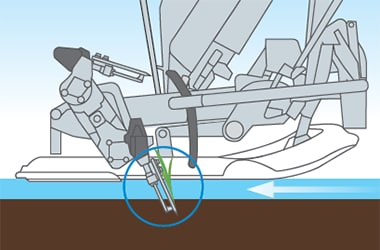

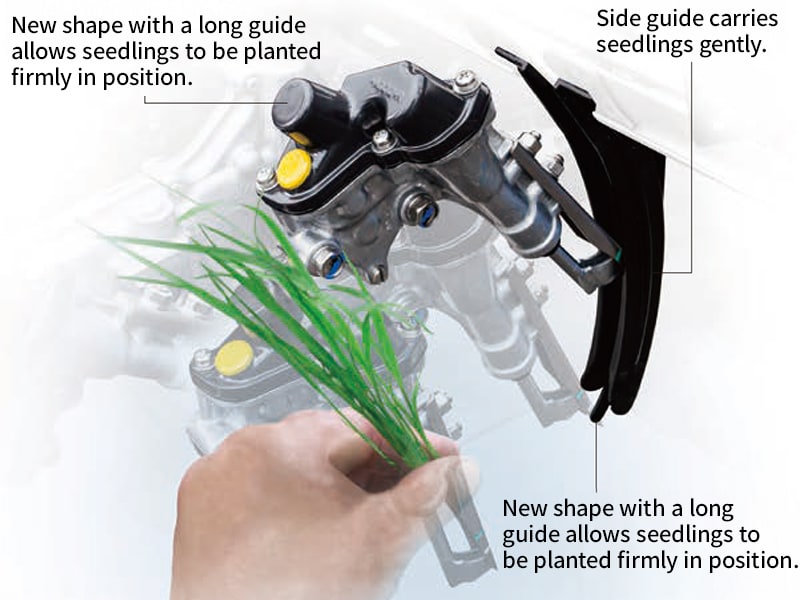

With high accuracy planting, seedlings are gently handled even at high speeds.

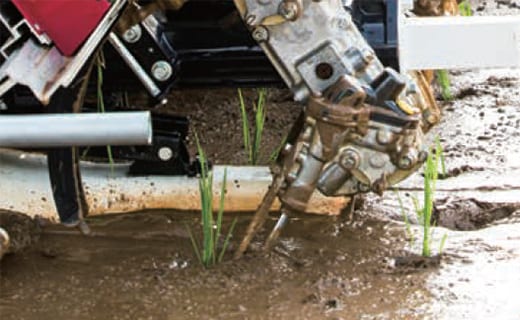

Planting is performed carefully hill‑by‑hill, just as if it is done by hand.

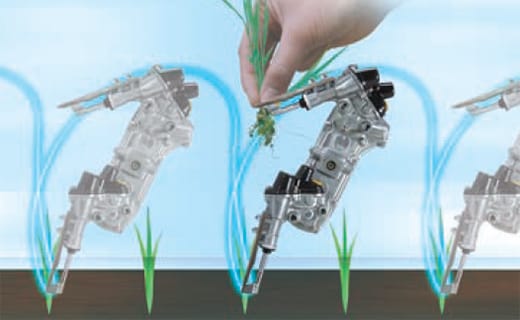

The ideal trajectory of the rotating planting section results in straight planting.

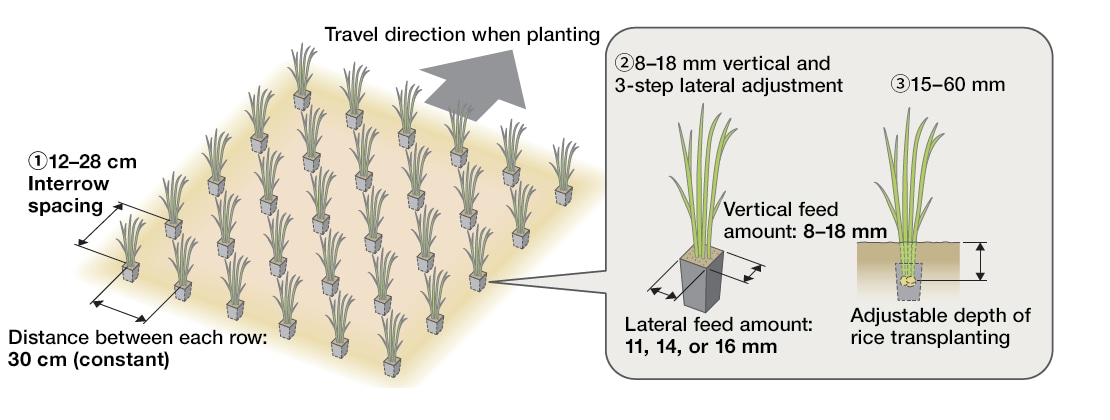

Planting machines allow for stable growth by planting
①at a constant interval
②with a constant number of seedlings
③at a constant depth

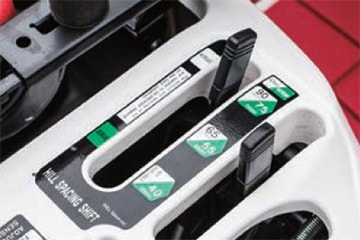

①Planting Number Changing Lever
The Planting Number Changing Lever adjusts the planting density.
The interrow spacing can be adjusted between 12 and 28 cm with five different settings.

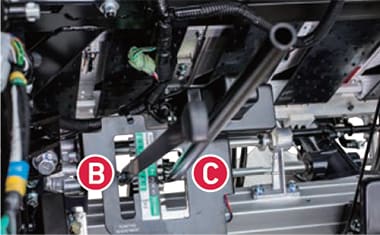

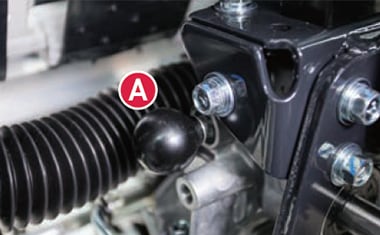

②Lateral Feed Adjusting Lever (A), Vertical Feed Adjusting Lever (B)
Help to change the vertical and lateral hill widths to adjust the number of seedlings.
③Planting Depth Control Lever (C)
The desired depth of rice transplanting can be adjusted between six different settings, varying from 15 to 60 mm.
Planting section float can be corrected even during high‑speed operation and depth of rice transplanting is automatically adjusted to a constant level.

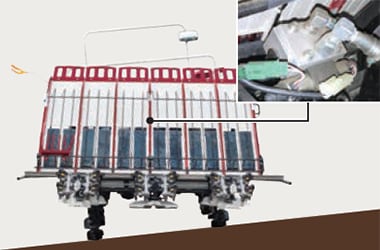

Detection of plow sole unevenness allows for quick horizontal control of the planting section through hydraulic pressure.
This allows the depth of rice transplanting to be kept constant to the right and left even during high‑speed operation.

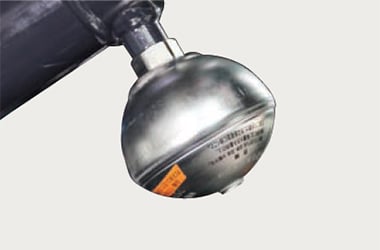

Shocks and vibrations caused by an uneven field are absorbed for a uniform planting depth.

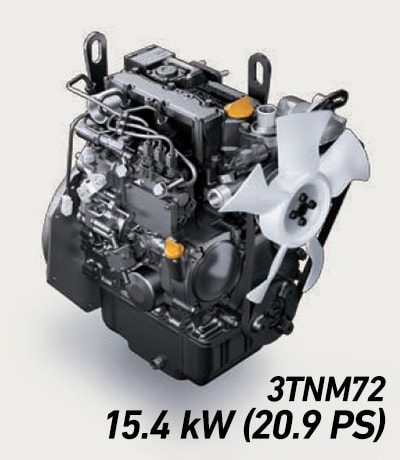

More durable and better fuel‑consumption diesel engine ensures more stable operation even in deep wet ground.

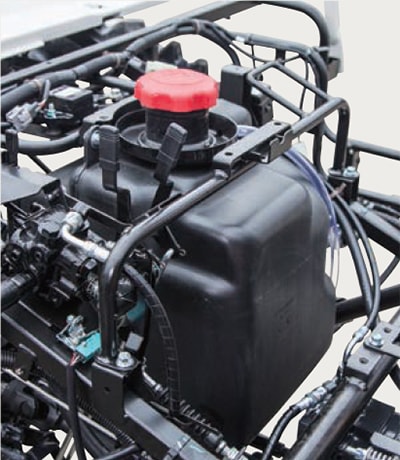

Comes equipped with a 37L large‑capacity fuel tank.
The YR60D can work continuously for 4.5 hectares (11 acres), reducing the total number of refuels required.
Fuel consumption rate reduced by 25%
Fuel fees reduced by 30%

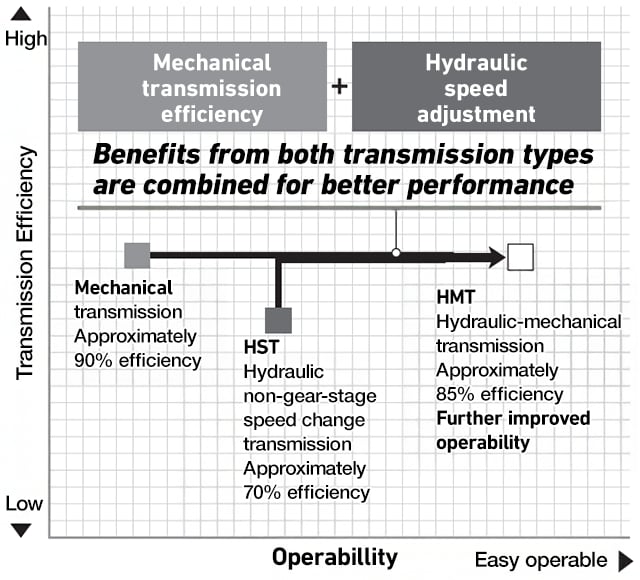

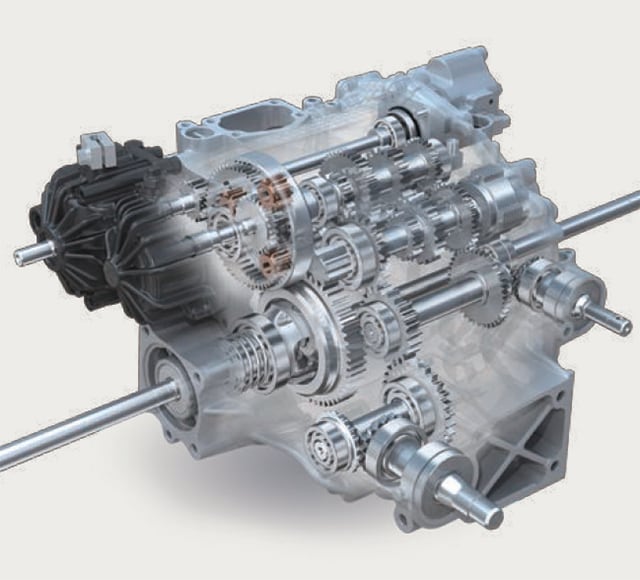

With smooth, stepless speed changes from a standstill, selecting the optimum speed is simple.
The high transmission efficiency also provides powerful driving on wet ground.

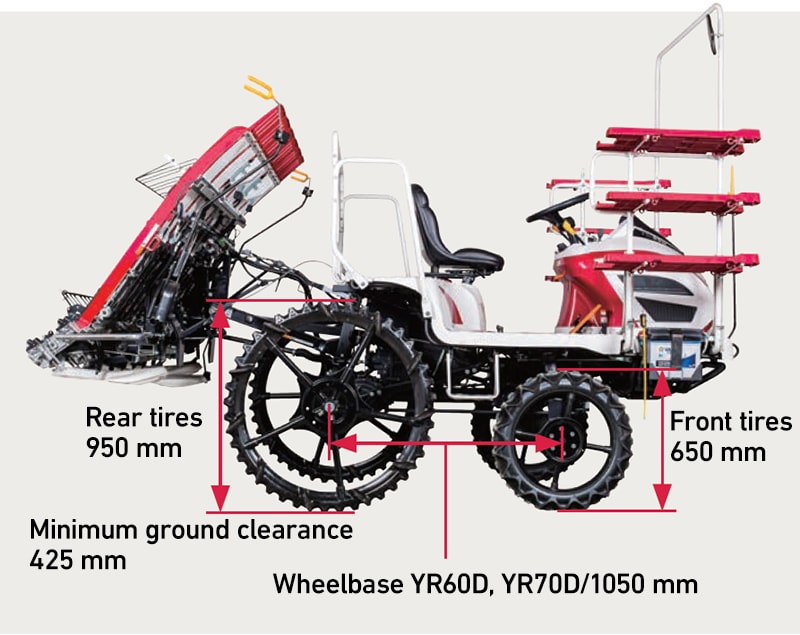

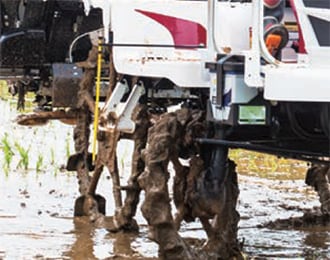

The large wheels provide improved driving performance even in deep wet ground.
Meanwhile, the long wheelbase provides a stable posture with less shake.
The four wheels are constantly on the ground for improved straightness.
This allows shaking and shocks to be absorbed, resulting in stable driving even in uneven fields.

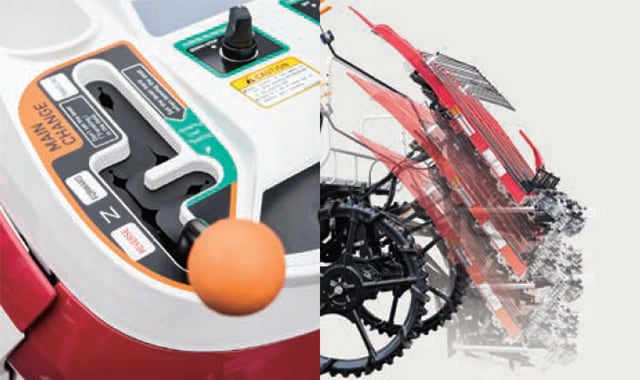

Placing the lever in "Reverse" automatically lifts the planting section, allowing for smooth backward movement.

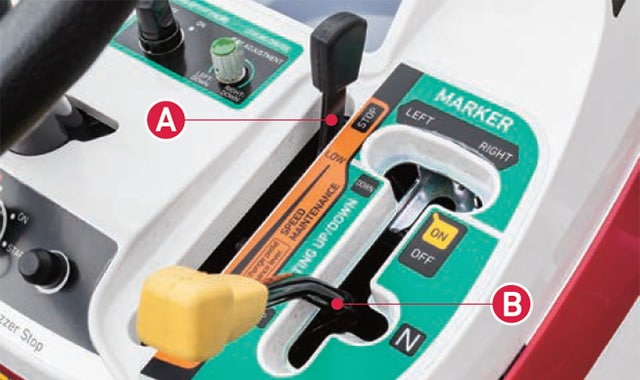

With the lever in the desired position, the planting speed will be kept constant, enabling auto‑cruise even if the pedal is released.
Planting section height and marker operation can be controlled easily from a single lever.

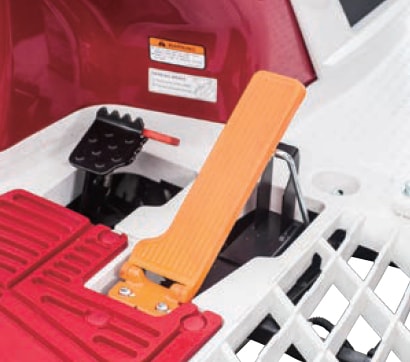

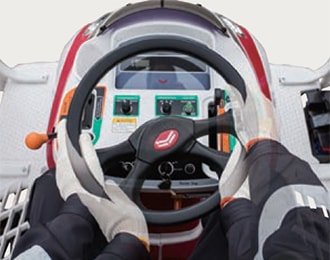

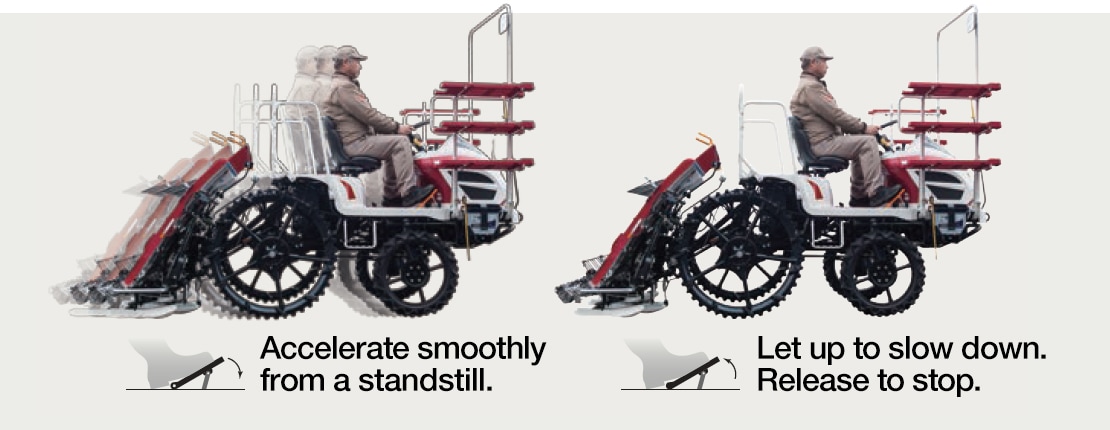

Starting and stopping as well as acceleration and deceleration can be performed using only the pedal, so operators can concentrate on steering with both hands on the wheel.This ability to intuitively control the speed allows for a more comfortable operation.
Turning the handle requires only a light touch, making it easy to steer.
This reduces operator fatigue.

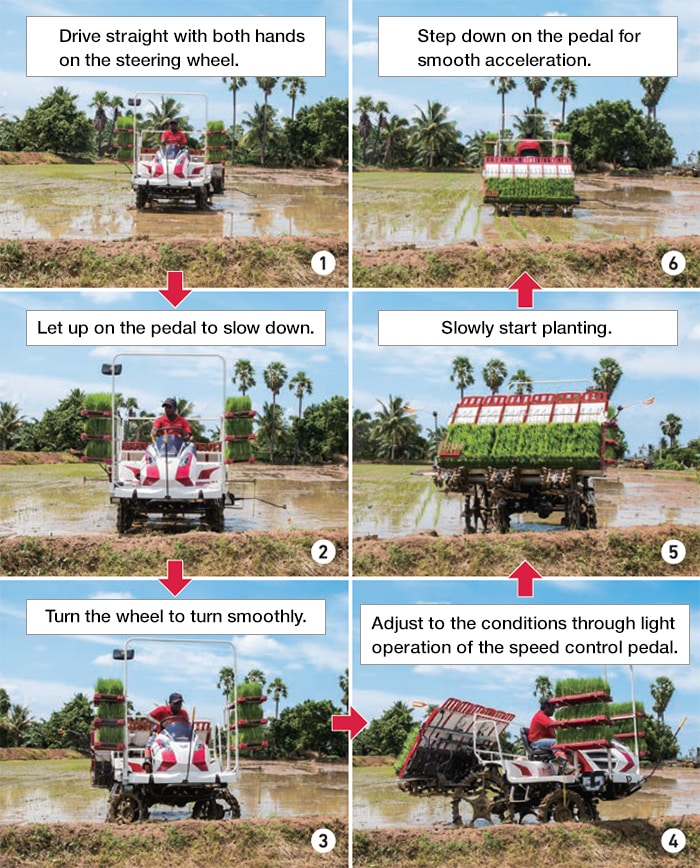

Turning is smooth and requires no braking, thus reducing wheel traces in headlands.

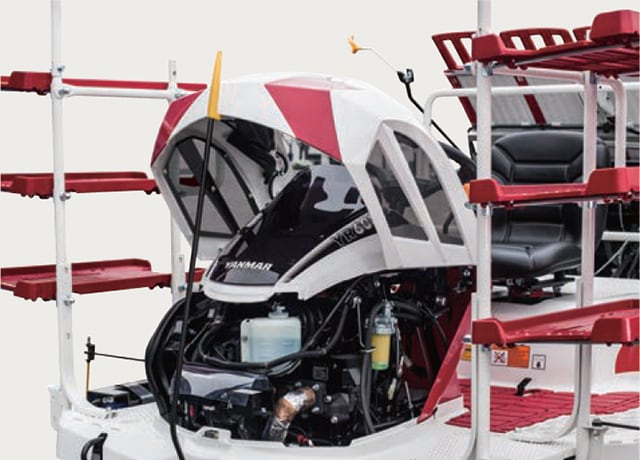

The hood opens with a single lever, which makes daily maintenance easy.
With easily removable steps, inspection and maintenance work is easy.
The easy‑to‑remove design makes checking for dirt, cleaning, and replacing the element easy.
Checking the fuses and the radiator coolant level is simple.
Cleaning of the fuel strainer and checking the engine oil is easy.

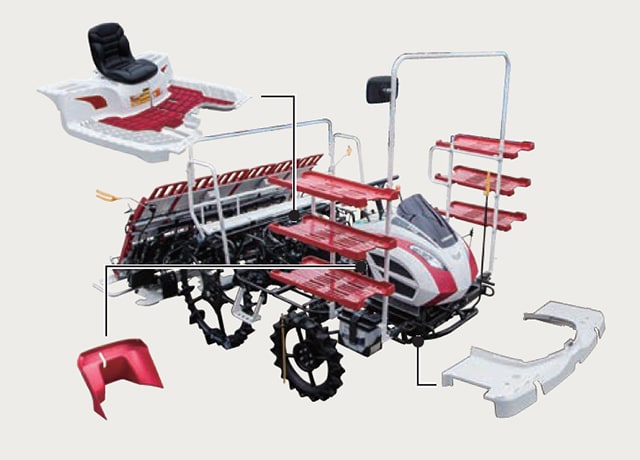

Equipped with each part for improved durability and maintainability.
Situated below the right preliminary seedling rack for easy charging and replacement.

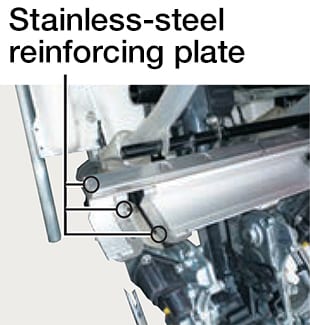

Each part is reinforced with stainless steel. Only the reinforcement needs to be replaced when worn.

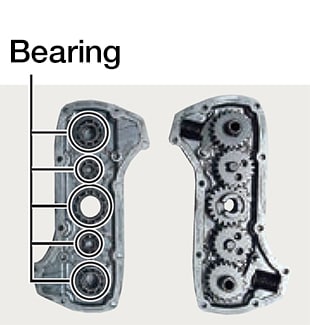

Gear bearings allow for increased durability.

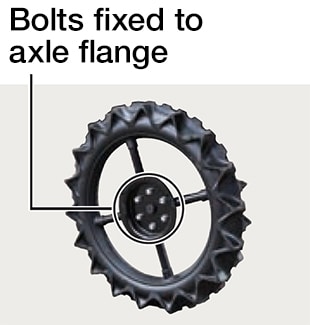

Bolts fixed to the axle flange allow for increased strength.

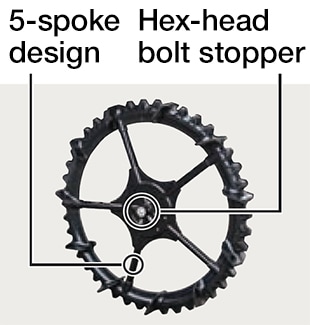

The five‑spoke design and axle hex‑head bolt stoppers allow for increased strength.

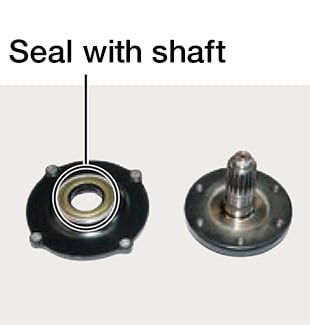

Use of a highly durable seal with shaft allows parts costs to be reduced.

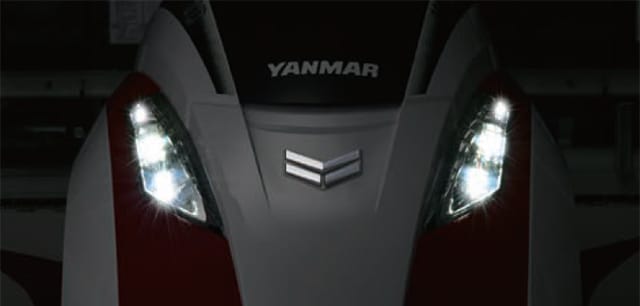

Brightly illuminate a wide area.

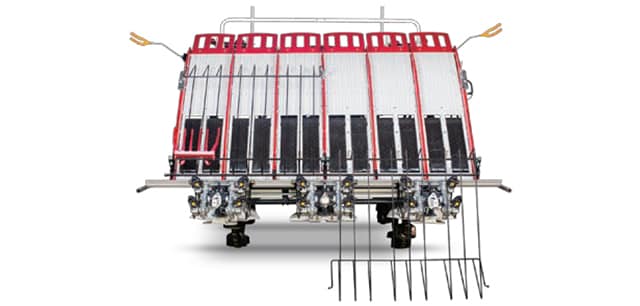

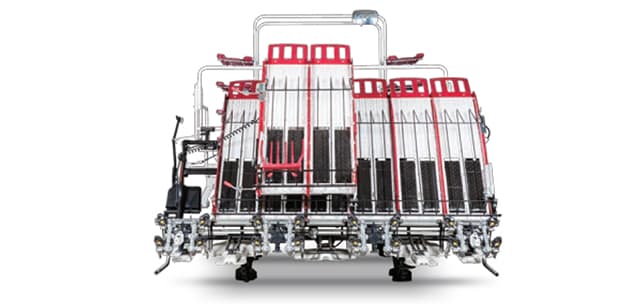

With two foldable rows, the width of the seedling rack can be reduced to that of 6‑row machines, allowing for easy storage.
Standing space has been increased by 10% compared with VP6X models (conventional planters).

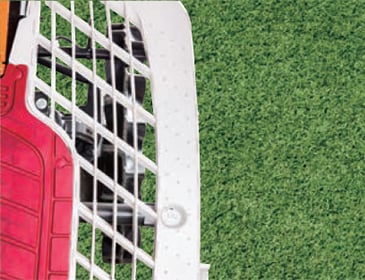

The flat, wide steps make supplying seedlings easy.
Seedling mats are securely kept when using long‑belt seedling feeding, ensuring proper delivery of seedlings.
With the ability to release seedling mat holders from the top, extra seedlings can be easily removed.

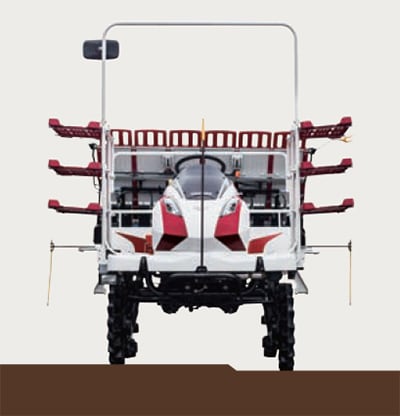

The ability to see the front tires from the operator’s seat provides a level of safety when loading or unloading the truck and when entering or leaving the work field.

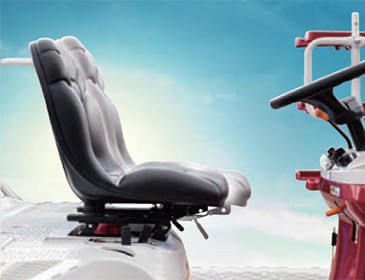

The seat position can be adjusted to one of two settings to accommodate the operator, ensuring comfortable operation.

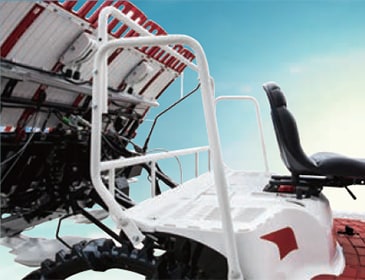

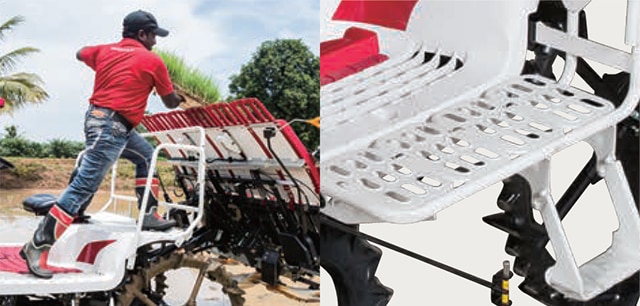

Safely get on or off the planter even in an unstable field.The Assist Bar also prevents falls when feeding seedlings.

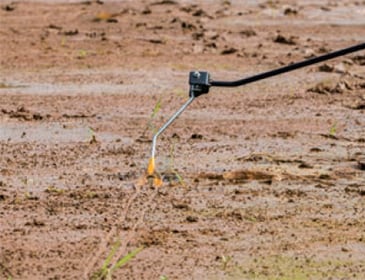

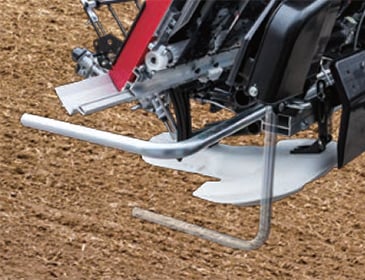

The Line Marker is used as a guide to ensure planting is performed at the same interval in subsequent rows.
The marker can be moved up or down during planting.
The guard not only protects the machine during operation but also folds into a stand for convenient use during storage.

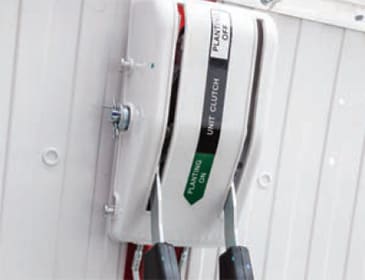

The Unit Clutch Lever allows the operator to stop planting from the operator seat and to adjust the row alignment before the final process.
