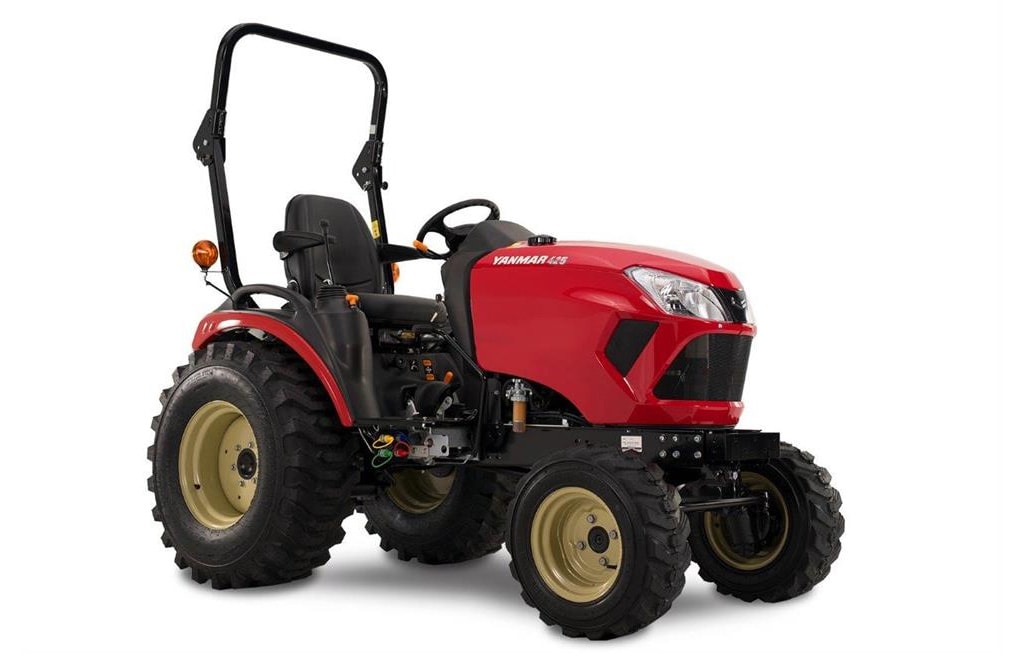

With a Yanmar SA Series tractor, you can get more done – more comfortably and more conveniently – than ever before.

The SA tractor is the ideal sub-compact tractor choice for versatility and flexibility. Operator platform comfort designed with you in mind. You can enjoy the power and precision of Yanmar’s famously reliable three-cylinder, liquid-cooled diesel engine and Yanmar's unique combination of horsepower and fuel efficiency.

Cast iron transmission, front axle, and dual hydraulic pump

Two side-by-side hydrostatic transmission pedals

Full-frame chassis

Electro hydro independent PTO with one-touch on/off

Smooth, hydraulic power steering

Model		SA223	SA325	SA425
Cabin		No	No	No
Engine	Manufacturer	YANMAR	YANMAR	YANMAR
	Model	3TNM74F	3TNV80F	3TNV80F
	Emission Level	Tier4 Level	Tier4 Level	Tier4 Level
	Gross Power	21.5HP (16.0kW)	23.9HP (17.8kW)	23.9HP (17.8kW)
	Number of Cylinders	3	3	3
	Displacement (cc)	993	1266	1266
	Rated Speed (1/min)	3200	3200	3200
	Fuel tank (L)	23	23	23
Overall length (mm)		2594	2688	2688
Overall Width (mm)		1200	1387	1373
Overall Height (mm)		2090	2180	2215
Ground Clearance (mm)		163	215	249
Wheel Base (mm)		1400	1600	1600
Weight (kg)		697	778	830
Transmission		Hydrostatic Transmission, Dual Range Speeds	Hydrostatic Transmission, Dual Range Speeds	Hydrostatic Transmission, Dual Range Speeds
Number of Gears		-	-	-
Drive Type		4WD	4WD	4WD
Rear PTO Speed/Engine Rated Speed		554	554	554
Mid PTO Speed/Engine Rated Speed		2057	2057	2057
3-Point Hitch		Limited Category Ⅰ	Limited Category Ⅰ	Limited Category Ⅰ
3-Point Hitch Lift Capacity at lower link end (kgf)		300 24 in. Behind Lift Point	548 24 in. Behind Lift Point	548 24 in. Behind Lift Point
Front Tires		Industrial 18x8.50-10 6PR Turf 18x8.50-10 4PR	Industrial 23x8.50-12 4PR Turf 23x8.50-12 4PR	Industrial 23x8.50-12 4PR Turf 23x8.50-12 4PR
Rear Tires		Industrial 26x12.0-12 4PR Turf 26x12.0-12 4PR	Industrial 12-16.5 10PR Turf 33x12.5-16.5 4PR	Industrial 14-17.5 6PR Turf 36x14.00-15 4PR
