Spec

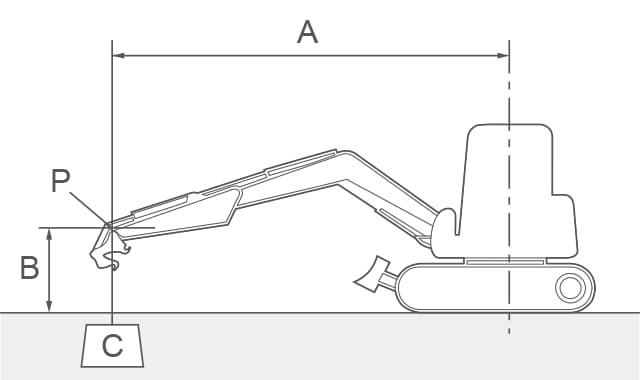

Lifting Capacity
With: Cabin and rubber track
Without: Quick coupler and bucket
A: Reach from swing center line [m (in.)]
B: Load point height [m (in.)]
C: Lifting load [kg (lbs.)]
P: Load point
: Rating over front
: Rating over side or 180 degrees
Loads shown in table include weight of standard bucket [195kg (430lbs.)].
Blade on ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] |  |
 |
|
|
|
|
|
|
| 5.0 (196.9) | *1900 (4190) |
*1920 (4234) |
- | - | *1760 (3881) |
*1800 (3969) |
- | - |
| 4.0 (157.5) | 1340 (2955) |
*1870 (4123) |
*1810 (3991) |
*1830 (4035) |
*1840 (4057) |
*1870 (4123) |
- | - |
| 3.0 (118.1) | 1170 (2580) |
*1880 (4145) |
1540 (3396) |
*1970 (4344) |
*2190 (4829) |
*2220 (4895) |
*2710 (5976) |
*2720 (5998) |
| 2.0 (78.7) | 1090 (2403) |
*1880 (4145) |
1480 (3263) |
*2210 (4873) |
2080 (4586) |
*2640 (5821) |
3110 (6858) |
*3810 (8401) |
| 1.0 (39.4) | 1070 (2359) |
*1960 (4322) |
1430 (3153) |
*2390 (5270) |
1950 (4300) |
*3160 (6968) |
2800 (6174) |
*4440 (9790) |
| 0 (0) | 1100 (2426) |
*1990 (4388) |
1390 (3065) |
*2530 (5579) |
1880 (4145) |
*3280 (7232) |
2690 (5931) |
*4610 (10165) |
| -1.0 (-39.4) | 1210 (2668) |
*2000 (4410) |
1380 (3043) |
*2370 (5226) |
1850 (4079) |
*3160 (6968) |
2700 (5954) |
*4330 (9548) |
| -2.0 (-78.7) | 1480 (3263) |
*1990 (4388) |
- | - | 1870 (4123) |
*2740 (6042) |
2660 (5865) |
*3720 (8203) |
Blade above ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] | |
|
|
|
|
|
|
|
| 5.0 (196.9) | *1900 (4190) |
*1880 (4145) |
- | - | *1760 (3881) |
*1780 (3925) |
- | - |
| 4.0 (157.5) | 1340 (2955) |
1530 (3374) |
*1810 (3991) |
*1840 (4057) |
*1840 (4057) |
*1870 (4123) |
- | - |
| 3.0 (118.1) | 1170 (2580) |
1380 (3043) |
1540 (3396) |
*1950 (4300) |
*2190 (4829) |
*2210 (4873) |
*2710 (5976) |
*2650 (5843) |
| 2.0 (78.7) | 1090 (2403) |
1270 (2800) |
1480 (3263) |
1700 (3749) |
2080 (4586) |
*2620 (5777) |
3110 (6858) |
*3830 (8445) |
| 1.0 (39.4) | 1070 (2359) |
1250 (2756) |
1430 (3153) |
1650 (3638) |
1950 (4300) |
2340 (5160) |
2800 (6174) |
3450 (7607) |
| 0 (0) | 1100 (2426) |
1270 (2800) |
1390 (3065) |
1620 (3572) |
1880 (4145) |
2240 (4939) |
2690 (5931) |
3330 (7343) |
| -1.0 (-39.4) | 1210 (2668) |
1410 (3109) |
1380 (3043) |
1600 (3528) |
1850 (4079) |
2190 (4829) |
2700 (5954) |
3320 (7321) |
| -2.0 (-78.7) | 1480 (3263) |
1710 (3771) |
- | - | 1870 (4123) |
2240 (4939) |
2660 (5865) |
3260 (7188) |
Note:
The lifting load with the asterisk (*) mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87% of hydraulic lifting capacity or 75% of tipping load, which is smaller.

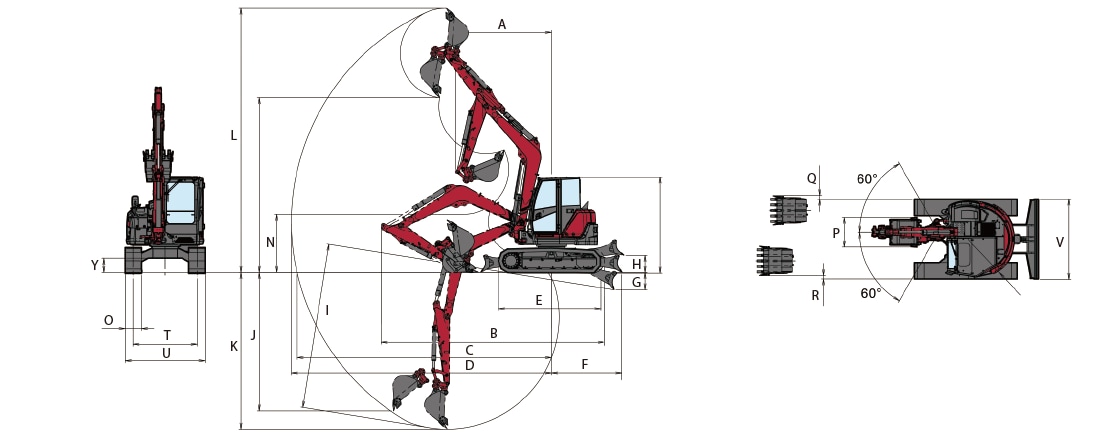

Dimensions
SV100-7 Cabin
Unit : mm(in.)
| A <at boom swing> | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
| With quick coupler | 2770 (109,1) <2360 (92,9)> |
6440 (253,5) |
7360 (289,8) |
7530 (296,5) |
3060 (120,5) |
2050 (80,7) |
500 (19,7) |
500 (19,7) |
| Without quick coupler | 2470 (97,2) <2080 (81,9)> |
6360 (250,4) |
7020 (276,4) |
7190 (283,1) |
||||
| I | J | K | L | M | N | O | P | |
| With quick coupler | 4830 (190,2) |
4210 (165,7) |
4570 (179,9) |
7710 (303,5) |
5090 (200,4) |
1690 (66,5) |
475 (18,7) |
860 (33,9) |
| Without Quick coupler | 4570 (179,9) |
3890 (153,1) |
4310 (169,7) |
7230 (284,6) |
5120 (201,6) |
1860 (73,2) |
960 (37,8) |
|
| Q | R | S | T | U | V | W | Y | |
| With quick coupler | 65 (2,6) |
135 (5,3) |
2670 (105,1) |
1870 (73,6) |
2320 (91,3) |
2320 (91,3) |
1365 (53,7) |
410 (16,1) |
| Without Quick coupler | 115 (4,5) |
85 (3,3) |
Specifications
| Model | SV100-7 | ||||
|---|---|---|---|---|---|
| Type | Cabin | ||||
| With quick coupler | Without quick coupler | ||||
| Weight | Operating weight | Rubber track | kg (lbs.) | 9830 (21671) | 9690 (21363) |
| Steel track | kg (lbs.) | 9940 (21914) | 9800 (21605) | ||
| Engine | Type | Vertical 4-cylinder water-cooled direct injection diesel engine | |||
| Model | 4TNV98CT-VBV2 | ||||
| Rated output, gross | gross kW (HP) / rpm | 53,7 (72,0) / 2100 | |||
| Bucket | Capacity, standard | cu.m (cu.ft) | 0,37 (13,07) | ||
| Width, standard | mm (in.) | 860 (33,9) | 960 (37,8) | ||
| Performance | Max. digging force | Bucket | kN (lbs.) | 53,5 (12027) | 68,4 (15377) |
| Arm | kN (lbs.) | 42,2 (4300) | 45,9 (4680) | ||
| Max. digging depth <at the blade down> | mm (in.) | 4570 (180) <4830 (190)> |
4310 (170) <4570 (180)> |
||
| Max. vertical wall digging depth | mm (in.) | 4210 (166) | 3890 (153) | ||
| Max. cutting height | mm (in.) | 7710 (305) | 7230 (285) | ||
| Max. dumping height | mm (in.) | 5090 (200) | 5120 (202) | ||
| Max. digging radius of the ground | mm (in.) | 7360 (290) | 7020 (276) | ||
| Front min. swing radius <at swinging the boom> |
mm (in.) | 2270 (109) <2360 (93)> |
2470 (97) <2080 (82)> |
||
| Boom swing angle: left / right | degrees | 60/60 | |||
| Speed | Travel speed: high / low |
Rubber track | km/h (mph) | 4,3 (2,7) / 2,1 (1,3) | |
| Steel track | km/h (mph) | 4,0 (2,5) / 2,0 (1,2) | |||
| Swing speed | rpm | 9.0 | |||
| Ground Pressure | With standard track | Rubber track | kPa (PSI) | 38,3 (5,55) | 37,8 (5,48) |
| Steel track | kPa (PSI) | 39,3 (5,70) | 38,8 (5,63) | ||
| Tank Capacity | Fuel tank | L (gal) | 115 (30.4) | ||
| Hydraulic oil tank | L (gal) | 60 (15.8) | |||
| Hydraulic System | Pump displacement | L/min (gpm) | 118.1 (31.2)×2 <Variable displacement pump> 18.0 (4.8)×1 <Gear pump> |
||
| Relief set pressure | MPa (PSI) | 27.5 (3989)×2, 3.4 (493)×1 | |||
| Max. AUX output | L/min (gpm) | 100 (26.4) <AUX1> 70 (18.5) <AUX2> 60 (15,9) <AUX3> |
|||
