Spec
Lifting Capacity
With: Cabin and rubber track
Without: Quick coupler and bucket

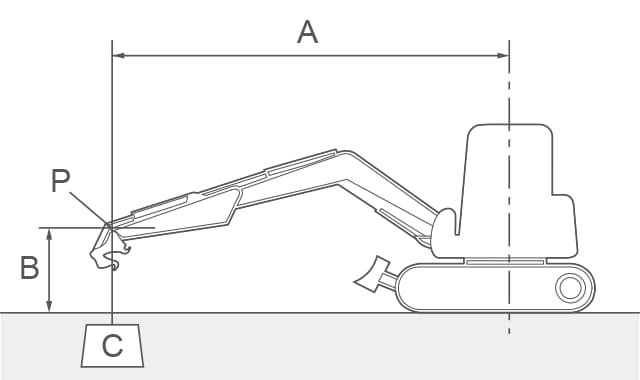

A: Reach from swing center line [m (in.)]
B: Load point height [m (in.)]
C: Lifting load [kg (lbs.)]
P: Load point
: Rating over front
: Rating over side or 180 degrees
Loads shown in table include weight of standard bucket [195kg (430lbs.)] and quick coupler [130kg (287lbs.)].
Blade on ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] |  |
 |
|
|
|
|
|
|
| 5.0 (196.9) | *1810 (4008) |
*1770 (3916) |
- | - | - | - | - | - |
| 4.0 (157.5) | *1760 (3891) |
1260 (2798) |
*1760 (3882) |
1460 (3228) |
- | - | - | - |
| 3.0 (118.1) | *1770 (3904) |
1090 (2412) |
*1870 (4138) |
1460 (3235) |
*2050 (4527) |
*2050 (4525) |
- | - |
| 2.0 (78.7) | *1810 (3990) |
1000 (2225) |
*2070 (4577) |
1400 (3104) |
*2570 (5669) |
1970 (4361) |
*3700 (8169) |
2980 (6586) |
| 1.0 (39.4) | *1820 (4010) |
980 (2169) |
*2270 (5019) |
1340 (2962) |
*2990 (6607) |
1840 (4071) |
*4360 (9621) |
2660 (5867) |
| 0 (0) | *1860 (4102) |
1000 (2205) |
*2390 (5274) |
1290 (2855) |
*3170 (7000) |
1750 (3873) |
*4490 (9907) |
2540 (5615) |
| -1.0 (-39.4) | *1900 (4188) |
1080 (2389) |
*2300 (5078) |
1270 (2803) |
*3060 (6748) |
1700 (3767) |
*4240 (9358) |
2510 (5552) |
| -2.0 (-78.7) | *1850 (4087) |
1280 (2839) |
*1890 (4170) |
1810 (3990) |
*2690 (5930) |
1720 (3803) |
*3660 (8072) |
2460 (5424) |
Blade above ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] | |
|
|
|
|
|
|
|
| 5.0 (196.9) | *1740 (3839) |
*1770 (3916) |
- | - | - | - | - | - |
| 4.0 (157.5) | 1310 (2897) |
1260 (2798) |
1460 (3232) |
1460 (3228) |
- | - | - | - |
| 3.0 (118.1) | 1130 (2504) |
1090 (2412) |
1520 (3369) |
1240 (3235) |
*2040 (4502) |
*2050 (4525) |
- | - |
| 2.0 (78.7) | 1050 (2322) |
1000 (2225) |
1490 (3297) |
1400 (3104) |
2090 (4613) |
1970 (4361) |
*3610 (7960) |
2980 (6586) |
| 1.0 (39.4) | 1020 (2250) |
980 (2169) |
1400 (3106) |
1340 (2962) |
1960 (4325) |
1840 (4071) |
2890 (6380) |
2660 (5867) |
| 0 (0) | 1040 (2308) |
1000 (2205) |
1350 (2978) |
1290 (2855) |
1850 (4084) |
1750 (3873) |
2710 (5993) |
2540 (5615) |
| -1.0 (-39.4) | 1130 (2497) |
1080 (2389) |
1310 (2891) |
1270 (2803) |
1780 (3929) |
1700 (3767) |
2660 (5878) |
2510 (5552) |
| -2.0 (-78.7) | 1310 (2904) |
1280 (2839) |
1330 (2942) |
1810 (3990) |
1800 (3967) |
1720 (3803) |
2720 (6000) |
2460 (5424) |
Note:
The lifting load with the asterisk (*) mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87% of hydraulic lifting capacity or 75% of tipping load, which is smaller.
Dimensions
- ※Rubber track specification
SV86 Cabin
Unit : mm(in.)
| A <at boom swing> | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
| With quick coupler | 2770 (109.1) <2350 (92.5)> |
6460 (254.3) |
7390 (290.9) |
7530 (296.5) |
2870 (112.9) |
1990 (78.3) |
480 (18.9) |
460 (18.1) |
| Without quick coupler | 2530 (99.6) <2140 (84.3)> |
6420 (252.8) |
7130 (280.7) |
7280 (286.6) |
||||
| I | J | K | L | M | N | O | P | |
| With quick coupler | 4980 (196.1) |
3980 (156.7) |
4700 (185) |
7280 (286.6) |
4670 (183.9) |
1430 (56.3) |
450 (17.7) |
760 (29.9) |
| Without Quick coupler | 4730 (186.2) |
4000 (157.5) |
4450 (175.2) |
7030 (276.8) |
4920 (193.7) |
1640 (64.6) |
||
| Q | R | S | T | U | V | W | Y | |
| With quick coupler | 70 (2.8) |
130 (5.1) |
2540 (100) |
1890 (74.4) |
2290 (90.2) |
2290 (90.2) |
1265 (49.8) |
370 (14.6) |
| Without Quick coupler |
Specifications
| Model | SV86-7 | ||||
|---|---|---|---|---|---|
| Type | Cabin | ||||
| With quick coupler | Without quick coupler | ||||
| Weight | Operating weight | Rubber track | kg (lbs.) | 8920 (19665) | 8800 (19401) |
| Steel track | kg (lbs.) | 8940 (19709) | 8820 (19445) | ||
| Engine | Type | Vertical 4-cylinder water-cooled direct injection diesel engine | |||
| Model | 4TNV98CT-VBV2 | ||||
| Rated output, gross | gross kW (HP) / rpm | 50.0 (67.1) / 1800 | |||
| Bucket | Capacity, standard | cu.m (cu.ft) | 0.28 (9.89) | ||
| Width, standard | mm (in.) | 760 (29.9) | |||
| Performance | Max. digging force | Bucket | kN (lbs.) | 48.1(10810) | 61.3 (13781) |
| Arm | kN (lbs.) | 32.1 (7210) | 34.9 (7850) | ||
| Max. digging depth <at the blade down> | mm (in.) | 4700 (185) <4980 (196)> |
4450 (175) <4730 (186)> |
||
| Max. vertical wall digging depth | mm (in.) | 3980 (157) | 4000 (157) | ||
| Max. cutting height | mm (in.) | 7280 (287) | 7030 (277) | ||
| Max. dumping height | mm (in.) | 4670 (184) | 4920 (194) | ||
| Max. digging radius of the ground | mm (in.) | 7390(291) | 7130(281) | ||
| Front min. swing radius <at swinging the boom> |
mm (in.) | 2770 (109) <2350 (93)> |
2530 (100) <2140 (84)> |
||
| Boom swing angle: left / right | degrees | 60/60 | |||
| Speed | Travel speed: high / low |
Rubber track | km/h (mph) | 4.8 (3.0) / 2.5 (1.6) | |
| Steel track | km/h (mph) | 4.5 (2.8) / 2.3 (1.4) | |||
| Swing speed | rpm | 9.0 | |||
| Ground Pressure | With standard track | Rubber track | kPa (PSI) | 39.2 (5.7) | 38.2 (5.5) |
| Steel track | kPa (PSI) | 39.2 (5.7) | 39.2 (5.7) | ||
| Tank Capacity | Fuel tank | L (gal) | 115 (30.4) | ||
| Hydraulic oil tank | L (gal) | 60 (15.8) | |||
| Hydraulic System | Pump displacement | L/min (gpm) | 118.1 (31.2)×2 <Variable displacement pump> 18.0 (4.8)×1 <Gear pump> |
||
| Relief set pressure | MPa (PSI) | 27.5 (3989)×2, 3.4 (493)×1 | |||
| Max. AUX output | L/min (gpm) | 100 (26.4) <AUX1> 70 (18.5) <AUX2> |
|||
