Spec
Lifting Capacity
With: Cabin and rubber track
Without: Quick coupler and bucket

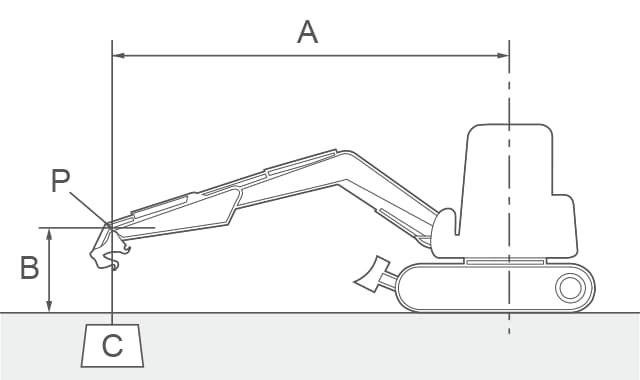

A: Reach from swing center line [m (in.)]
B: Load point height [m (in.)]
C: Lifting load [kg (lbs.)]
P: Load point
: Rating over front
: Rating over side or 180 degrees
Loads shown in table include weight of standard bucket [195kg (430lbs.)] and quick coupler [130kg (287lbs.)].
Blade on ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] |  |
 |
|
|
|
|
|
|
| 5.0 (196.9) | 1590 (3506) |
*1961 (4324) |
- | - | *1890 (4167) |
*1910 (4212) |
- | - |
| 4.0 (157.5) | 1180 (2602) |
*1880 (4145) |
1270 (2800) |
*1860 (4101) |
*1880 (4145) |
*1910 (4212) |
- | - |
| 3.0 (118.1) | 1020 (2249) |
*1870 (4123) |
1230 (2712) |
*1950 (4300) |
1740 (3837) |
*2200 (4851) |
*2760 (6086) |
*2790 (6152) |
| 2.0 (78.7) | 930 (2051) |
*1900 (4190) |
1180 (2602) |
*2130 (4697) |
1640 (3616) |
*2630 (5799) |
2390 (5270) |
*3760 (8291) |
| 1.0 (39.4) | 910 (2007) |
*1930 (4256) |
1130 (2492) |
*2280 (5027) |
1530 (3374) |
*2980 (6571) |
2160 (4763) |
*4190 (9239) |
| 0 (0) | 930 (2051) |
*1940 (4278) |
1110 (2448) |
*2340 (5160) |
1480 (3263) |
*3070 (6769) |
2160 (4763) |
*4260 (9393) |
| -1.0 (-39.4) | 1040 (2293) |
*1940 (4278) |
1110 (2448) |
*2170 (4785) |
1490 (3285) |
*2920 (6439) |
2200 (4851) |
*3930 (8666) |
| -2.0 (-78.7) | 1280 (2822) |
*1860 (4101) |
- | - | 1530 (3374) |
*2380 (5248) |
2280 (5027) |
*3220 (7100) |
Blade above ground
Unit: kg (lbs.)
| A [m (in.)] | Max. | 5.0 (196.9) | 4.0 (157.1) | 3.0 (118.1) | ||||
|---|---|---|---|---|---|---|---|---|
| B [m (in.)] | |
|
|
|
|
|
|
|
| 5.0 (196.9) | 1590 (3506) |
*1890 (4167) |
- | - | 1890 (4167) |
*1870 (4123) |
- | - |
| 4.0 (157.5) | 1180 (2602) |
1230 (2712) |
1270 (2800) |
1320 (2911) |
1880 (4145) |
*1870 (4123) |
- | - |
| 3.0 (118.1) | 1020 (2249) |
1060 (2337) |
1230 (2712) |
1290 (2844) |
1740 (3837) |
*2110 (4653) |
2760 (6086) |
*2740 (6042) |
| 2.0 (78.7) | 930 (2051) |
970 (2139) |
1180 (2602) |
1240 (2734) |
1640 (3616) |
1720 (3793) |
2390 (5270) |
2540 (5601) |
| 1.0 (39.4) | 910 (2007) |
940 (2073) |
1130 (2492) |
1190 (2624) |
1530 (3374) |
1610 (3550) |
2160 (4763) |
2320 (5116) |
| 0 (0) | 930 (2051) |
970 (2139) |
1110 (2448) |
1160 (2558) |
1480 (3263) |
1570 (3462) |
2160 (4763) |
2340 (5160) |
| -1.0 (-39.4) | 1040 (2293) |
1080 (2381) |
1110 (2448) |
1160 (2558) |
1490 (3285) |
1570 (3462) |
2200 (4851) |
2350 (5182) |
| -2.0 (-78.7) | 1280 (2822) |
1330 (2933) |
- | - | 1530 (3374) |
1600 (3528) |
2280 (5027) |
2460 (5424) |
Note:
The lifting load with the asterisk (*) mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87% of hydraulic lifting capacity or 75% of tipping load, which is smaller
Dimensions
- ※Rubber track specification

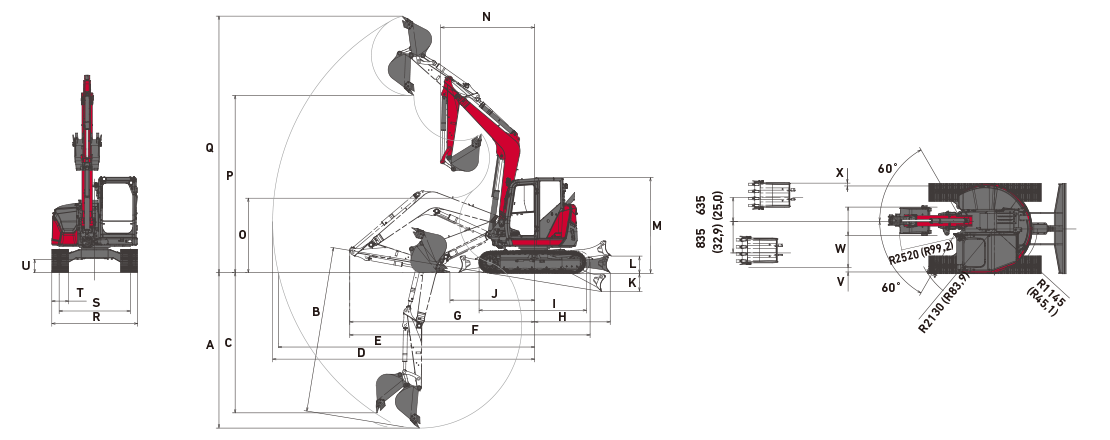

ViO80-7 Cabin
Unit : mm(in.)
| A | B | C | D | E | F | G | H | |
|---|---|---|---|---|---|---|---|---|
| With quick coupler | 4370 (172,0) |
4640 (182,7) |
3810 (150,0) |
7290 (287,0) |
7140 (281,1) |
6450 (253,9) |
4970 (195,7) |
2000 (78,7) |
| Without quick coupler | 4120 (162,2) |
4390 (172,8) |
3720 (146,5) |
6960 (274,0) |
6810 (268,1) |
6390 (251,6) |
4910 (193,3) |
|
| I | J | K | L | M | N <at boom swing> | O | P | |
| With quick coupler | 2850 (112,2) |
2410 (94,9) |
500 (19,7) |
440 (17,3) |
2540 (100,0) |
2770 (109,1) <2360 (92,9)> |
1780 (70,1) |
4630 (182,3) |
| Without Quick coupler | 2250 (88,6) |
2520 (99,2) <2130 (83,9)> |
1980 (78,0) |
4700 (185,0) |
||||
| Q | R | S | T | U | V | W | Y | |
| With quick coupler | 7260 (285,8) |
2280 (89,8) |
1890 (74,4) |
450 (17,7) |
350 (13,8) |
125 (4,9) |
760 (29,9) |
75 (2,9) |
| Without Quick coupler | 6810 (268,1) |
Specifications
| Model | ViO80-7 | ||||
|---|---|---|---|---|---|
| Type | Cabin | ||||
| With quick coupler | Without quick coupler | ||||
| Weight | Operating weight | Rubber track | kg (lbs.) | 8490 (18717) | 8350 (18409) |
| Steel track | kg (lbs.) | 8510 (18761) | 8370 (18453) | ||
| Engine | Type | Vertical 4-cylinder water-cooled direct injection diesel engine | |||
| Model | 4TNV98CT-VBV2 | ||||
| Rated output, gross | gross kW (HP) / rpm | 50.0 (67.1) / 1800 | |||
| Bucket | Capacity, standard | cu.m (cu.ft) | 0.28 (9.89) | ||
| Width, standard | mm (in.) | 760 (29.9) | |||
| Performance | Max. digging force | Bucket | kN (lbs.) | 48,1 (10803) | 61,3 (13781) |
| Arm | kN (lbs.) | 36,0 (8093) | 39,6 (8295) | ||
| Max. digging depth <at the blade down> | mm (in.) | 4370 (172) <4640 (183)> |
4120 (162) <4390 (173)> |
||
| Max. vertical wall digging depth | mm (in.) | 3810 (150) | 3720 (146) | ||
| Max. cutting height | mm (in.) | 7260 (286) | 6810 (268) | ||
| Max. dumping height | mm (in.) | 4630 (182) | 4700 (185) | ||
| Max. digging radius of the ground | mm (in.) | 7140 (281) | 6810 (268) | ||
| Front min. swing radius <at swinging the boom> |
mm (in.) | 2770 (109) <2360 (93)> |
2520 (99) <2130 (84)> |
||
| Boom swing angle: left / right | degrees | 60/60 | |||
| Speed | Travel speed: high / low |
Rubber track | km/h (mph) | 4.8 (3.0) / 2.5 (1.6) | |
| Steel track | km/h (mph) | 4.5 (2.8) / 2.3 (1.4) | |||
| Swing speed | rpm | 9.0 | |||
| Ground Pressure | With standard track | Rubber track | kPa (PSI) | 36,5 (5,3) | 35,9 (5,2) |
| Steel track | kPa (PSI) | 36,8 (5,3) | 36,2 (5,3) | ||
| Tank Capacity | Fuel tank | L (gal) | 115 (30.4) | ||
| Hydraulic oil tank | L (gal) | 60 (15.8) | |||
| Hydraulic System | Pump displacement | L/min (gpm) | 118.1 (31.2)×2 <Variable displacement pump> 18.0 (4.8)×1 <Gear pump> |
||
| Relief set pressure | MPa (PSI) | 27.5 (3989)×2, 3.4 (493)×1 | |||
| Max. AUX output | L/min (gpm) | 100 (26.4) <AUX1> 70 (18.5) <AUX2> 60 (15,9) <AUX3> |
|||
