Zarpa28 Equipment

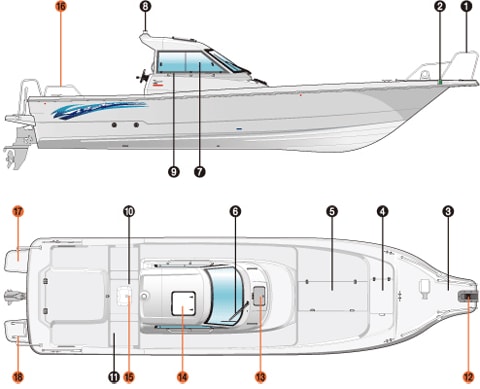

Hull Diagram

Standard equipment

  1. 1. Bow pulpit
  2. 2. Side light (Port side/Starboard side)
  3. 3. Bow sprit
  4. 4. Anchor storage
  5. 5. Long item storage
  6. 6. Wiper
  7. 7. Sliding side window (Port side)
  8. 8. Anchor light
  9. 9. Hand rail
  10. 10. Fish live cage
  11. 11. Storage (port side/starboard side)

Option

  1. 12. Bow roller
  2. 13. Air intake (Berth)
  3. 14. Skylight hatch (Cabin)
  4. 15. Fish live cage sub hatch
  5. 16. Stern rail
  6. 17. Transom step
  7. 18. Transom step (Port side/starboard side)
  8. 19. Boarding ladder

General equipments

Bow & Stern cleat Hand grip
Bow pulpit Hand rail
Bow sprit Rear door
Anchor storage Rear door
Long item storage Rear window
Front window Roof
Starboard side sliding side window Cleat
Port side window Fish live cage
Countre Storage
Side panel (Left / Right) Open top rail
Destroyer wheel Drainer cap
Driver's seat Seawater strainer
Navigation seat Fuse box
Berth floor board Light (Anchor light, side ligh)
Maintenance cover Wiper
Maintenance box Window washer
Fuel port with key Bow roller (with cleat)
Skylight Hatch (Cabin) Cabin curtain
Berth cushion Air intake (berth)
Room light Marine toilet (electric)
Fish live cage sub hatch Stern rail
Transom step (with rail) Boarding ladder
Bilge pump Vernier cable
Defroster Sliding side window (port side)
  • Standard equipment
  • Option
  • Factory option
