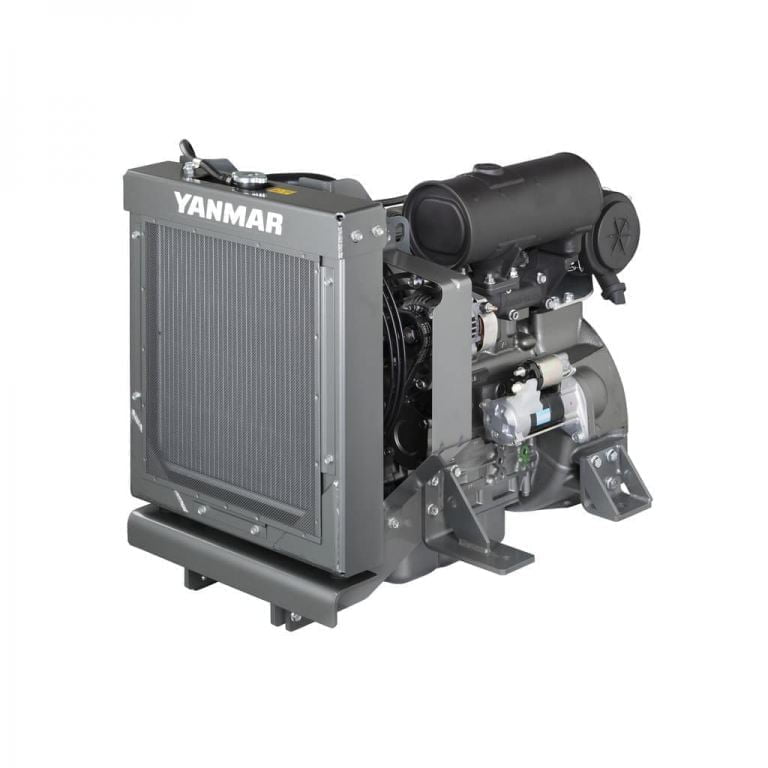

Yanmar 3TNV76 Industrial Diesel Engine
Vertical cylinder, 4-cycle water-cooled diesel engine
Discuss Your Application- Maximum Power
- 18.9 kW
- Standby Output
- 17.7 kVa
- Emission Industrial
- EU Stage V, Lower Regulated Countries
- Emission Generator
- Lower Regulated Countries
- Warranty
- 2 Year Warranty
The maximum output of this engine is higher than 19 kW (22.3 kW), to comply with Euro Stage V this engine has been derated to <19 kW (18.9 kW).
More Information
The Yanmar 3TNV76 is a 1.116 L, 3-cylinder, water-cooled, naturally aspirated, indirect-injection diesel engine. Rated output rises from approximately 7.5 kW at 1,200 rpm to a peak of 22.3 kW around 3,400–3,600 rpm, with torque remaining at a flat plateau of roughly 60–64 Nm across the 1,200–3,000 rpm range.
To comply with EU Stage V, the engine is derated to 18.9 kW for industrial use in regulated markets. It is also available in a powerpack configuration. Its compact displacement, water cooling, and flat torque curve support sustained-duty operation in demanding conditions.
UK manufacturer Demon Pressure Washers selected the 3TNV76 for its Typhoon 2 heavy industrial pressure washer, a trailer-mounted, off-grid unit engineered for continuous operation without fixed power and water supplies, citing the engine’s stable output and low maintenance requirements over long working days.
3TNV76 Technical Specifications
- Fuel Type
- Diesel
- Equipment Type
- Variable Speed Engines, Fixed Speed Engines
- Maximum Output
- 18.9 kW / 3000 rpm
- Standby Output
- 17.7 kVa / 3600 rpm
- Emission Industrial
- EU Stage V, Lower Regulated Countries
- Emission Generator
- Lower Regulated Countries
- Available as Powerpack
- Yes
- Combustion
- Indirect Injection
- Displacement
- 1.116 ltr
- No. of cylinders
- 3 cylinders
- Aspiration
- Natural
- Bore x Stroke
- 76 mm x 82 mm
- Frequency
- 50 Hz, 60 Hz
- Pole
- 2-pole, 4-pole
- Warranty
- 2 Year Warranty
The maximum output of this engine is higher than 19 kW (22.3 kW), to comply with Euro Stage V this engine has been derated to <19 kW (18.9 kW).
3TNV76 Technical Drawings & Dimensions
3TNV76 Power & Torque Curves
