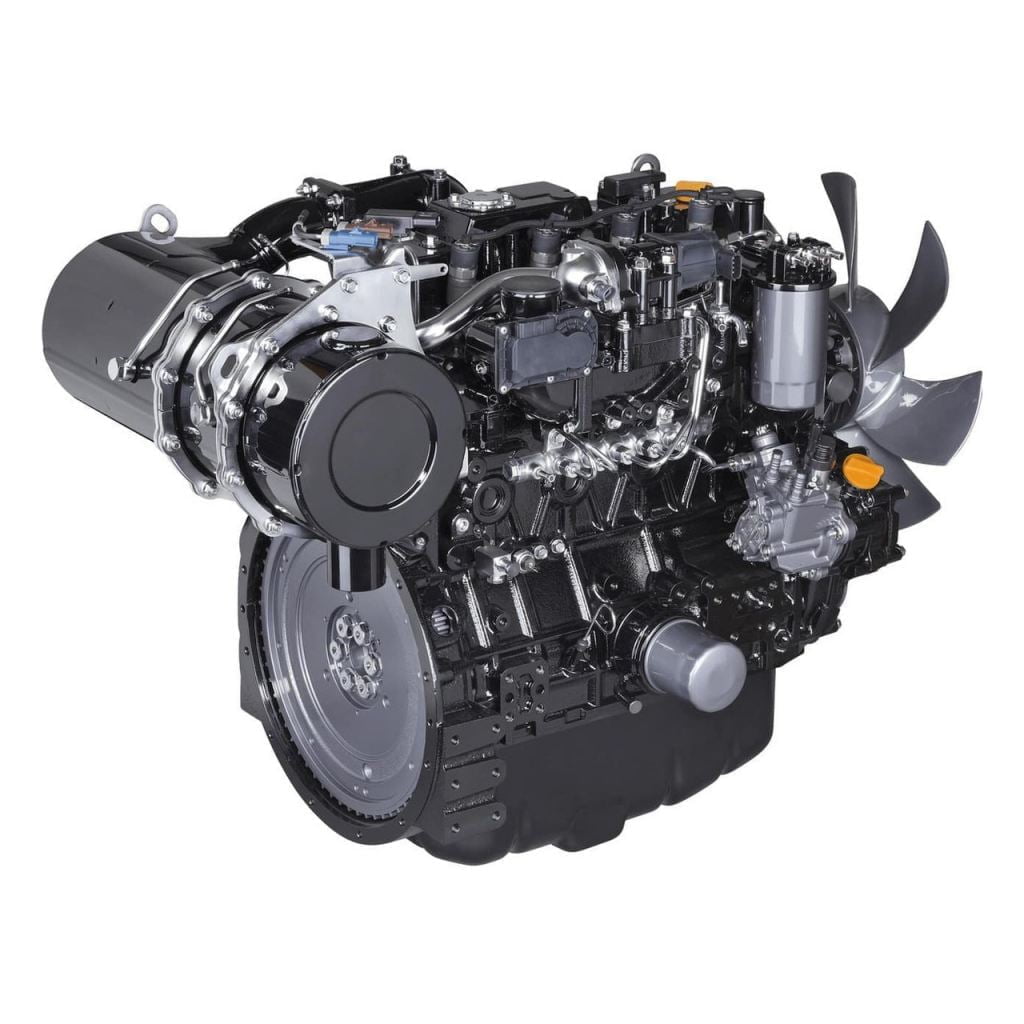

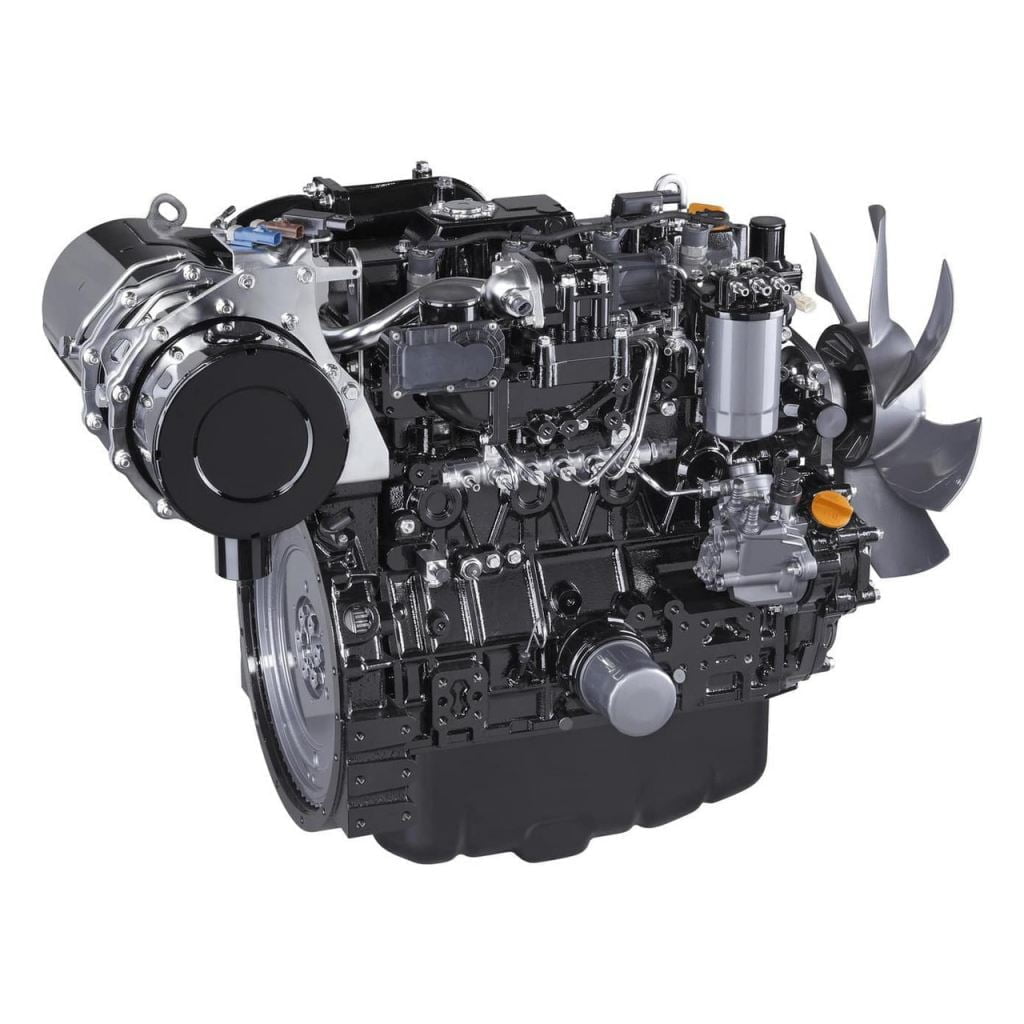

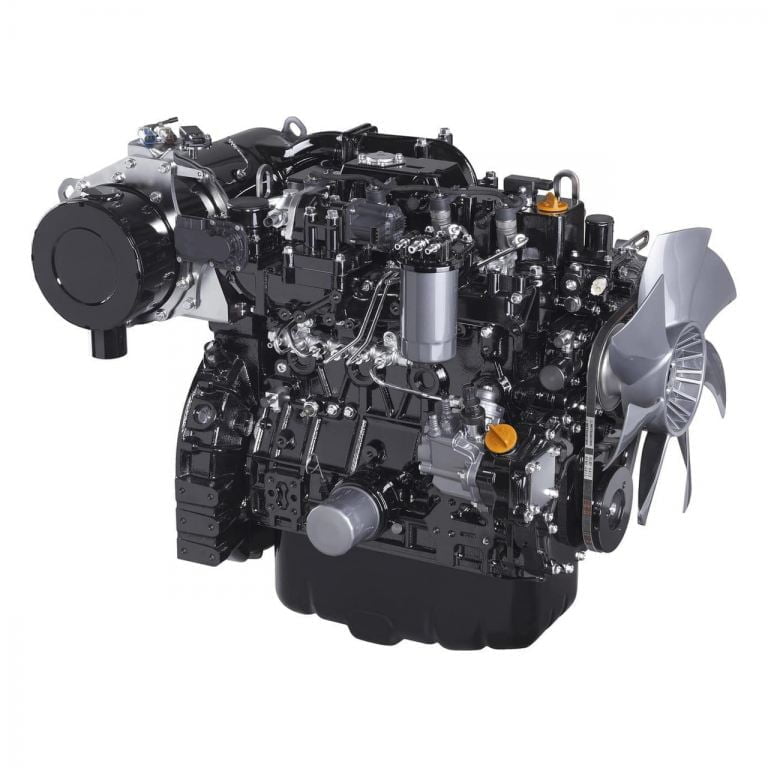

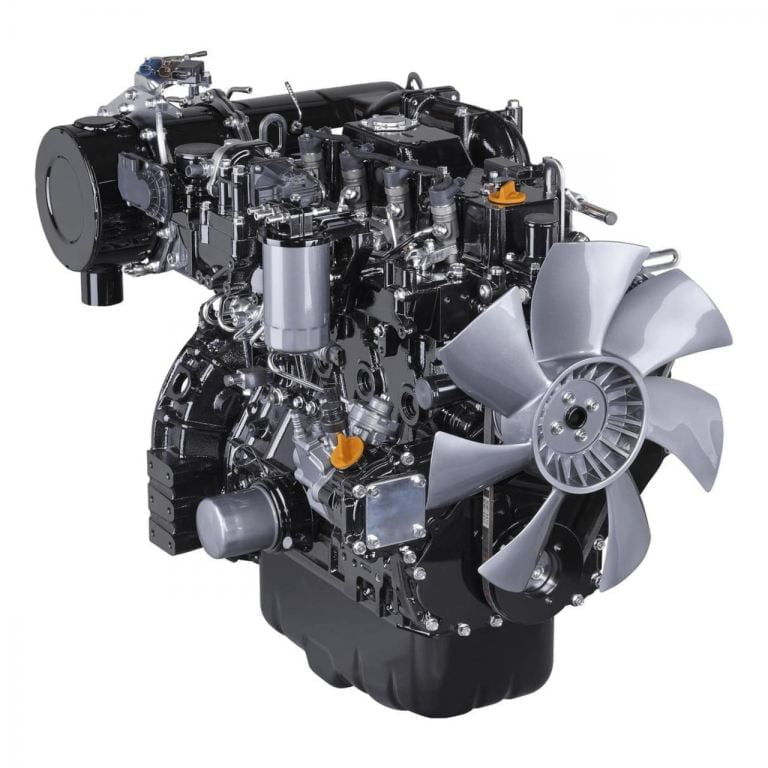

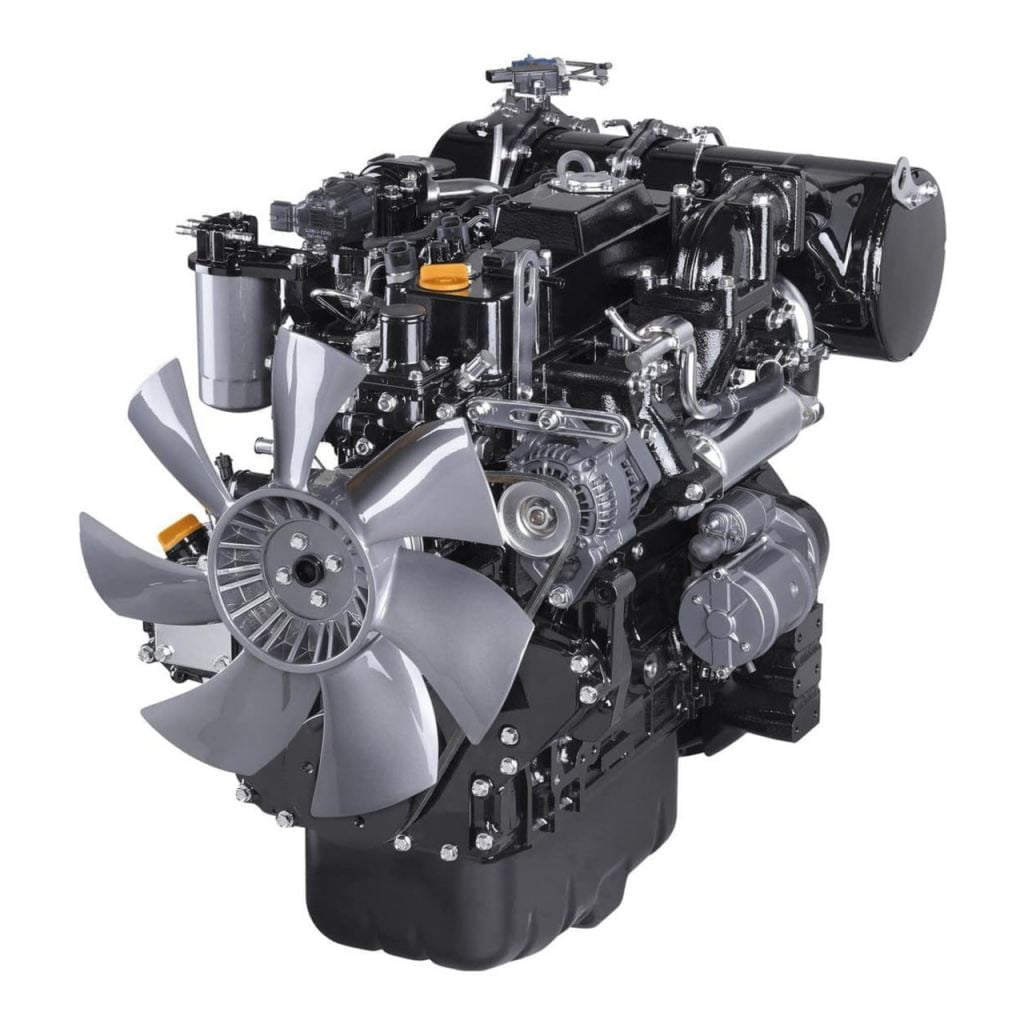

Yanmar 4TNV98C Industrial Diesel Engine
Vertical cylinder, 4-cycle water-cooled diesel engine
Discuss Your Application Find a dealer- Maximum Power
- 51.7 kW
- Standby Output
- 36.4 kVa
- Emission Industrial
- EU Stage V, EPA Tier IV Final
- Emission Generator
- EU Stage V, EPA Tier IV Final
- Warranty
- 2 Year Warranty
4TNV98C Technical Specifications
- Fuel Type
- Diesel
- Equipment Type
- Variable Speed Engines, Fixed Speed Engines
- Maximum Output
- 51.7 kW / 2500 rpm
- Standby Output
- 36.4 kVa / 1800 rpm
- Emission Industrial
- EU Stage V, EPA Tier IV Final
- Emission Generator
- EU Stage V, EPA Tier IV Final
- Available as Powerpack
- Yes
- Combustion
- Direct Injection
- Displacement
- 3.319 ltr
- No. of cylinders
- 4 cylinders
- Aspiration
- Natural
- Bore x Stroke
- 98 mm x 110 mm
- Frequency
- 50 Hz, 60 Hz
- Pole
- 4-pole
- Warranty
- 2 Year Warranty

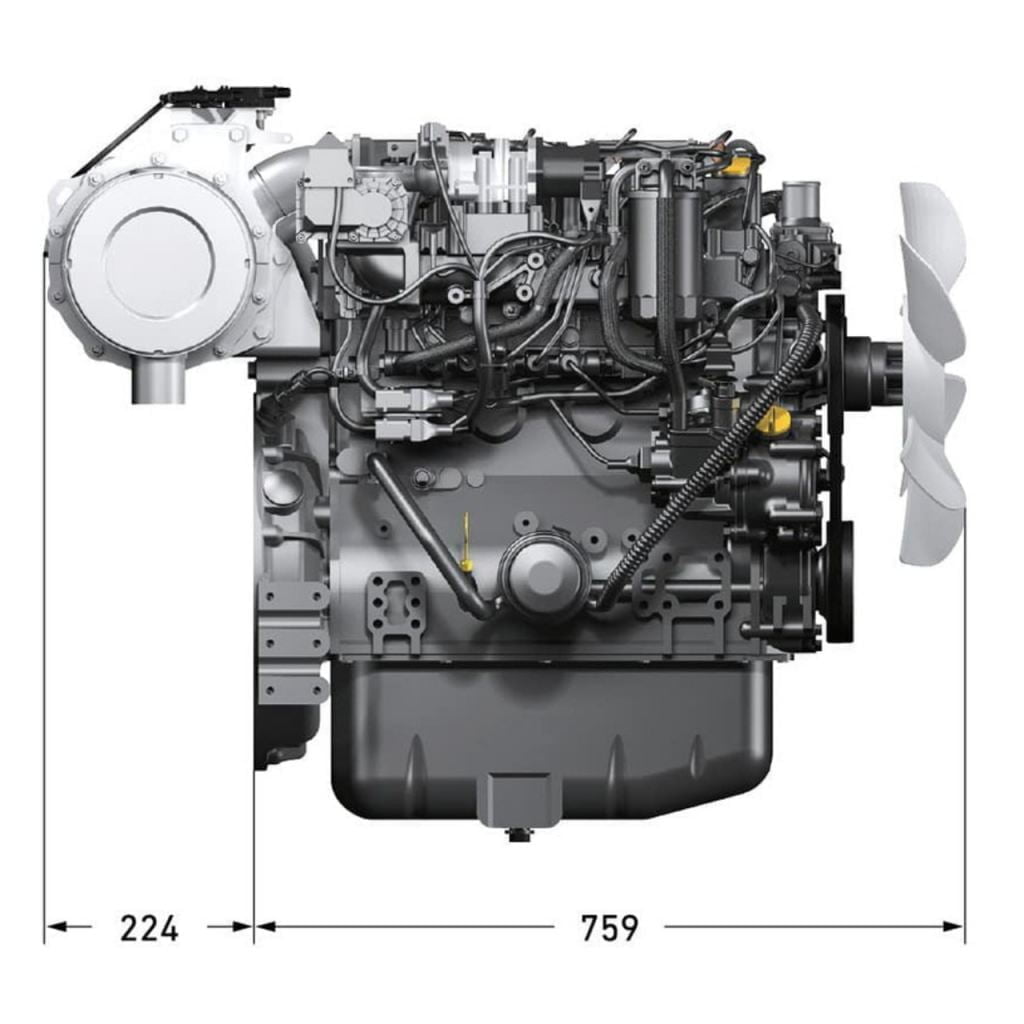

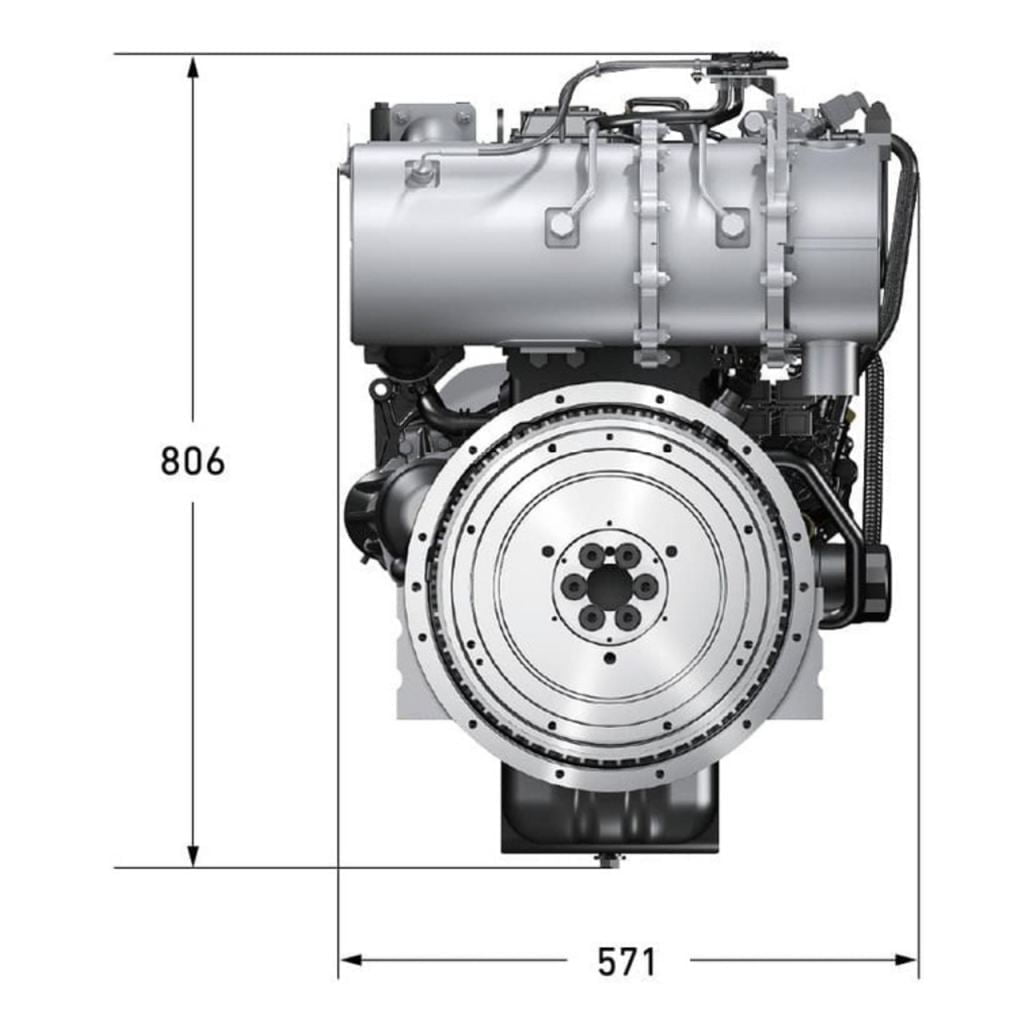

4TNV98C Technical Drawings & Dimensions

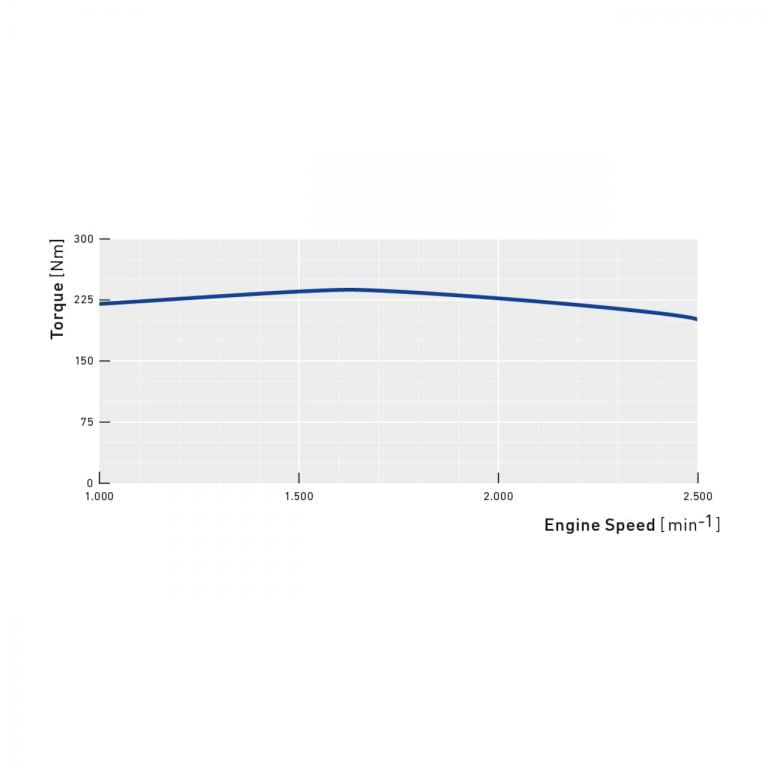

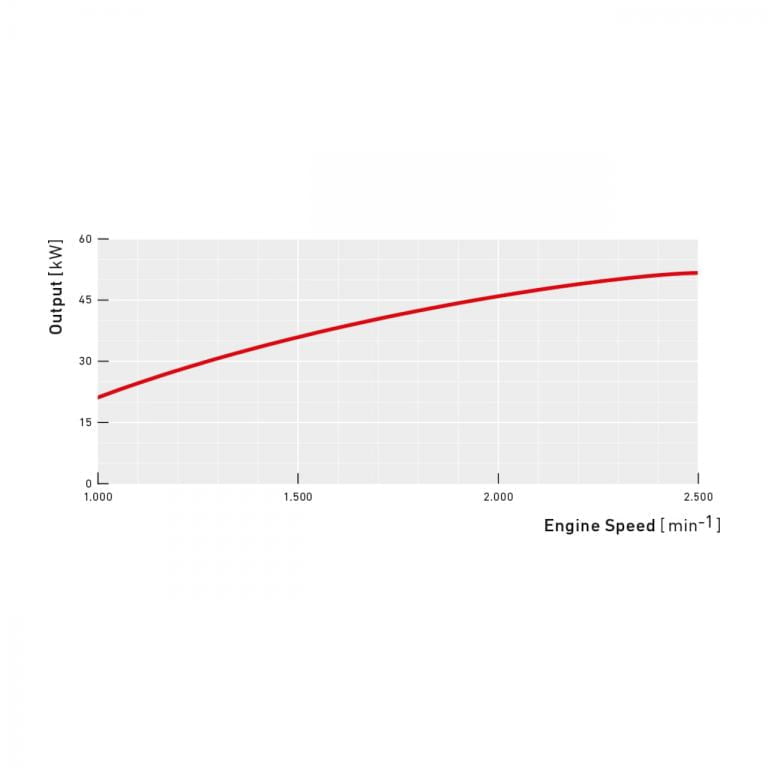

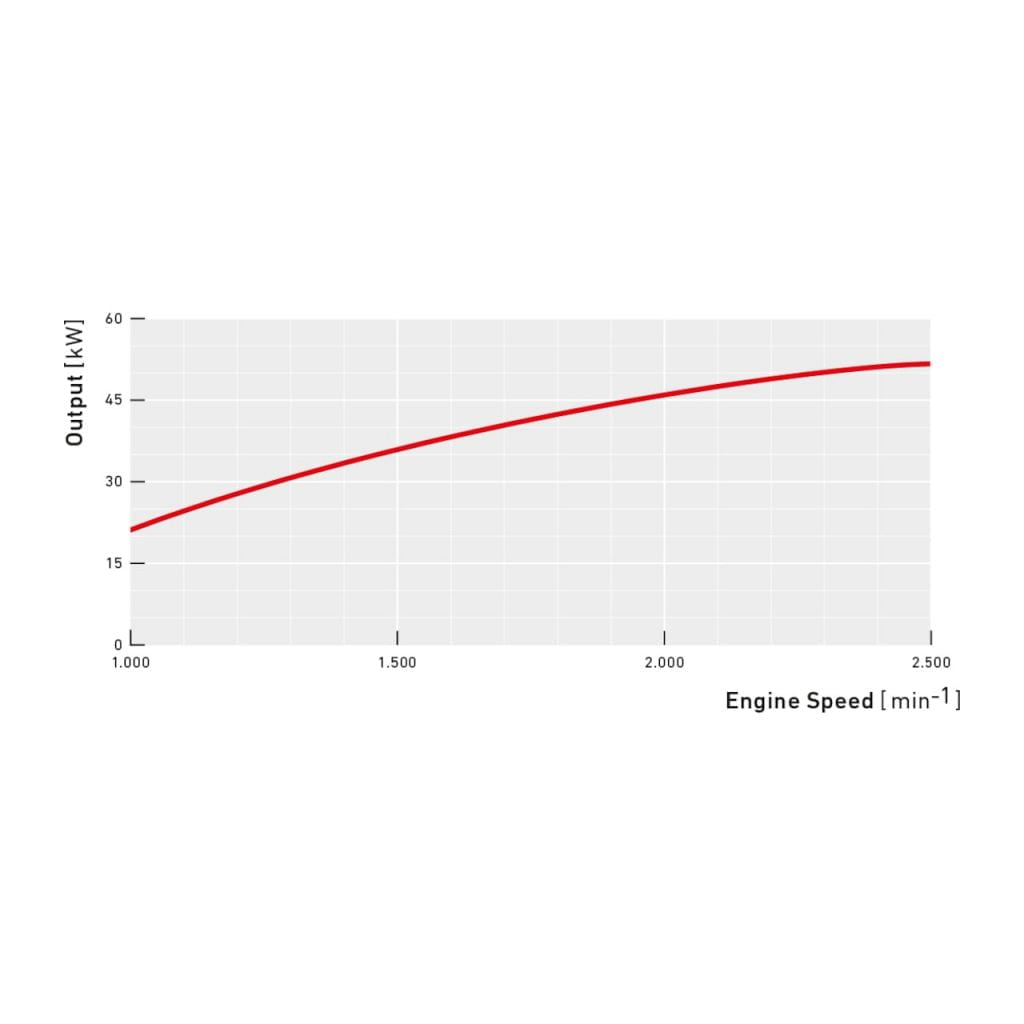

4TNV98C Power & Torque Curves
