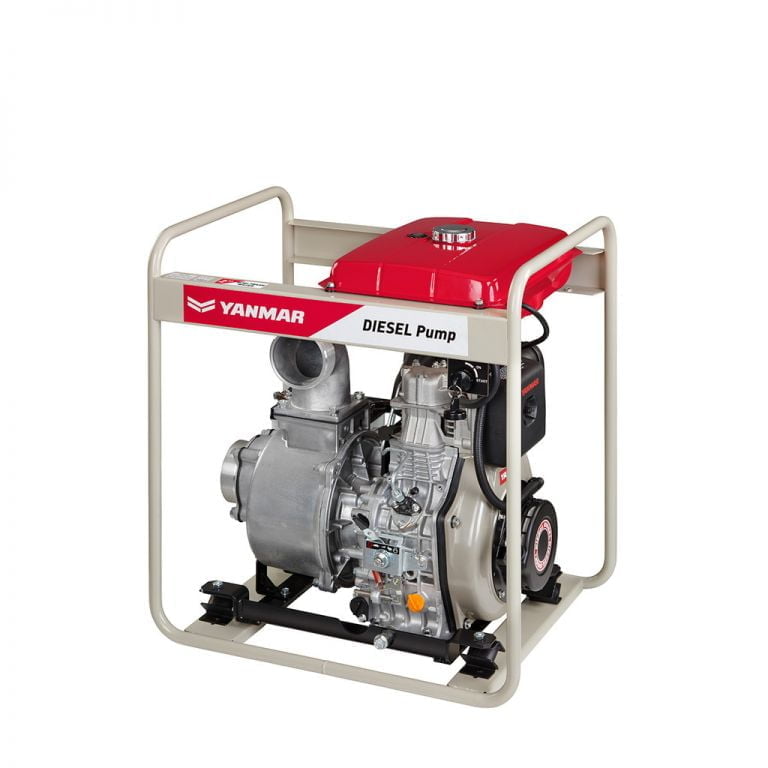

YDP20STVE

Semi-trash Pump

View Specs
Capacity
550 lt/min
Suction lift
7 m
Region of Use
Stage V - EU certified

Main Specifications

Product Type
Portable Semi-trash Pump
Starting System
Electric
Engine Fuel
Diesel Fuel
Max. Capacity
550 lit/min
Suction & discharge diameter
50 mm
Region of Use
Stage V - EU certified
Engine Model
L48V6V-PESTYI2
Engine Type
4-stroke, air cooled diesel engine
Displacement
219 cc
Maximum Output
3.4 kW / 3600 rpm
Continuous Output
3.1 kW / 3600 rpm
Fuel Oil Tank Capacity
13 lit.
Dimensions unit (LxWxH)
530mm x 484mm x 637mm
Dry weight Recoil
46 kg
Dry Weight Electric
61 kg
Suction lift
7 m
Maximum total head
22.5 m

Drawings

Performance Curves

Packages

Included

  • Strainer
  • Hose coupling set
  • Hose band (4x)
  • Tools
