OPTION / ATTACHMENT OF YANMAR YH700W, 850W, 700, 850, 880, 850L, 1180 COMBINE HARVESTER MODEL
| Model | YH700W,DW | YH850W,DW | YH850W,DRNW | YH850W,D23WF | YH700,DGU | |||
|---|---|---|---|---|---|---|---|---|
| Option / Attachment |
Dust fan | BF-YH850 | ● | ● | ● | ● | ● | |
| Assistant-side sun visor | SR-YH850A | ● | ● | ● | ● | |||
| 2.3m Header | CRH230,850 | ● | ● | |||||
| Bean | Bean kit | B-KIT A, YH | ● | ● | ● | ● | ● | |
| B-KIT A, YHC | ||||||||
| B-KIT B, YHS | ● | |||||||
| B-KIT B, YHSC | ||||||||
| Corn | Corn kit | C-KIT | ● | ● | ● | ● | ||
| C-KIT 23 | ● | |||||||
| C-KIT 26L | ||||||||
| C-KIT 23C | ||||||||
| C-KIT AS | ● | ● | ● | ● | ● | |||
| Corn header | CH3R | ● | ● | ● | ● | ● | ||
| CH3R-T | ● | ● | ● | ● | ● | |||
| CH3R-LT | ||||||||
| CH3RC | ||||||||
| Others | Lifter kit | B850, LFT | ● | ● | ● | ● | ● | |
| Rice kit | R-KIT, C | |||||||
| Spreader | CSS 850 | ● | ● | ● | ● | ● | ||
| CSS 880(China) | ||||||||
| CSS 1180 | ||||||||
| CSS, 118(China) | ||||||||
| Tine cover | COVER TINE | ● | ● | ● | ||||
| COVER TINE 23 | ● | |||||||
| COVER TINE W | ||||||||
| Model | YH700,DGQWU | YH850,DGWU | YH850,DGRNWU | YH850,DG23WU | YH850,DGQ23WU | |||
|---|---|---|---|---|---|---|---|---|
| Option / Attachment |
Dust fan | BF-YH850 | ● | ● | ● | ● | ||
| Assistant-side sun visor | SR-YH850A | ● | ||||||
| 2.3m Header | CRH230,850 | ● | ● | |||||
| Bean | Bean kit | B-KIT A, YH | ● | ● | ● | ● | ● | |
| B-KIT A, YHC | ||||||||
| B-KIT B, YHS | ● | ● | ● | ● | ● | |||
| B-KIT B, YHSC | ||||||||
| Corn | Corn kit | C-KIT | ● | ● | ● | |||
| C-KIT 23 | ● | ● | ||||||
| C-KIT 26L | ||||||||
| C-KIT 23C | ||||||||
| C-KIT AS | ● | ● | ● | ● | ● | |||
| Corn header | CH3R | ● | ● | ● | ● | ● | ||
| CH3R-T | ● | ● | ● | ● | ● | |||
| CH3R-LT | ||||||||
| CH3RC | ||||||||
| Others | Lifter kit | B850, LFT | ● | ● | ● | ● | ● | |
| Rice kit | R-KIT, C | |||||||
| Spreader | CSS 850 | ● | ● | ● | ● | ● | ||
| CSS 880(China) | ||||||||
| CSS 1180 | ||||||||
| CSS, 118(China) | ||||||||
| Tine cover | COVER TINE | ● | ● | |||||
| COVER TINE 23 | ● | ● | ||||||
| COVER TINE W | ||||||||
| Model | YH880,DG23WUF | YH880,GQ23WUC | YH850L,G26WU | YH1180,G26WU | YH1180,GQ26WU | YH1180R,GQ23U | |||
|---|---|---|---|---|---|---|---|---|---|
| Option / Attachment |
Dust fan | BF-YH850 | ● | ||||||
| Assistant-side sun visor | SR-YH850A | ||||||||
| 2.3m Header | CRH230,850 | ||||||||
| Bean | Bean kit | B-KIT A, YH | ● | ||||||
| B-KIT A, YHC | ● | ||||||||
| B-KIT B, YHS | ● | ||||||||
| B-KIT B, YHSC | ● | ||||||||
| Corn | Corn kit | C-KIT | |||||||
| C-KIT 23 | ● | ||||||||
| C-KIT 26L | ● | ● | ● | ||||||
| C-KIT 23C | ● | ||||||||
| C-KIT AS | ● | ||||||||
| Corn header | CH3R | ● | |||||||
| CH3R-T | ● | ||||||||
| CH3R-LT | ● | ● | ● | ||||||
| CH3RC | ● | ||||||||
| Others | Lifter kit | B850, LFT | ● | ● | |||||
| Rice kit | R-KIT, C | ● | |||||||
| Spreader | CSS 850 | ● | ● | ||||||
| CSS 880(China) | |||||||||
| CSS 1180 | ● | ● | ● | ||||||
| CSS, 118(China) | |||||||||
| Tine cover | COVER TINE | ||||||||
| COVER TINE 23 | ● | ● | ● | ||||||
| COVER TINE W | ● | ● | ● | ||||||
Removes dust stirred up by the header and sucked in by the feeder house making harvesting work more comfortable for the operator.

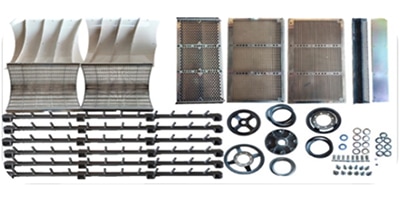

The bean kit A is a basic kit for harvesting beans as shown above.
The bean kit A is a basic kit for harvesting beans as shown above.
The bean kit B is a clean kit that includes a cleaning port for removing soil and a bucket conveyor to harvest clean beans.

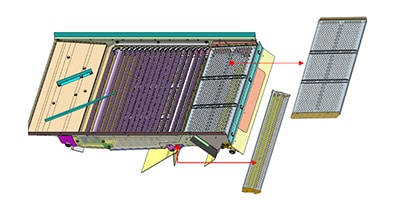

The corn kit AS is a kit that further improves sorting of threshed corn.
The rice kit C is a basic kit for harvesting rice as shown above.

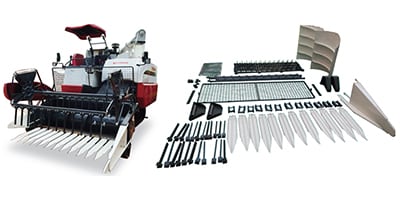

Highly efficient and highly accurate corn harvesting is possible by attaching the corn kit.
Because of Yanmar corn header, it can harvest fallen down crop efficiently. Moreover, product are clean since high performance of Yanmar threshing unit.
The lifter kit is an auxiliary attachment designed to assist in harvesting lodged grain.

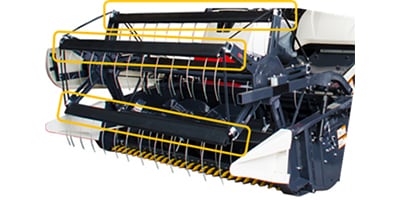

The tine cover is a cover that reduces the amount of straw that gets wrapped around the tine bar.
The combine straw spreader finely chops and uniformly distributes the threshed straw across the field, facilitating efficient incorporation into the soil during subsequent tillage operations.

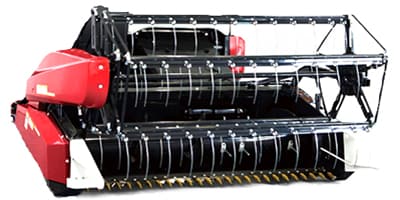

For users who own the current YH850 and want more efficient work by replacing only the header.
