Spec

Lifting Capacity

Lifting Capacity

With:
Canopy Type
Rubber Crawler
Without : Bucket
Track gauge : Maximum
A: Reach from swing center line [m<in.>]
B: Load point height [m<in.>]
C: Lifting load [kg<lbs.>]
P: Load point
: Rating over front
: Rating over side or 180 degrees

Blade on ground

Unit : kg <lbs.>

A [m. <in>] Max. 2.0 <78.7> 1.5 <59.1> Min.
B [m. <in>]
2.0 <78.7> 220
<*485>
- - - - - - -
1.5 <59.1> 220
<*485>
- 220
<*485>
- 270
<*595>
- - -
1.0 <39.4> 230
<*507>
- 260
<*573>
- 350
<*772>
- 490
<*1080>
-
0.5 <19.7> 240
<*529>
- 300
<*662>
- 470
<*1036>
- 590
<*1301>
-
0 <0> 240
<*529>
- 320
<*706>
- 480
<*1058>
- 630
<*1389>
-
-0.5 <-19.7> 260
<*573>
- 280
<617>
- 430
<*948>
- - -
-1.0 <-39.4> 230
<*507>
- - - - - - -

Blade above ground

Unit : kg <lbs.>

A [m. <in>] Max. 2.0 <78.7> 1.5 <59.1> Min.
B [m. <in>]
2.0 <78.7> 190
<419>
160
<353>
- - - - - -
1.5 <59.1> 150
<331>
120
<265>
170
<375>
150
<331>
240
<*529>
200
<441>
- -
1.0 <39.4> 130
<287>
110
<243>
170
<375>
140
<309>
280
<617>
230
<507>
380
<838>
300
<662>
0.5 <19.7> 130
<287>
100
<221>
170
<375>
130
<287>
260
<573>
210
<463>
320
<706>
260
<573>
0 <0> 140
<309>
110
<243>
170
<375>
130
<287>
260
<573>
210
<463>
340
<750>
270
<595>
-0.5 <-19.7> 170
<375>
130
<287>
160
<353>
130
<287>
270
<595>
210
<463>
- -
-1.0 <-39.4> 230
<*507>
210
<*463>
- - - - - -

Note :
The lifting load with the asterisk <*> mark is limited by hydraulic lifting capacity rather than tipping. The lifting capacity shown in the above list is based on the ISO Standard No. 10567 and represents either 87 % of hydraulic lifting capacity or 75 % of tipping load, which is smaller.

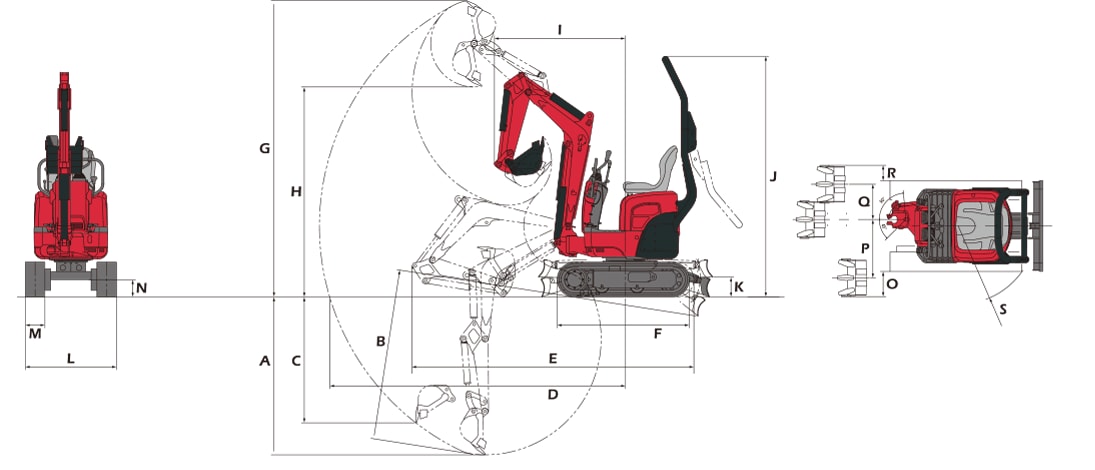

Dimensions

Dimensions

Unit: mm <ft-in>

  A B C D E F G H I J K L M N O P Q R S
SV08-1C 1500
<4'11">
1620
<5'4">
1260
<4'2">
2730
<8'11">
2600
<8'6">
1220
<4'>
2750
<9'>
1950
<6'5">
1180
<3'10">
2200
<7'3">
180
<7">
680-840
<2'3"-2'9">
180
<7">
130
<5">
230-310
<9"-1'>
540
<1'9">
330
<1'1">
140-220
<6"-9">
725
<2'5">

Specifications

Model SV08-1C
Type Variable track gauge type
Operating Weight Operating mass kg <lbs> 1035 <2282>
Machine mass (without implement) kg <lbs> 675 <1488>
Engine Type - Vertical two cylinder water-cooled diesel engine
Model - 402J-05 IG84557R
Rated Output kW <hp>/ rpm 7.7 <10.3> / 2400
Performance Bucket capacity, standard (ISO heaped) cu.m <cu.ft> 0.022 <0.777>
Max Digging Force kN <lbf> 10.5 <2360>
Traveling Speed km / h <MPH> 1.8 <1.2>
Swing Speed rpm 8.0
Boom Swing Angle, [L / R] degrees 45° / 90°
Ground Contact Pressure Average ground pressure, standard crawler kPa <PSI> 28.8 <4.18>
Hydraulic System Pump Capacity L / min <GPM> 9.8 <2.59>×2 (Gear pump)
Main Relief Set Pressure MPa <PSI> 18.1 <2625>×2
Undercarriage Track Type - Rubber
Blade Dimensions Width x Height mm <ft-in> 680 / 840 × 180 <2'3" / 2'9" × 7">
Fuel tank capacity   L <Gals> 9.7 <2.6>

Hydraulic P.T.O.

Model SV08-1C
Output MPa <PSI> L / min <GPM>
2400RPM
Specification
Combined Flow, Double Actions
18.1 <2625> 19.6 <5.2>
