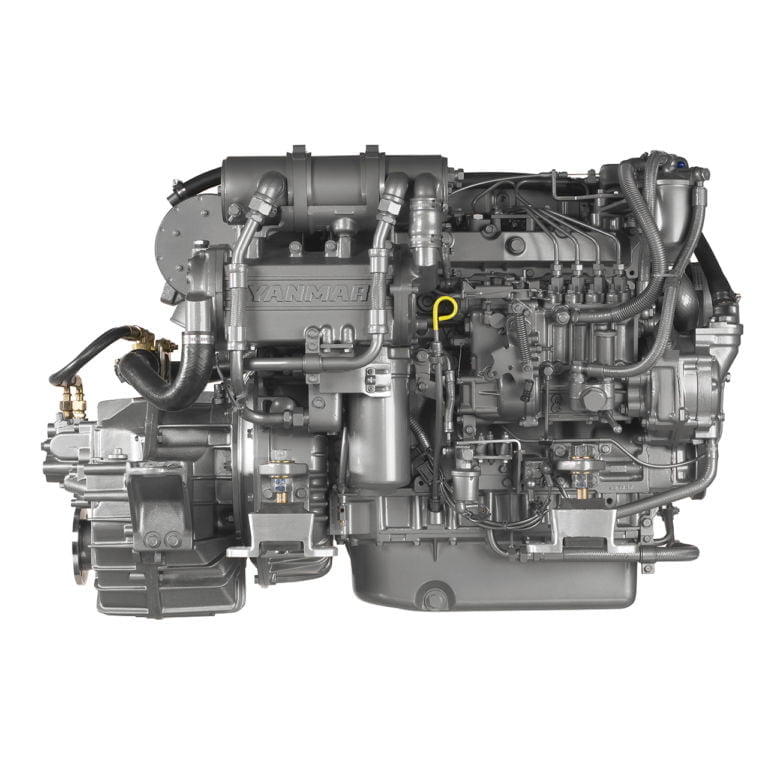

4LHA-HTP (Z)

Specifications

Rated Output
118 kW / 160 mhp
Rated Speed
3300 rpm
Displacement
3.455 L / 211 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
100 mm x 110 mm / 3.94 in x 4.33 in
Combustion system
Direct Injection, VE Rotary Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 80A
Dry weight without gear
342 kg / 754 lbs
Dimensions
1131 mm x 719 mm x 811 mm
Controls
Mechanical
Certifications
RCD 1 BSO II EMC SOLAS

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)

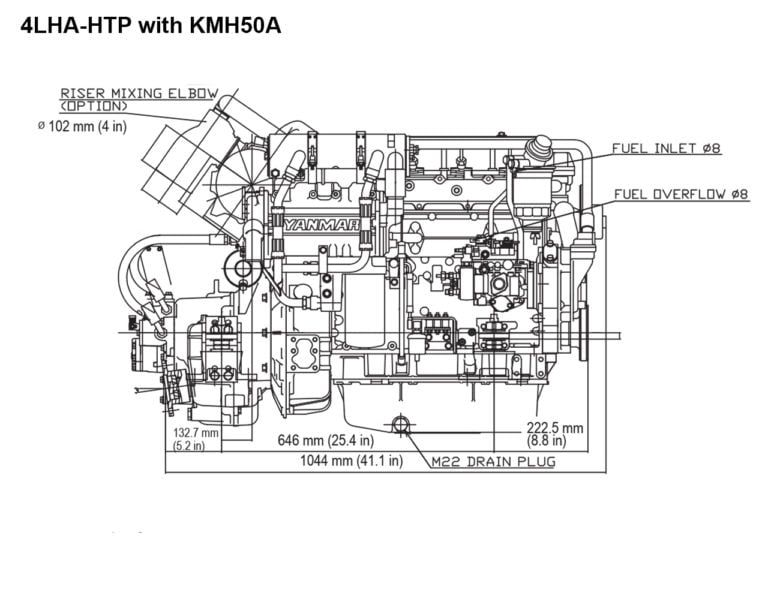

Dimensions include KMH50A gearbox and L-type elbow
(Dimensions may vary with other gears/elbow)

Drawings Download Drawings

Performance Curves Download Specification Datasheet

Packages

Standard Engine Package

  • Exhaust mixing elbow [L-type]
  • Alternator 12V – 80A

Optional Accessories

  • High-riser mixing elbow [instead of L-elbow]
  • Flexible mounts
  • B/C/D-type instrument panel
  • Extension wire harness [4m, 6m, 10m]
  • Dual harness [for 2nd station]
  • SOLAS including Certificate [factory fit only]
  • Air venting device for cooling water tank
  • Lube oil evacuation pump
  • Water separator
  • Trolling valve [only for KMH50A]
