Home ZT370

ZT370

Yanmar hydrauliskt drev

Specifikationer

Typ
Sterndrive
Typ av koppling
Hydraulisk koppling med flera friktionsplattor
Märkeffekt
370 hk / 272 kw
Reduktionsförhållande (fram/back)
1.65 / 1.65 | 1.78 / 1.78 | 1.97 / 1.97 | 2.18 / 2.18
Torrvikt
112 kg (247 lbs)
Rotationsriktning
I/P moturs, O/P moturs (främre propeller) och medurs (bakre propeller)
Trimningszon
-6 till 10

Mer information

ZT370 är ett Yanmar-utvecklat drev med hydrauliskt koppling för responsiv, smidig och tyst växling. ZT370 är kompatibelt med Yanmars motorserier 4LV och 8LV och kan styras med Yanmars VC20-system eller via vårt joystickreglage JC10A för twin-installation.

TEMPLATE ZT370 - DXF
4LV Series x ZT370 - PDF
4LV Series x ZT370 - DXF
4LV Series x ZT370 - PDF
4LV Series x ZT370 - DXF
6LPA-STZP STERNDRIVE OPTIONS - PDF
6LPA SERIES ENGINE OUTLINE - PDF
6LPA SERIES ENGINE OUTLINE - DXF
6LPA-STZP2 ZT370 THROUGH DRIVE EXHAUST - PDF
6LPA-STZP2 ZT370 THROUGH DRIVE EXHAUST - DXF
6LPA-STZP2 ZT370 THROUGH DRIVE EXHAUST6BY3 Series x ZT370 - STP
8LV Series ZT370 APPLICATION - PDF
8LV Series ENGINE OUTLINE - PDF
8LV Series ENGINE OUTLINE - DXF
8LV Series ZT370 THROUGH HULL EXHAUST - STP
8LV Series ZT370 THROUGH DRIVE EXHAUST - STP
8LV Series ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS -STP
8LV Series ZT370 WITH JC10 JOYSTICK - STP
8LV-320Z ZT370 THROUGH HULL EXHAUST - PDF
8LV-320Z ZT370 THROUGH HULL EXHAUST
8LV-320Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS - PDF
8LV-320Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS
8LV-320Z ZT370 THROUGH DRIVE EXHAUST - PDF
8LV-320Z ZT370 THROUGH DRIVE EXHAUST
8LV-320Z ZT370 THROUGH DRIVE EXHAUST - PDF
8LV-350Z ZT370 THROUGH DRIVE EXHAUST - DXF
8LV-350Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS - PDF
8LV-350Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS - DXF
8LV-350Z ZT370 THROUGH HULL EXHAUST - PDF
8LV-350Z ZT370 THROUGH HULL EXHAUST - DXF
8LV-370Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS - PDF
8LV-370Z ZT370 THROUGH DRIVE EXHAUST AND CW BYPASS - DXF
8LV-370Z ZT370 THROUGH DRIVE EXHAUST - PDF
8LV-370Z ZT370 THROUGH DRIVE EXHAUST - DXF
8LV-370Z ZT370 THROUGH HULL EXHAUST - PDF
8LV-370Z ZT370 THROUGH HULL EXHAUST - DXF

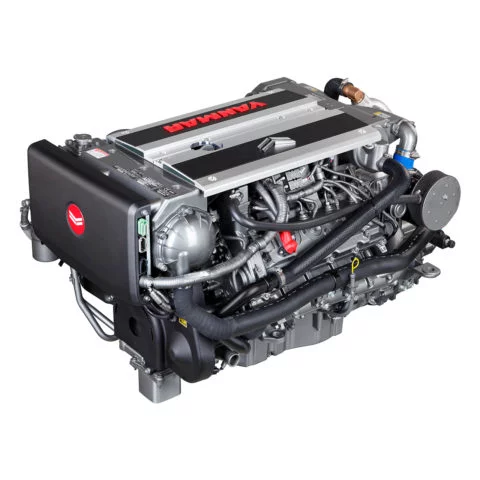

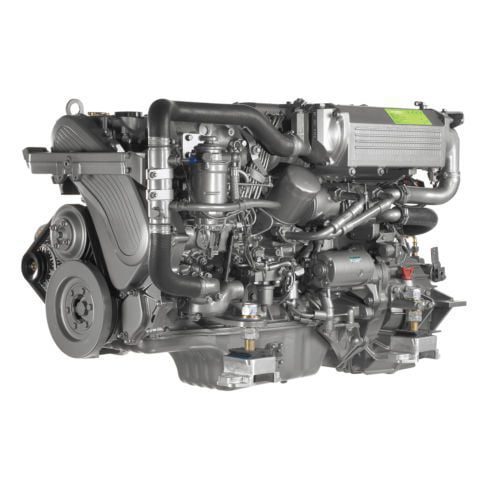

Kompatibla produkter
